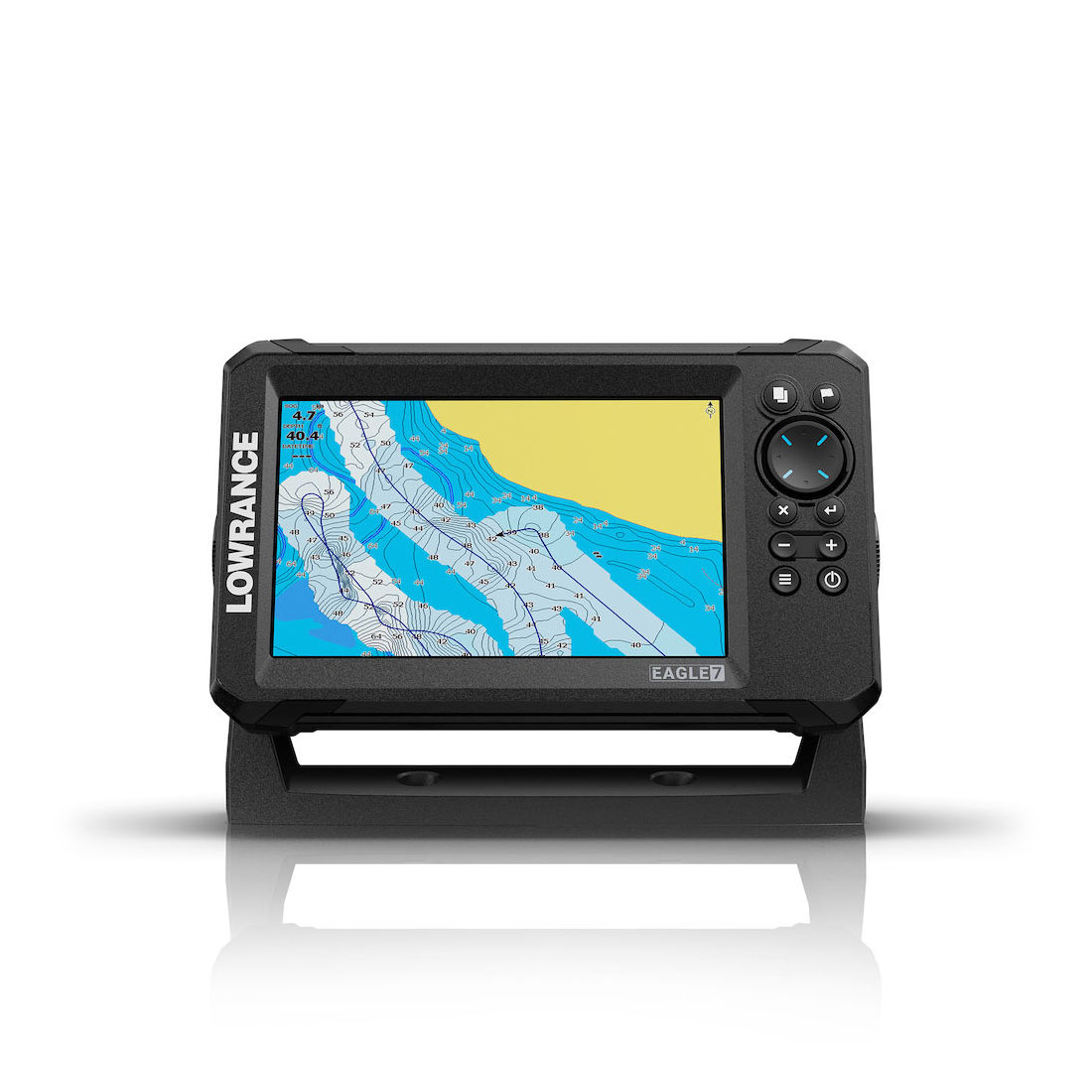

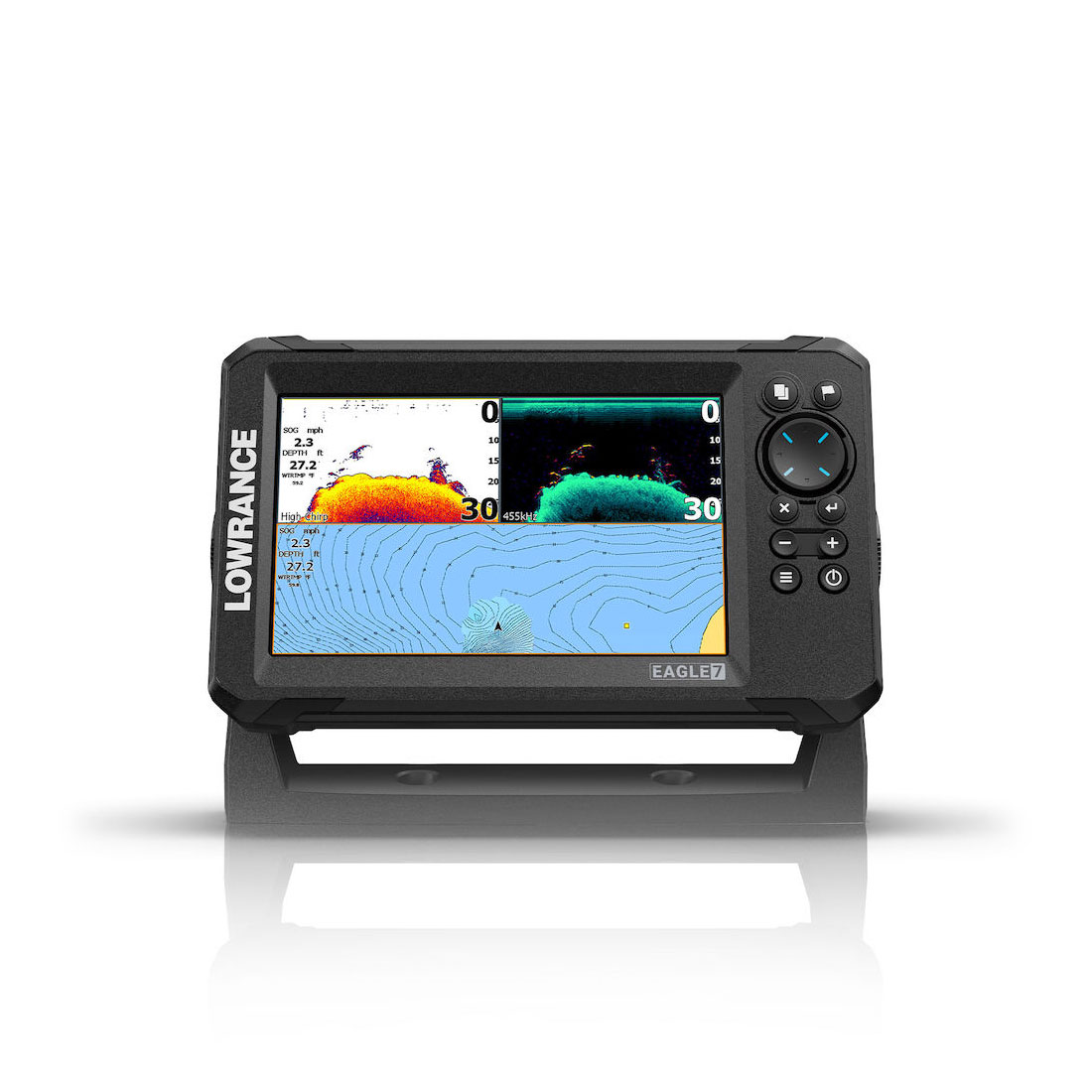

Eagle-7 was born to make fishing as simple and enjoyable as possible. Easy to use and quick to install, this model features newly designed SplitShot™ HD Transducer with FishReveal technology and autotuning for a quick and optimal set up. A new IPS screen provides higher resolution and visibility from all angles. This model comes pre-loaded with a worldwide basemap chart, and the option to upgrade to CMAP® DISCOVER™.
SplitShot™ HD

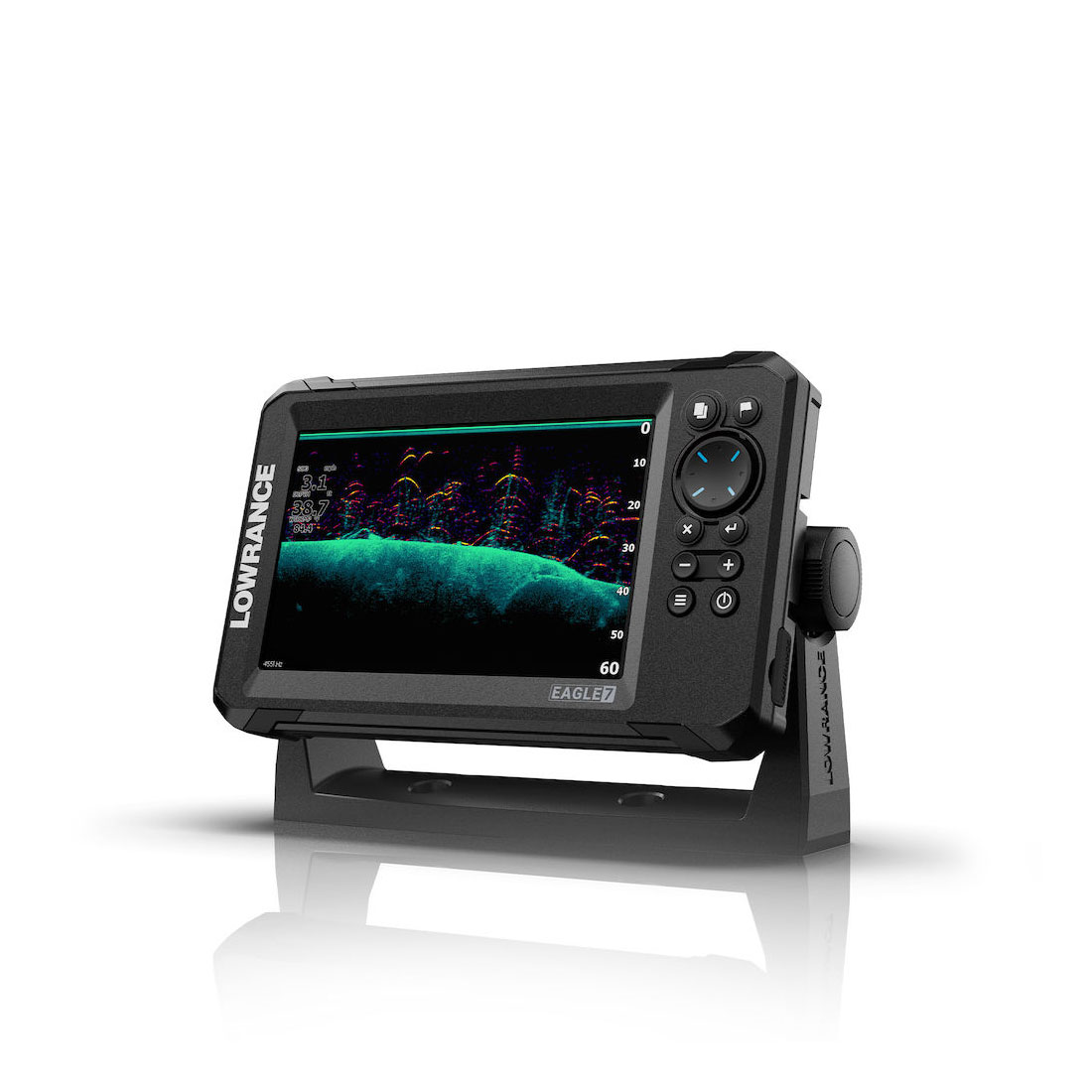

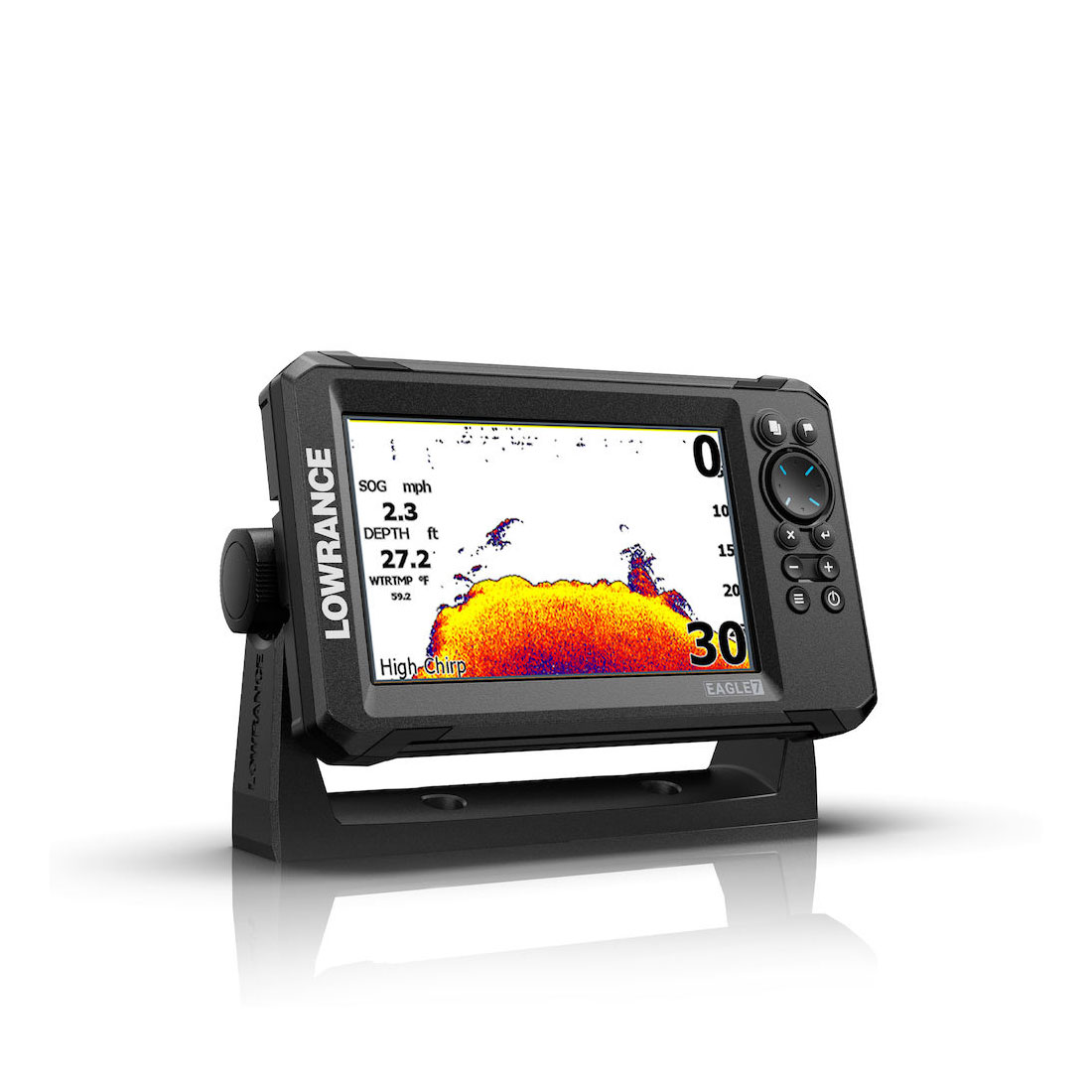

Get the best underwater views below the boat with SplitShot HD, featuring the fish-finding capability of wide-angle high CHIRP sonar and the high-resolution images of fish-holding structure from DownScan Imaging™.
FishReveal™
Take the guesswork out of fish identification with FishReveal, combining DownScan with CHIRP for unparalleled target separation and identification.
Autotuning Sonar Simple autotuning sonar gives you the optimal settings from the start so you don’t have to spend time trying to find them yourself.
DETAILED CHARTING
WORLDWIDE BASEMAP
Pre-loaded with worldwide basemap you have the options to upgrade to CMAP® DISCOVER™or other charting providers. With Eagle, you have the options you need to discover and navigate to the best fishing spots, how you want to.
UPGRADE TO C-MAP DISCOVER
All you need to make the most of your time on the water with wide coverage of inland and coastal areas in highly detailed and accurate charts. See things your way with C-MAP®.
GENESIS LIVE
Know your local waters better than anyone with the ability to create custom ½-foot contour maps of your local lake or uncharted water in real time.
DESIGNED FOR FISHING
IPS SCREENS
See clearly wherever you go with a new IPS screen, offering improved resolution, clarity and visibility, even with polarized sunglasses in direct sunlight.
NEW CONNECTOR SYSTEM

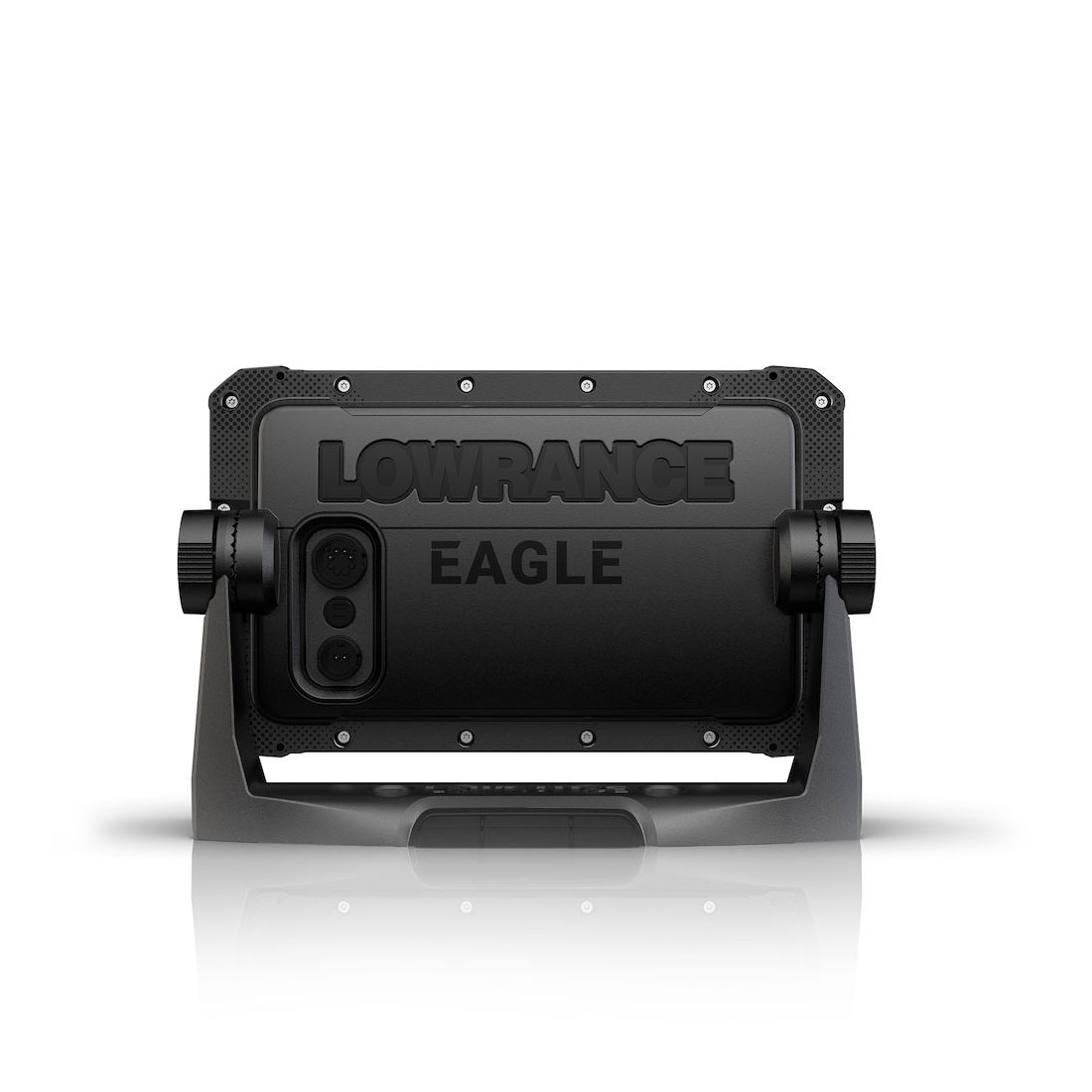

Set up in an instant with Eagle’s improved twist-locking connector, promising an easy installation and removal every time.
ONE-YEAR WARRANTY
Our priority is to give you superior quality products and a stress-free time on the water. Enjoy the feeling of fishing with peace of mind thanks to our one-year warranty guarante
• Enhanced SplitShot™ HD Transducer with Autotuning sonar
• Worldwide Basemap
• IPS screen, viewable from all angles, even in polarized glasses
• New reliable twist-lock connector system for easy installation in any boat or kayak
• SD card slot for software updates, Genesis Live recording and charting add-ons.
• See fish hiding in cover with FishReveal™ mode
• Increase contrast and viewability with all-new Imaging color palettes
TECHNICAL DATA:
DISPLAY
Backlight Color: Pure white LED
Resolution: 800 x 480
Screen Brightness: 1000 NITS
Size and Type: 7" IPS Display
Viewing Angles: 80° top/bottom, 80° left/right
ELECTRICAL
Power Consumption, max.: 550 mA @ 12 V DC with backlight on full
Power Consumption, min.: 250 mA @ 12 V DC with backlight off
Power Consumption, typical: 550 mA @ 12 V DC with backlight on full
Recommended Fuse Rating: 3A
Supply Voltage: 12v DC (10.8-17VDC)
Humidity: 60°C, 95% relative humidity (RH) for 48 hours
ENVIRONMENT
Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )
Storage Temperature Range: 4°F to 140°F (-20°C to 60°C )
Waterproof rating: IPX7 with card door closed
GPS
Correction: SBAS
Time to First Fix: 45s
MFD
Cartography included: Worldwide basemap chart
Cartography supported: C-MAP® DISCOVER™.
External Storage: 1 slot (microSD® 32 GB maximum)
Waypoints, Routes, Tracks: 3000 Waypoints 100 Routes 100 Trails
Compass Safe Distance - Metric, imperial: 12" (300 mm)
PHYSICAL
Dimensions (W x H x D): 225.9 mm (8.89") x 139.8 mm (5.5") x 88.5 (3.48)
Mounting Type: Gimbal bracket or dash mount
Weight: 0.67 kg (1.48 lb)
OTHER
Warranty Period: 1 Year + 4 additional years of upgrade options totaling 5 years
Interface: Keypad:8-way directional keypad, Zoom +/- (MOB), Exit, Enter, Menu, Waypoint, Power / backlight.

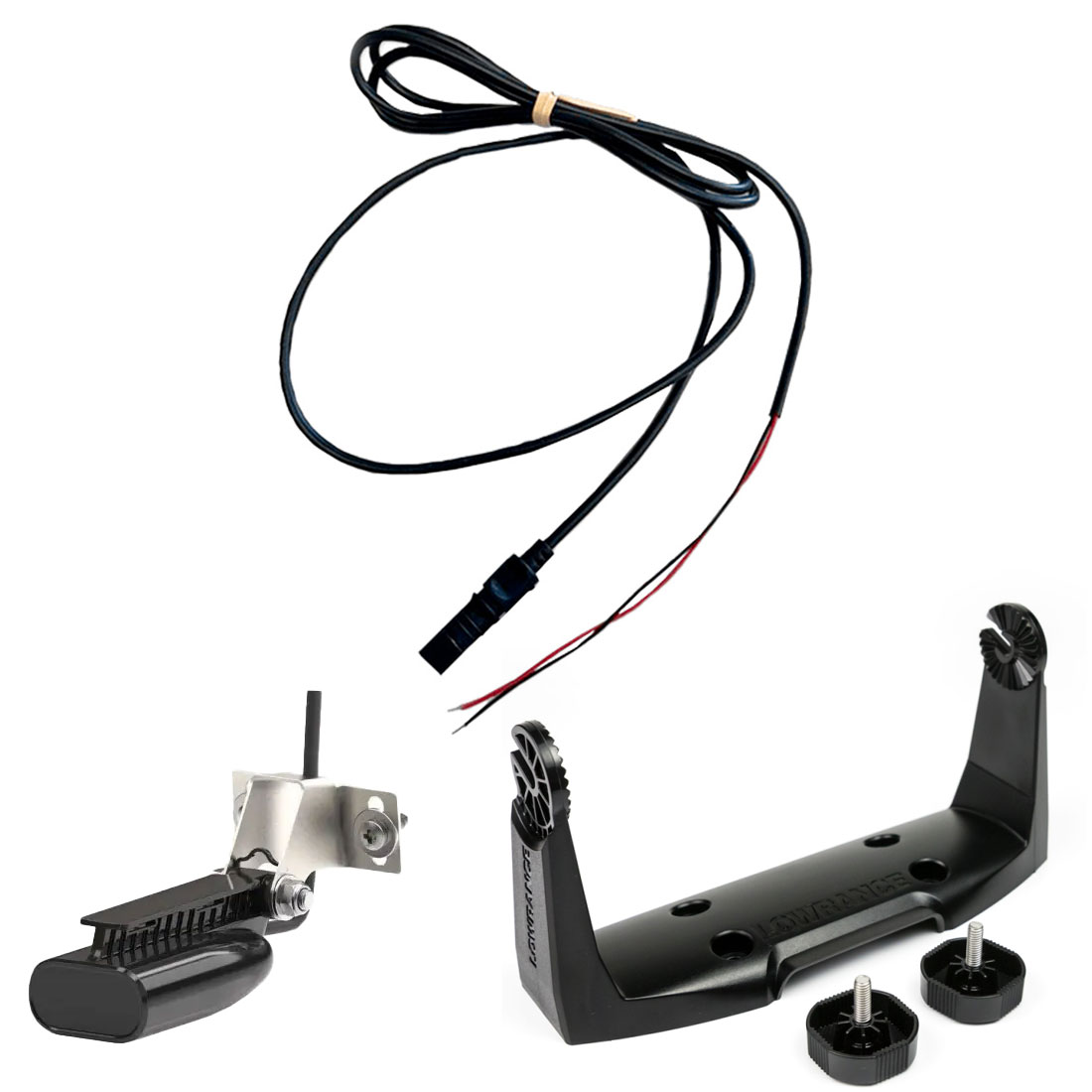

COMES WITH:
- 000-16284-001 EAGLE SPLITSHOT HD SKIMMER XDCR
The newly designed SplitShot™ HD Transducer features CHIRP and DownScan Imaging for improved clarity, depth, and sensitivity.
- 000-11019-001 GIMBAL BRACKET and for HDS-7 GEN2 touch, Elite -7 Bracket
- 000-16314-001 EAGLE 5"/ 7"/ 9" POWER CABLE
