Lowrance XSONIC Bronze HDI XDCR 0 TILT 50/200 455/80 Transducer 000-13905-001
Lowrance Trasduttore XSONIC Bronze HDI XDCR 0 TILT. Frequency 50/200 455/80. Lowrance 000-13905-001.
Bronze HDI XDCR 0 TILT 50/200 455/800. Black 9 Pin pin connector. Cable
length 10 m (33.0 ft).
Introducing NEW Bronze Hybrid Dual Imaging™ (HDI) tilted element thru hull transducers-
Beam Width at -3dB
- 50kHz 45°
- 200kHz 11°
•Fore to aft 2.8° •Port to starboard 56° –800kHz •Fore to aft 1.6° •Port to starboard 32°

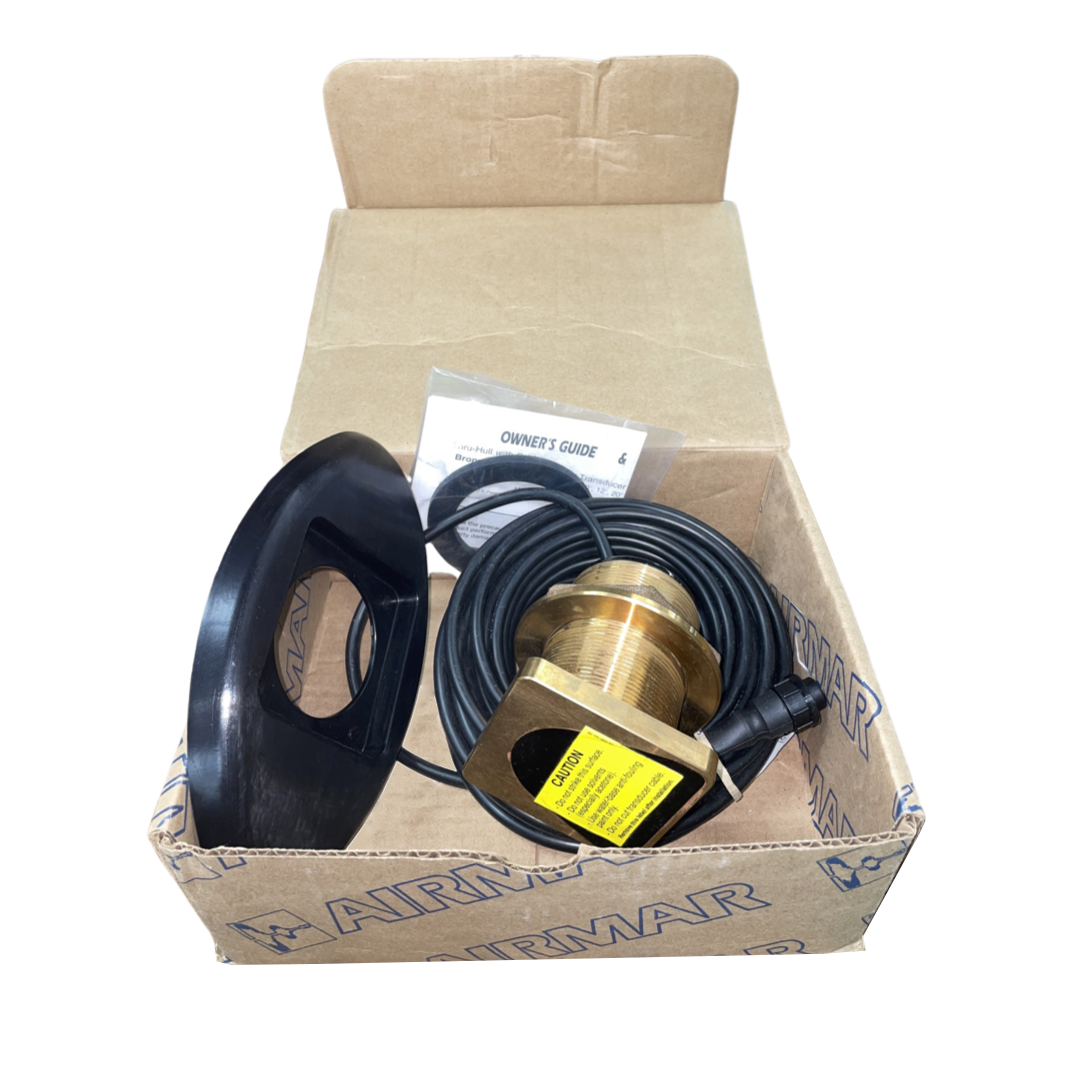

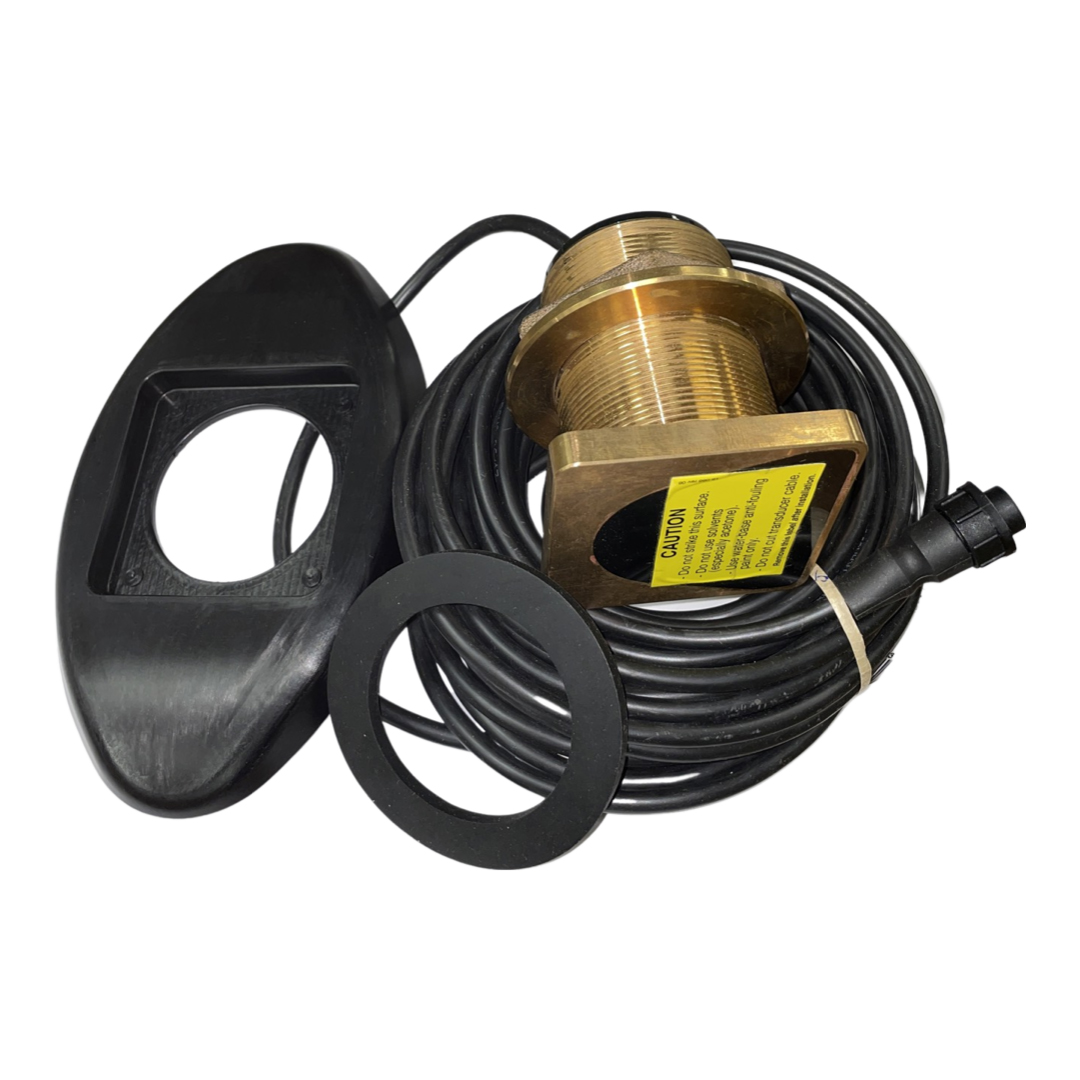

The transducer comes with a 33 ft cable and Black 9 Pin connector which plugs directly into a compatible echosounder. The transducer must be selected in the installation menu on the device.
