Black 9 pin connector: Cable length 10 m (33.0 ft): Available Q1 2017.

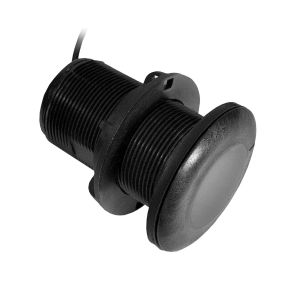

The P319 is a compact, plastic, thru-hull, dual-frequency (50/200 kHz) sensor that offers depth and temperature data. Ideal for planing hull powerboats and sailboats.
Depth/Temperature
• Requires just one hole in the hull to receive data for both depth and temperature.
Dual Frequency
• Works at 50 kHz and 200 kHz for good target detail in shallow water and excellent bottom tracking in deep water.
Highly Accurate
• Provides extremely accurate data.
Low Profile
• Just 5mm extends outside of the hull.
Transducer Specifications:
- Frequency: 50/200 kHz;
- Power Rating: 600W;
- Speed Sensor: No;
- Temperature Sensor: No;
- Mounting Style: Plastic Thru-Hull;
- Elements: 1;
- Beamwidth @ -3dB: 45 (50 kHz) 12 (200 kHz);
- Compatible drives: HDS® Carbon / HDS® Gen3;
- Connector: 9-pin xSonic.
LOWRANCE 000-13915-001
