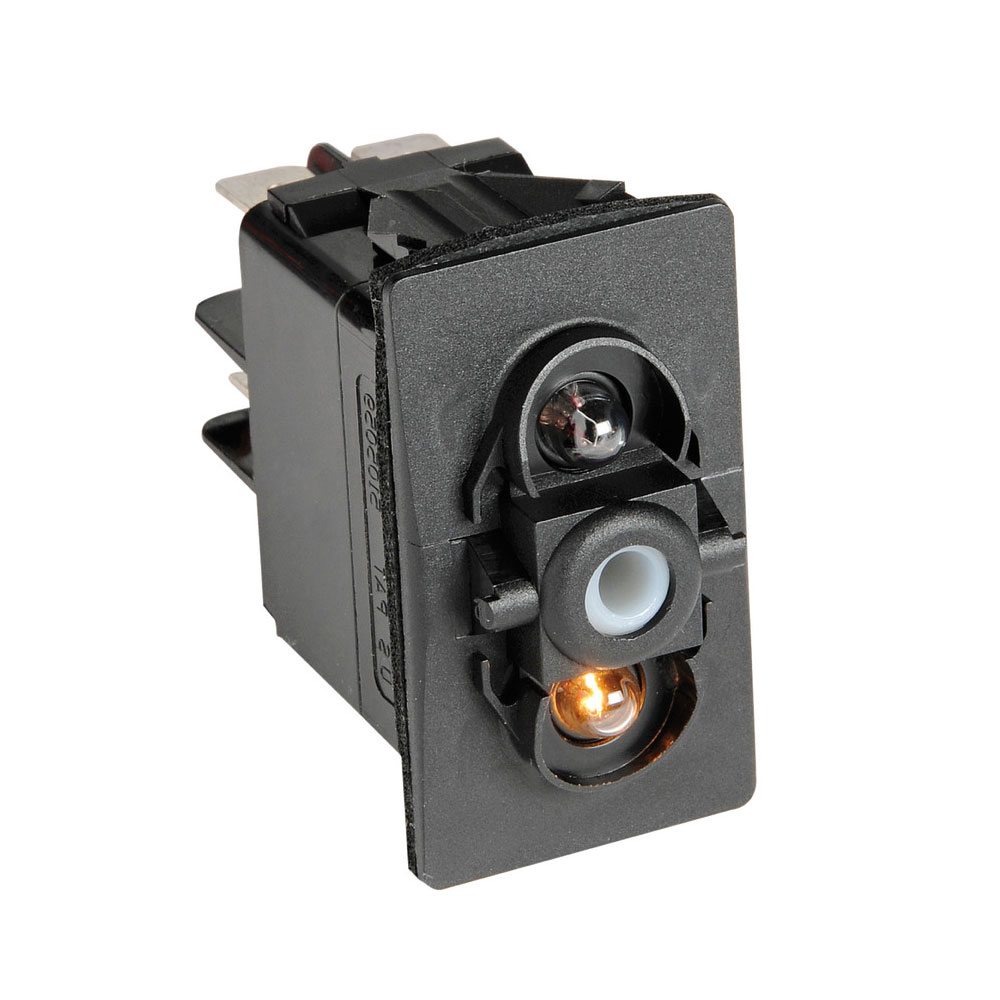

Marina R II ON1-OFF-ON1+2 Unipolar rocker switch

IP56 watertight, Marina series. 21.5x36.8-mm rectangular bore required for installation. Maximum capacity 20 A at 12 V and 12 A at 24 V. Supplied with double red LED: one for the symbol, which is always on, the second for a special slit under the symbol that switches on when thesymbol indicator is activated. Rocker switch to order separately.
Version: Unipolar.

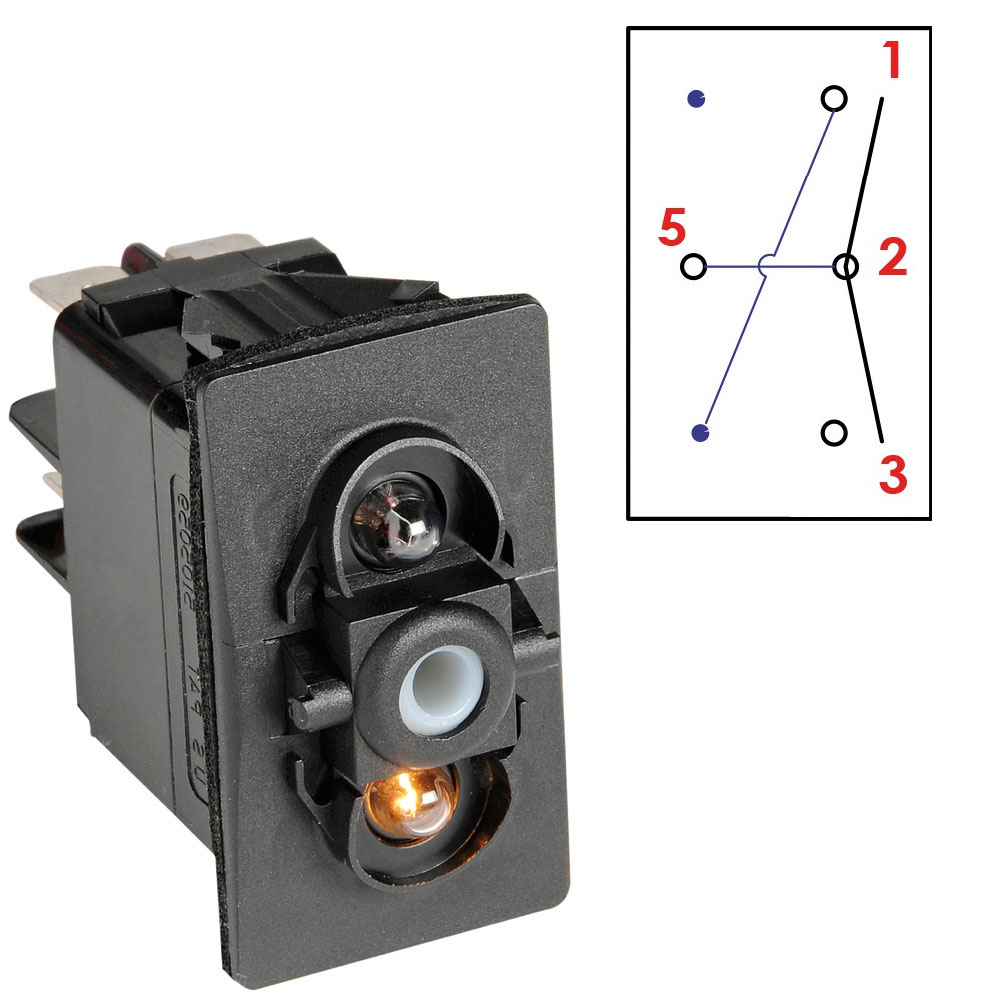

Type: ON1-OFF-ON1+2.
Recommended for Bilge pumps (automatic/manual), navigation + mast head lights.
No. terminals: 3
