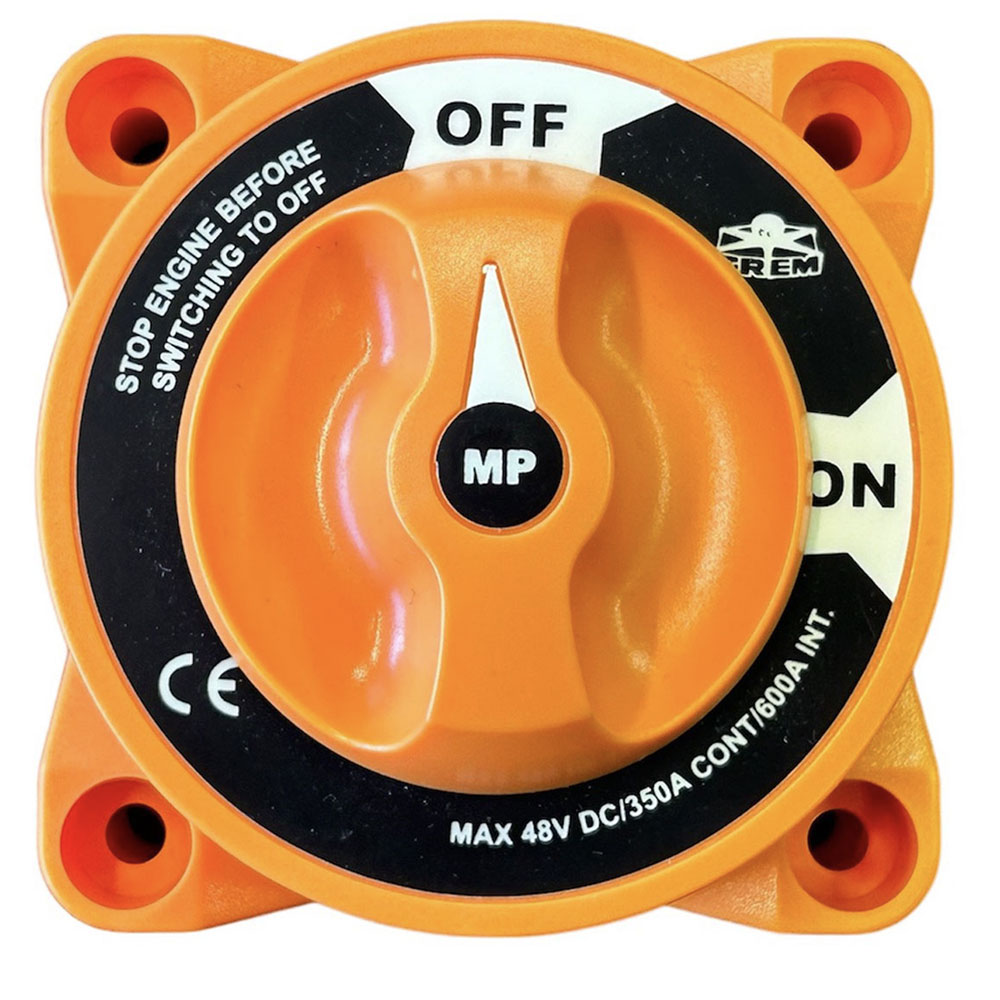

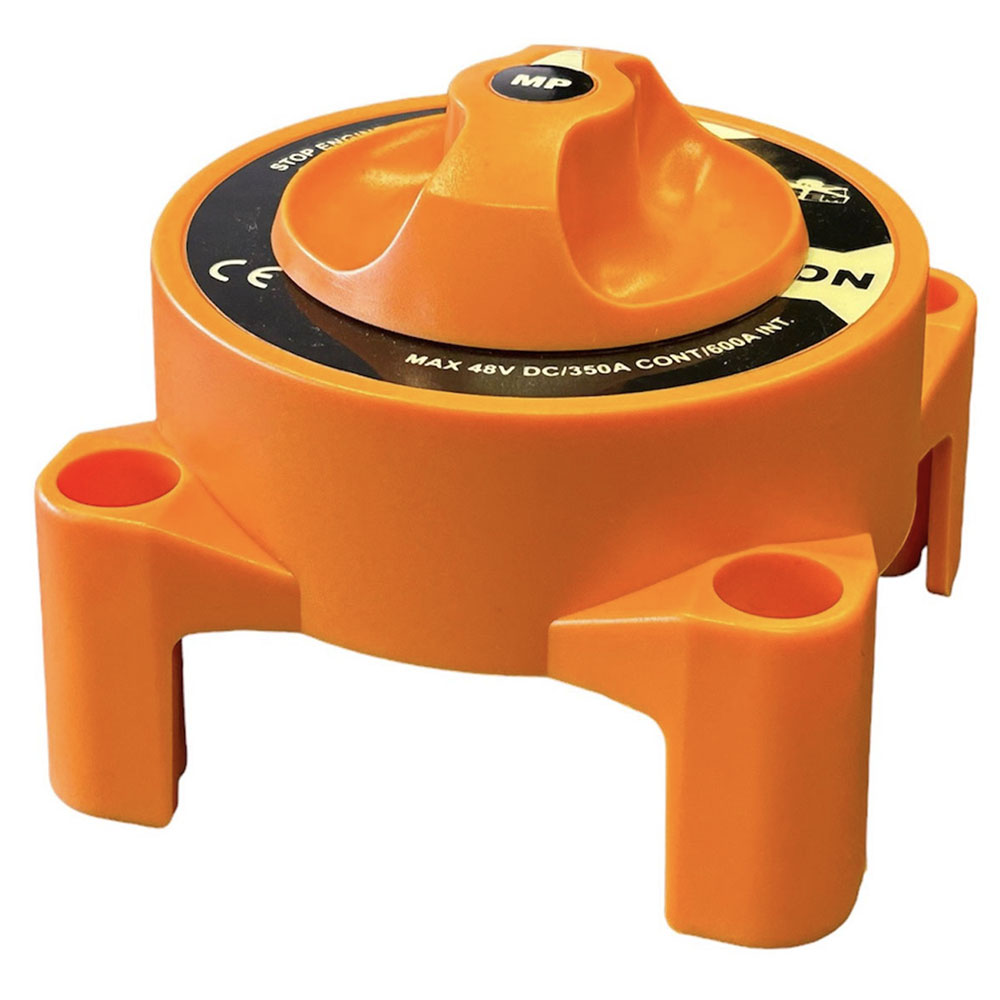

Maxi 350A 48V Battery Switch with 600A intermittent capacity

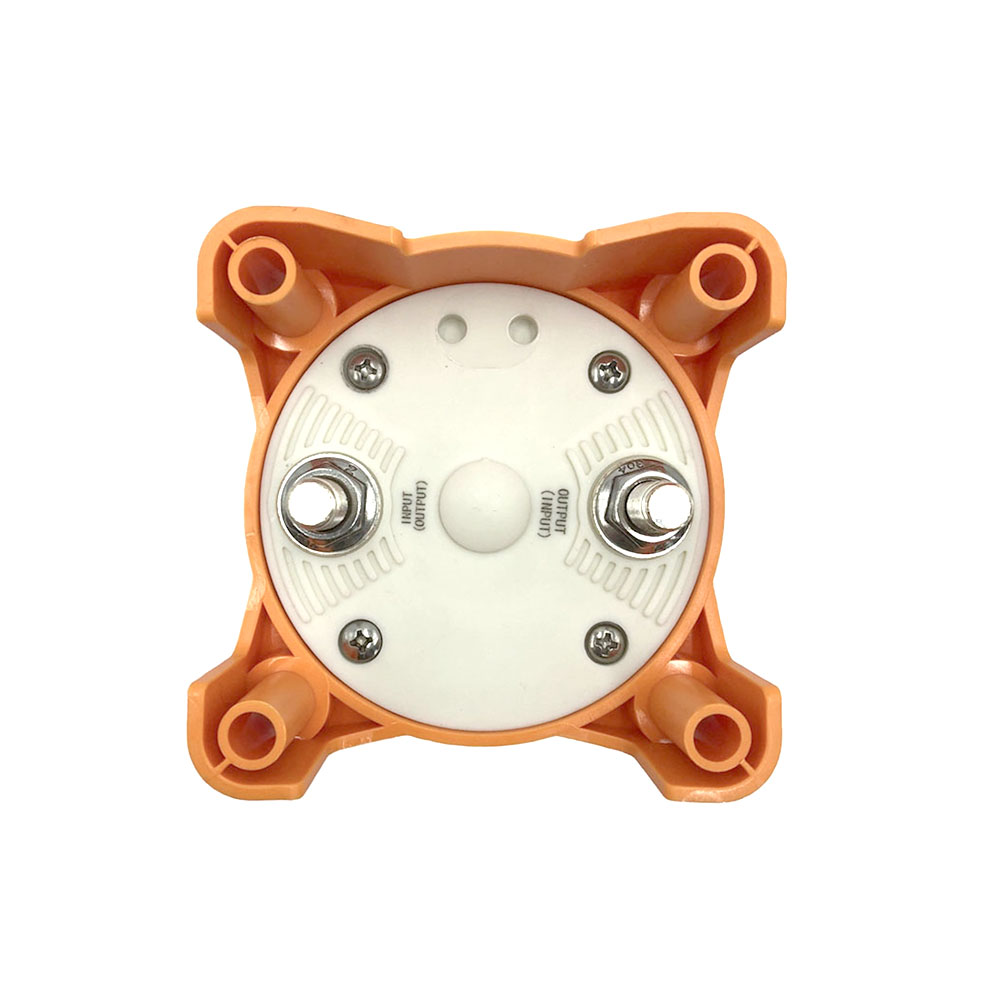

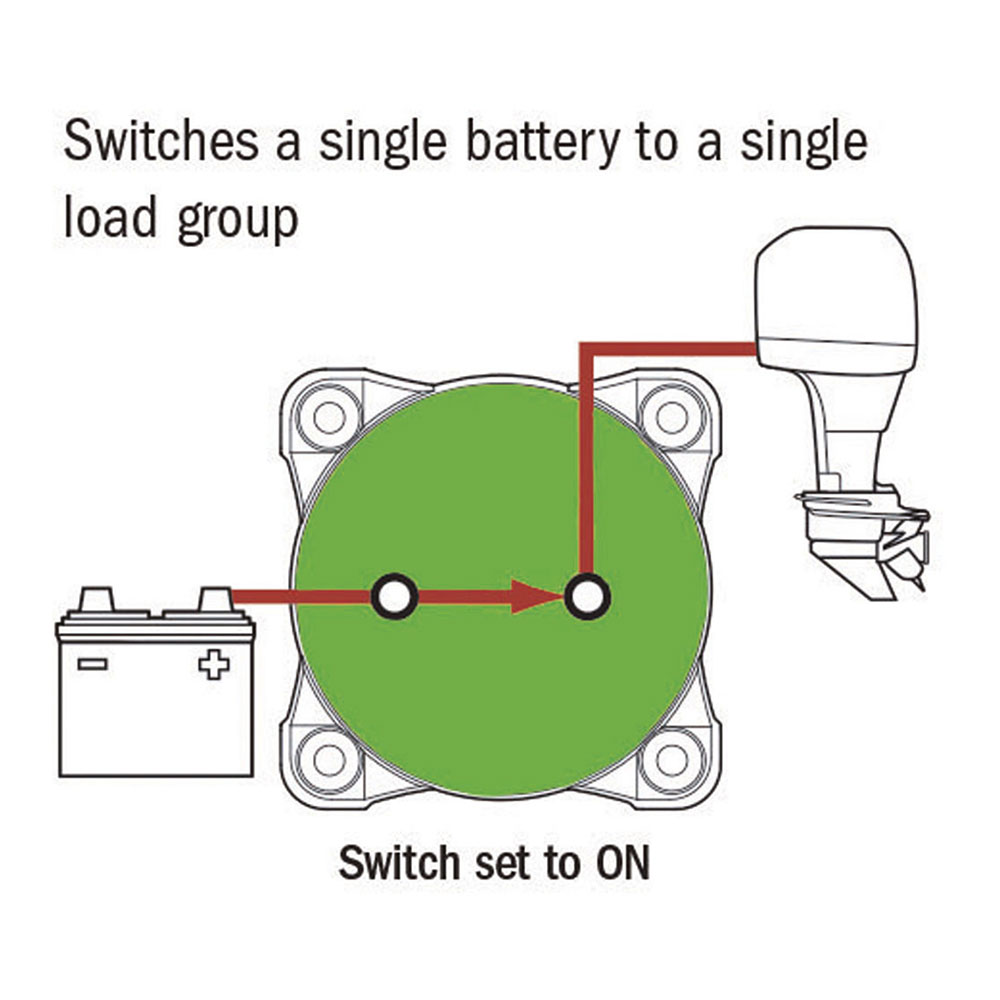

Made of reinforced polycarbonate. Surface, rear, or front panel mounting options. Switches a single battery to a single load group. Terminal studs made of tin-plated copper.

Specifications:
- Continuous rating: 350A;
- Intermittent rating: 600A;
- 10 second Rating: 2000A;
- Voltage: 48V;
- N° of Poles: 1;
- Section Pins: M10;
- Hole: 92.08 mm;

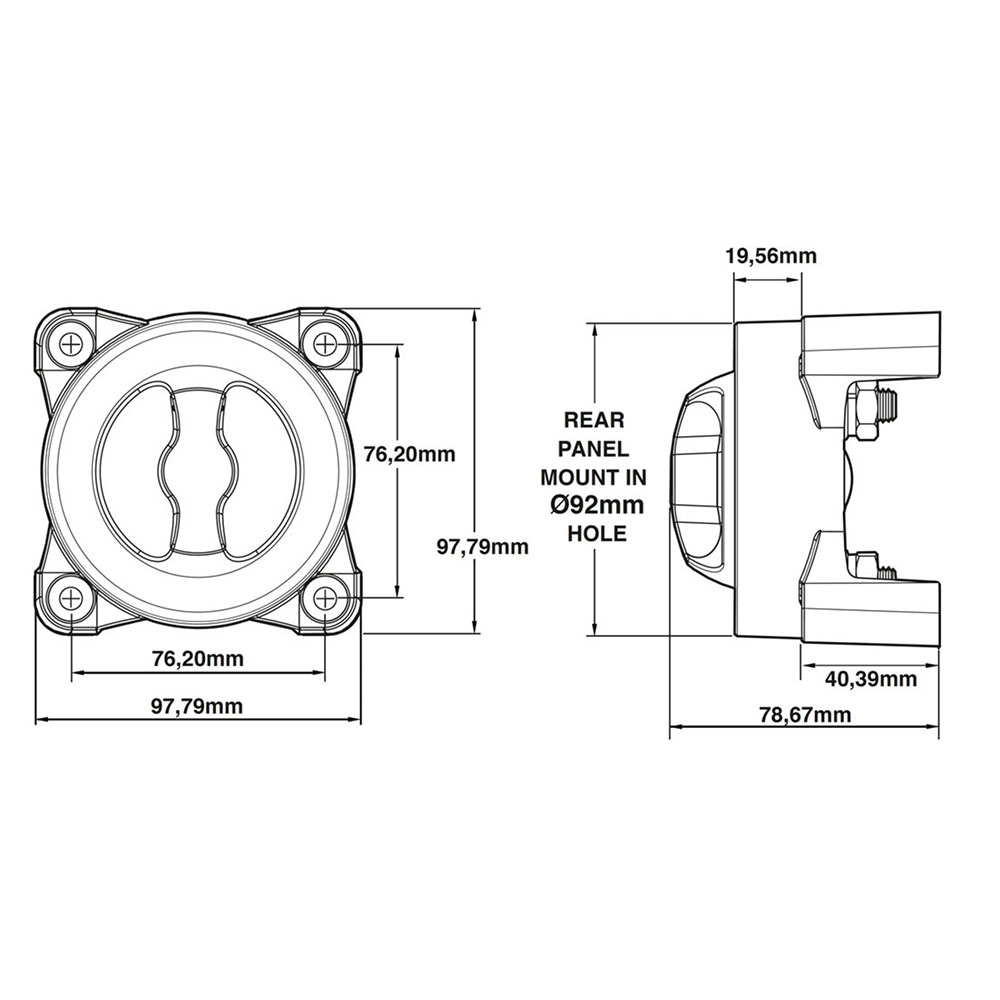

- Dimensions: 97.79x97.79x78.67 mm.
