Description

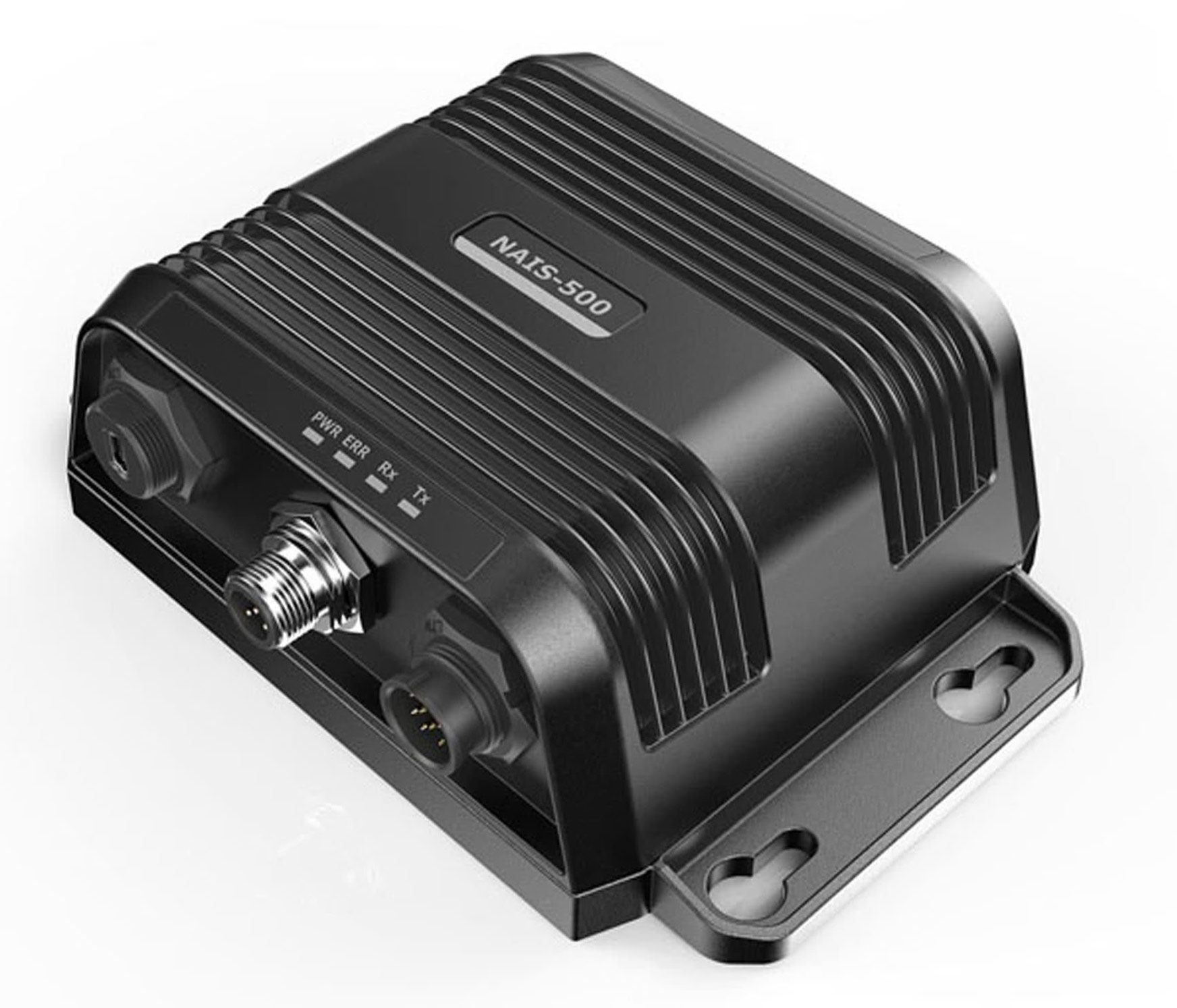

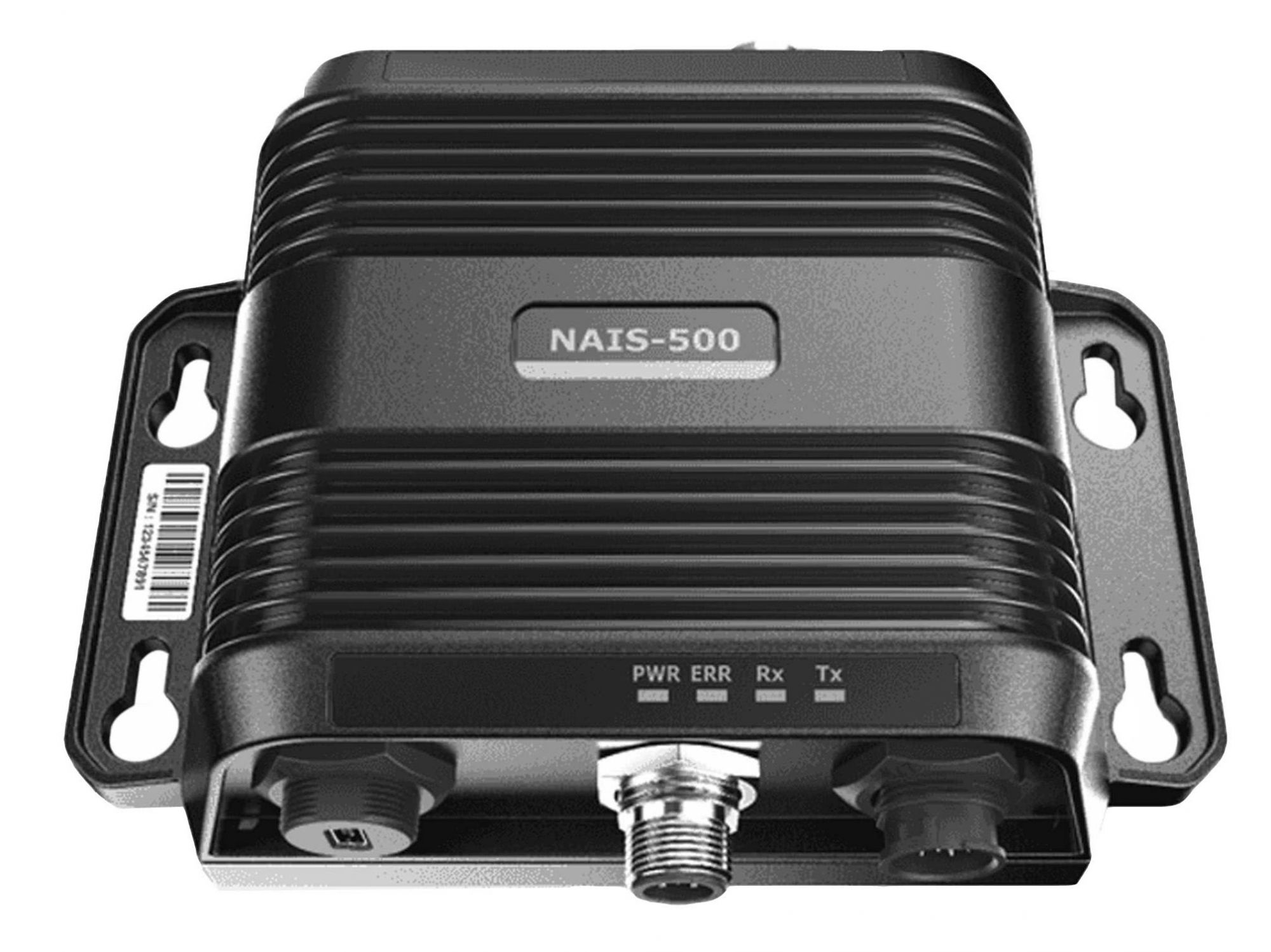

AIS Transceiver NAIS-500 class B with GPS-500 GPS antenna 000-13609-001
Reduce your risk of collision with this fully integrated, Class-B AIS transponder - essential for navigating today’s busy shipping lanes and congested ports. Compact in size, lightweight, fully waterproof, with low power draw and featuring multiple connections, the NAIS 500 is ideal for networking with any NSS, NSO, or GO series chartplotter / multifunction display and Simrad RS VHF system.
Key Features:
• Class-B approved.
• Send & receive.
• Integrated solution.
• Multiple networking connections.
• Waterproof.
• Lightweight.
• Low power consumption.
• Wide voltage range.
Technical specifications:
Dimensions: 152 x 98 x 52 mm;
Weight: 260 g;
Power consumption: 9.6 - 31.2 V DC;
Average consumption: 180 mA at 12 V;
Max. consumption: 2 A at 12 V;
GPS-receiver (integrated): Compatible with 50 channels;
Interfaces:
- USB
- NMEA0183 (38400 baud)
- NMEA0183 (4800 baud)
- NMEA2000

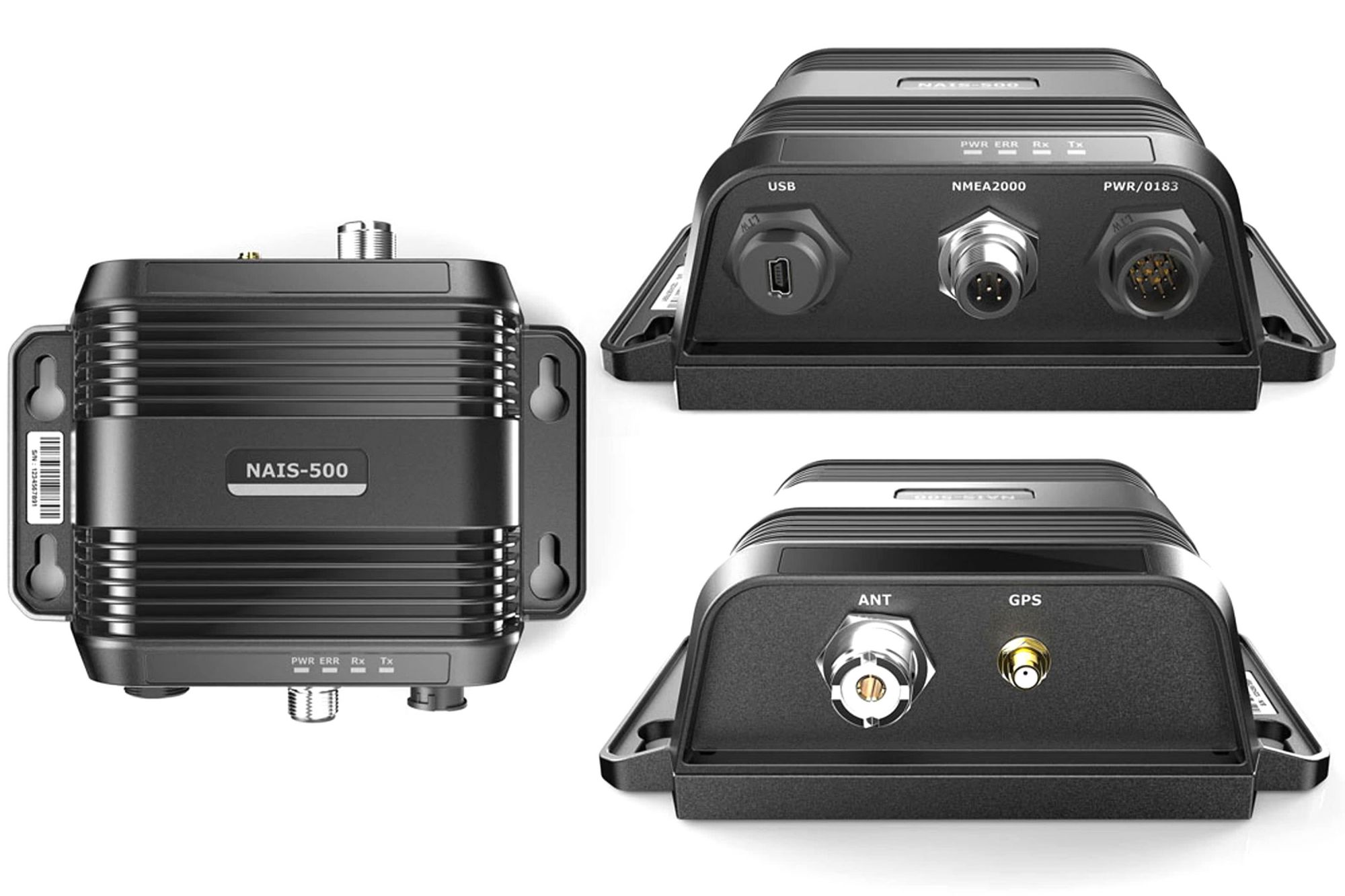

Connections:
- VHF antenna plug
- External GPS antenna plug
- USB-Type Mini-B
- NMEA2000 standard plug
- 12-pole power input / NMEA0183 / external switch.

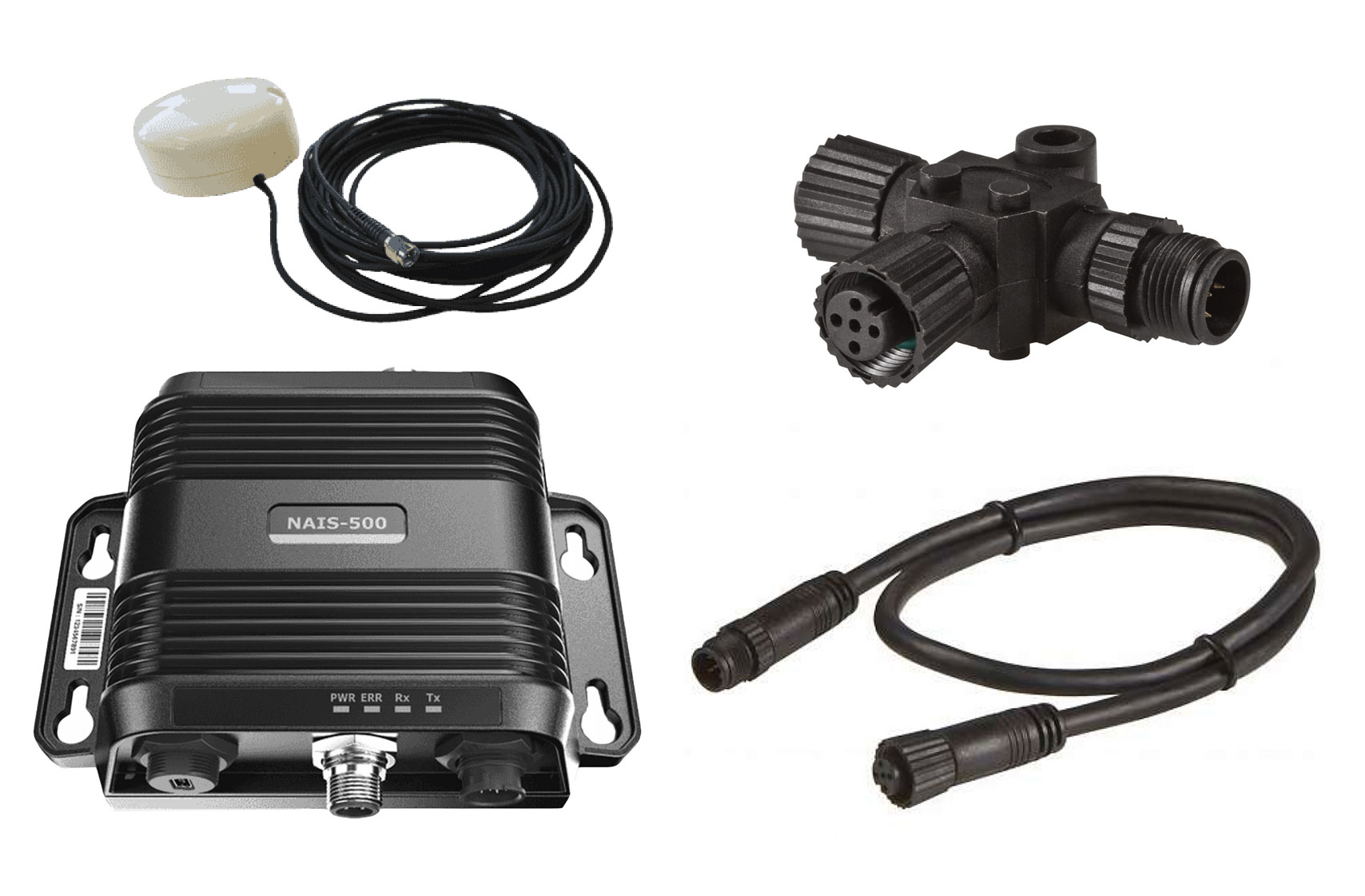

Comes with:
000-13611-001 NAIS-500.
000-13613-001 GPS-500: GPS antenna for NAIS-500 AIS transceiver.
000-0127-53 N2KEXT-6RD - 1.82 m (6-ft) NMEA 2000® cable for network extension or additional device networking.
000-0119-79 N2K-T-RD - NMEA 2000® T-connector for networking an additional device.
