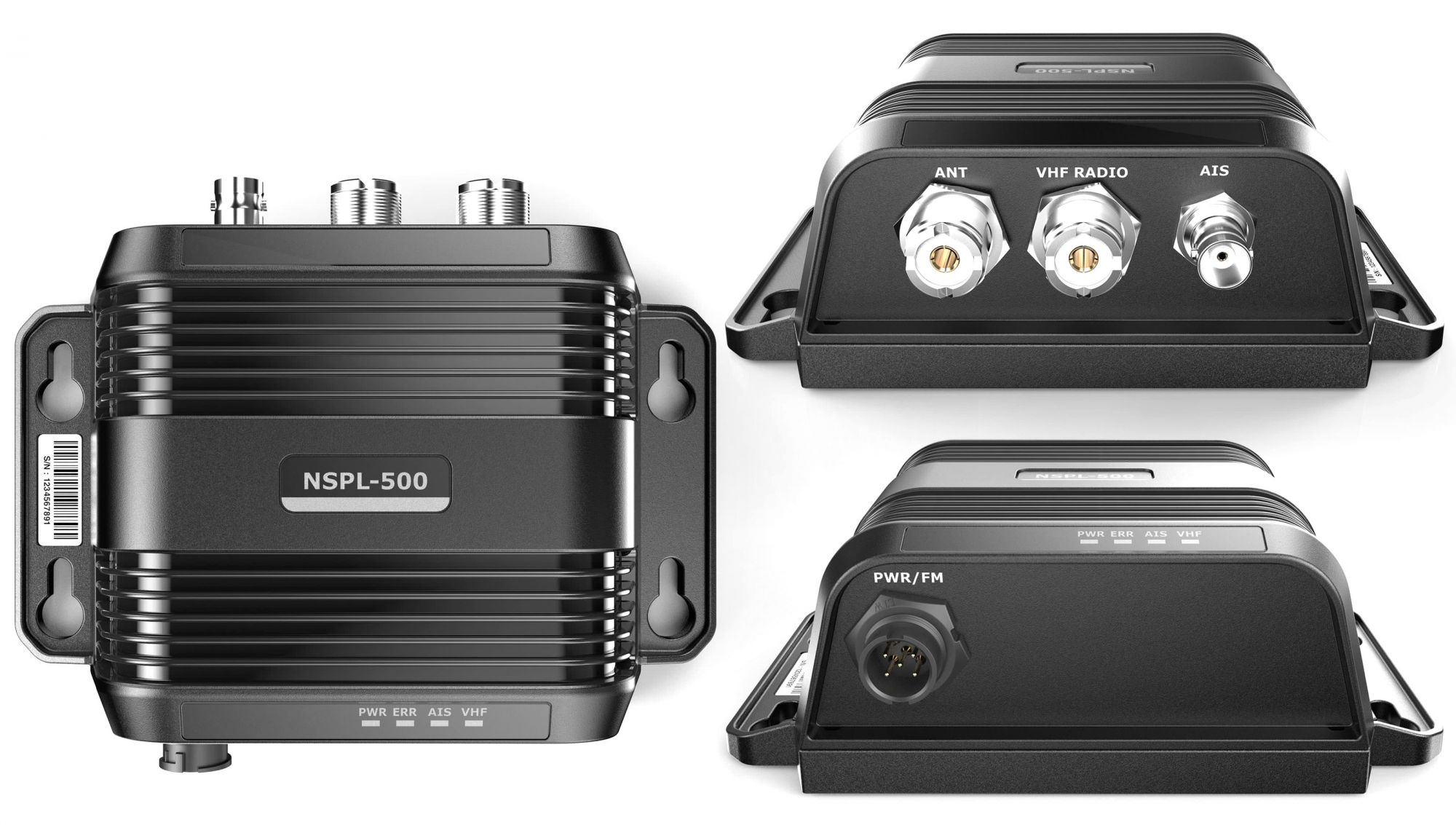

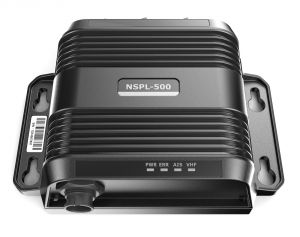

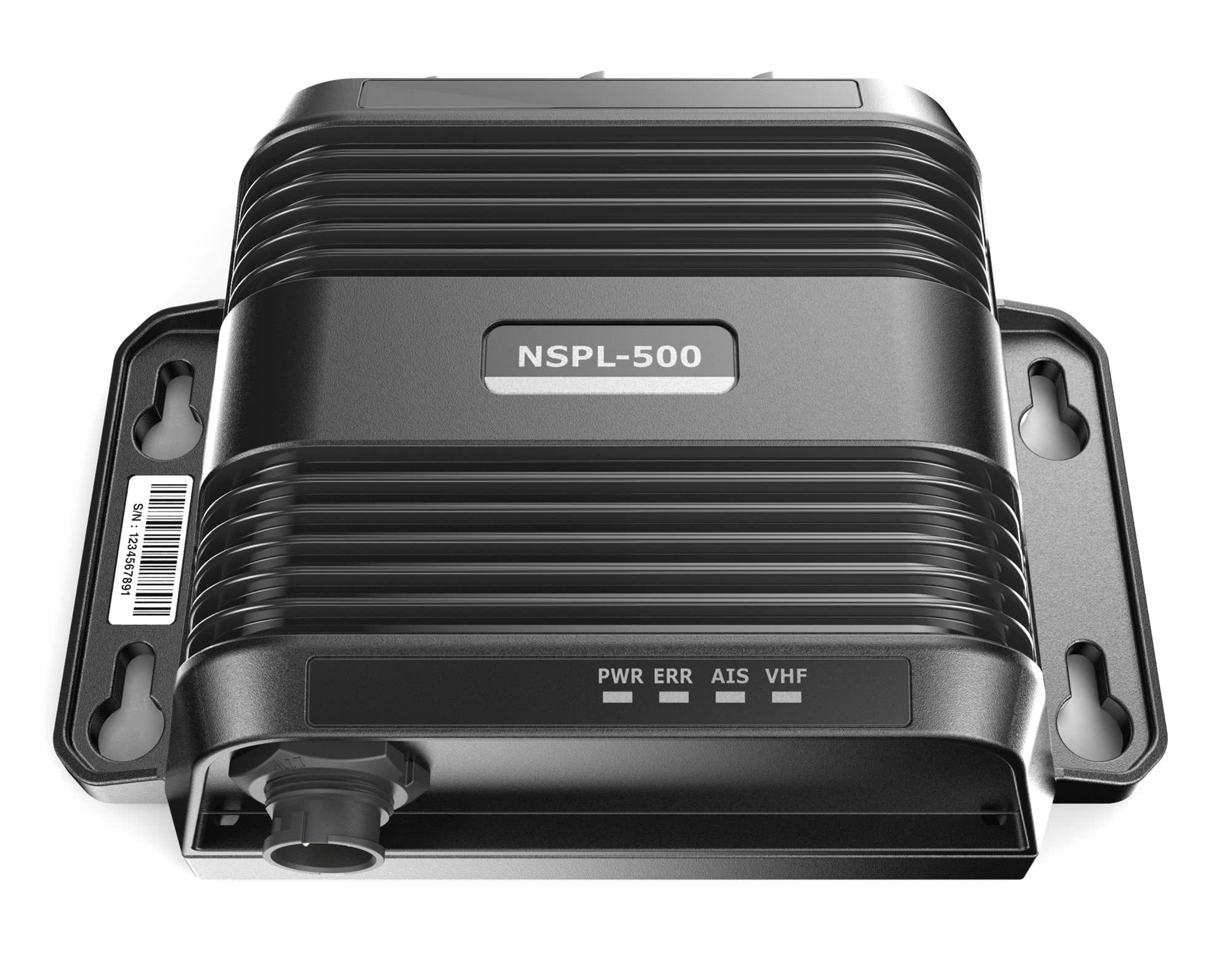

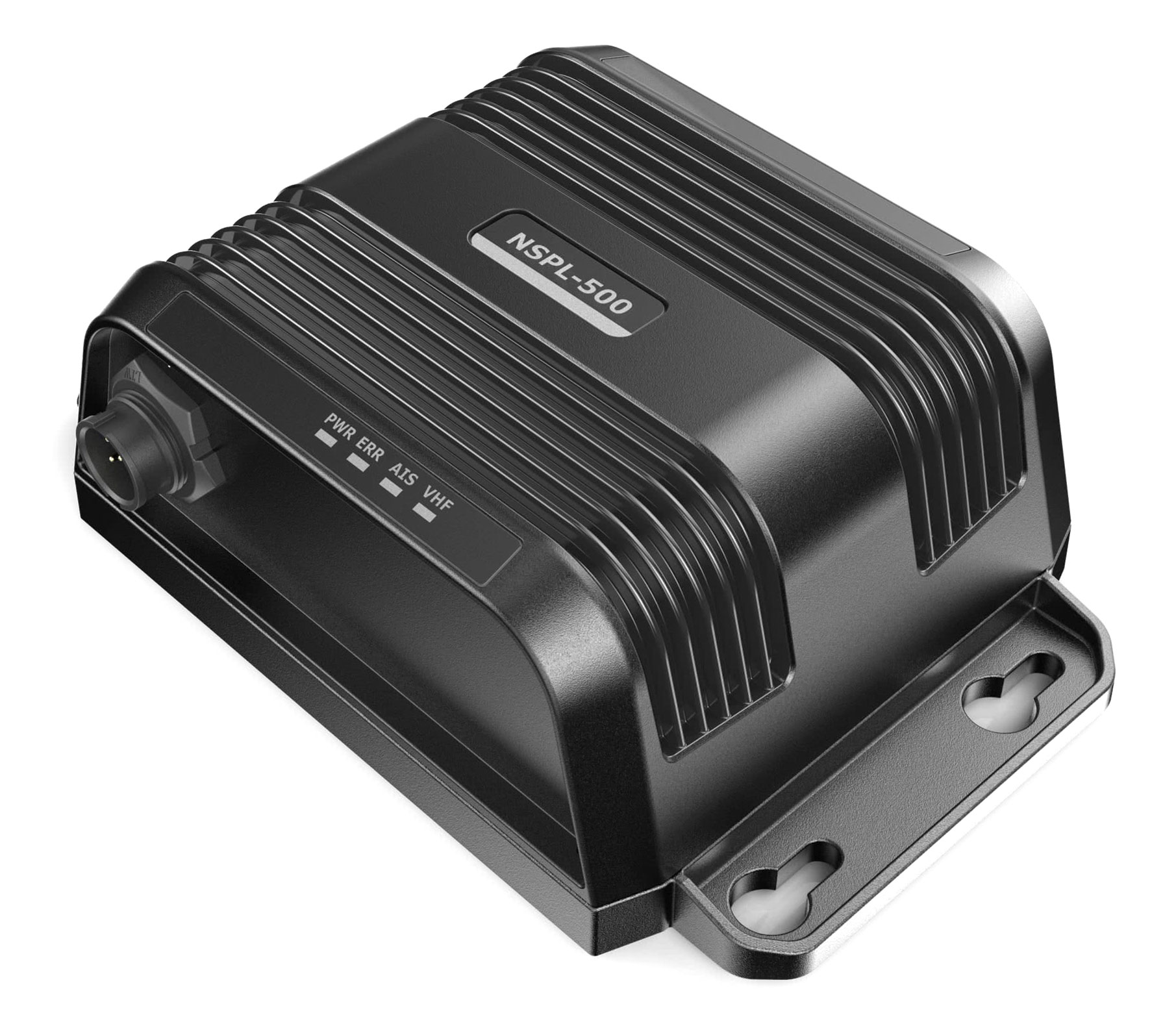

With the Navico NSPL-500 antenna splitter, you can simultaneously use one FM antenna for your AIS transceiver and your radio. The antenna splitter is perfectly suitable for retrofitting AIS systems, just use your existing VHF antenna to send and receive AIS data.
The Navico NSPL-500 is the perfect addition to the Navico NAIS-500 AIS transponder.
• NSPL-500 antenna splitter.
• Product CD.
• Manual.
• Warranty information.
• Mounting screws (4 pieces).
• Power and FM radio connection cable.
• BNC - P/L cable.
• P/L - P/L cable.
Technical Specifications

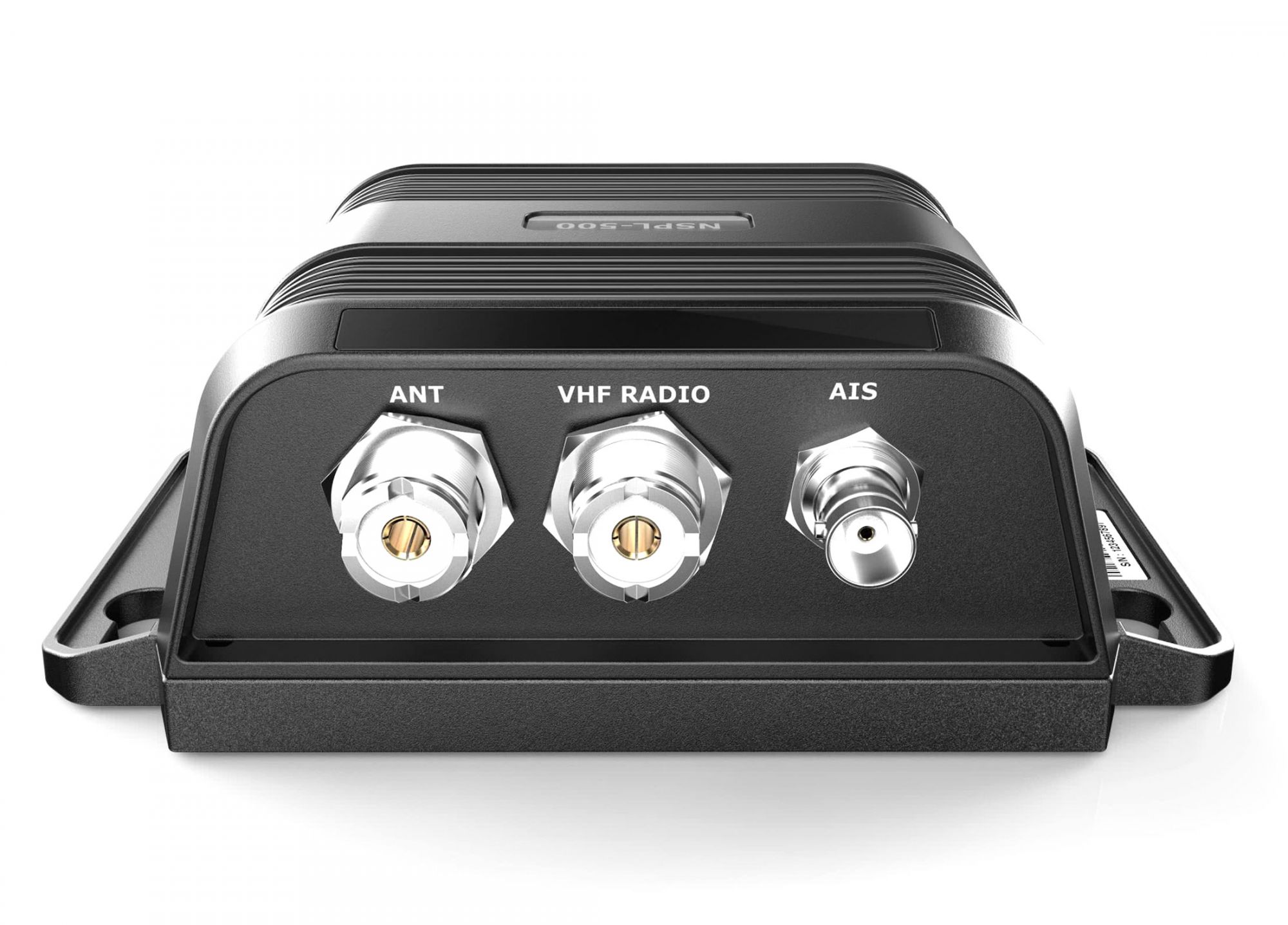

Antenna connection: SO239 socket (for P / L 259 plug);
VHF radio connection: SO239 socket (for P / L 259 plug);
AIS transmitter / receiver connection: BNC socket;

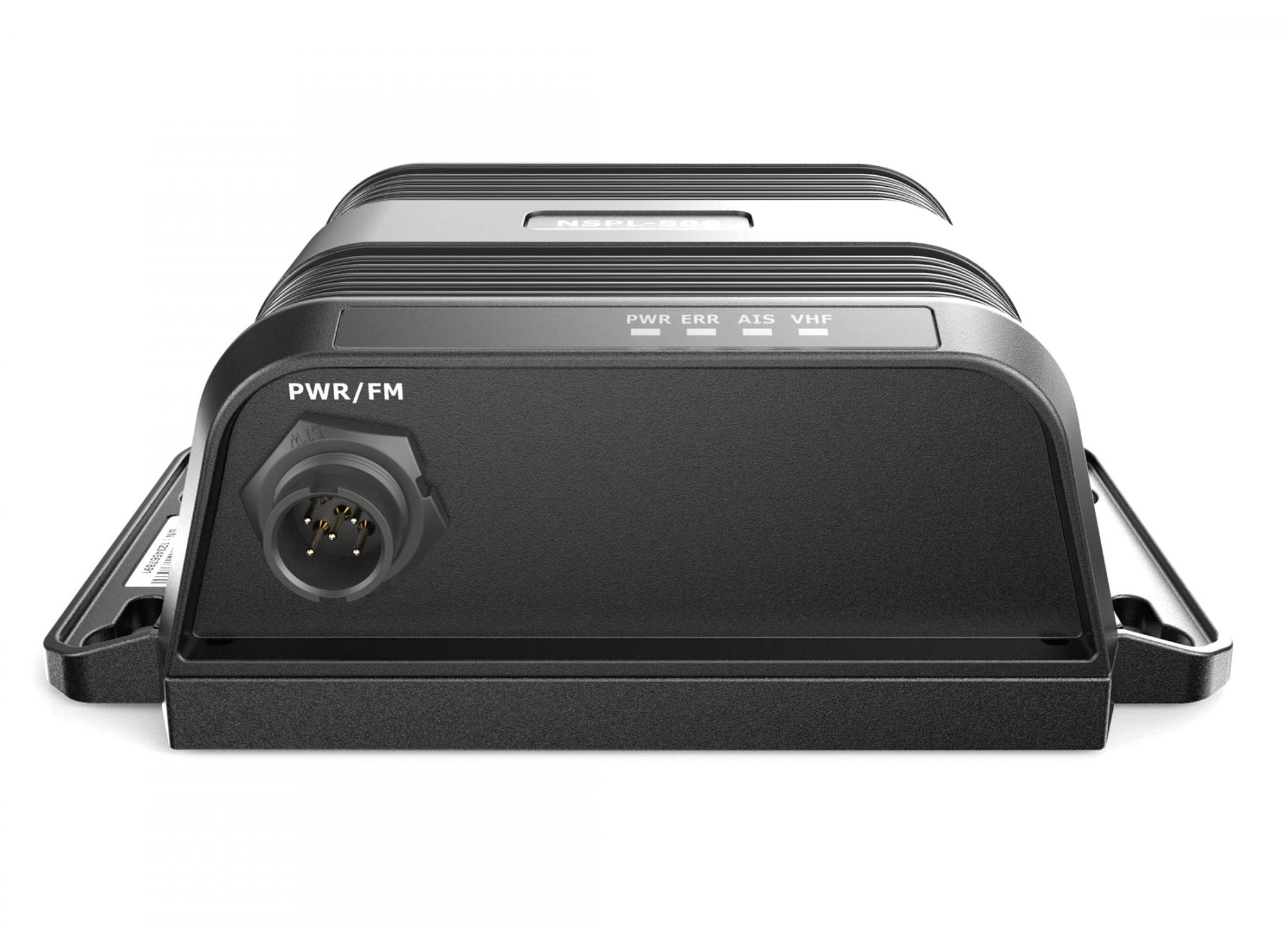

FM radio: Motorola car radio plug;
Dimensions: 152x98x52mm (lxwxh);
Weight: 260 g;
Power supply: 9.6 - 31.2V (DC);
Power consumption: <150 mA at 12V (DC);
Impedance AIS, VHF and antenna connection: 50 ohms;
Impedance VHF connection: 75 ohms;
Operating temperature: -15° to +55°;
Protection class: IP67.
