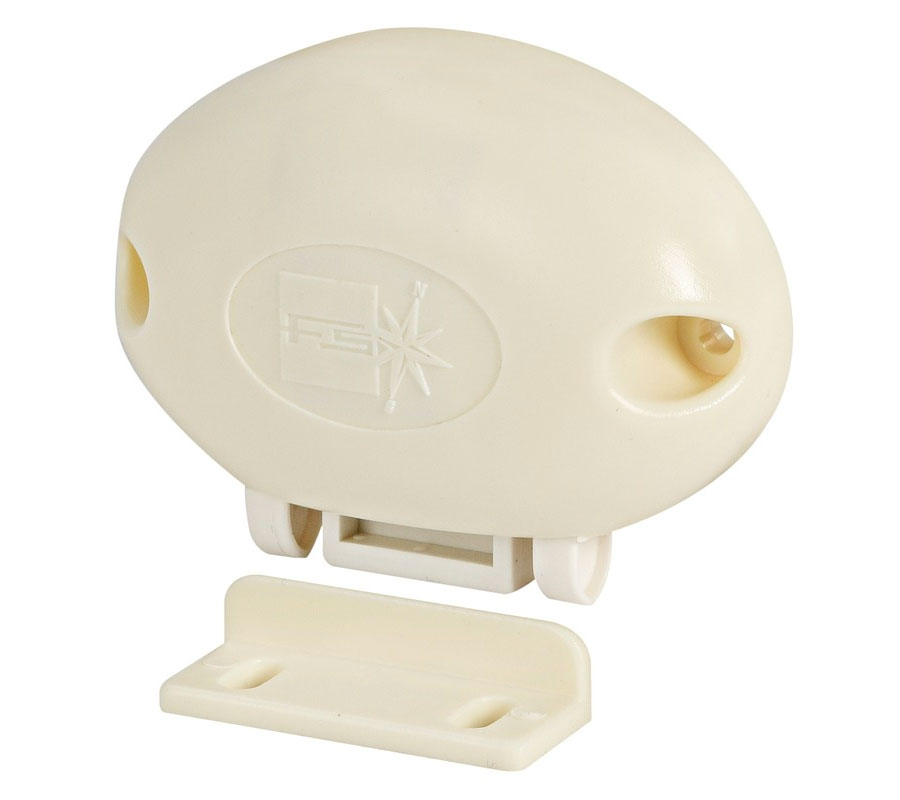

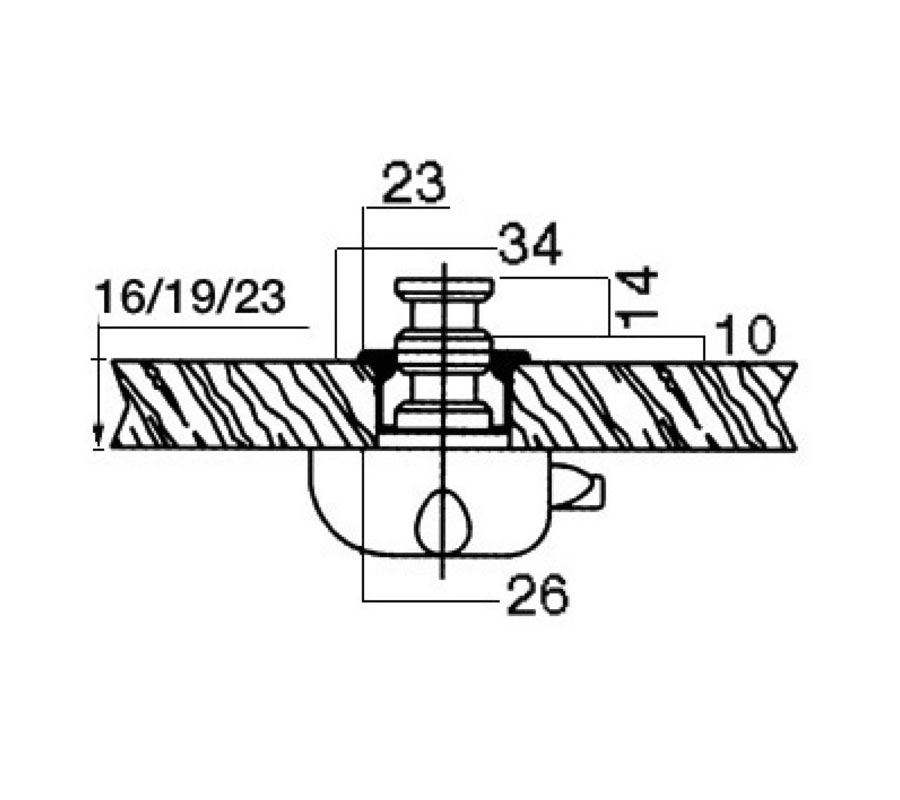

Spring lock for hatches and cabinet doors. Version: simple nylon ratchet with lateral anti-vibration stoppers. Press the push-button to lock it and is then aligned, press the button to open and to release the cabinet doors making a knob grip at the same time; 2-screw mounting click and ring nut from the outside with a hole of Ø size 26 mm; nylon casing, stainless steel springs.
Minimum flange required 5mm. Attention: ratchet, only. Knob and ring nut code OS3818100/01/02/03 to be ordered separately.
