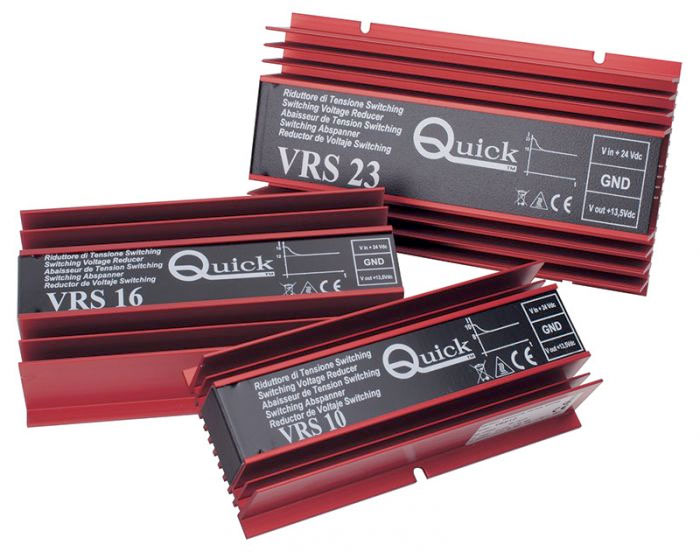

Switching voltage reducers. Quick's long experience in the nautical field has enabled them to develop a line of voltage reducers that guarantee superior performance levels with respect to the standards normally available on the market. EMC Class EN 55022
Important advantages: Low residual output fluctuation (ripple lower than 50 mV RMS).
Protections: Protection against shorts. Output overvoltage. Reverse output polarity.
Technical data:
- Maximum output current: 12 A;
- Maximum output load: 16 A;
- Rated output voltage: 13,5 Vdc ± 0,5 Vdc;
- Output voltage stability: 1%;
- Residual ripple: 50mV max RMS;
- Supply voltage: 20 ÷ 30 Vdc;
- Maximum absorbtion: 12.5 A;
- Cooling: Natural;
- Case material: Aluminium;
- Dimensions  W x H x D - mm: 171,5 x 90 x 25 mm;
- Weight - g: 500 g.
