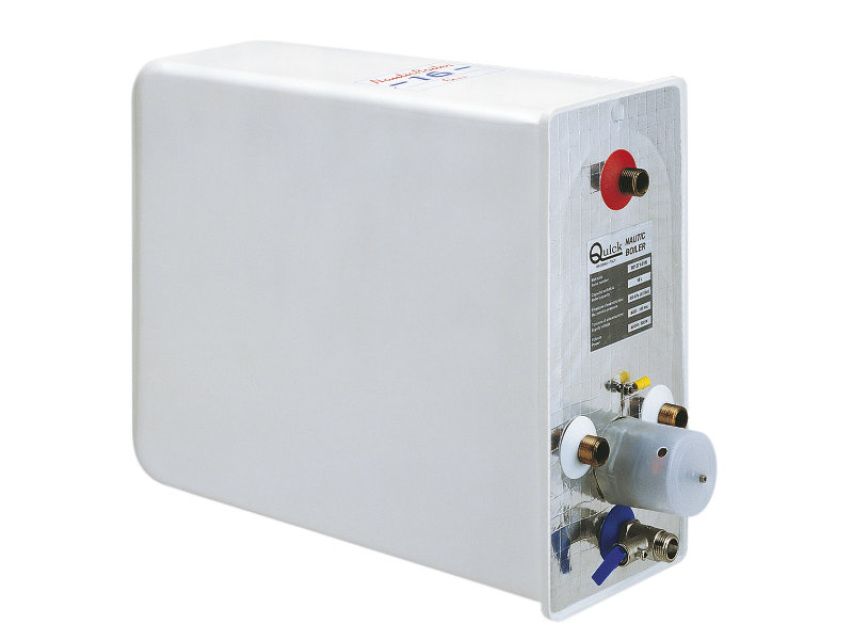

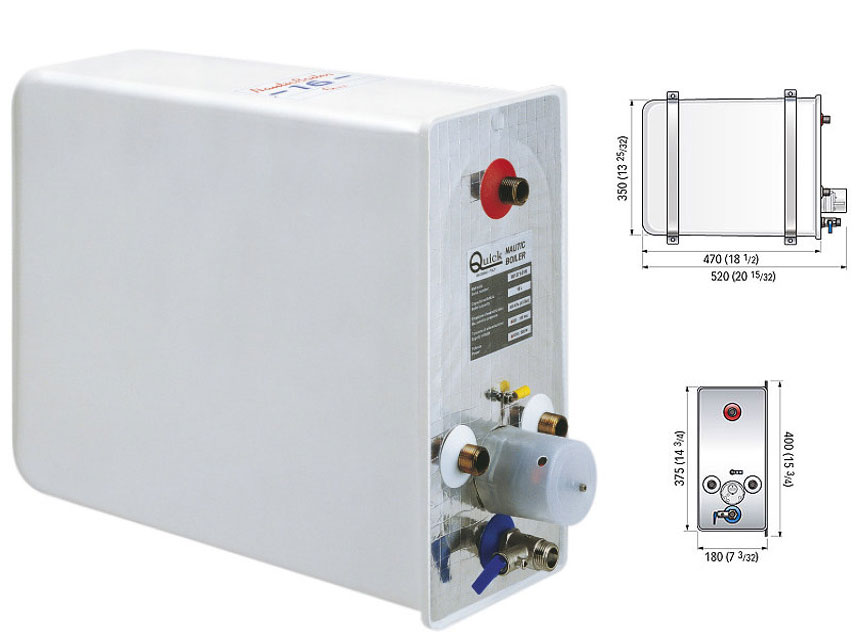

Quick S.S. 16lt 500W BX16 Boiler with Heat Exchanger.
The compact dimensions and capacity of the 16 litres 316 stainless tank satisfies a large part of the market. The BX16 is easy to install and highly functional. Tank in AISI 316 stainless steel.
Technical features:
Model: BX1605S
Tank capacity: 16 litres
Tank material: Stainless steel
Thermal insulating: Polyurethane foam
External cladding material: Thermoformed material
Tank pressure (running test): 800 kPa (1)
Maximum working pressure: 600 kPa (1)
Electric element voltage rating: 220 Vac ± 10%
Electric element power: 500W
Outputs diameter: 1/2"
Weight with exchanger: 10,5 Kg
Weight without exchanger: 9,5 Kg

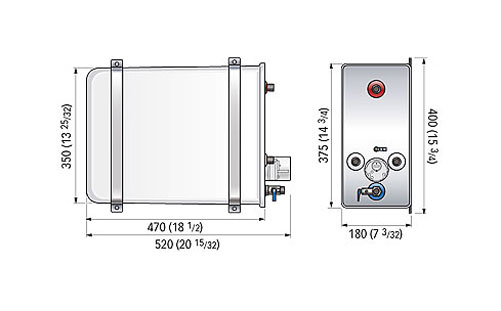

Dimensions: A= 520mm (20" 15/32), B= 350mm (15" 25/32), C= 180mm (7" 3/32)
