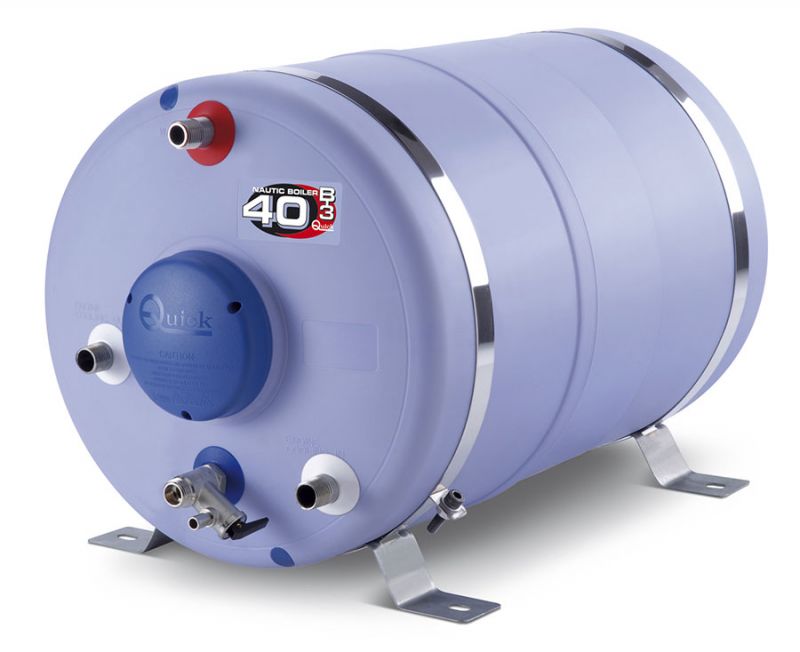

Quick B34012S 40lt 1200W Boiler with Heat Exchanger.
Casing in composite material and Tank in Aisi 316 stainless steel
- High quality materials.
- Heat exchanger with wide exchange surface.
- Produces hot water from the electric element, that is fitted with an adjustable safety thermostat.
- Relief / non-return vale that allows discharging of the water heater in case of disuse.
The heat exchanger used for Quick "Nautic Boiler B3” is AISI 316L stainless steel. The heat exchang capacity is notably higher than that achieved from other manufactures.
The tank is made of 1.5 mm gauge AISI 316 stainless steel welded with Argon shielding gas and hence highly resistant to corrosive agents.
The electrical heating element is made of Incoloy®.
The thermal insulation is high density polyurethane foam injected between the cover and tank giving excellent heat retention properties.
Tank capacity: 40lt
Tank material: Stainless steel
Thermal insulating: Polyurethane foam
External cladding material: Composite
Tank pressure (running test): 800 kPa
Maximum working pressure: 600 kPa
Electric element voltage rating: 220 Vac ± 10% - (110 Vac ± 10%)
Electric element power: 1200W
Outputs diameter: 1/2"
Weight with heat exchanger: 11.7kg

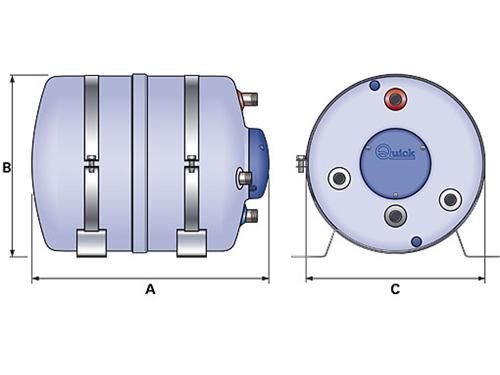

Dimensions: 620mm (24" 13/32), B= 381mm (15" 7/64), C= Ø 360mm (14" 3/16)
