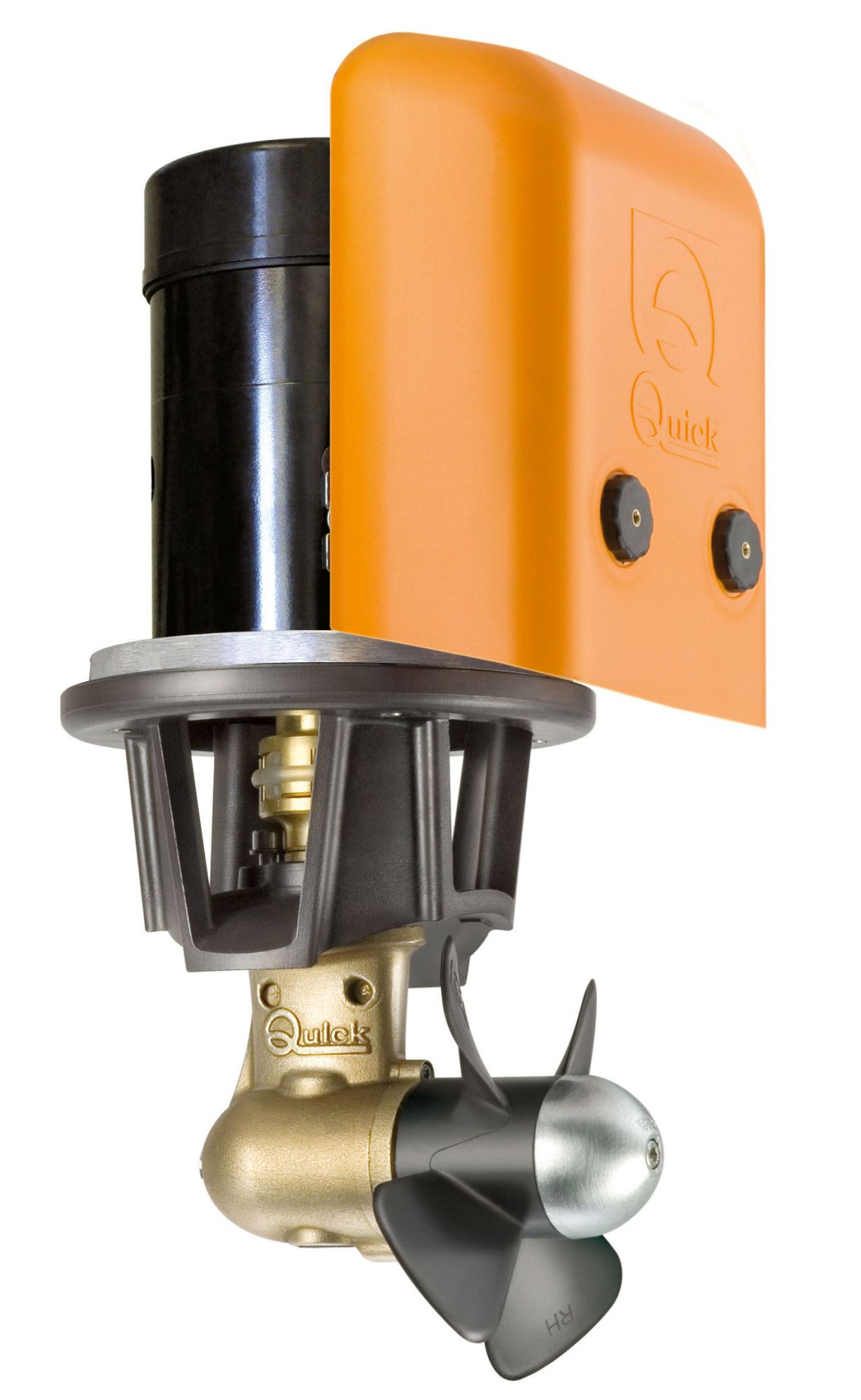

Quick BTQ 140-40 DC Single Propeller Bow Thruster 12 volt, engine power 2,2 Kw, thrust 40 Kgf, propeller tunnel Ø140mm. Single Propeller made in sturdy composite material. Recommended boat length 7-9,5 m (23-31 ft).
Price:
€1,427.86
Listing:
€1,903.81
You Save:
€475.95 (25%)

Description

Quick BTQ 140-40 DC Single Propeller Bow Thruster 12 volt, engine power 2,2 Kw, thrust 40 Kgf, propeller tunnel Ø140mm

Single propeller made in sturdy composite material. Recommended boat length 7-9,5 m (23-31 ft). Solenoids protection carter in sturdy composite material. Composite material. Bronze gearbox. Independent  zinc anode from the gearbox and easily replaceable. Equipped with elastic coupling.
The Gearbox is created so that the behaviour of the propeller is unaffected in either direction. The conical gears that make up the gearbox are reinforced and  adjusted to ensure maximum efficiency. Maintenance is not required since the special highly resistant components guarantee a perfect lubrication seal for life. The anodic zinc protection is easily replaceable.
The bronze propeller gear leg is provided with a hydrodynamic profile that minimises turbulence.
The 4-blade
Propeller guarantee maximum thrust performance and reduction in current absorption. This is made of composite materials, resistant in every condition, and fastened with self-locking nuts in stainless steel.
The case that protects the reversing contactors
is made of robust composite materials that are resistant to corrosion. The electrical connections are provided with quick connectors.
The elastic joint
that optimises the alignment between motor and gearbox is an exclusive Quick design. This acts as an even tension device, preserving the operating system from impulses from the bow thruster, with above-average results.
The motors
new-generation materials have been chosen to constantly guarantee required output and maximum performance, given the severe conditions required by the application. Protection against overheating of the motor is ensured by a microprocessor.
The support flange
is completely in hard coat anodised aluminium.
Technical data:

Model: BTQ 140-40;
Propulsion system: Single propeller;
Ø Tunnel: 140 mm;
Voltage: 12 V;
Motor power: 2,2 Kw;
Thrust: 40 Kgf;
Boat size*: 7-9,5 m (23-31 ft);
Weight: 12,4 kg;

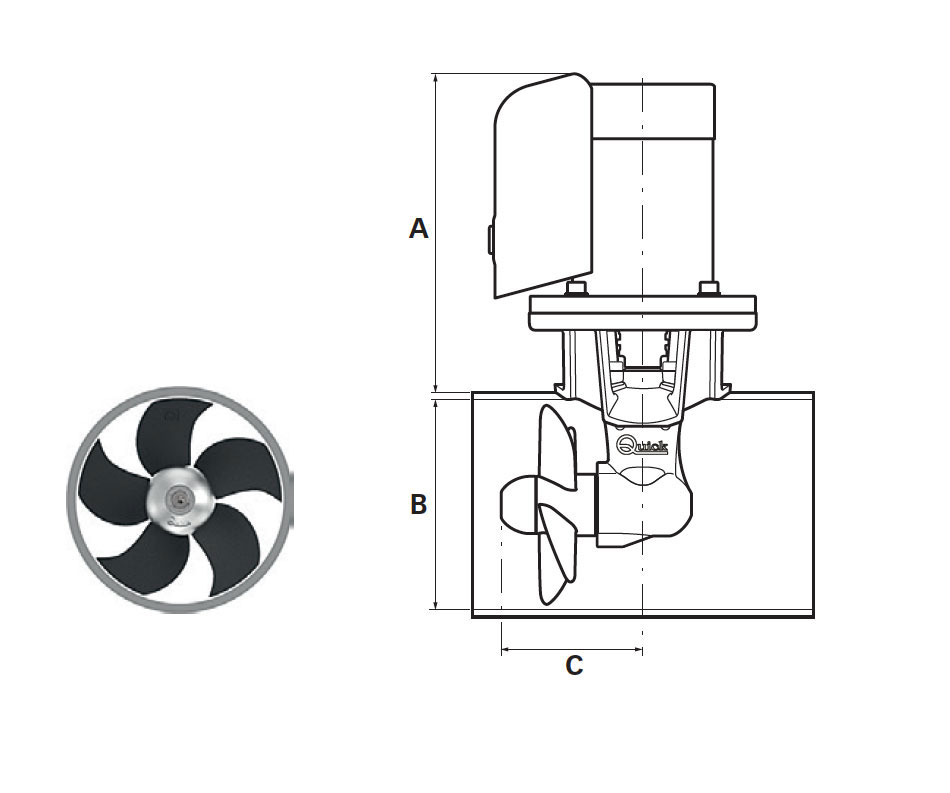

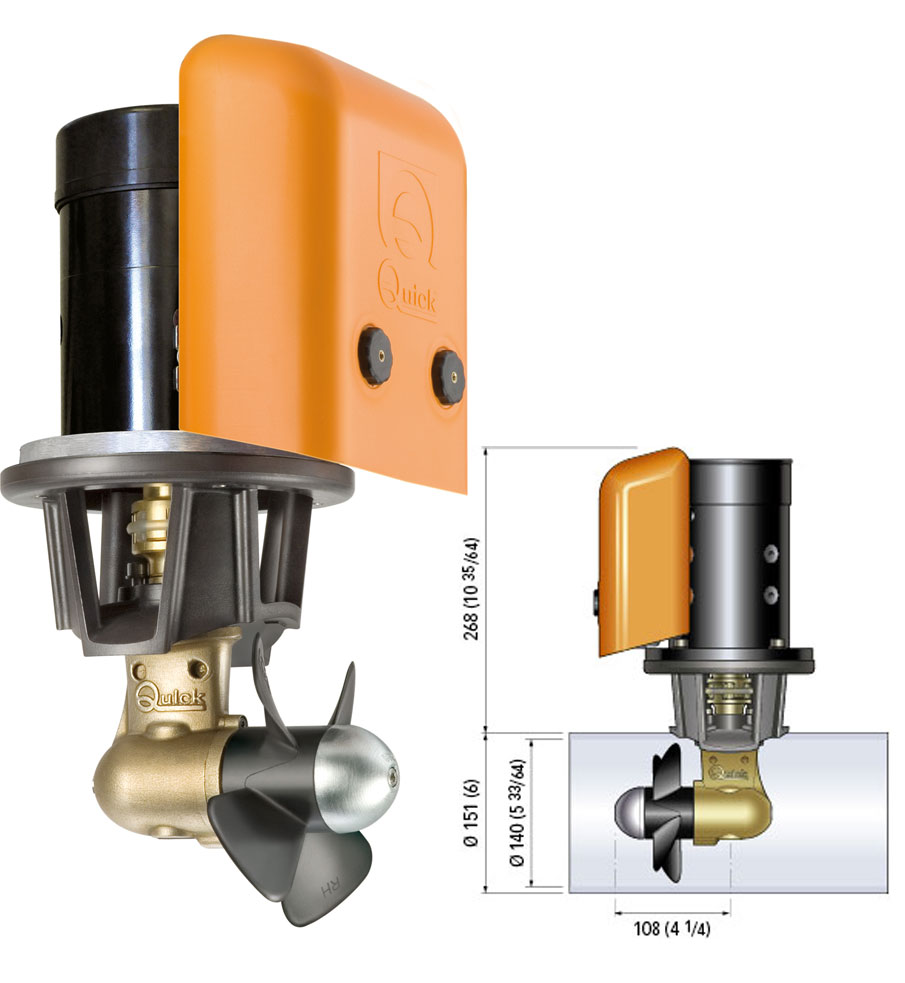

Dimensions: A 268 mm - B 140 mm - C 108 mm.
(*) ATTENTION: Indications may vary according to the boat type.
