Quick BTQ 185-55 eletric thruster kit 12V or 24V 3 Kw 121.2 lb with Joystick remote control and tunnel Ø185 mm L.1000 mm

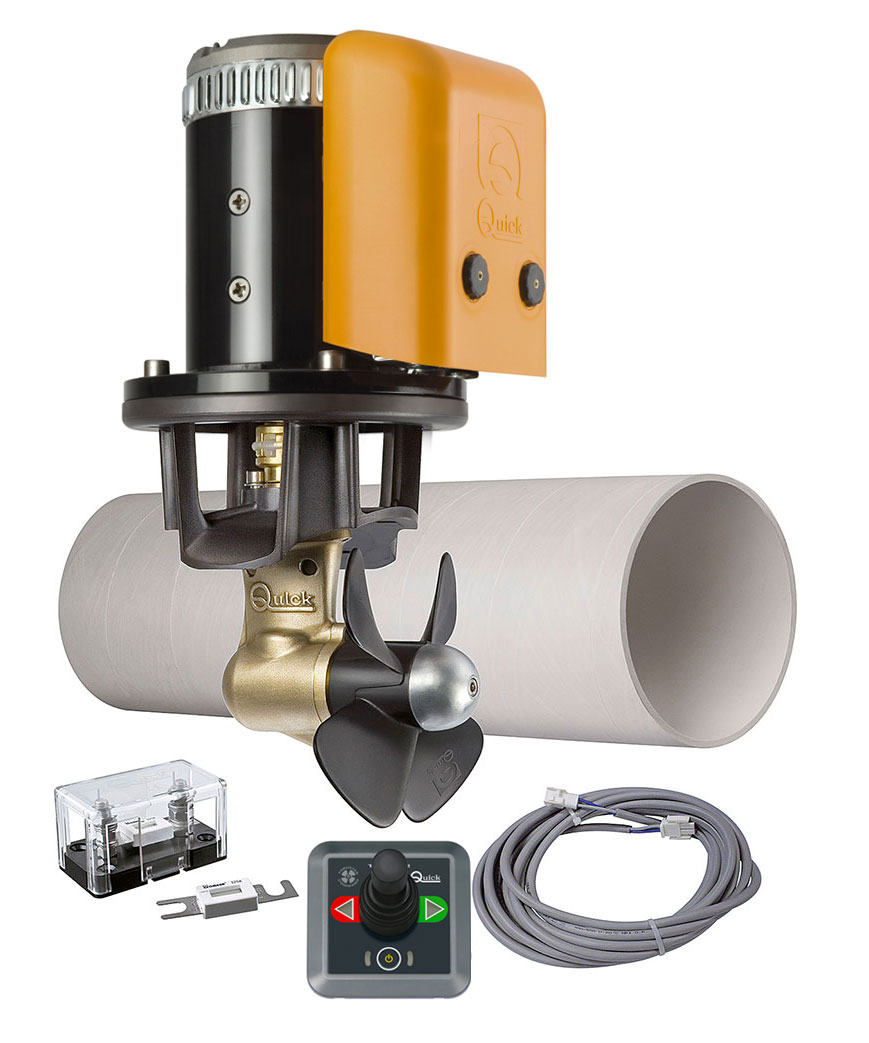

The kit contains:
1. 1 Quick BTQ 185-55 single electric propeller thruster 12V or 24V 3 Kw 55 Kgf;
2. 1 Joystick Remote control;
3. 1 Extension for commands TCD/TMS/TSC 12 mt;
4. 1 Thruster Tunnel Ø185 x L.1000mm in fiberglass;
5. 1 Fuse 500A CNL DIN;
6. 1 Fuse holder for fuses CNL/CNN DIN - 600A.

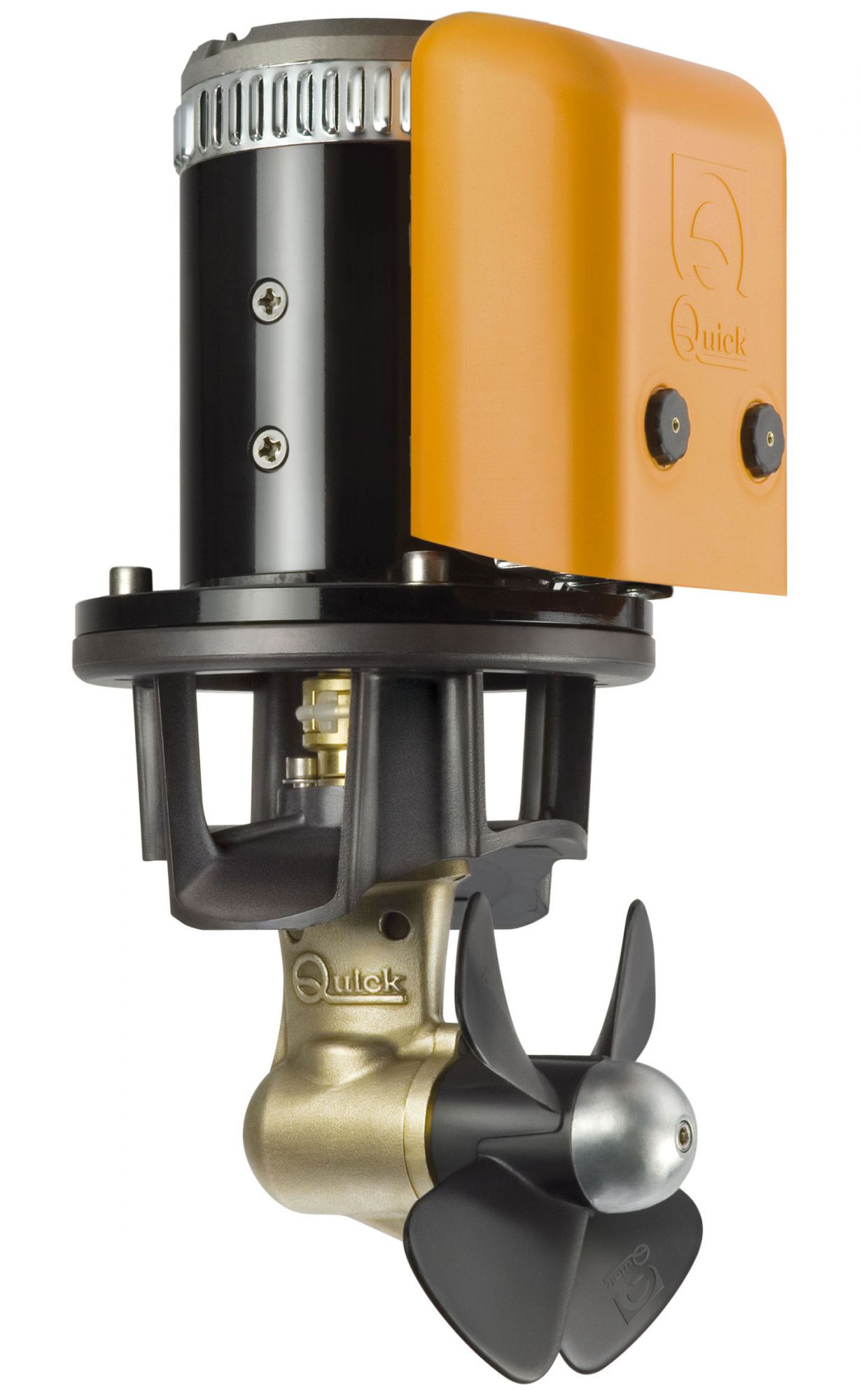

1. Quick BTQ 185-55 electric thruster 12V or 24V 3 Kw 55 Kgf (121.2 lb)
The Quick BTQ 185 is a single propeller thruster composed of a sturdy composite material. Length recommended boat 8-11 m (26-36 ft). Some additional features of this unit are the solenoid is protected by a sturdy composite material, the gearbox is composed of bronze, the zinc anode is independent from the gearbox which allows an easy replacement and it is also equipped with an elastic coupling.
The Gearbox is created so that the behaviour of the propeller is unaffected in either direction. The conical gears that make up the gearbox are reinforced and adjusted to ensure maximum efficiency. Maintenance is not required since the special highly resistant components guarantee a perfect lubrication seal for life. The anodic zinc protection is easily replaceable.
The bronze propeller gearleg is provided with a hydrodynamic profile that minimizes turbulence.
The 4-blade Propeller guarantee maximum thrust performance and reduction in current absorption. This is made of composite materials, resistant in every condition, and fastened with self-locking nuts in stainless steel.
The case that protects the reversing contactors is made of robust composite materials that are resistant to corrosion. The electrical connections are provided with quick connectors.
The elastic joint that optimizes the alignment between motor and gearbox is an exclusive Quick design. This acts as an even tension device, preserving the operating system from impulses from the bow thruster, with above-average results.
The motors new-generation materials have been chosen to constantly guarantee required output and maximum performance, given the severe conditions required by the application. Protection against overheating of the motor is ensured by a microprocessor.
The support flange is completely in hard-cote anodized aluminium.
Models: BTQ 185-55;
Propulsion system: Single propeller;
Ø Tunnel: 185 mm (7” 9/32 in);
Voltage: 12V or 24V;
Motor power: 3 Kw;
Thrust: 55 kgf (121.2 lb);
Boat size*: 8-11 m (26-36 ft);
Weight: 12V - 17.2 kg, 24V - 17.5 kg;

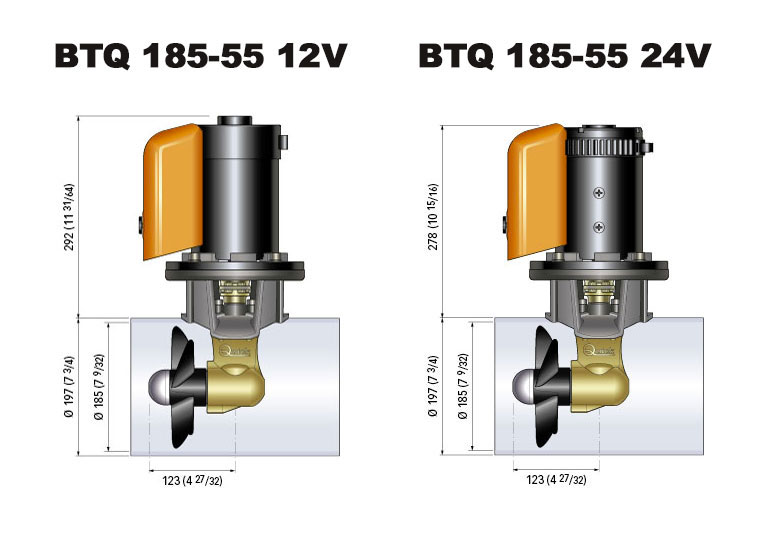

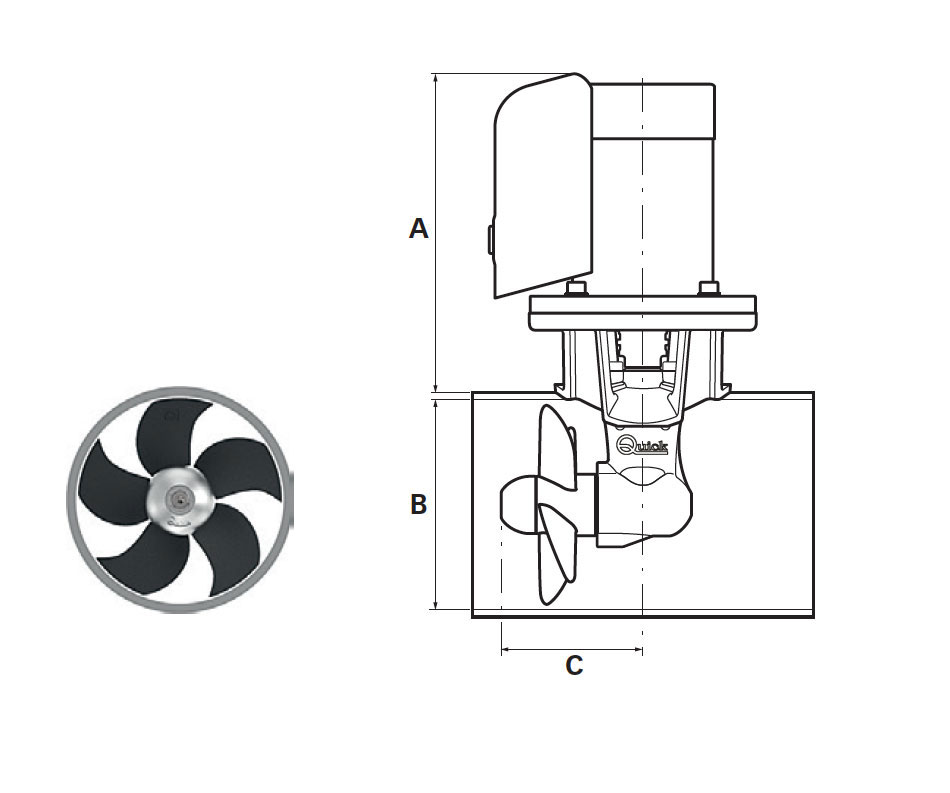

Dimensions: 12V: A - 292 mm (11” 1/2 in), B - 185 mm (7” 9/32 in), C - 123 mm (4” 27/32 in); 24V: A - 278 mm (10” 15/16 in), B - 185 mm (7” 9/32 in), C - 123 mm (4” 27/32 in).
*Attention: the indication may vary according to the boat type.
2. Joystick Remote control

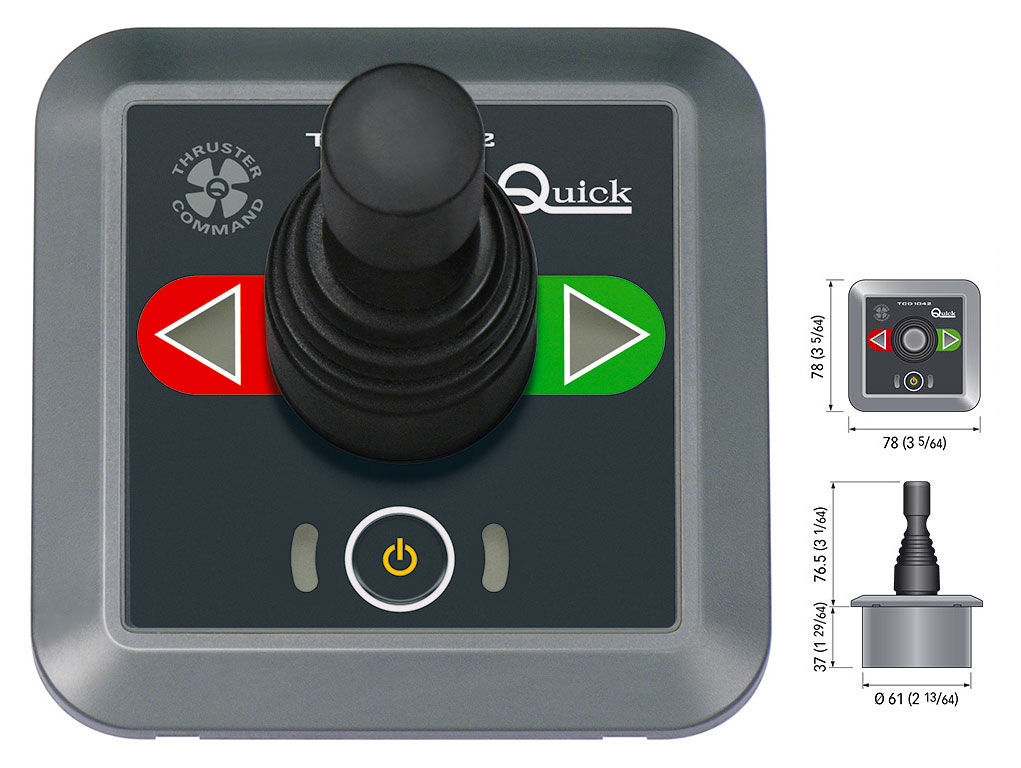

TCD 1042 Control panels have been designed to control the stern and bow thrusters. For operating the BTQ bow-thruster through a joystick. Simple and intuitive user interface. Universal power supply (from 8 to 30 Vdc). Can work in a wide range of ambient temperatures. Possibility of connecting several TCD controls in parallel. Easy to install by means of 2-wire connector (optional extensions). Automatic priority system. Automatic disablement. Protection against reverse polarity, short circuit output, prolonged activity of motor and interruption of thruster controls wiring.
- Model: TCD 1042;
- Current capacity of thruster commands: 4A max;
- Supply voltage (1): da 8 a 31 Vdc;
- Quiescent Current absorption (2): 10 mA;
- Operating temperature: from -20 to +70 °C;
- Protection rating (3): IP 66;
- Dimensions including frame: 78 mm x 78 mm x 113 mm (3" 5/64 x 3" 5/64 x 4" 11/32);
- Diameter in mm (pollici): 61 (2 13/64);
- Weight: 0.31 lb / 140 g.
(1) With power supply voltage less than 8 Vdc the control panel can reset.
(2) Typical value with control panel disabled.
(3) Excluding the back of the control panel (IP20).
3. Extension for commands TCD/TMS/TSC

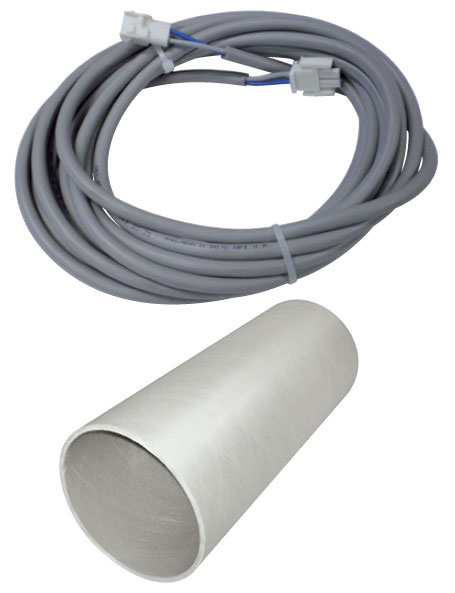

The Quick TCDEX is a control extension cable used on the Quick BTQ bow thruster series to connect the bow or stern thrusters system to the TCD remote panel control system. Length 12 meres. Model TCDEX12.
4. Fibreglass tunnel for BTQ 185-55 bow thruster
Fiberglass tunnel perfectly suited to fit electric or hydraulic Quick thrusters. Ø185 mm. Length 1000 mm. Thickness 5.5 mm (7/32 inch). Model TNL185F100.

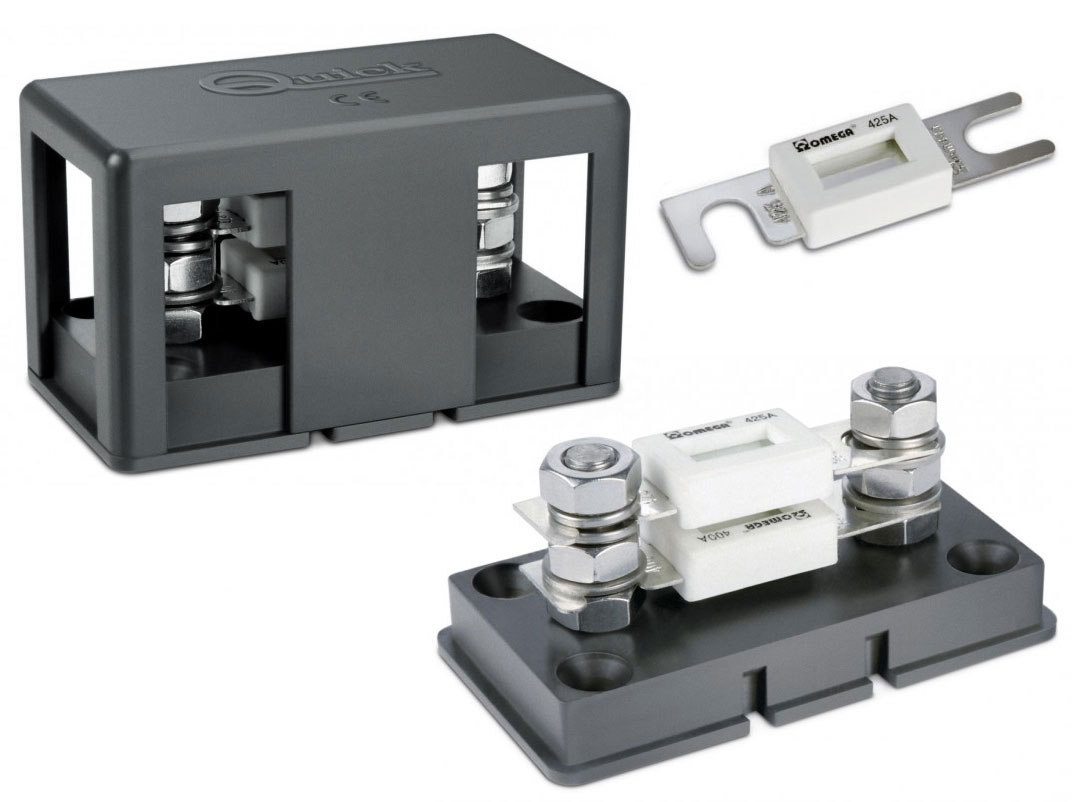

5. Thruster fuse 500A CNL DIN
The fuse is an essential item that is needed for the bow thruster installation to protect the motor from over current.
6. Fuse holder for fuses CNL/CNN DIN - 600A.
