Quick BTQ185-65 Bow Thruster Kit 12V/24V 65Kgf Joystick Control No TNL #Q50810019

Kit consisting of Quick BTQ 185-65 Double counter-rotating propellers thruster 12V or 24V 3.3 Kw thrust 65 Kgf with Joystick remote control, without thruster tunnel, control extension cable 12m, fuse and fuse holder. Boat length 8-12 m (26-39 ft).
Price:
€2,303.97
Listing:
€3,071.96
You Save:
€767.99 (25%)

Description

This article is prepared upon order and will be shipped within approximately 20 working days from order.

Quick BTQ 185-65 double counter-rotating propellers thruster kit 12V or 24V 3.3 Kw 143.3 lb with Joystick remote control

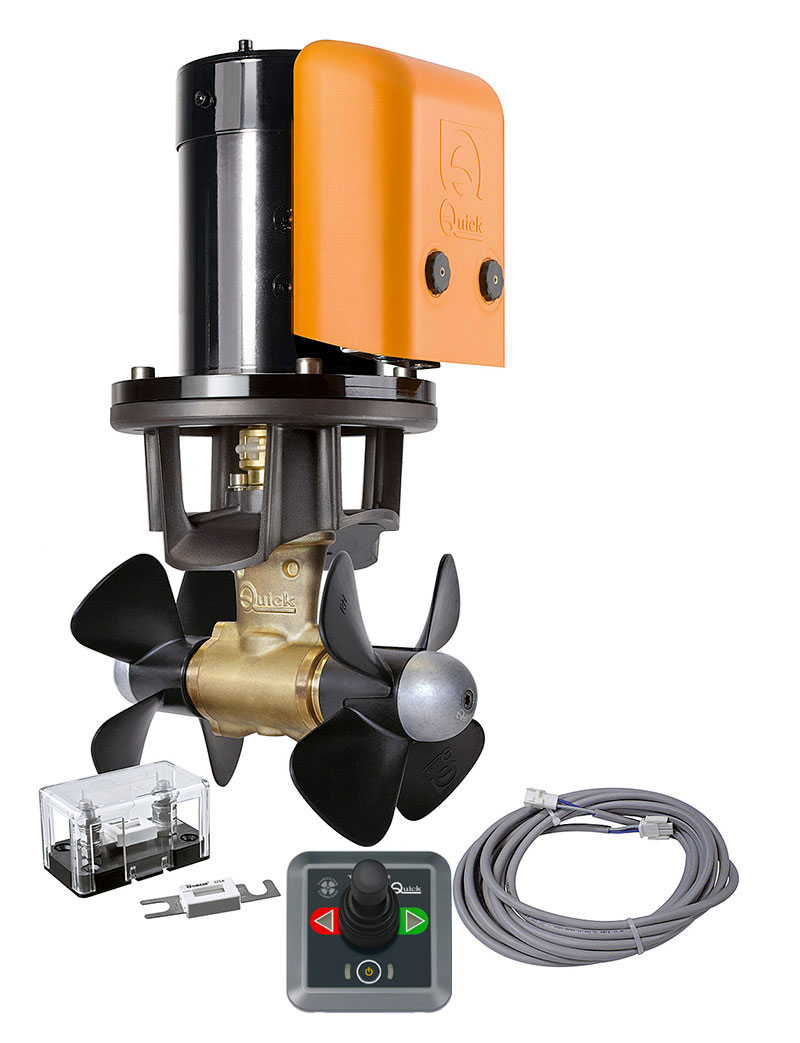

The kit contains:
1. 1 Quick BTQ 185-65 Double counter-rotating propellers thruster 12V or 24V 3.3 Kw 65 Kgf;
2. 1 Joystick Remote control;
3. 1 Extension for commands TCD/TMS/TSC 12 mt;
4. 1 Fuse 350A CNL DIN;
5. 1 Fuse holder for fuses CNL/CNN DIN - 600A.

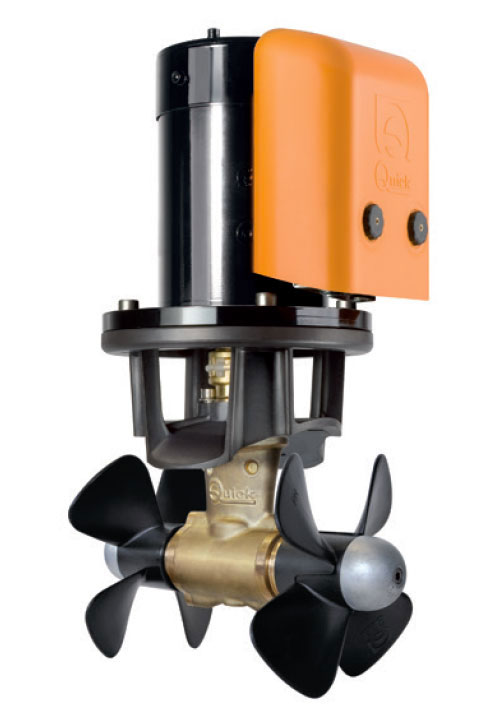

1. Quick BTQ 185-65 Double counter-rotating propellers thruster 12V or 24V 3.3 Kw 65 Kgf (143.3 lb)
Double propellers made in sturdy composite material. Recommended boat length from 8-12 m (26-39 ft). Solenoids protection carter in sturdy composite material. Gearbox in bronze. Zinc anode independent from the gearbox and hence easily replaceable. Equipped with elastic coupling.
The Gearbox is created so that the behaviour of the propeller is unaffected in either direction. The conical gears that make up the gearbox are reinforced and  adjusted to ensure maximum efficiency. Maintenance is not required since the special highly resistant components guarantee a perfect lubrication seal for life. The anodic zinc protection is easily replaceable.
The bronze propeller gearleg is provided with a hydrodynamic profile that minimizes turbulence.
The Propellers guarantee maximum thrust performance and reduction in current absorption. This is made of composite materials, resistant in every condition, and fastened with self-locking nuts in stainless steel.
The case that protects the reversing contactors is made of robust composite materials that are resistant to corrosion. The electrical connections are provided with quick connectors.
The elastic joint that optimizes the alignment between motor and gearbox is an exclusive Quick design. This acts as an even tension device, preserving the operating system from impulses from the bow thruster, with above-average results.
The motors new-generation materials have been chosen to constantly guarantee required output and maximum performance, given the severe conditions required by the application. Protection against overheating of the motor is ensured by a microprocessor.
The support flange is completely in hard-cote anodized aluminium.
Technical data:
Model: BTQ 185-65;
Propulsion system: Double counter-rotating propellers;
Ø Tunnel: 185 mm (7” 9/32 in);
Voltage: 12 V or 24V;
Motor power: 3.3 Kw;
Thrust: 65 kgf (143.3 lb);
Boat size*: 8-12 m (26-39 ft);
Weight: 12V - 18 kg (39.7 lb), 24V - 18.3 kg (40.3 lb);

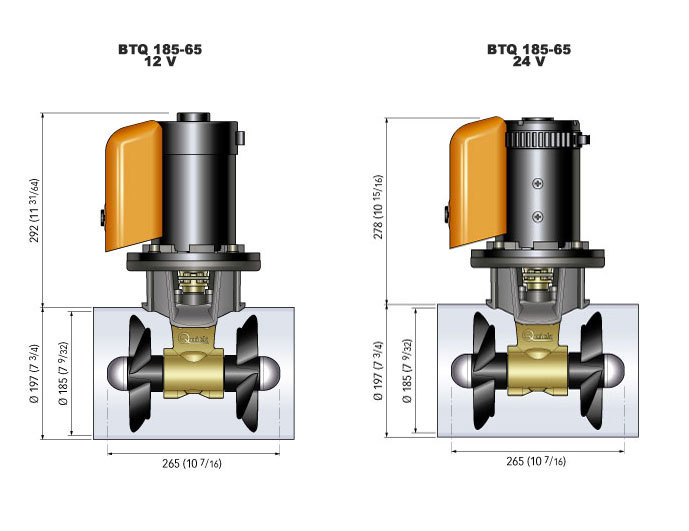

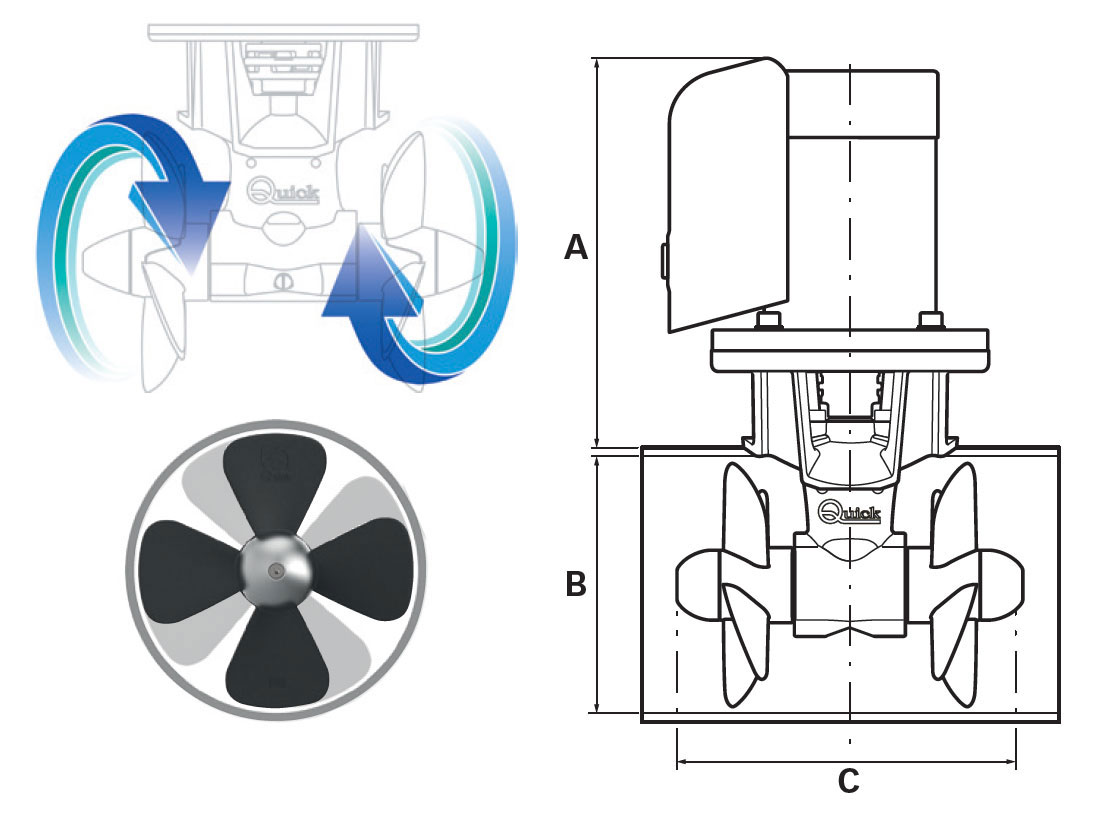

Dimensions: 12V - A 292 mm (11” 1/2 in) - B 185 mm (7” 9/32 in) - C 265 mm (10” 7/16 in), 24V
- A 278 mm (10” 15/16 in) - B 185 mm (7” 9/32 in) - C 265 mm (10” 7/16 in).
*Attention:
the indication may vary according to the boat type.

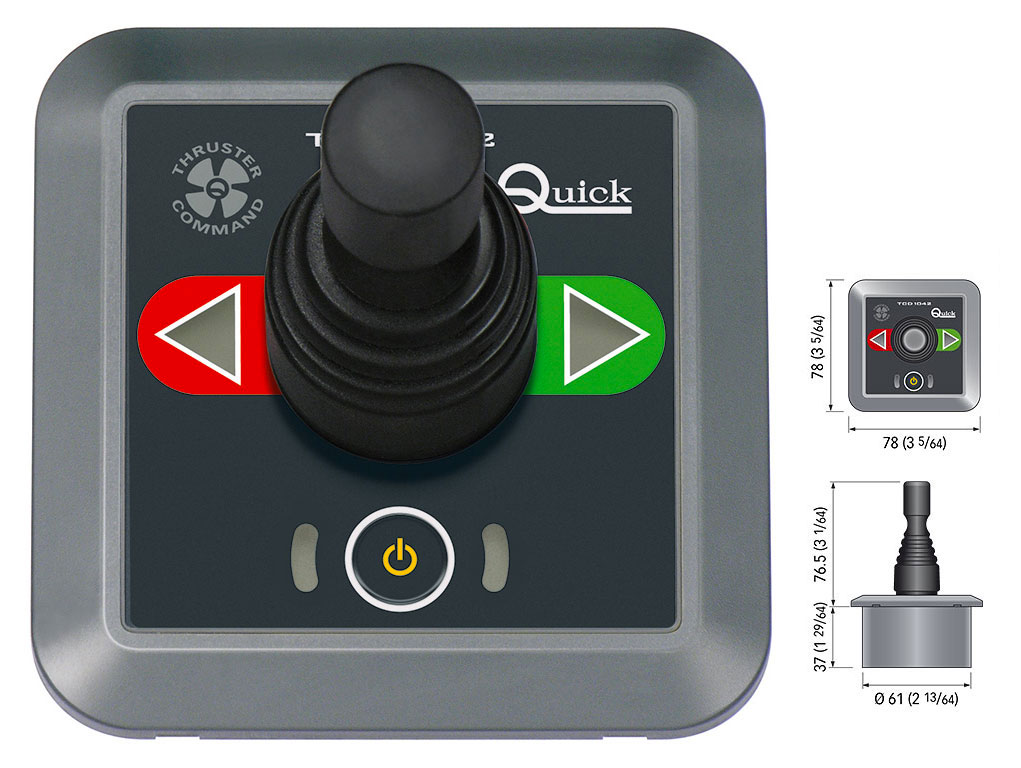

2. Joystick Remote control
TCD 1042 Control panel have been designed to control the stern and bow thrusters. For operating the BTQ bow-thruster through a joystick. Simple and intuitive user interface. Universal power supply (from 8 to 30 Vdc). Can work in a wide range of ambient temperatures. Possibility of connecting several TCD controls in parallel. Easy to install by means of 2-wire connector (optional extensions). Automatic priority system. Automatic disablement. Protection against reverse polarity, short circuit output, prolonged activity of motor and interruption of thruster controls wiring.
Technical data:
- Model: TCD 1042;
- Current capacity of thruster commands: 4A max;
- Supply voltage (1): da 8 a 31 Vdc;
- Quiescent Current absorption (2): 10 mA;
- Operating temperature: from -20 to +70 °C;
- Protection rating (3): IP 66;
- Dimensions including frame: 78 mm x 78 mm x 113 mm (3" 5/64 x 3" 5/64 x 4" 11/32);
- Diameter in mm (inches): 61 (2 13/64);
- Weight: 0.31 lb / 140 g.
(1) With power supply voltage less than 8 Vdc the control panel can reset.
(2) Typical value with control panel disabled.
(3) Excluding the back of the control panel (IP20).

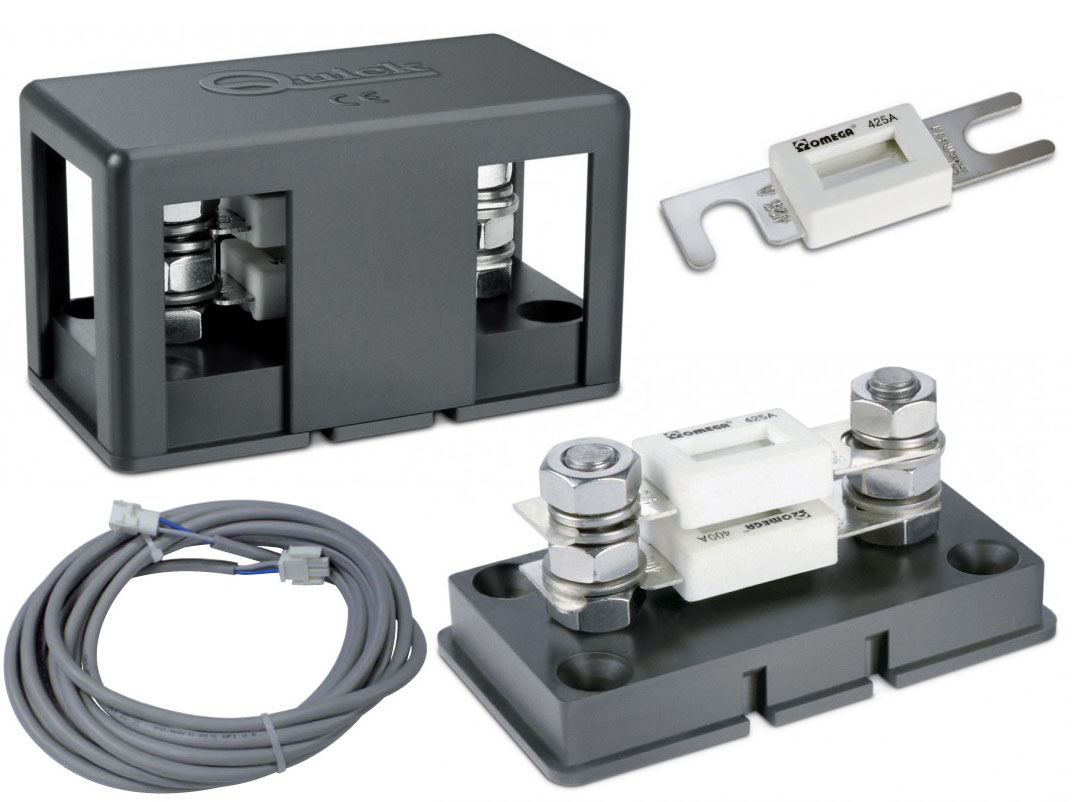

3. Extension for commands TCD/TMS/TSC
The Quick TCDEX is a control extension cable used on the Quick BTQ bow thruster series to connect the bow or stern thrusters system to the TCD remote panel control system. Length 12 meters. Model TCDEX12.

4. Bow thruster fuse 350A CNL DIN
The fuse is an essential item that is needed for the bow thruster installation to protect the motor from over current.

5. Fuse holder for fuses CNL/CNN DIN - 600A.
