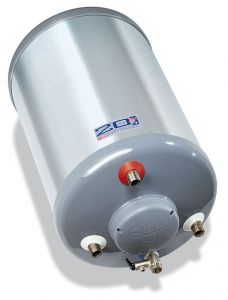

Quick BX20 20lt 1200W Stainless Steel Boiler with Heat Exchanger #QBX2012S

Quick BX20 20lt 1200W Stainless Steel Boiler with Heat Exchanger #QBX2012S
  • Quick BX20 20lt 1200W Stainless Steel Boiler with Heat Exchanger #QBX2012S
  • Quick BX20 20lt 1200W Stainless Steel Boiler with Heat Exchanger #QBX2012S
  • Quick BX20 20lt 1200W Stainless Steel Boiler with Heat Exchanger #QBX2012S

Quick BX20 20lt 1200W Stainless Steel Boiler with Heat Exchanger #QBX2012S

Quick S.S. BX20 Boiler with Heat Exchanger. Tank capacity 20lt. Heating element power 1200W. BX Series. Casing in 304 Aisi stainless steel. Tank in 316 Aisi stainless steel.
Price:
€606.19
Listing:
€808.25
You Save:
€202.06 (25%)

Description

This item is assembled to order and will take approximately 20 business days to process.

Quick S.S. 20lt 1200W BX20 Boiler with Heat Exchanger .
Casing in 304 Aisi stainless steel - Tank in 316 Aisi stainless steel

Benefits
- High quality materials
- Heat exchanger with wide exchange surface
- Produces hot water from the electric element,that Is fitted with an adjustable safety thermostat.
- Relief / non-return vale that allows discharging of the water heater in case of disuse
The features
The heat exchanger used for Quick "Nautic Boiler” is in stainless steel AISI 316. The heat exchange capacity is notably higher than that achieved from other manufacturers.
The tank is made in stainless steel 316 AISI welded with Argon shielding gas and hence highly resistant to corrosive agents.
The electrical heating element is made of incoloy®steel.
The thermal insulation is high density polyurethane foam injected between the cover and tank giving excellent heat retention properties.
Technical data:
Model: BX2012S
Tank capacity: 20 litres
Tank Material: Stainless Steel
Thermal insulator: Rigid polyurethane foam with closed cells
External coating: Stainless Steel
Tank pressure: 800 kPa (1)
Maximum operating pressure: 600 kPa (1)
Heating element voltage: 220 Vac ± 10% - (110 Vac ± 10%)
Heating element power: 1200 W
Connection diameter: 1/2"
Weight with Heat Exchanger: 10.9kg
Dimensions: A= 500mm (19" 11/16), B= 316mm (12" 7/16), C= Ø 300mm (11" 13/16).
