Modern series of Power LED downlights.
The diffuser, made with tempered glass, gives the product a particularly refined look.
Square tempered glass frame - satin finish lens. Natural, warm, tunable white, RGBW light.
Available in RGBW version and in TW (Tunable White) version, and it can be controlled with the QCC Systems by Quick.
Features:
Power type: Constant Voltage;
Light source: LED;
Supply: 10 ÷ 30 V;
Power consumption: 7 W;
Current consumption: 0.29 A @ 24V;
Average lifespan: 50.000 h;
Dimmable: Yes;
IP protection degree: 40;
Light colours: DAYLIGHT / WARM WHITE / TUNABLE WHITE / RGBW;

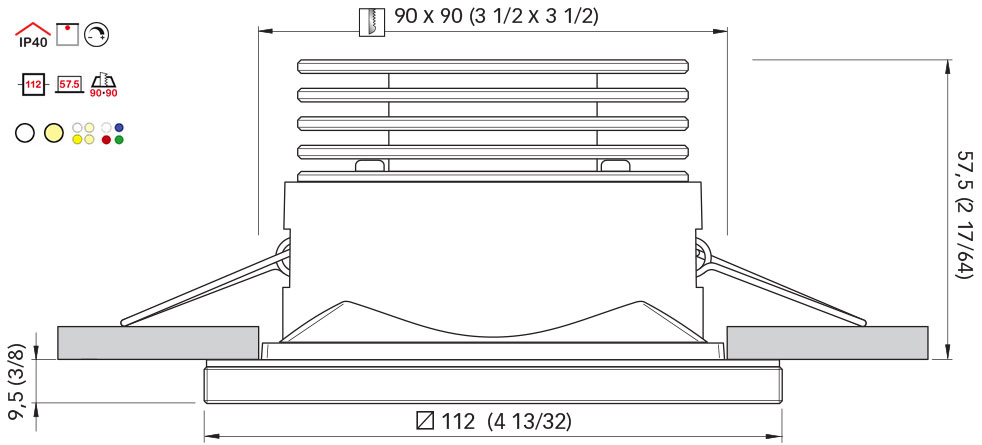

Frame material: 9.5 mm GLASS;
Square frame: Square 112 mm 4 13/32";
Recess: 57.5 mm 2 17/64";
Hole: Square 90 mm 3 1/2" x 3 1/2";

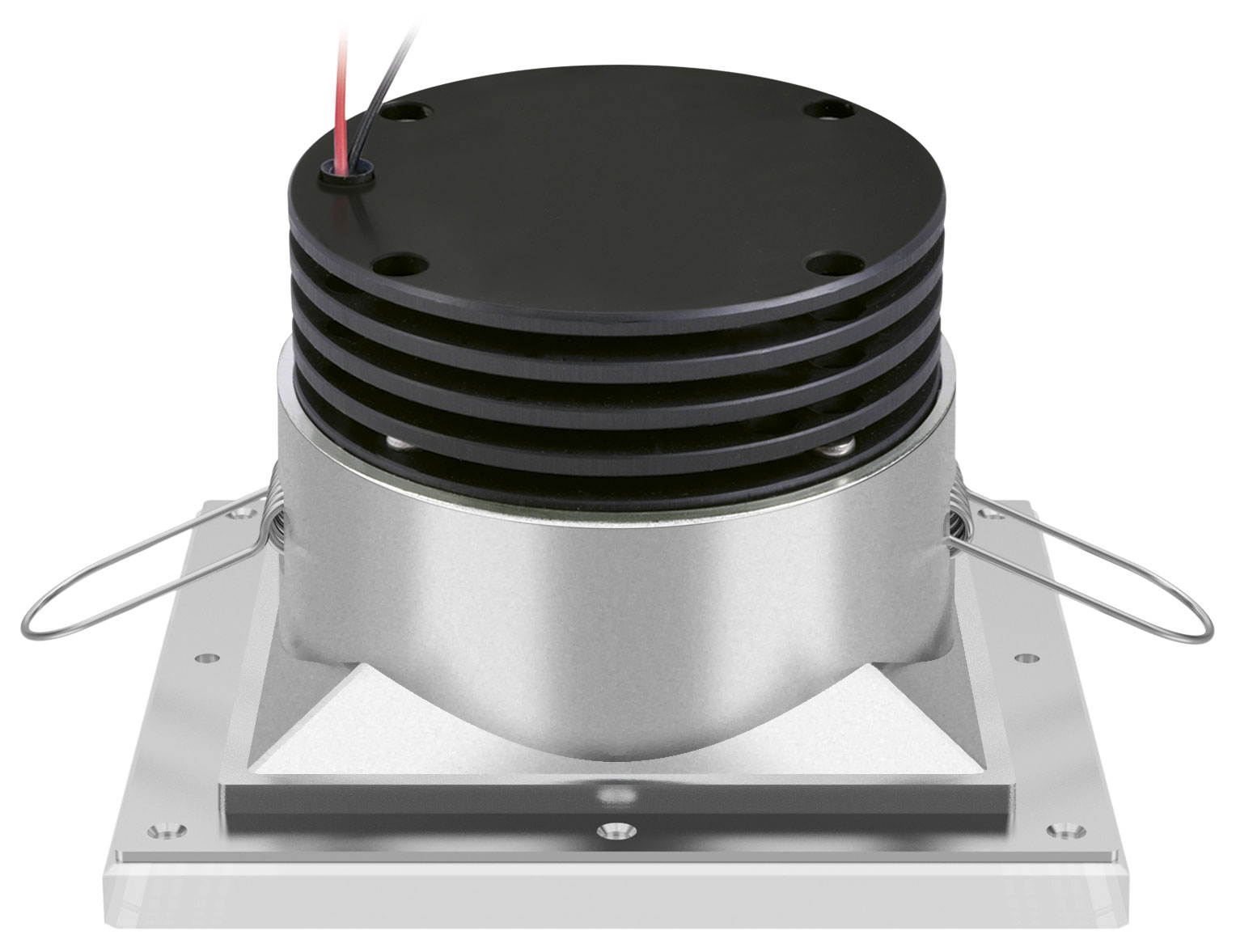

Mounting: springs.

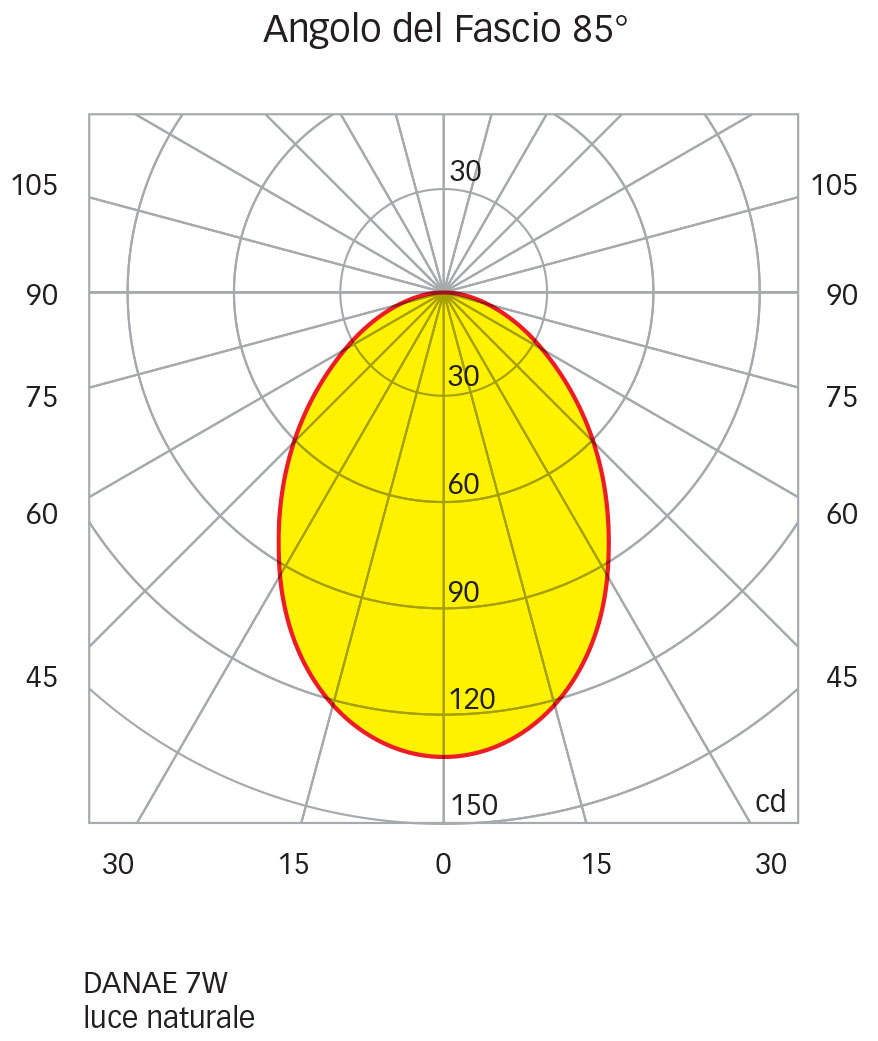

Photometric data:
Natural White 3800-4100K
- CRI: ≥ 80;
- Angle: 85°;
- Luminous flux: 274 lm;
- Illuminance - distance 1 m: Ø 1.81 m - 130.7 lux;
- Illuminance - distance 2 m: Ø 3.63 m - 32.7 lux;
- Illuminance - distance 3 m: Ø 5.44 m - 14.5 lux.

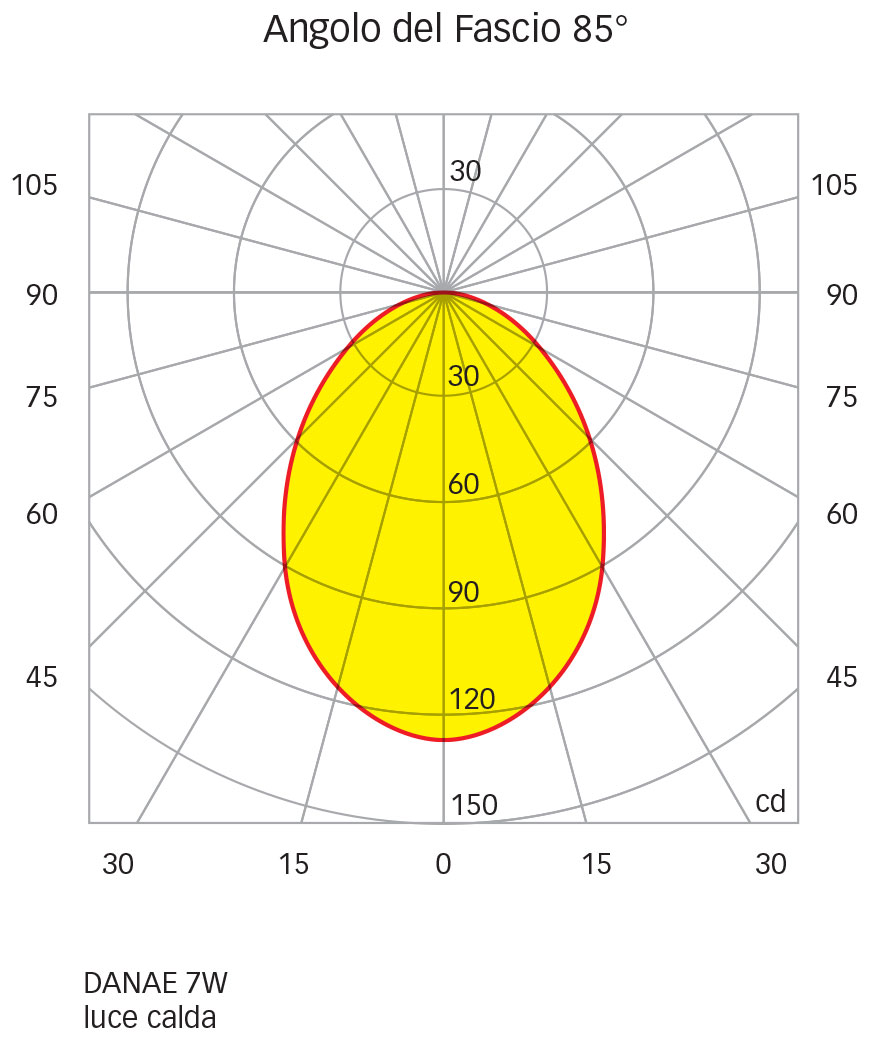

Warm White 2900-3100K
- CRI: ≥ 80;
- Angle: 85°;
- Luminous flux: 264 lm;
- Illuminance - distance 1 m: Ø 1.81 m - 125.7 lux;
- Illuminance - distance 2 m: Ø 3.63 m - 31.4 lux;
- Illuminance - distance 3 m: Ø 5.44 m - 14 lux.
RGBW
- Angle: 85°;
TUNABLE WHITE 2700-5700 °K
- Angle: 85°.
LED Protection: Spike protected ± 500V.
Polarity sensitive: Yes.
Certifications: class III, CE.
Note: Please choose the desired colour from the drop down menu.
25300016BIN NATURAL WHITE
25300016BIC WARM WHITE
25300016RGBW RGBW
25300016BID DYNAMIC WHITE
