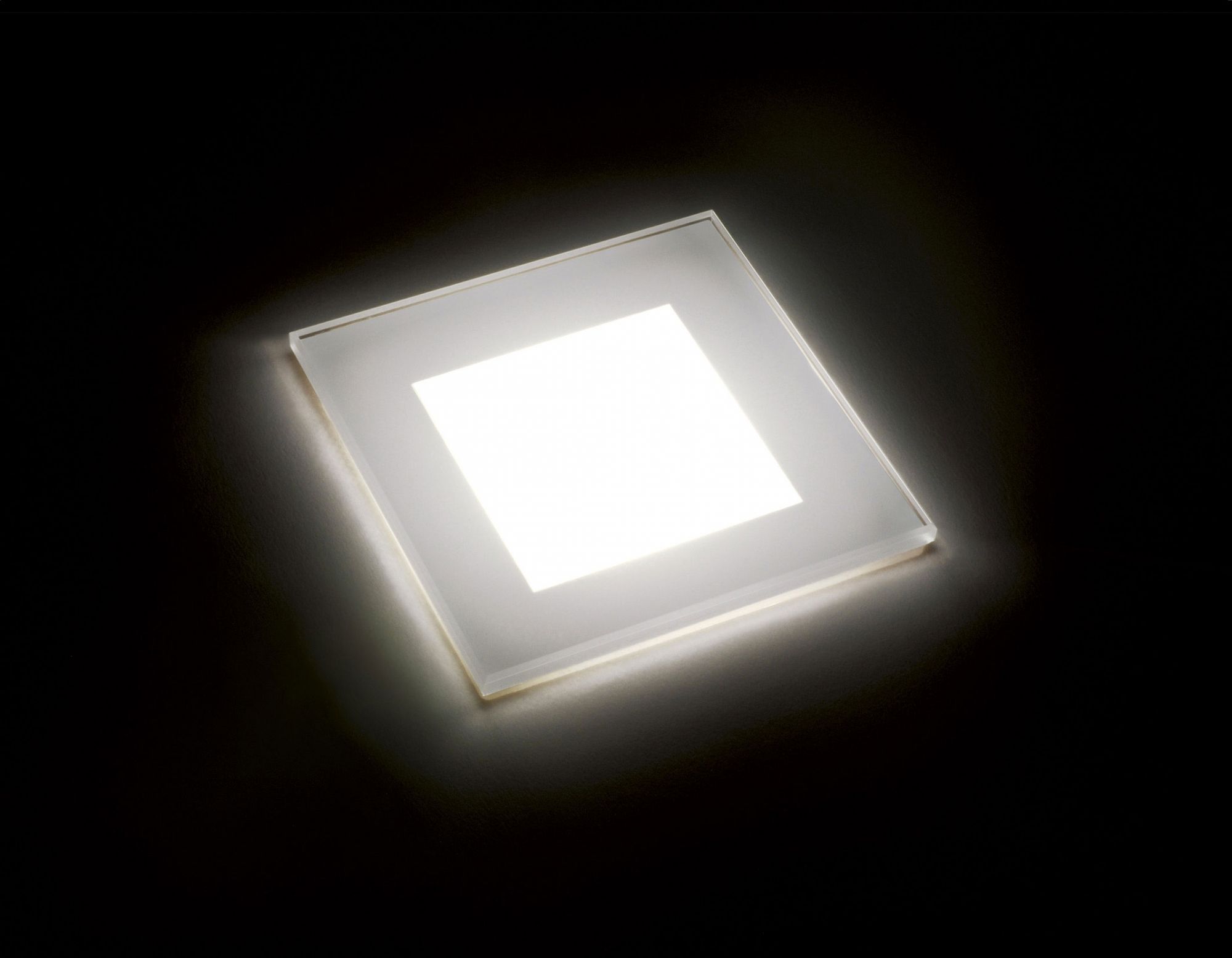

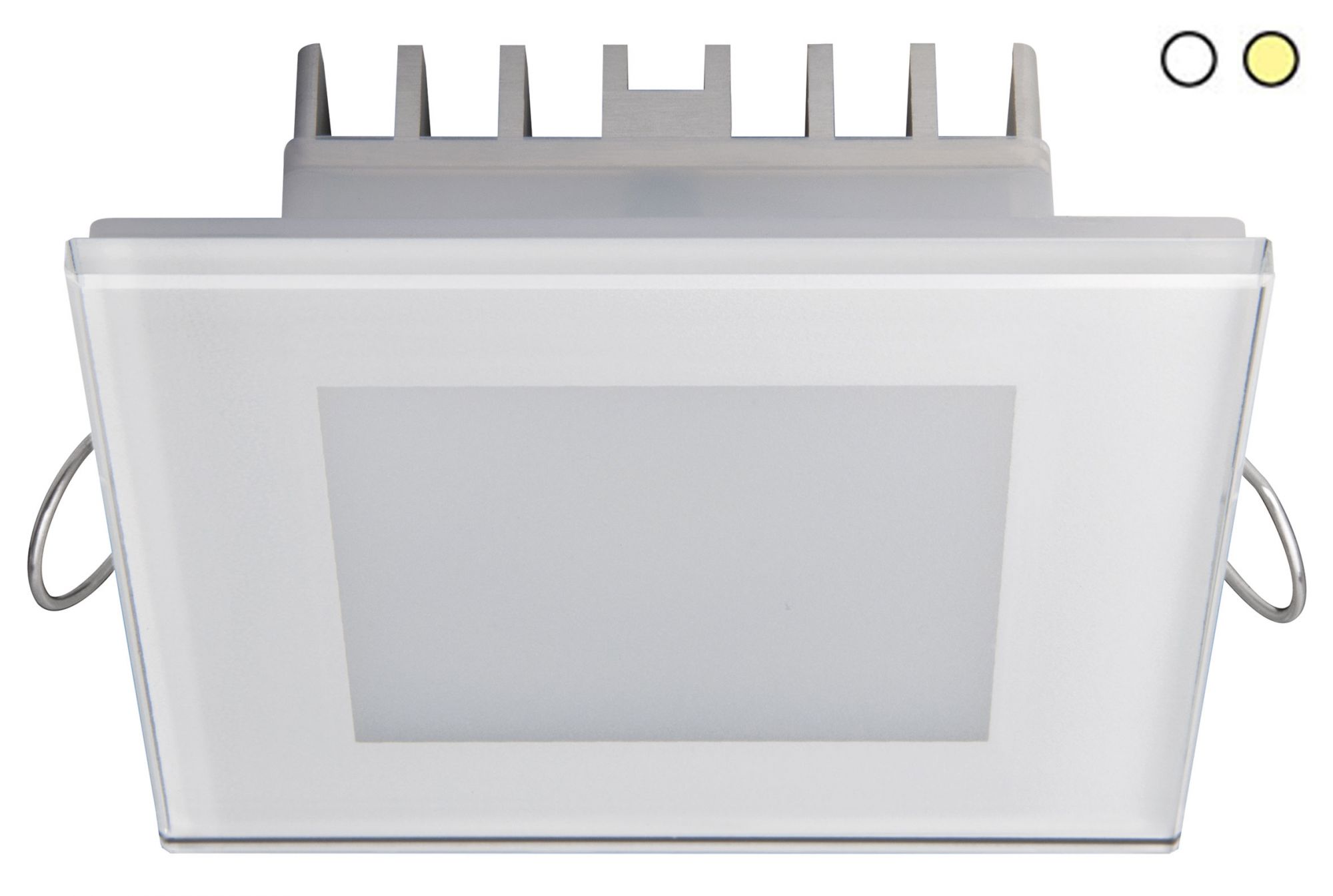

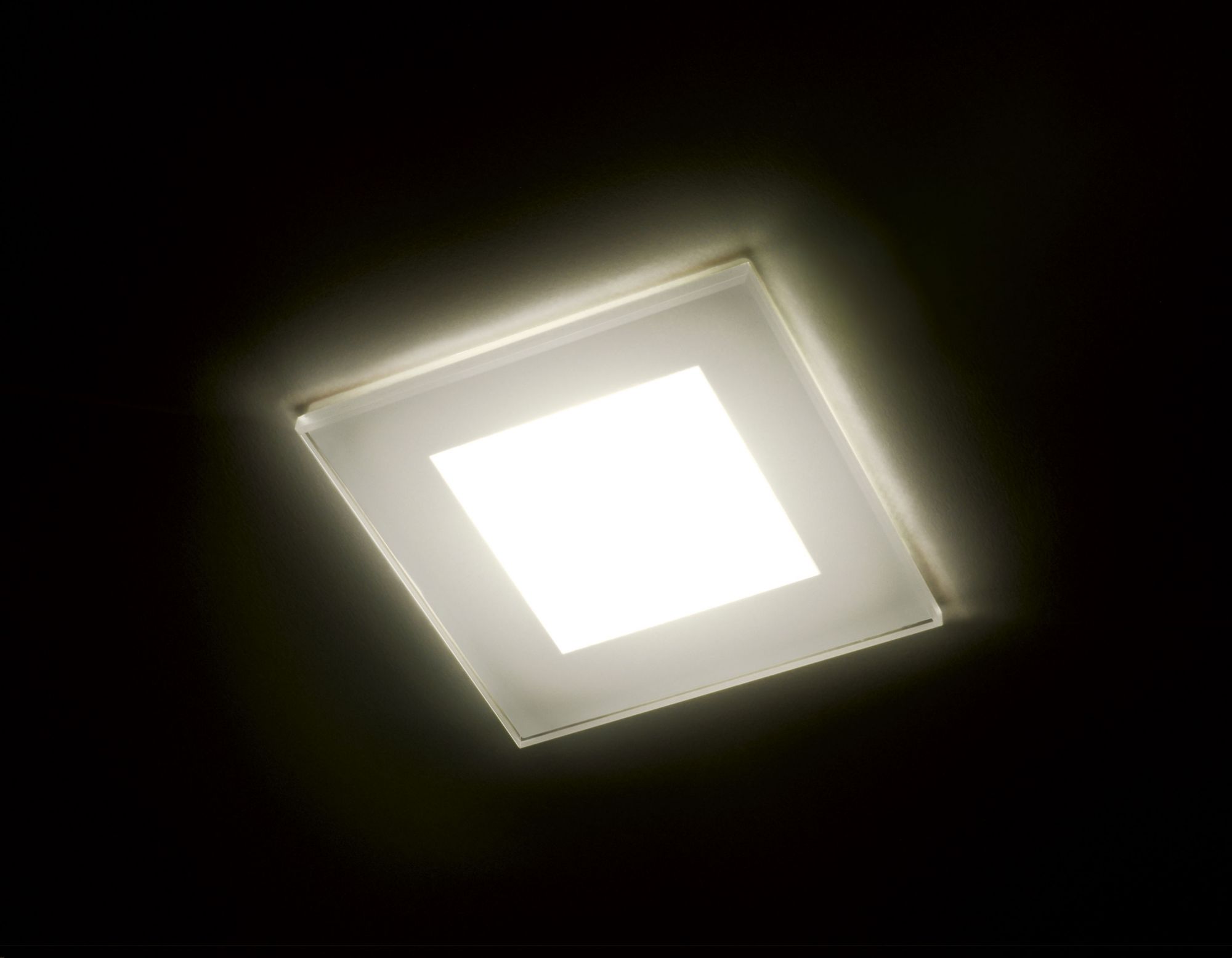

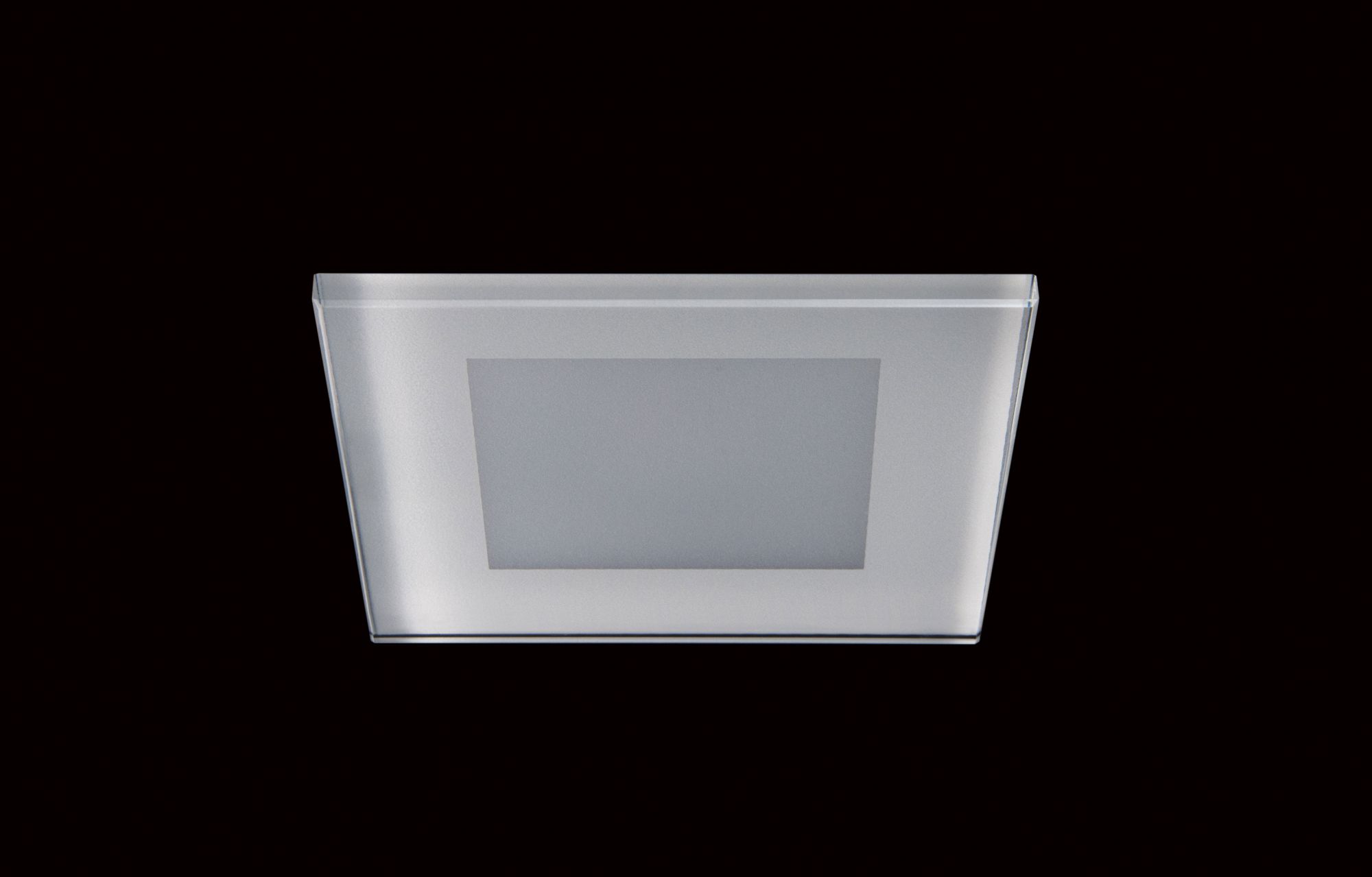

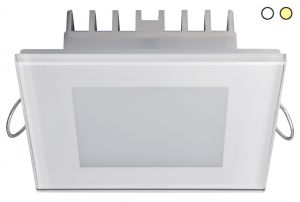

Quick DAPHNE LP 4W 10~30Vdc LED downlight 103-108lm IP65 DL86, made with 5.5x86mm tempered glass square frame, 27mm recess, satin finish lens, assembly with springs, natural, warm light.
Price:
€75.03
Listing:
€100.04
You Save:
€25.01 (25%)

Description

Quick DAPHNE LP 4W 10~30Vdc LED downlight 103-108lm IP65 DL86 made with 5.5mm tempered glass

Modern series of Power LED downlights. The diffuser, made with tempered glass, gives the product a particularly refined look.
With IP65 rating, it is protected against humidity and water splashes, if installed properly.

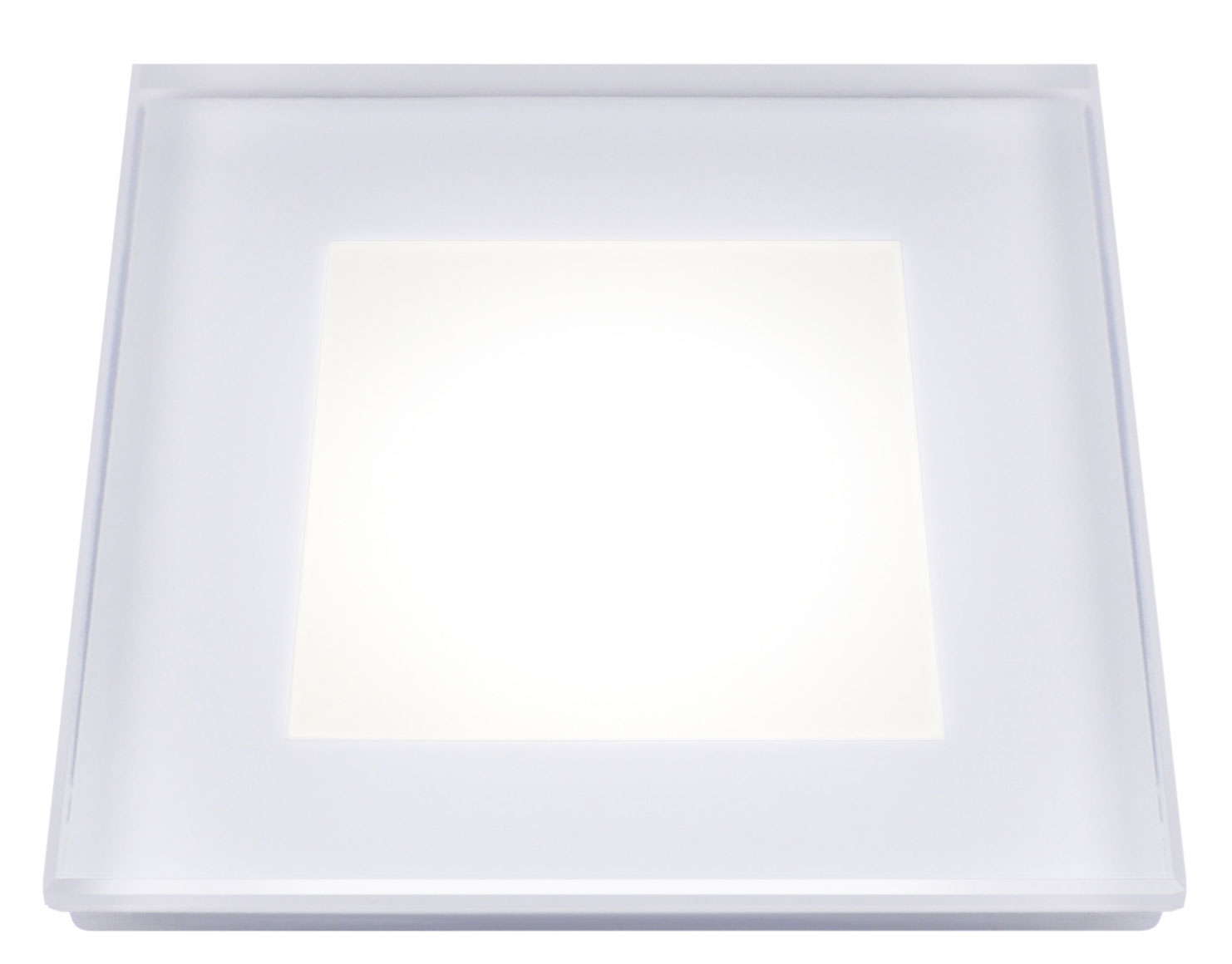

Square tempered glass frame - satin finish lens. Natural, warm light.

Features:
Power type: Constant Voltage;
Light source: LED;
Supply: 10 ÷ 30 V;
Power consumption: 4 W;
Current consumption: 0.17 A @ 24V;
Average lifespan: 50.000 h;
Dimmable: Yes;
IP protection degree: 65;
Light colours: DAYLIGHT / WARM WHITE;

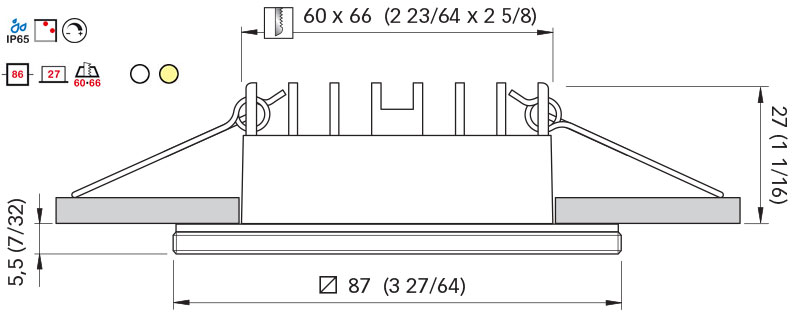

Frame material: 5.5 mm GLASS;
Square frame: Square 86 mm (3 25/64");
Recess: 27 mm (1 1/16");
Hole: RECT. 60x66 mm (2 23/64" x 2 5/8");

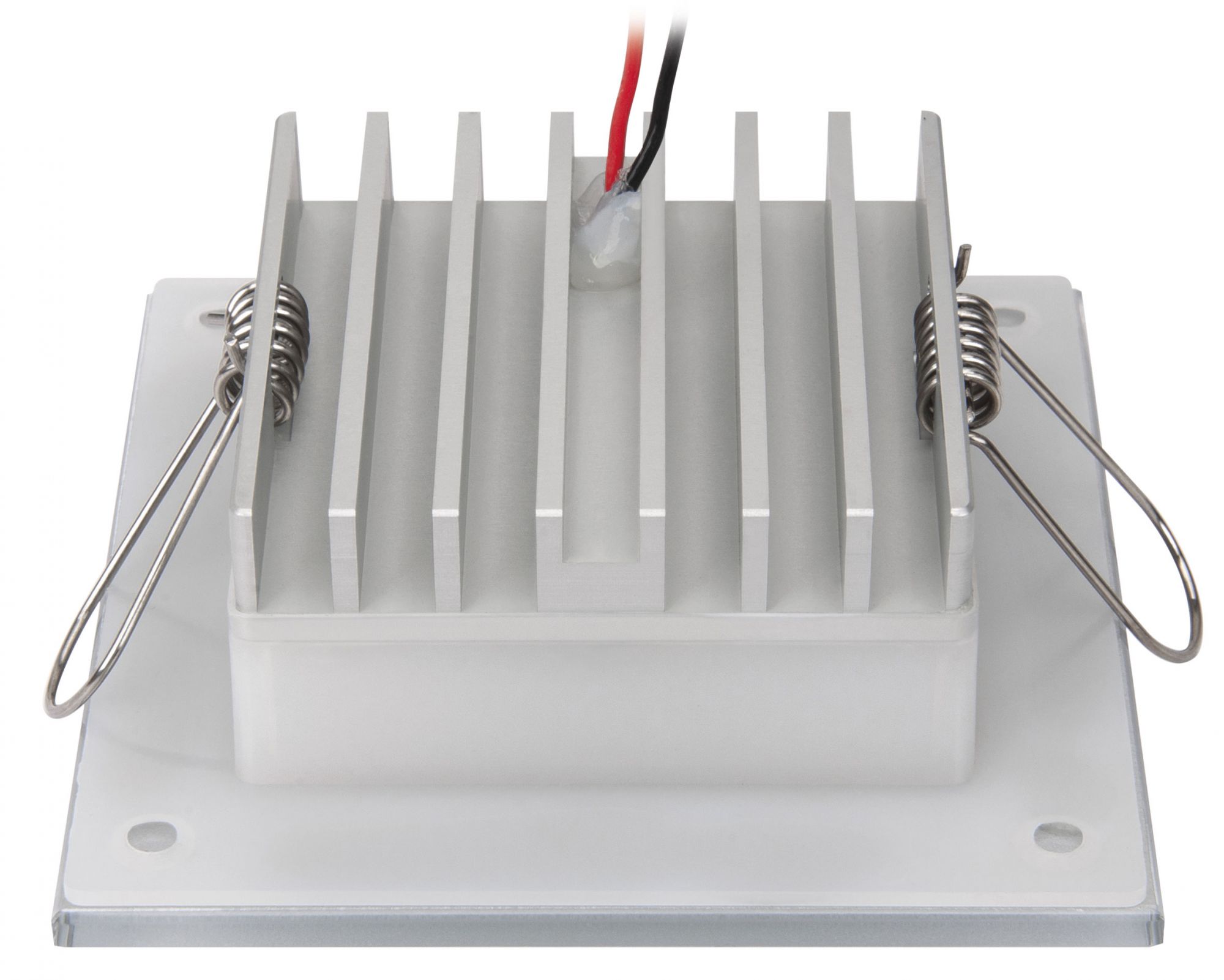

Mounting: springs.

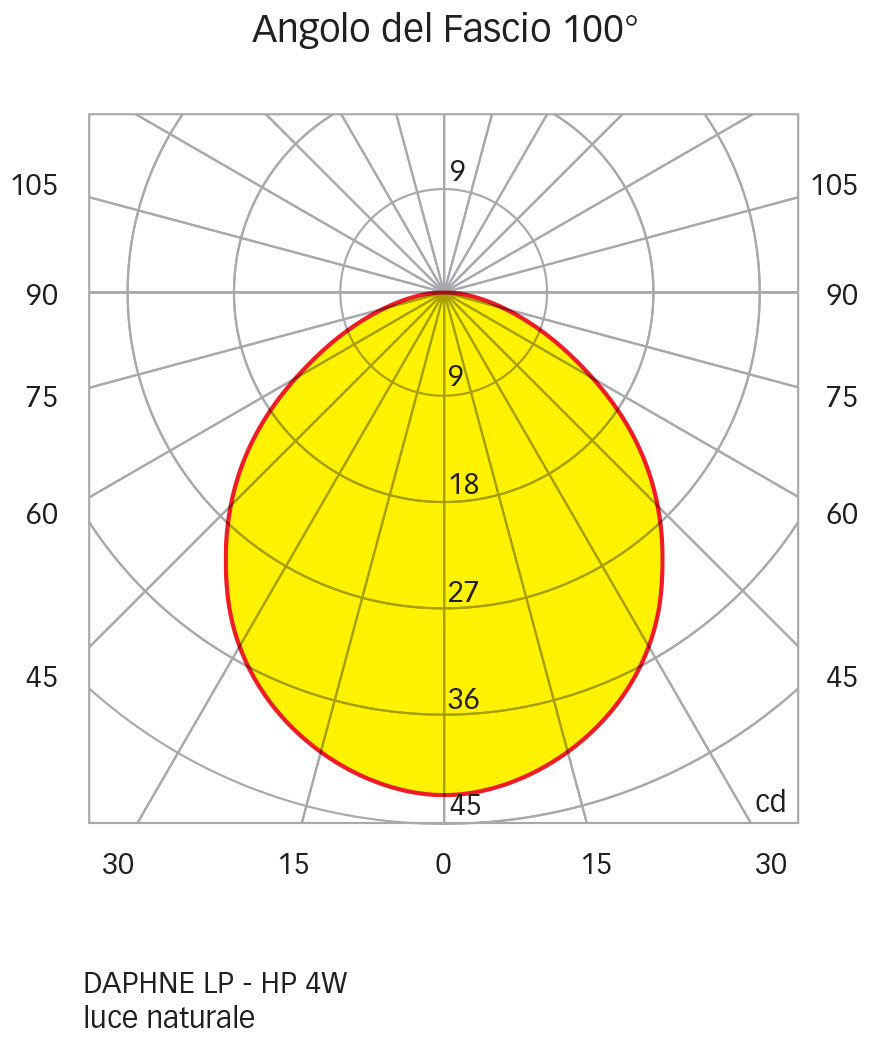

Photometric data:
Natural White 3800-4100K
- CRI: ≥ 80;
- Angle: 100°;
- Luminous flux: 108 lm;
- Illuminance - distance 1 m: Ø 2.48 m - 42.3 lux;
- Illuminance - distance 2 m: Ø 4.96 m - 10.6 lux;
- Illuminance - distance 3 m: Ø 7.44 m - 4.7 lux.
Warm White 2900-3100K
- CRI: ≥ 80;
- Angle: 100°;
- Luminous flux: 103 lm;
- Illuminance - distance 1 m: Ø 2.48 m - 40.3 lux;
- Illuminance - distance 2 m: Ø 4.96 m - 10.1 lux;
- Illuminance - distance 3 m: Ø 7.44 m - 4.5 lux.

LED Protection: Spike protected ± 500V.
Polarity sensitive: Yes.
Certifications: class III, CE.

Note: Please choose the desired colour from the drop down menu.

25300019BIC Warm White
25300019BIN Daylight
