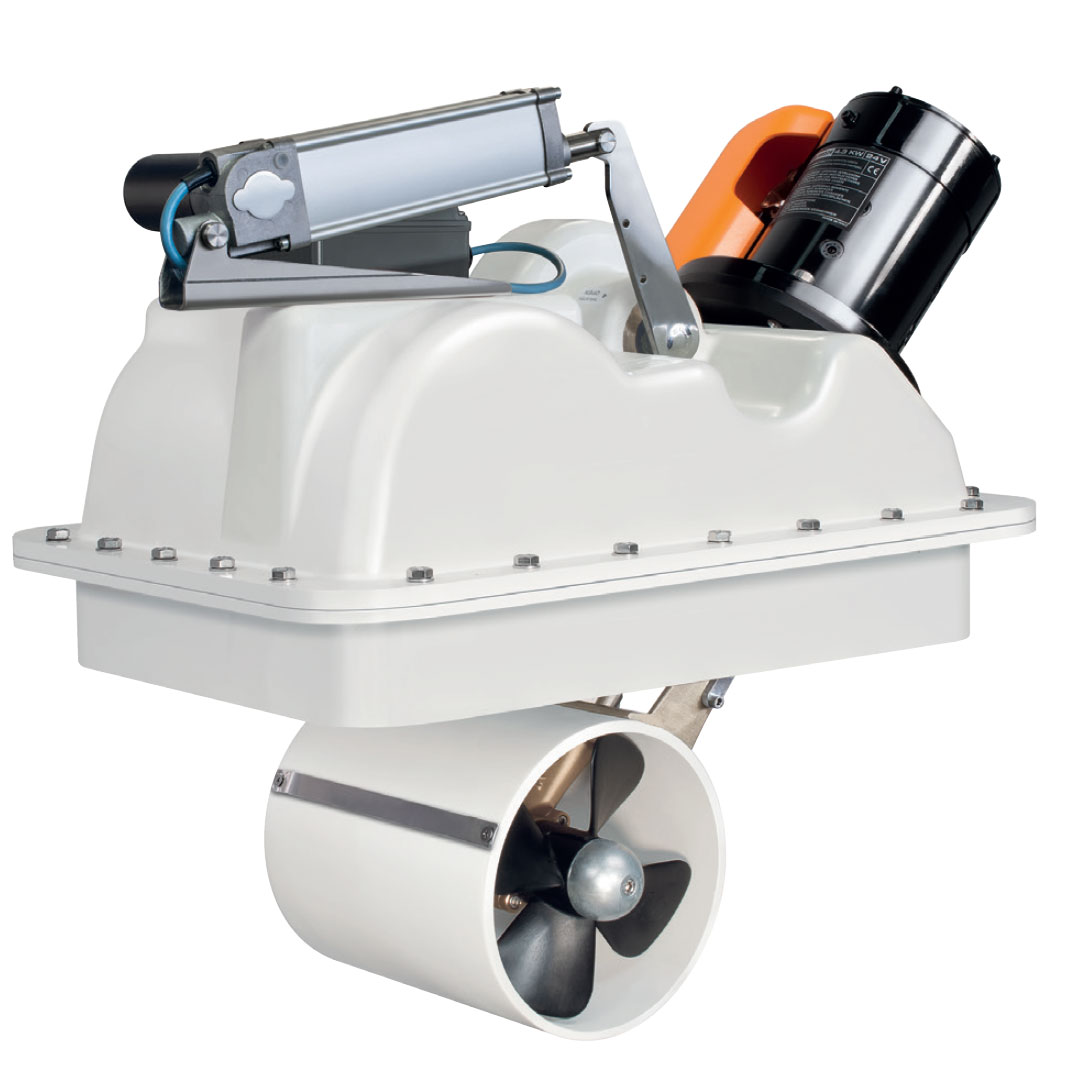

Quick DC BTR 185-85 12V or 24V Counter-rotating retractable twin propeller bow thruster 4,3Kw 85Kgf

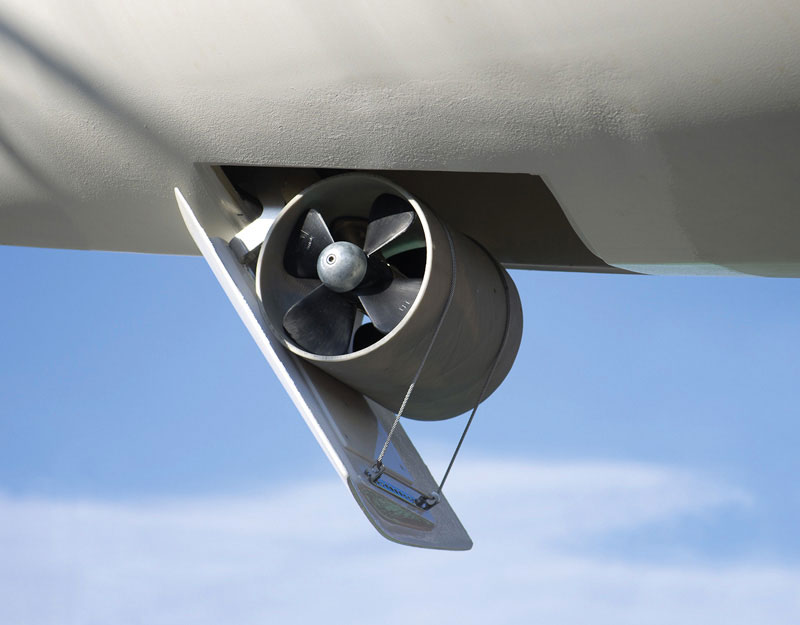

Retractable propellers were designed to guarantee optimal propeller performance in order to limit, as much as possible, fluid dynamic resistance of the boat. Propeller is opened when it is activated during mooring and retracts when deactivated. The presence of the counter-flange, in composite aluminium or stainless steel, independent from the gearbox and hence easy to install the entire system.
Technical Data:
Model: BTR 185-85;

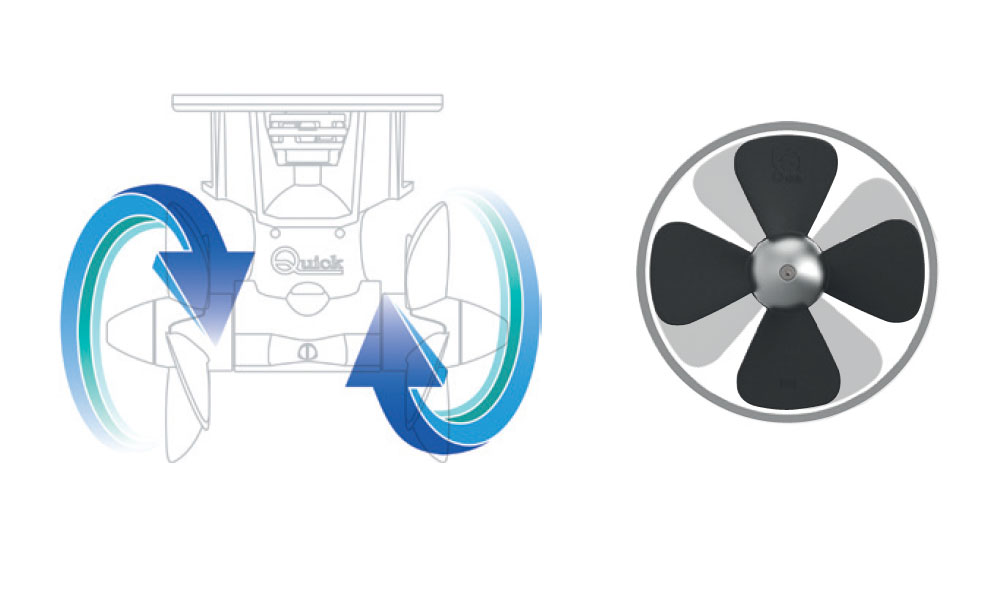

Propulsion system: Counter-rotating retractable twin propellers;
Ø Tunnel: 185 mm;
Voltage: 12V o 24V;
Motor power: 4,3 Kw;
Thrust: 85 Kgf;
Boat length*: 10-14 m (33-46 ft);
Weight: 12V - 47,5 kg, 24V - 50,5 kg;

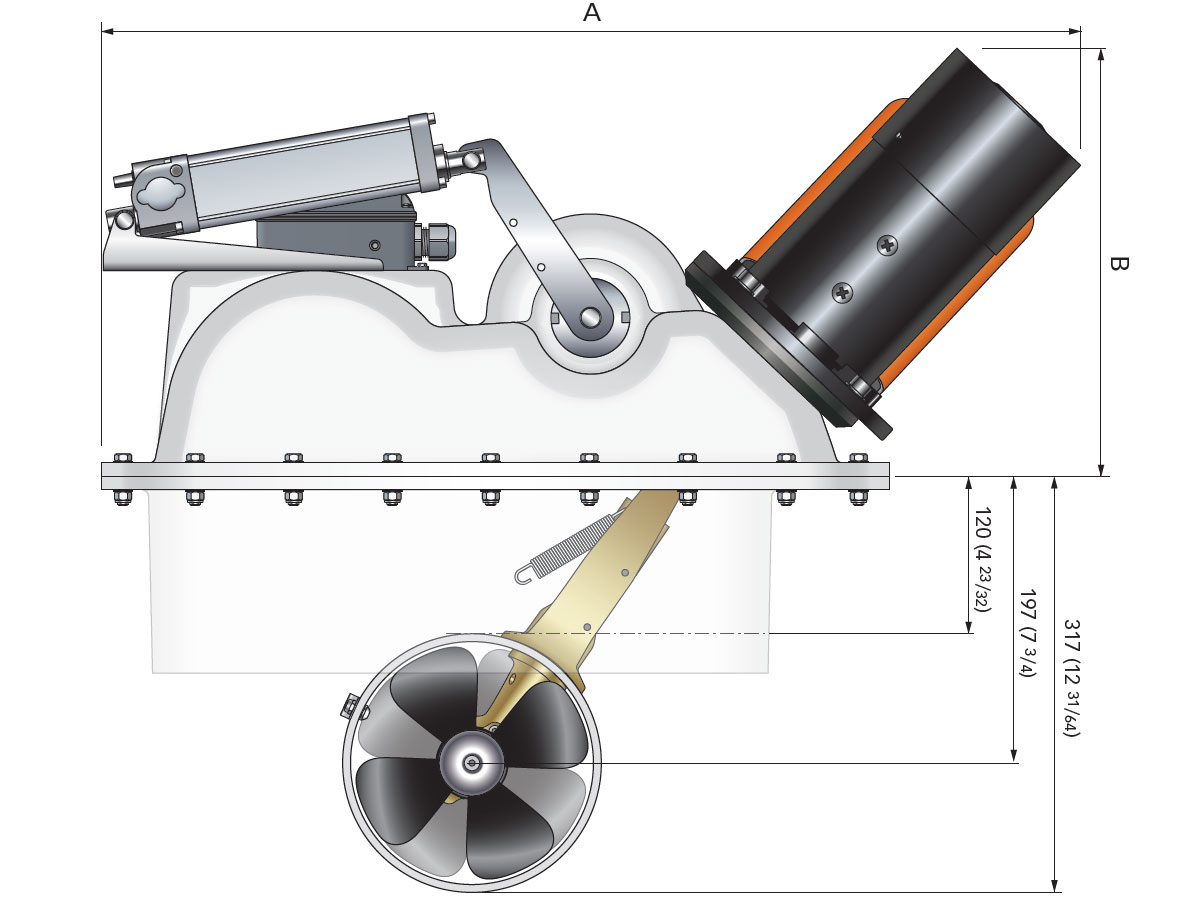

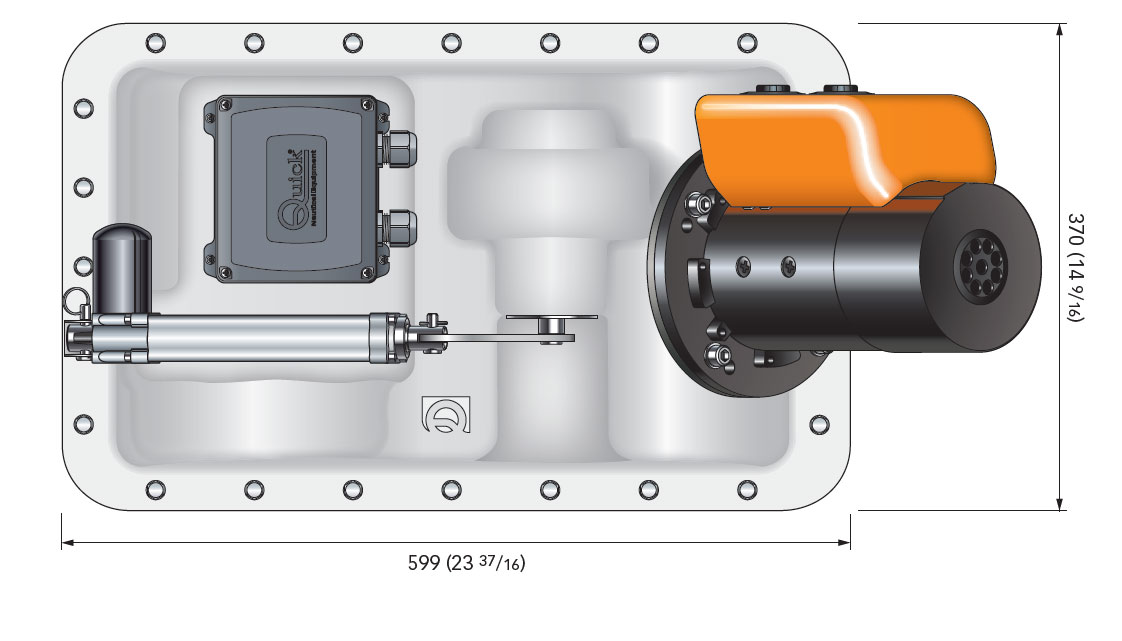

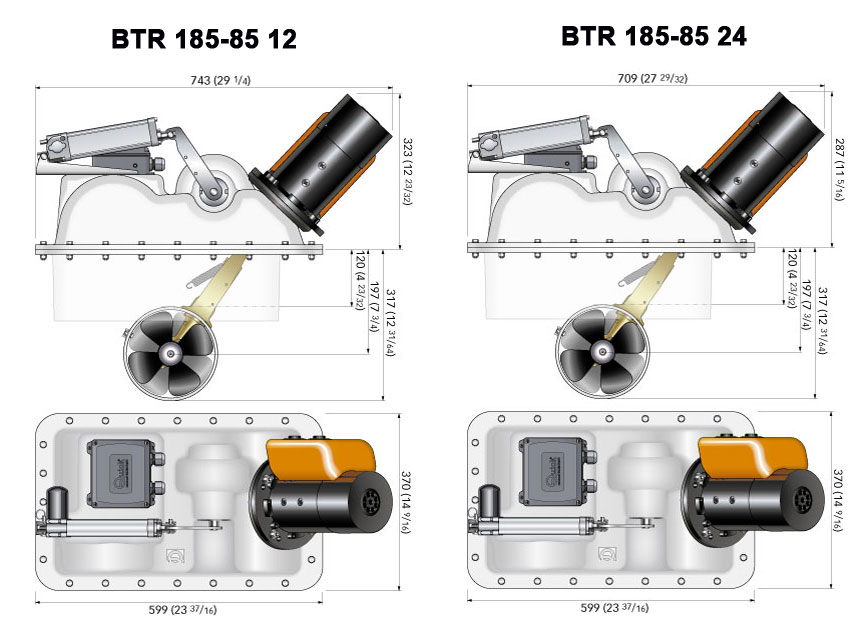

Dimensions: 12V - A 743 mm - B 323 mm, 24V - A 709 mm - B 287 mm.
(*) ATTENTION: Indications may vary according to the boat type.

NB: Click on the drop down menu to choose 12V or 24V propeller.
