Description

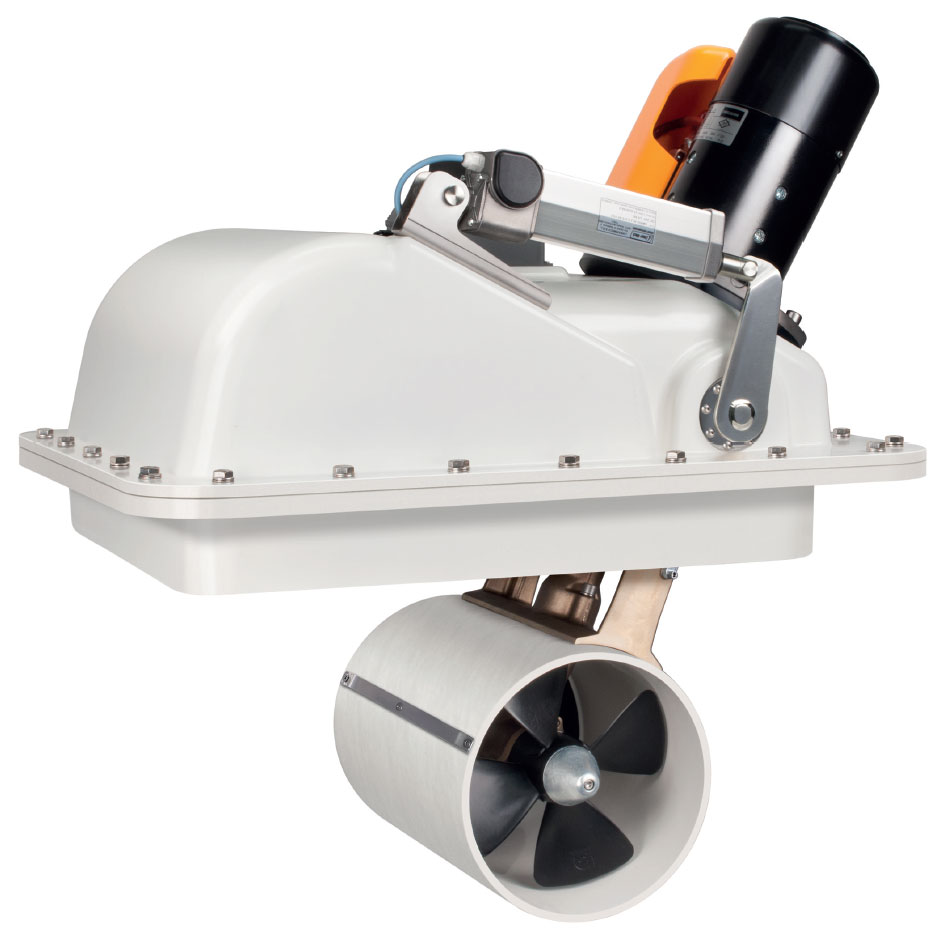

Quick DC BTR 250-140 24V Counter-rotating retractable twin propeller bow thruster 8Kw 140Kgf

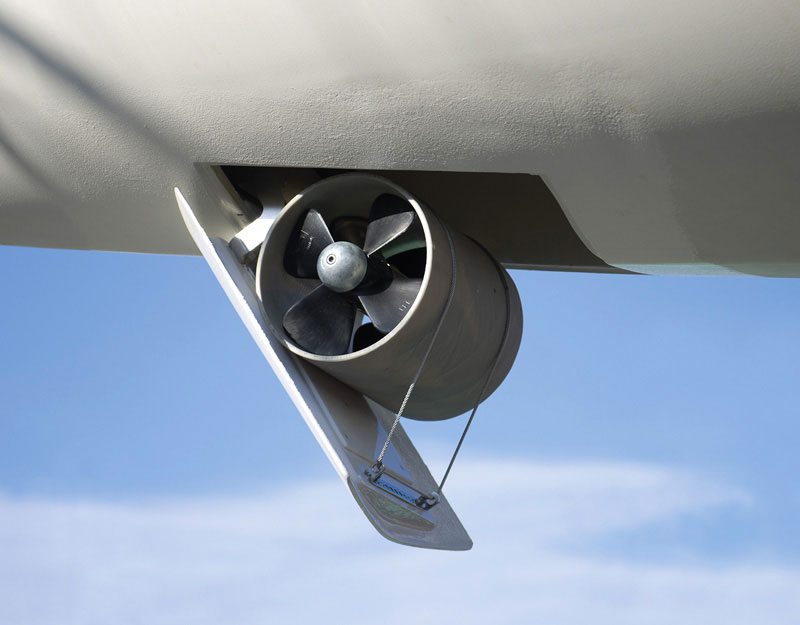

Retractable propellers were designed to guarantee optimal propeller performance in order to limit, as much as possible, fluid dynamic resistance of the boat. Propeller is opened when it is activated during mooring and retracts when deactivated. The presence of the counter-flange, in composite aluminium or stainless steel, independent from the gearbox and hence easy to install the entire system.
Technical Data:
Model: BTR 250-140;

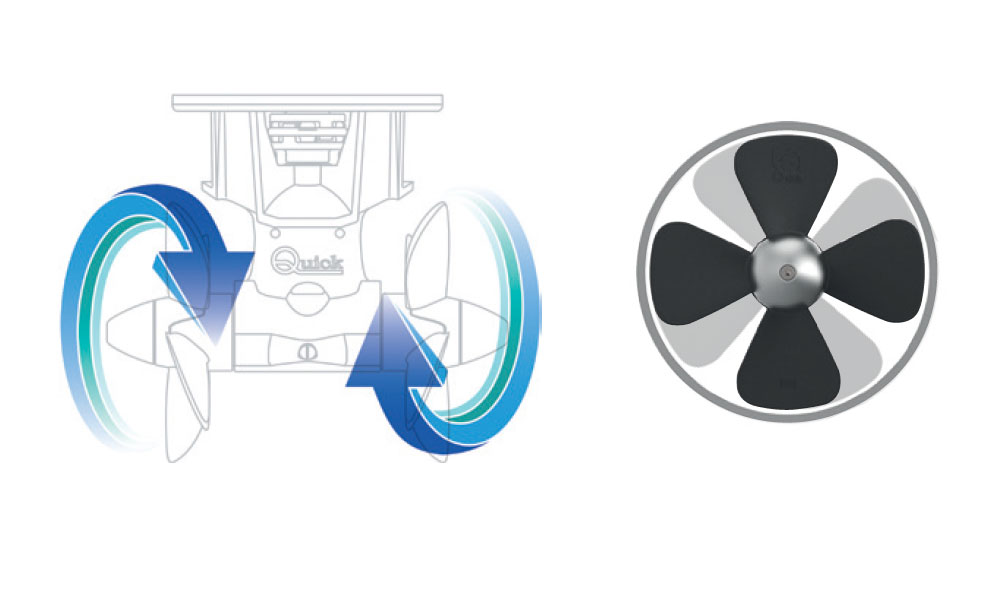

Propulsion system: Counter-rotating retractable twin propellers;
Ø Tunnel: 250 mm;
Voltage: 24V;
Motor power: 8 Kw;
Thrust: 140 Kgf;
Boat length*: 14-18,5 m (45-61 ft);
Weight: 24V - 85,2 kg;

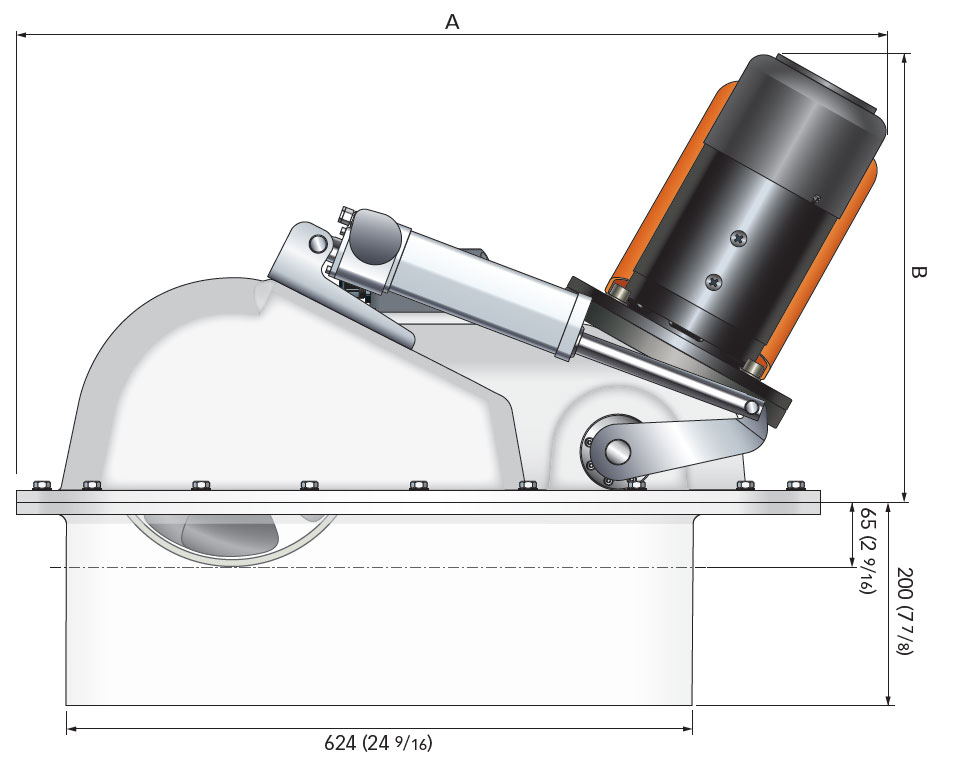

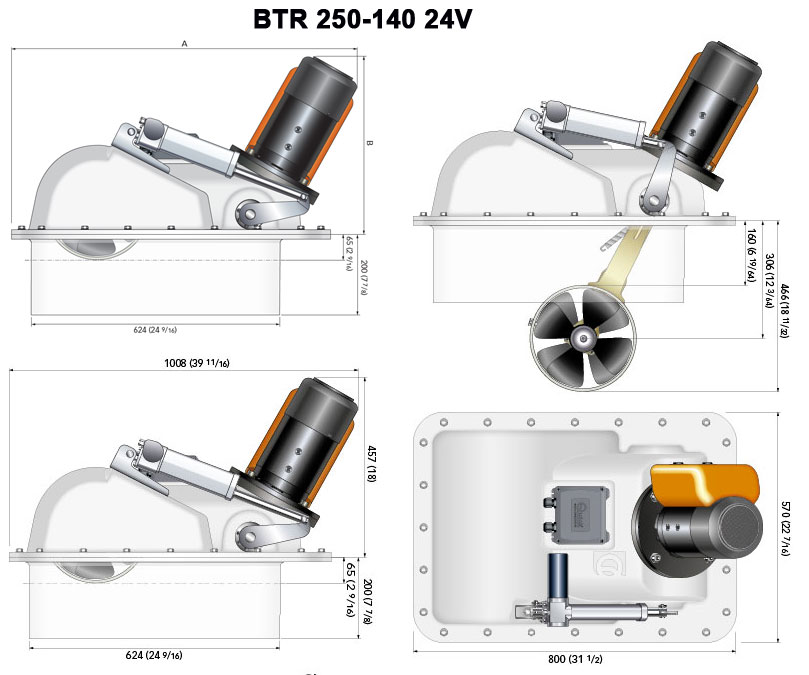

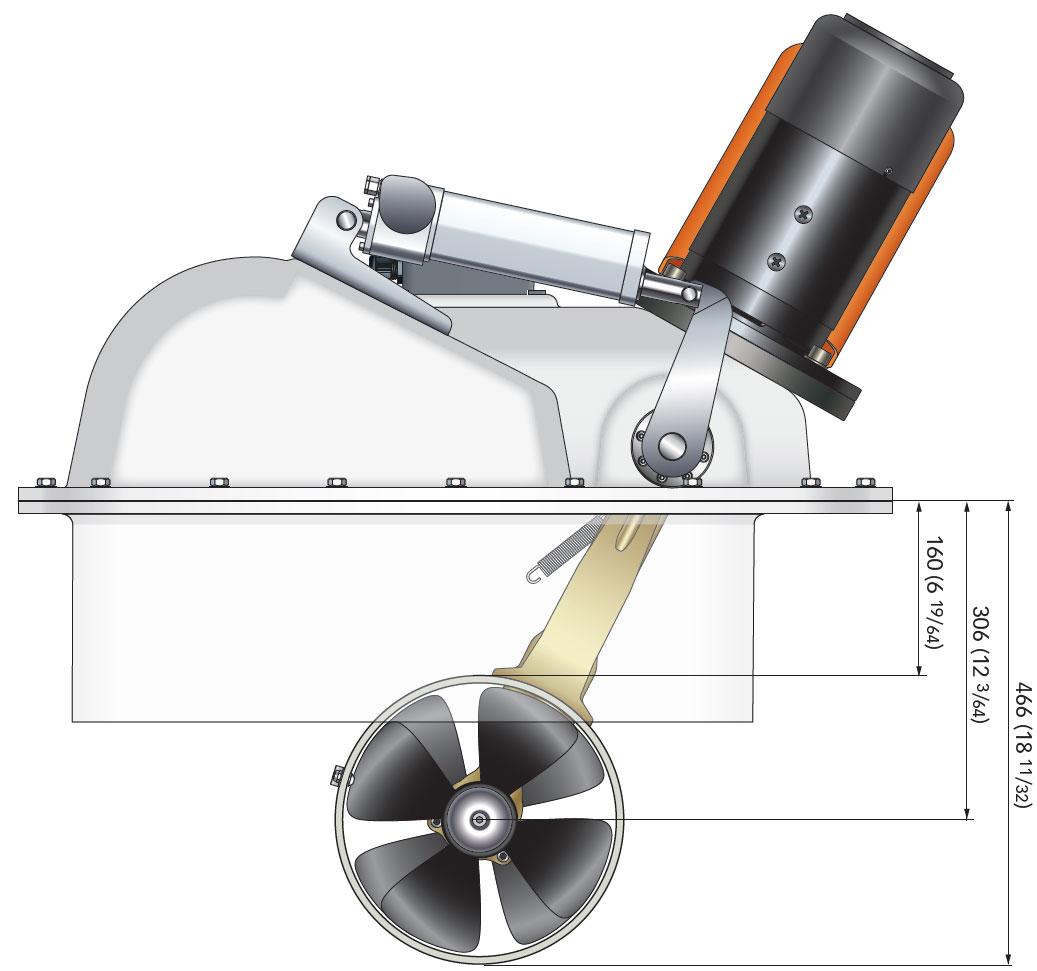

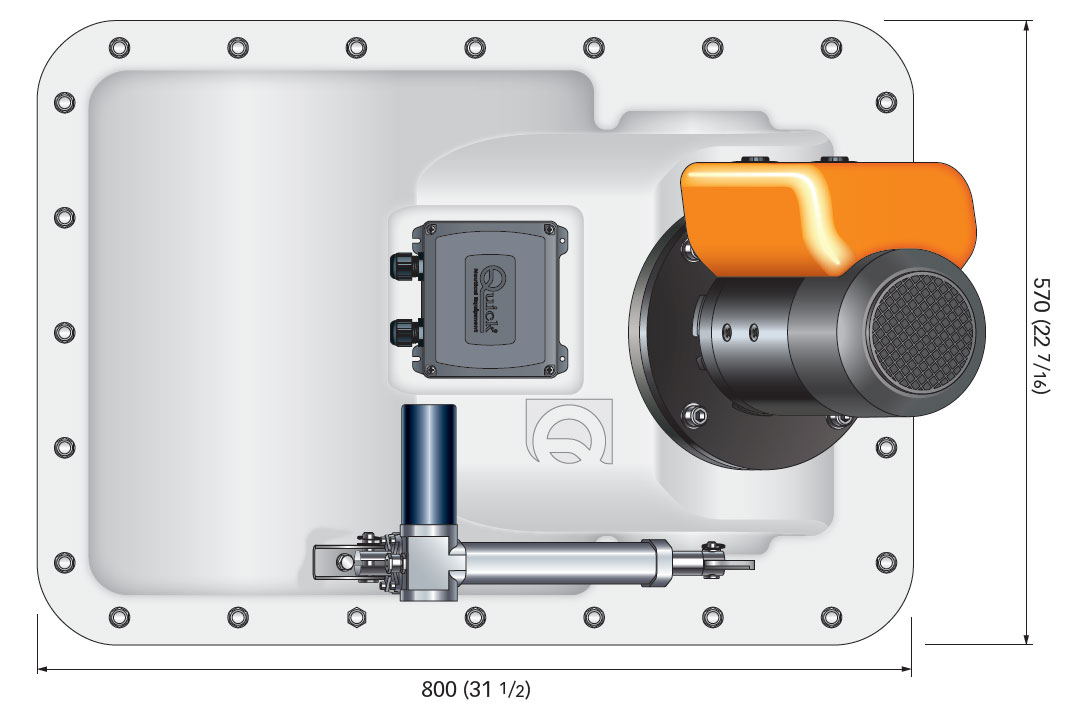

Dimensions: 24V - A 1008 mm (39” 11/16 in) - B 457 mm (18” in).
(*) ATTENTION: Indications may vary according to the boat type.
