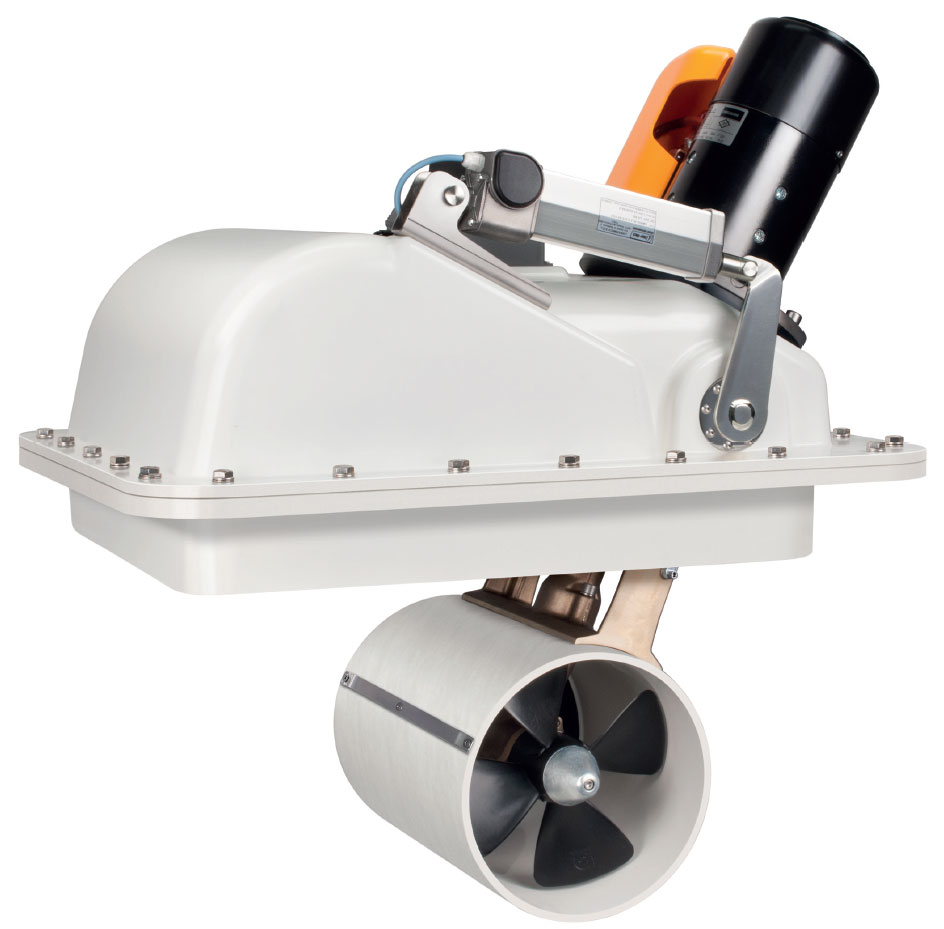

Quick DC BTR 250-240 24V Counter-rotating retractable twin propeller bow thruster 10 Kw 240 Kgf

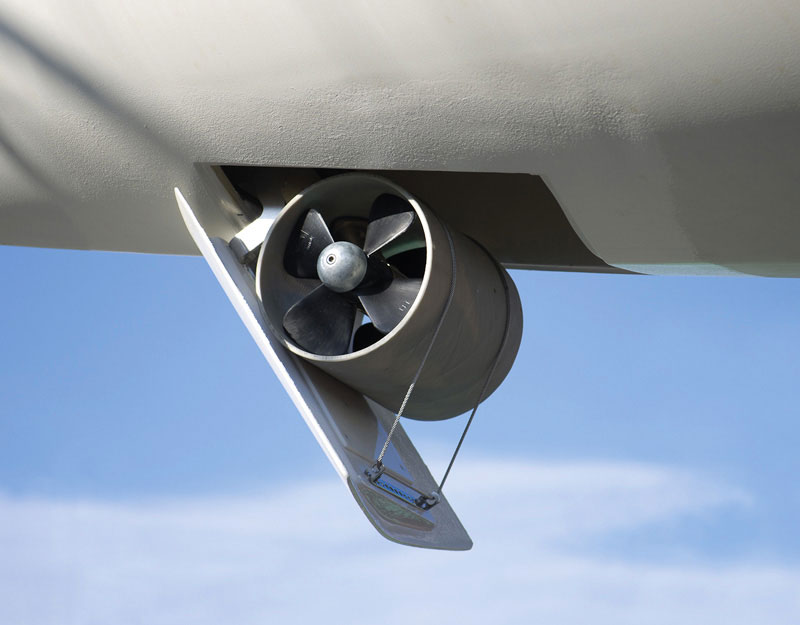

Retractable propellers were designed to guarantee optimal propeller performance in order to limit, as much as possible, fluid dynamic resistance of the boat. Propeller is opened when it is activated during mooring and retracts when deactivated. The presence of the counter-flange, in composite aluminium or stainless steel, independent from the gearbox and hence easy to install the entire system.
Technical Data:
Model:BTR 250-240;

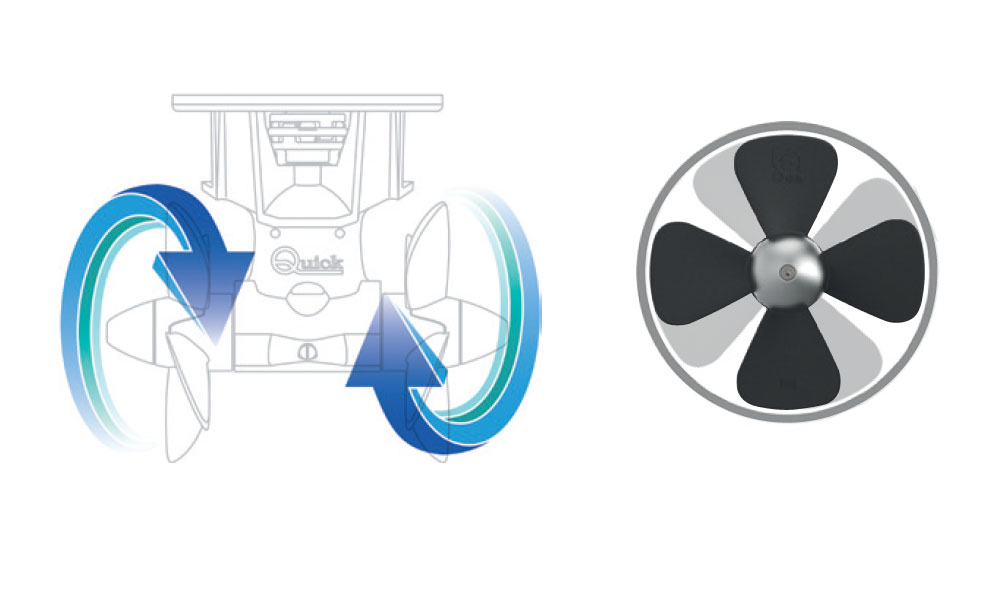

Propulsion system: Counter-rotating retractable twin propellers;
Ø Tunnel: 250 mm;
Voltage: 24V;
Motor power: 10 Kw;
Thrust: 240 Kgf;
Boat length*: 17-24 m (56-79 ft);
Weight: 24V - 90,2 kg;

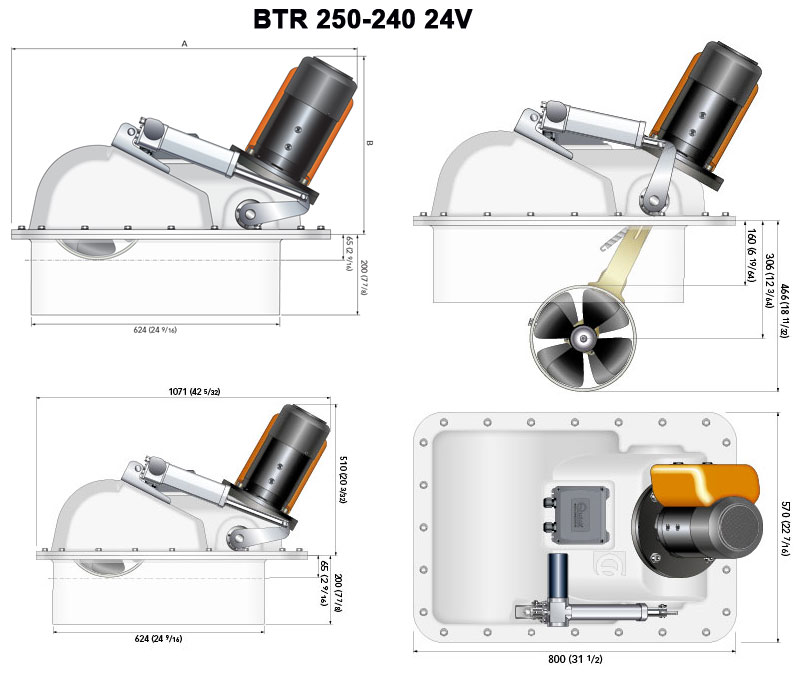

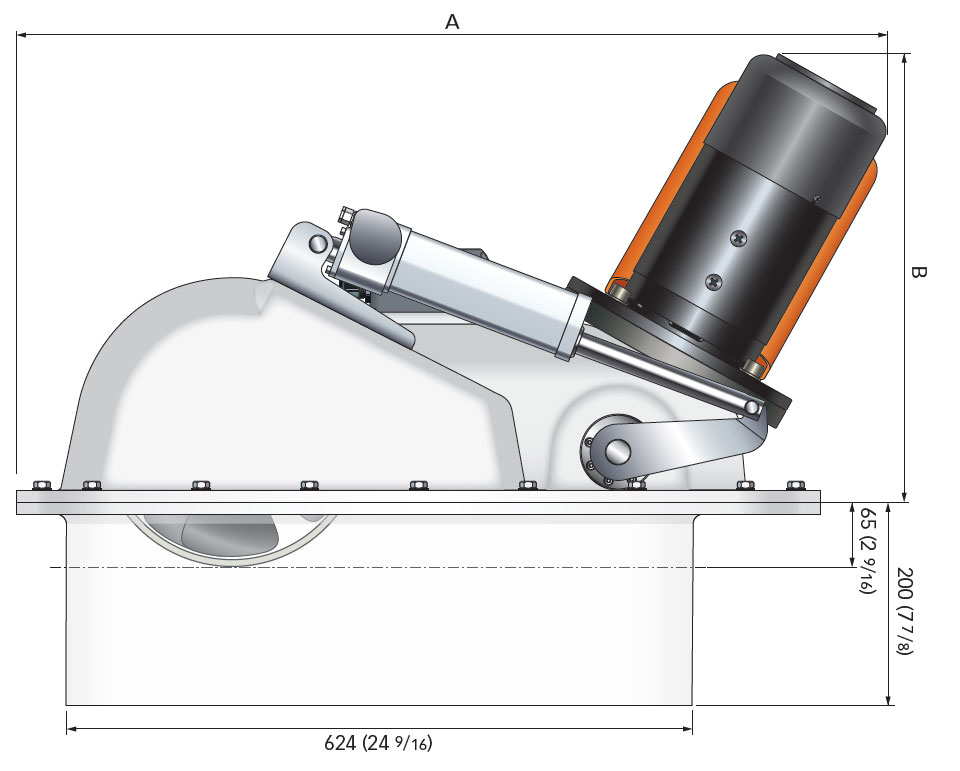

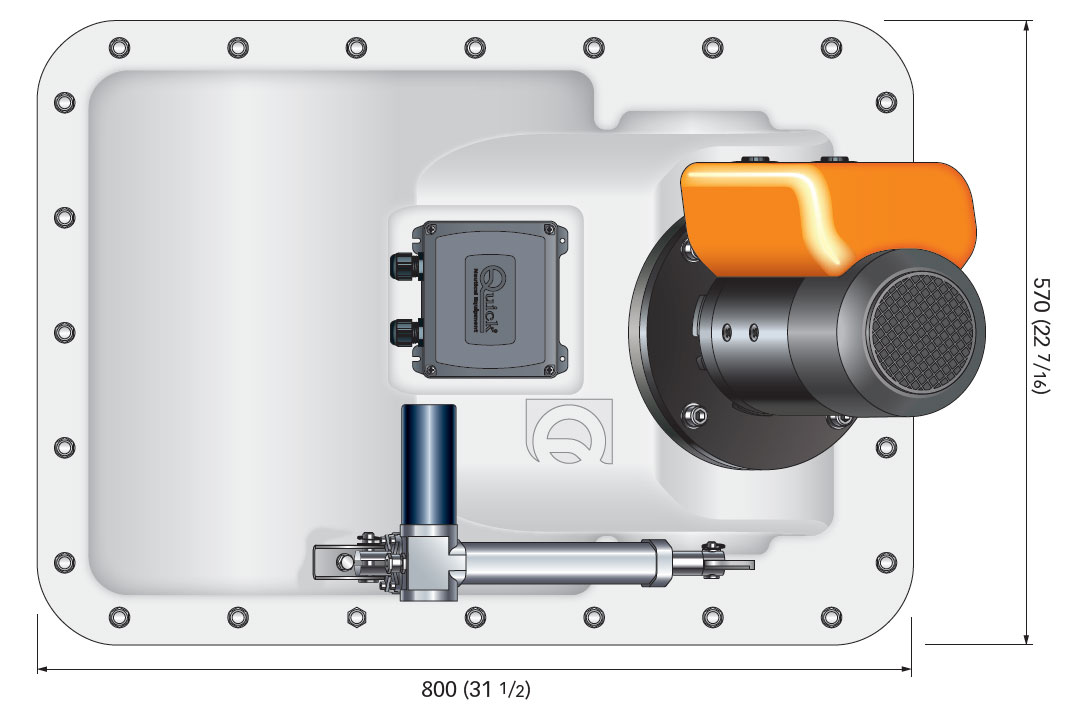

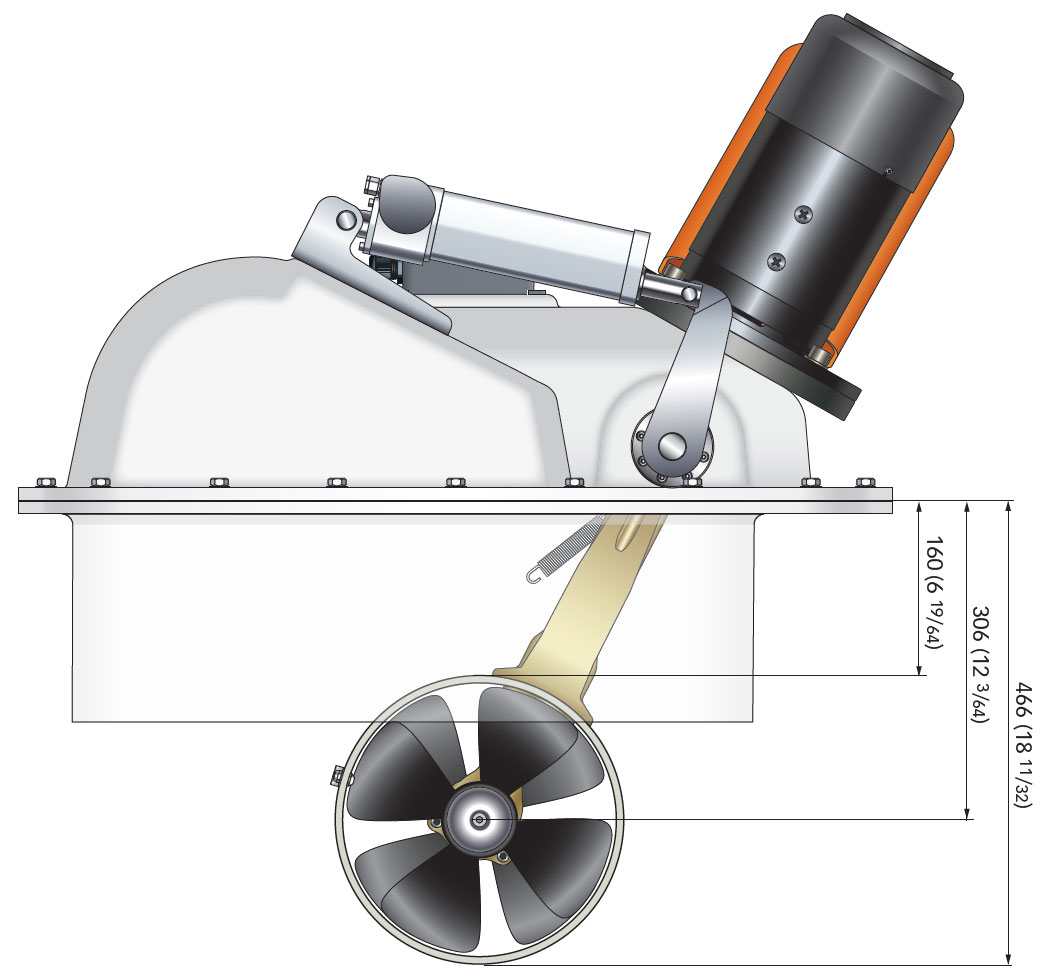

Dimensions: 24V - A 1071 mm (42” 5/32 in) - B 510 mm (20” 3/32 in).
(*) ATTENTION: Indications may vary according to the boat type.
