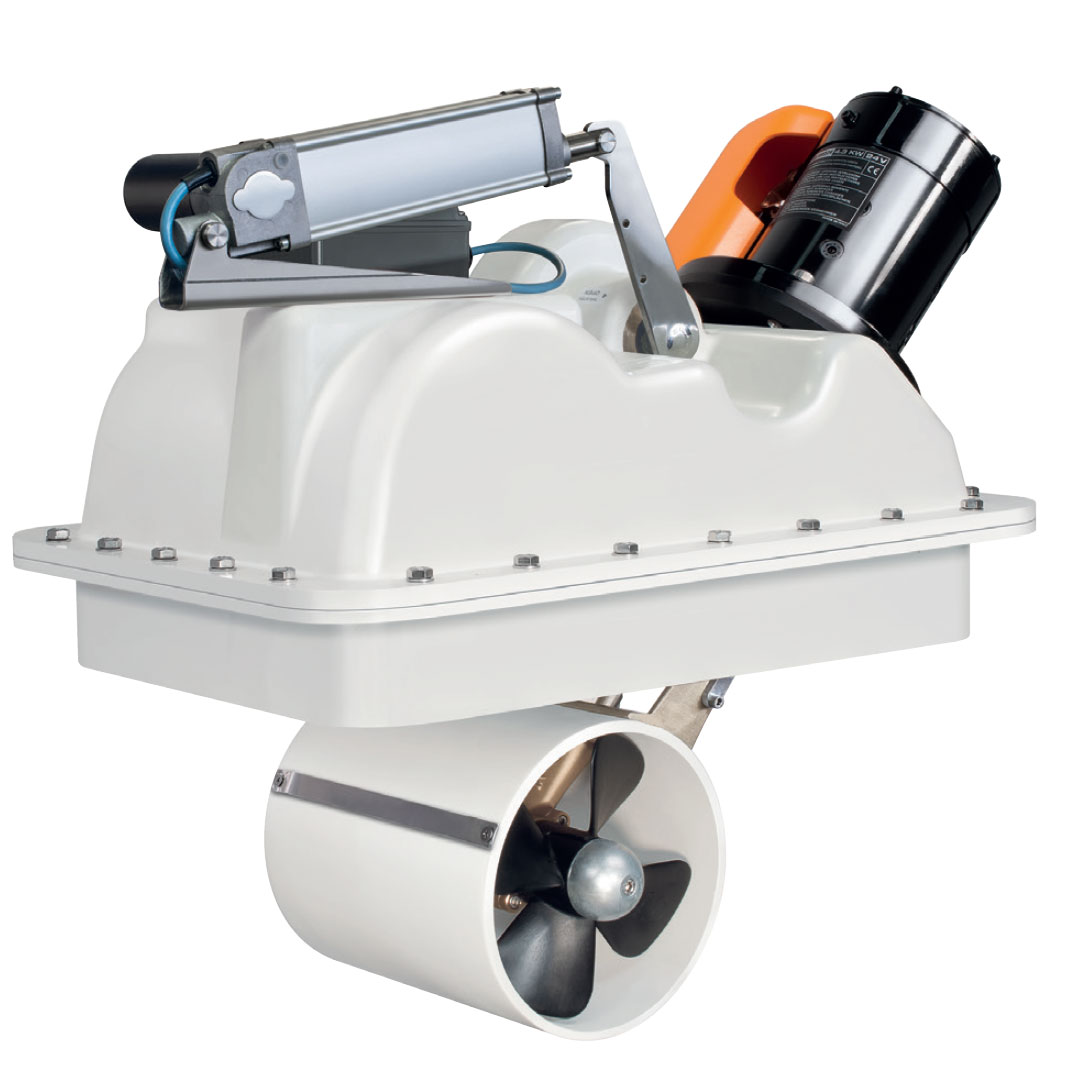

Quick DC BTR 185-105 12V or 24V Counter-rotating retractable twin propeller bow thruster 6,3Kw 105Kgf

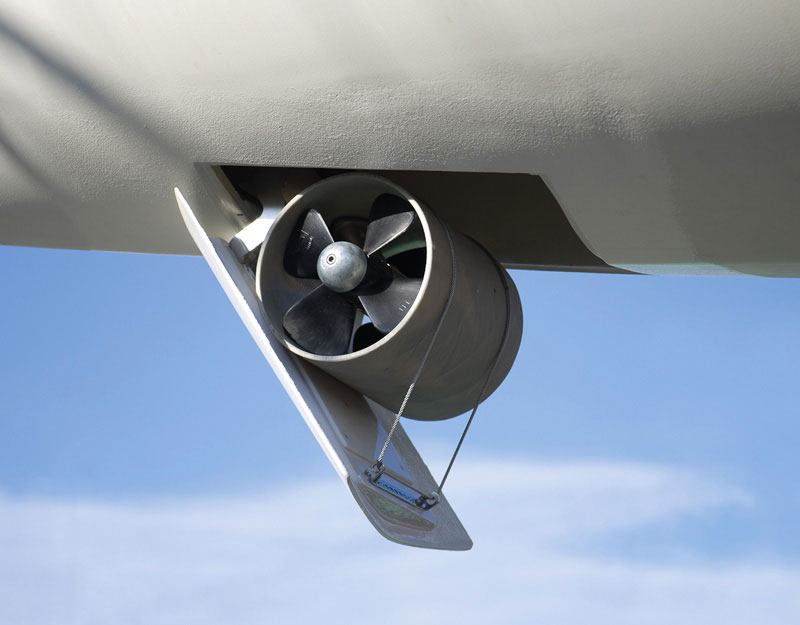

Retractable propellers were designed to guarantee optimal propeller performance in order to limit, as much as possible, fluid dynamic resistance of the boat. Propeller is opened when it is activated during mooring and retracts when deactivated. The presence of the counter-flange, in composite aluminium or stainless steel, independent from the gearbox and hence easy to install the entire system.
Technical Data:
Model:BTR 185-105;

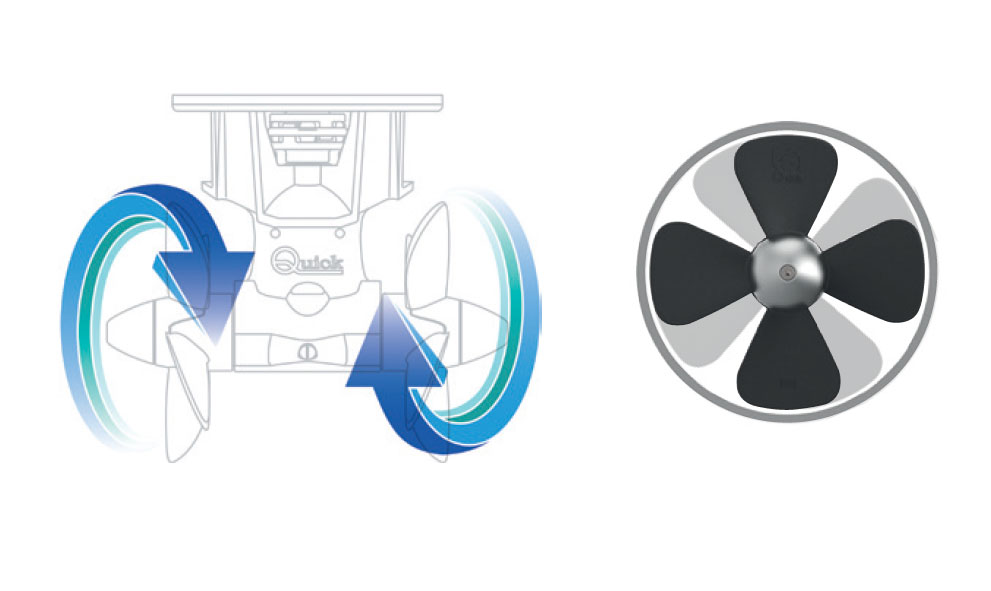

Propulsion system: Counter-rotating retractable twin propellers;
Ø Tunnel: 185 mm;
Voltage: 12V o 24V;
Motor power: 6,3 Kw;
Thrust: 105 Kgf;
Boat length*: 12-16 m (40-53 ft);
Weight: 12V - 57 kg, 24V - 54,5 kg;

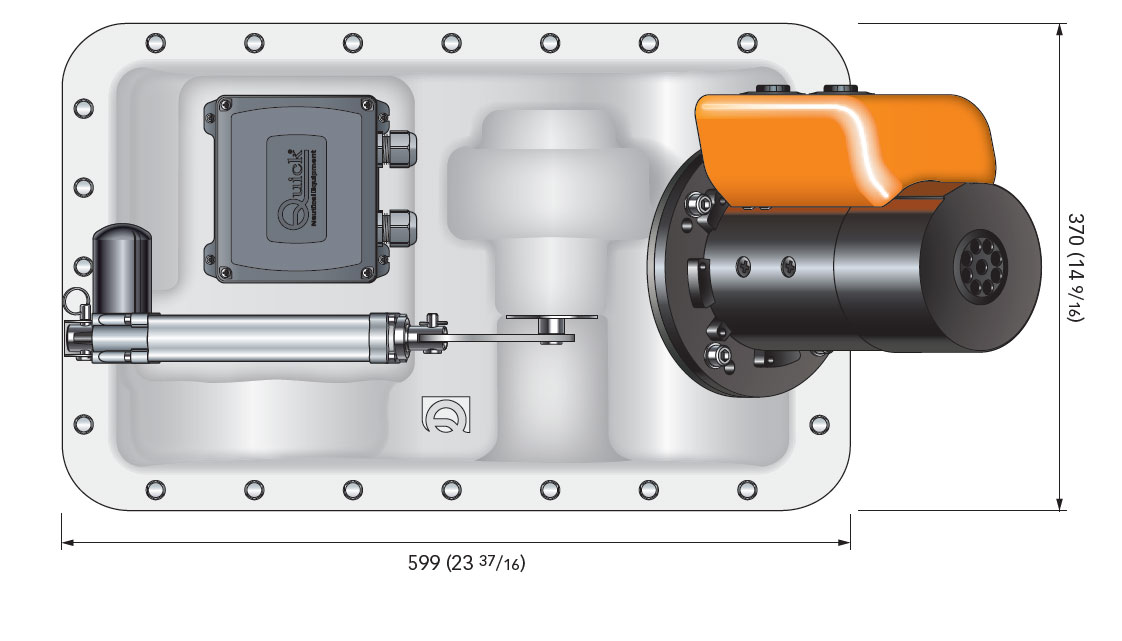

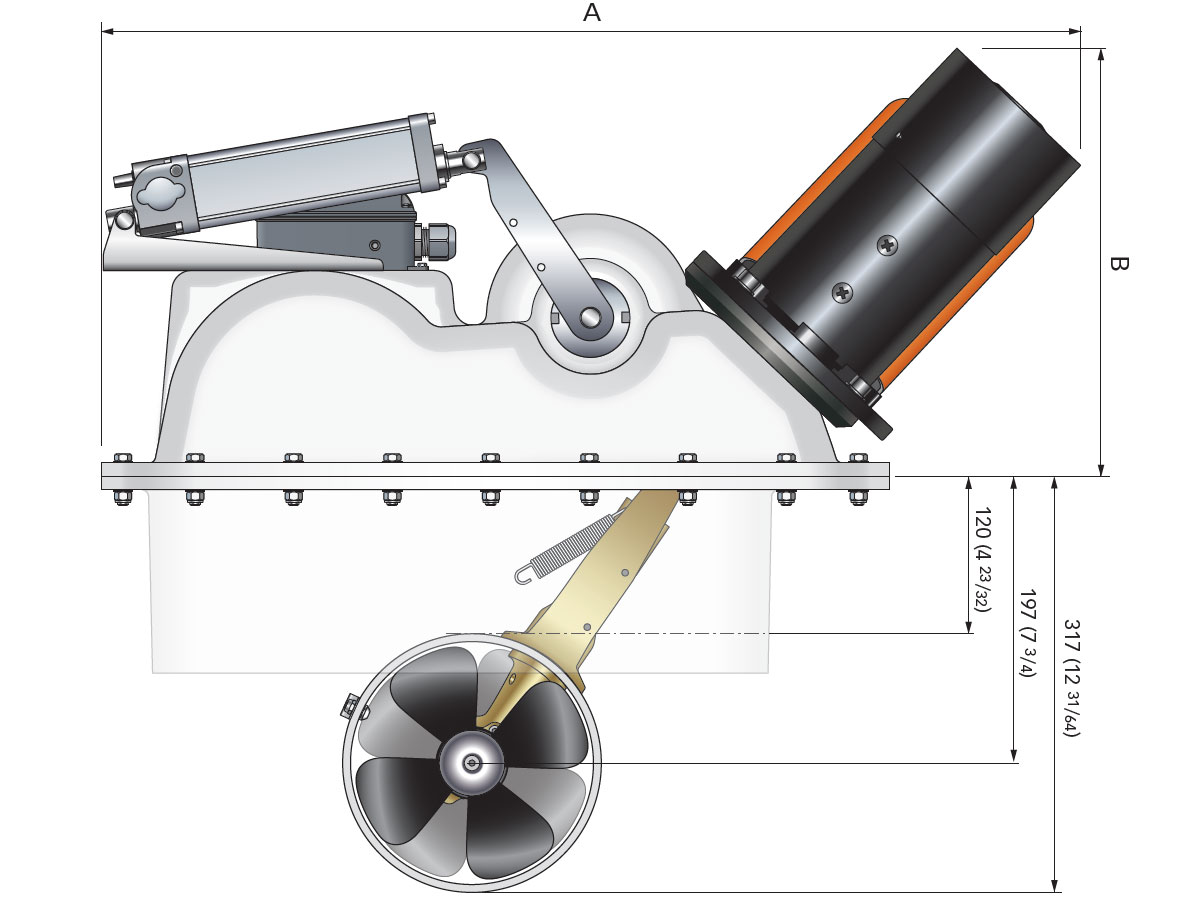

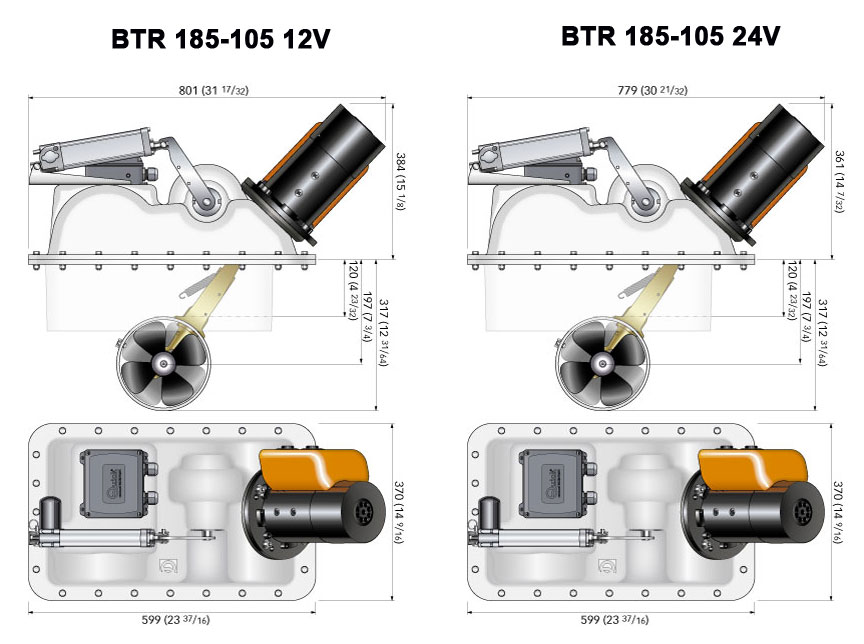

Dimensions: 12V - A 801 mm - B 384 mm, 24V - A 779 mm - B 361 mm.
(*) ATTENTION: Indications may vary according to the boat type.

NB: Click on the drop down menu to choose 12V or 24V propeller.
