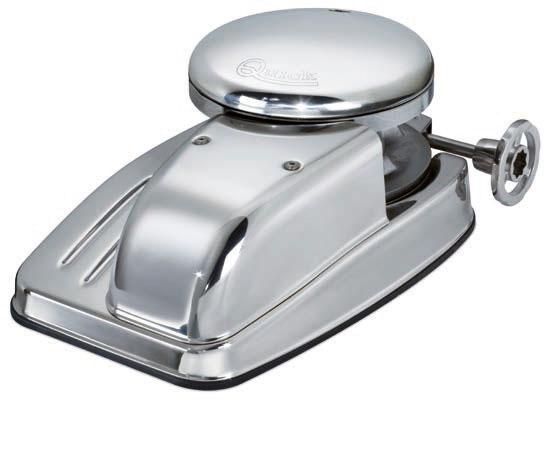

Quick Duke DC DX6 3524Y Vertical and Stainless Steel Windlass with control switch box. 3500W 24V. Without Drum. Gypsy 12-13mm, 14mm or 16mm. DIN 766 chain. Left Chain Pipe.
Price:
€5,307.00
Listing:
€7,076.00
You Save:
€1,769.00 (25%)

Description

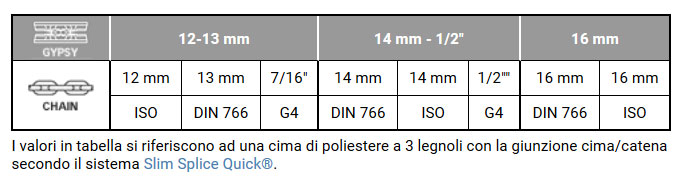

NB: When placing your order please specify in the notes field whether you require a 12-13, 14 or 16mm gypsy.

Quick Duke DC DX6 3524Y Vertical Stainless Steel Windlass with control switch box. 3500W 24V. Without Drum. Gypsy 12-13mm, 14mm or 16mm. DIN 766 chain. Left Chain Pipe.

Features

- Vertical windlasses
- Base in AISI 316 stainless steel and hard anodised aluminum oxide
- Stainless steel Aisi 316 drum and gypsy cover
- With and without drum
- Integrated sensor and magnet for chain counter
- Safety mechanical band brake
- Anodized aluminium gearbox
- Gypsy and Drum Ø 200 mm / 7" 7/8

Technical data
Motor power: 3500 W
Motor supply voltage: 24 V
Maximum pull: 4000 Kg
Maximum working load: 1500 Kg
Working load: 700 Kg
Current absorption @ working load (1): 197 A
Maximum chain speed (2): 27,6 m/min
Maximum chain speed @ working load (2): 14,7 m/min
Weight: 97,5 Kg
Without Drum
For boats from 22 to 29 m
Left Chain Pipe

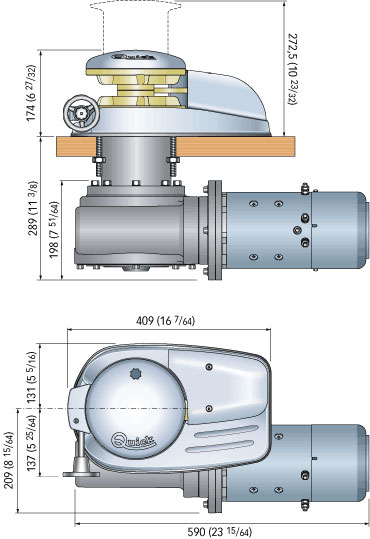

Deck thickness: 30÷60 mm (1" 3/16÷2" 5/16)

1) After an initial period of use
2) Measurements taken with a gypsy for a 12/13 mm chain
