Item available within 20 days from order.

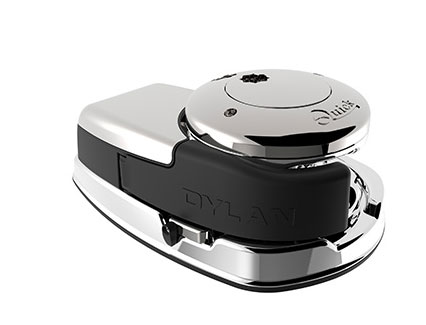

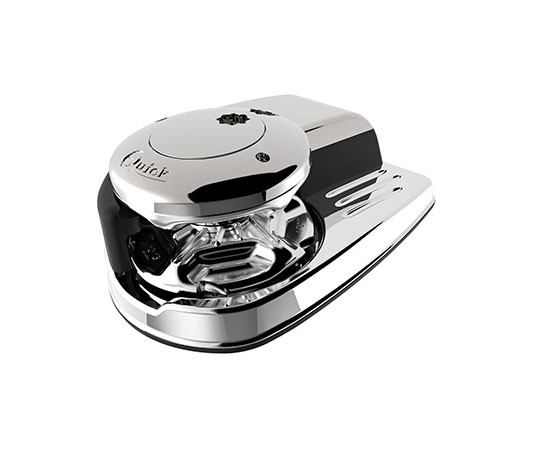

1500W 12V vertical stainless steel windlass without Drum. Base in AISI 316 stainless steel and hard anodised aluminum oxide. Rope and chain on a single gypsy. Integrated sensor and magnet for chain counter. Manual Free-Fall system. Emergency manual lift system. Supplied with pressure lever. Inspection lid. IP67 watertight motor (1500-1700W). IP66 watertight motor (2000W). Anodised aluminium gearbox. Gypsy for 10mm or 12-13mm DIN 766 chain. For boats from 12m to 15 m / 39 - 49 ft.
Technical data
Model: Dylan R DR4 1512
Motor power: 1500 W
Motor supply voltage: 12 V
Maximum pull: 1100 Kg
Maximum working load: 400 Kg
Working load: 135 Kg
Current absorbtion @ working load (1): 150 A
Maximum chain speed (2): 35,2 m/min
Maximum chain speed @ working load (2) 19,0 m/min
Weight: 23,7 Kg
Without Drum
1) After an initial period of use

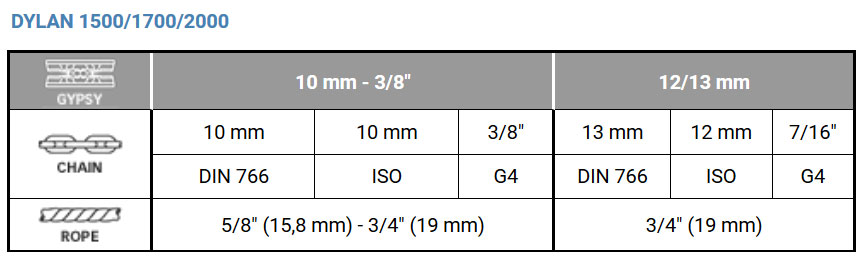

2) Measurements taken with a gypsy for an 12/13 mm chain.
NB: When placing your order please specify in the notes field whether you require an 10 or 12-13mm gypsy.
