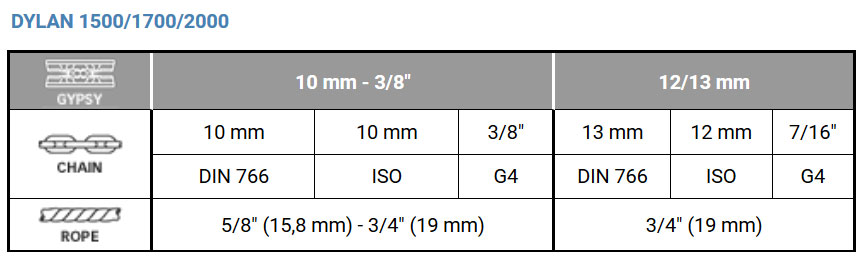

Quick Dylan R DR4 1712 Series Windlass. Vertical Stainless Steel Windlass. 1700W 12V. Without Drum. Gypsy for 10mm or 12-13mm DIN 766 chain.
Price:
€2,380.83
Listing:
€3,174.44
You Save:
€793.61 (25%)

Description

NB: When placing your order please specif  in the notes field whether you require a 10 or 12-13mm gypsy.

Quick Dylan R DR4 1712 Series Windlass. Vertical Stainless Steel Windlass. 1700W 12V. Without Drum.  Gypsy for 10mm or 12-13mm DIN 766 chain.

Features

- Vertical windlasses
- Base in AISI 316 stainless steel and hard anodised aluminum oxide
- With and without drum
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system
- Emergency manual lift system
- Supplied with pressure lever
- Inspection lid
- IP67 watertight motor (1500-1700W)
- IP66 watertight motor (2000W)
- Anodized aluminium gearbox
- Gypsy and Drum Ø 142 mm / 5" 19/32
- For boats from 14m to 16 m / 46-52 ft

Technical data
Motor power: 1700 W
Motor supply voltage: 12 V
Maximum pull: 1150 Kg / 2535 lb
Maximum working load: 470 Kg / 1036 lb
Working load: 155 Kg / 342 lb
Current absorbtion @ working load (1): 170 A
Maximum chain speed (2): 33,5 m/min / 109.9 ft/min
Maximum chain speed @ working load (2): 16,2 m/min / 53.1 ft/min
Weight: 26 Kg / 59.3 lb
Without Drum

1) After an initial period of use
2) Measurements taken with a gypsy for a 12/13 mm chain
