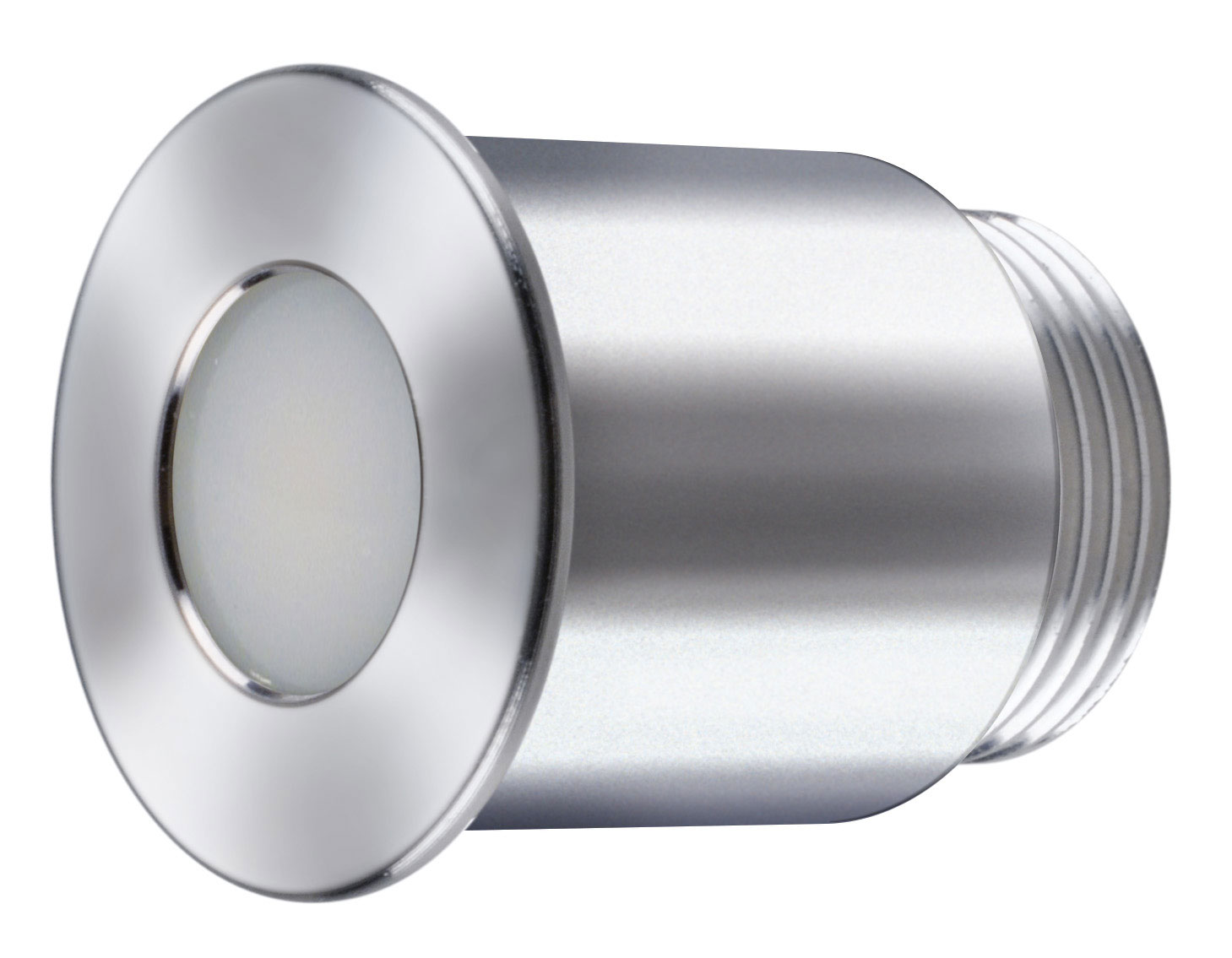

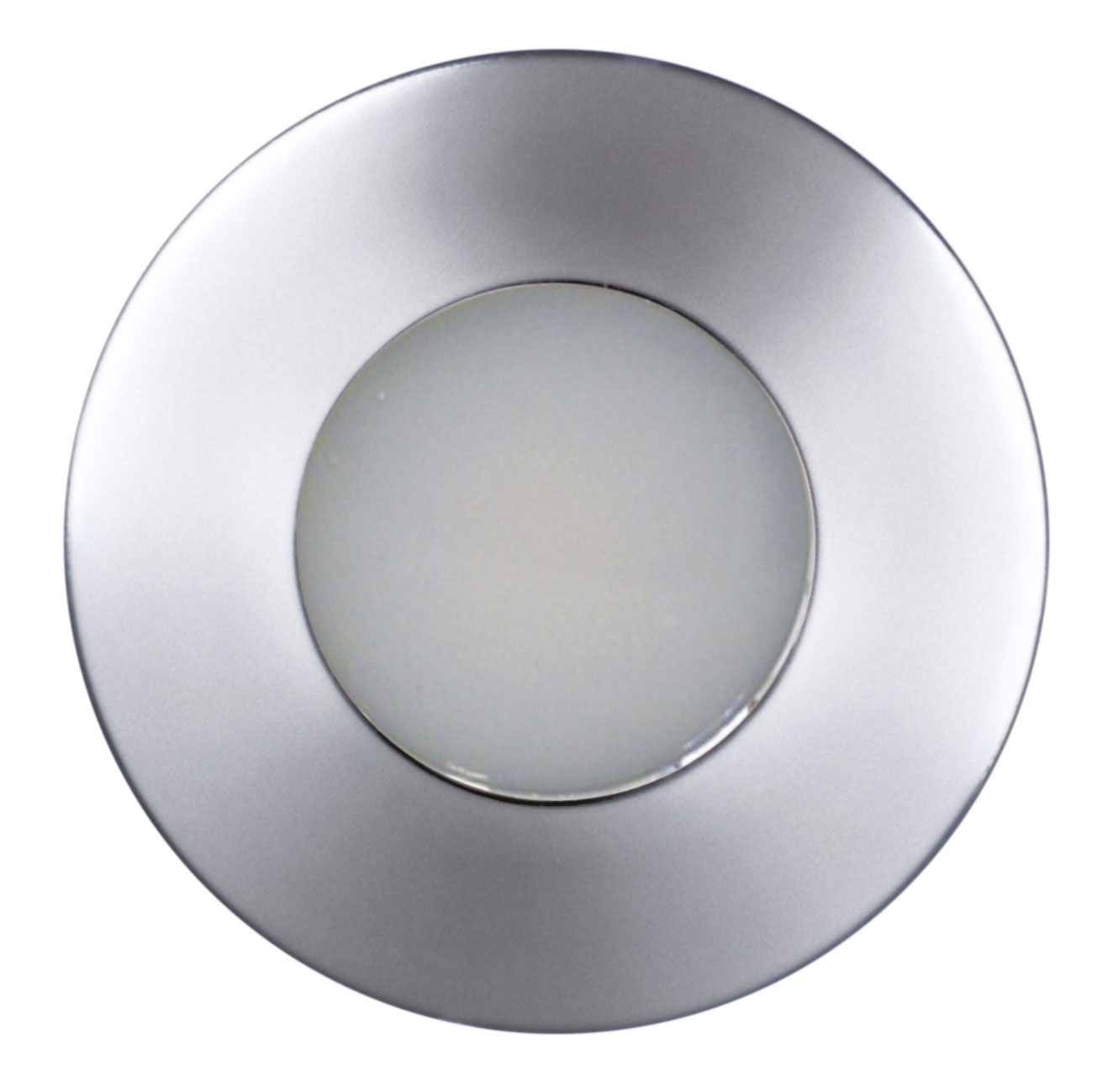

Built-in courtesy light om 316 AISI stainless steel, suitable for ceiling and wall installation. Effective illumination and optimal chromatic yield.
Features:
Power type: Constant Voltage;
Light source: 1 x POWER LED;
Supply: 10 ÷ 30V;
Power consumption: 3.5W;
Current consumption: 0.125A @ 24V;
Average lifespan: 50,000 h;
Protection degree: IP65;
Dimmable: Yes;
Frame material: AISI 316 S/STEEL;
Finishing: POLISHED;
Light colours: DAYLIGHT or WARM WHITE;
Mounting: adhesive;

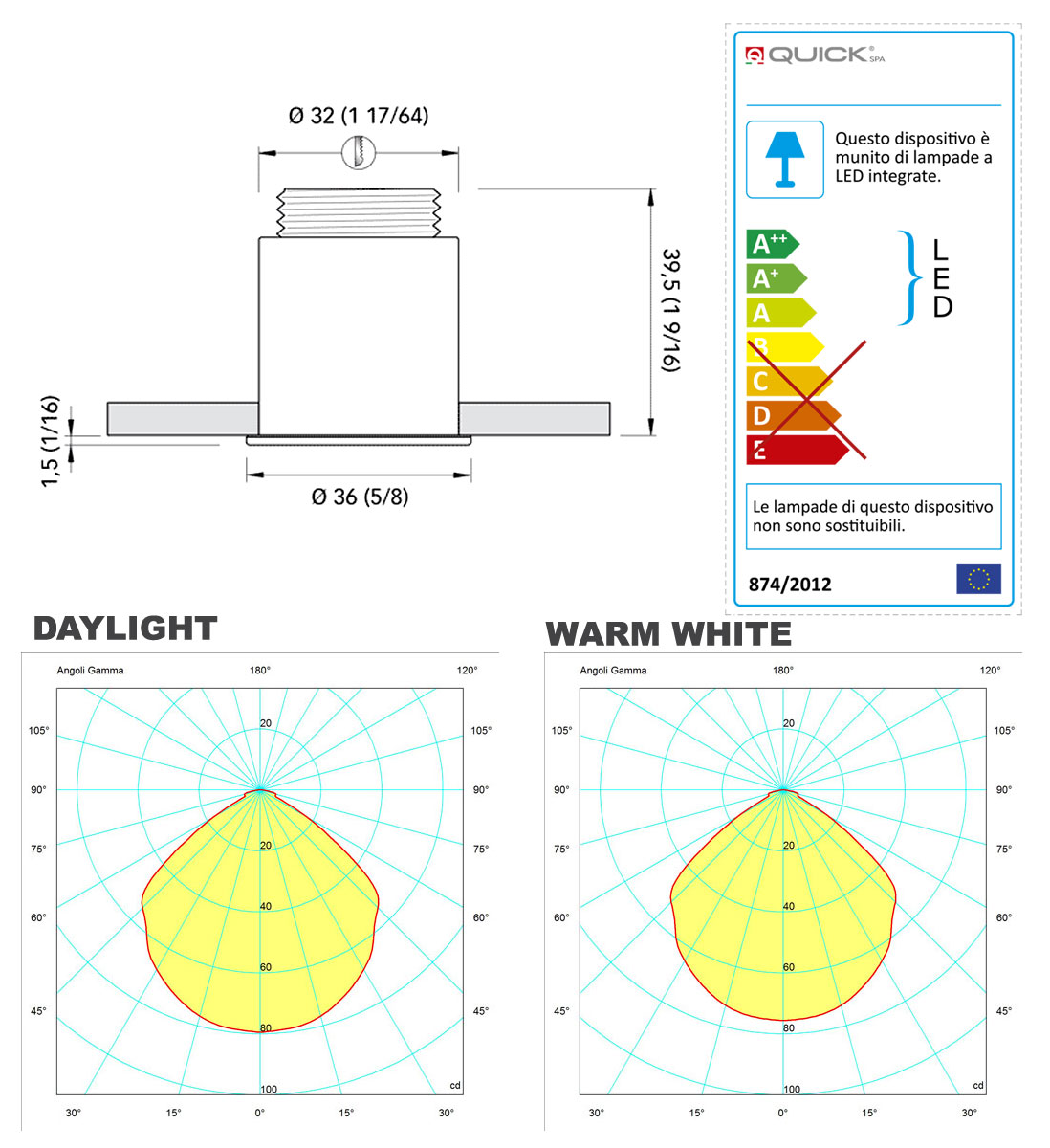

Dimensions:
- Frame: Ø36 mm (5/8"),
- Recess: 39.5 mm (1 9/16"),
- Hole: Ø32 mm (1 17/64").

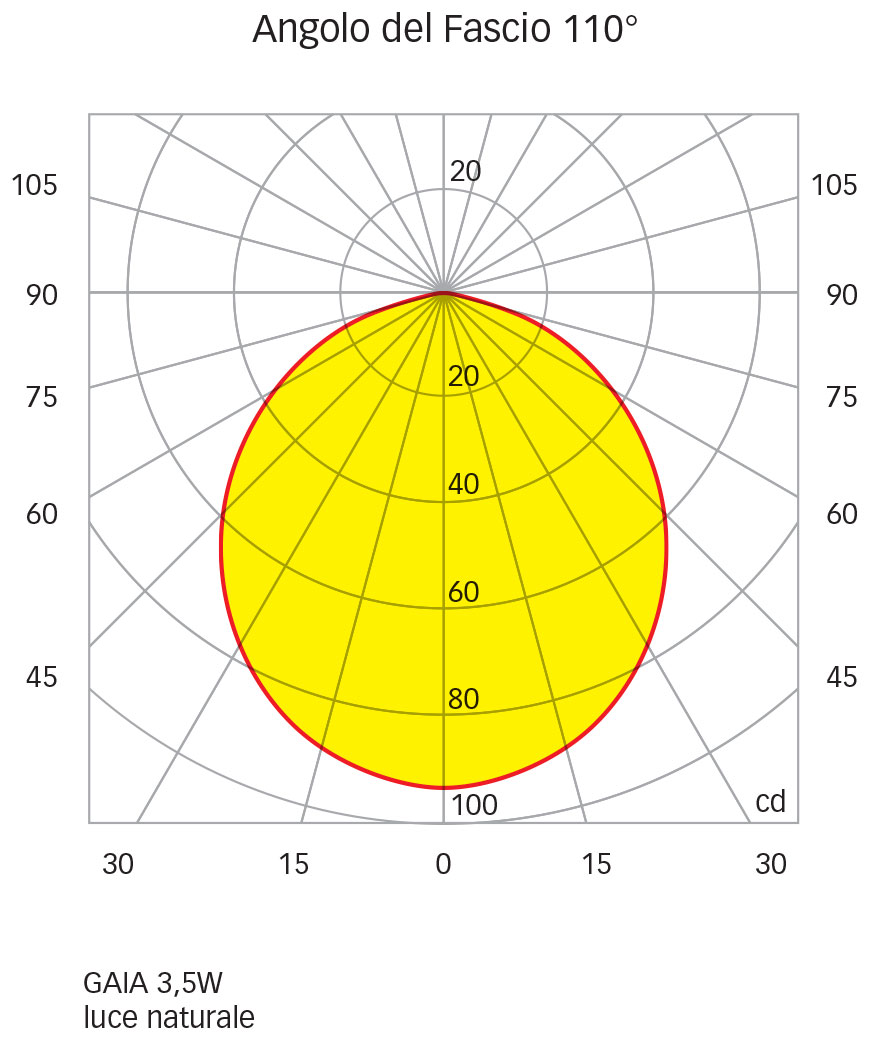

Photometric data:
Natural White 3800-4100K
- Angle: 105°;
- Luminous flux: 195 lm;
- Efficiency: 56 lm/W;
- Illuminance - distance 1 m: Ø 2.61 m - 79.4 lux;
- Illuminance - distance 2 m: Ø 5.22 m - 19.8 lux;
- Illuminance - distance 3 m: Ø 7.83 m - 8.8 lux.

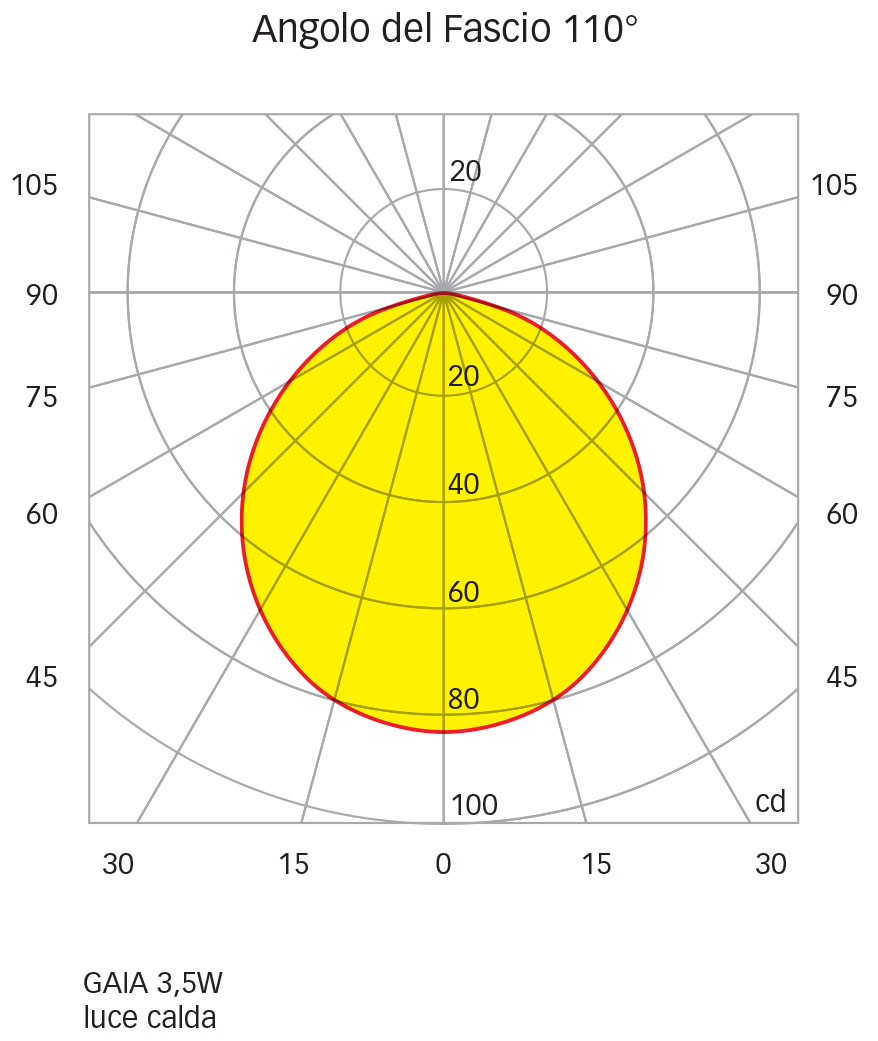

Warm White 2900-3100K
- Angle: 105°;
- Luminous flux: 185 lm;
- Efficiency: 53 lm/W;
- Illuminance - distance 1 m: Ø 2.61 m - 75.6 lux;
- Illuminance - distance 2 m: Ø 5.22 m - 18.9 lux;
- Illuminance - distance 3 m: Ø 7.83 m - 8.4 lux.
LED Protection: Spike protected ± 500V.
Polarity sensitive: Yes.
Certifications: Class F, class III, CE.
Note: Please choose desired colour from the drop down menu.
25200005BIN Daylight - FASP2390X11CA00
25200005BIC Warm White - FASP2390X12CA00
