Three stage IUoU battery charging. Multiple outputs in order to charge more groups of batteries. Differentiated charging for open or sealed liquid electrolite, GEL or AGM batteries. RDS1562 remote panel not included.
Price:
€1,271.40
Listing:
€1,695.19
You Save:
€423.79 (25%)

Description

Quick Hi Power Battery Charger SBC1100 NRG+ OEM 80A 12V 3 Outputs FR Without RDS1562 Panel

Features of SBC NRG+ Battery Chargers Series:
• Three stage IUoU battery charging;
• Multiple outputs in order to charge more groups of batteries (Electronic mosfet charge separator inside);
• Differentiated charging for open or sealed liquid electrolite, GEL or AGM batteries;
• Integrated output fuses inside the battery charger (for each output);
• Capacity of supplying full power with low AC network supply voltage;
• The possibility of using the battery charger as a power supply without batteries;
• Low residual fluctuation on output;
• Universal AC supply input;
• Power factor (cos ϕ) equal to 1;
• Compatible with the generators;
• Can work in a wide range of ambient temperatures;
• “Quick Smart Fan” system for optimized management of the cooling fans;
• User interface (multi-lingual) that consists of a LCD display with 3 buttons;
• Automatic and manual power derating;
• CAN BUS interface for data transfer;
• Possibility to connect up to three battery chargers of the same model in parallel, by means of digital control, for current sharing;
• Thermal battery protection (with optional sensors);
• Short circuit, overloading, output overvoltage and overheating protection.


Features:
- Max output current: 80 A;
- Charge absorption voltage: 14.1 Vdc EL open - 14,4 Vdc EL sealed / Gel /AGM - 14,7 Vdc Li-ion / Optima;
- Charge float voltage: 13,4 Vdc EL open / 13,5 Vdc Li-Ion - 13,6 Vdc AGM - 13,8 Vdc sealed / Gel / Optima;
- Number of outputs: 3;
- Supply voltage: 264÷83 Vac with power under 108 Vac;
- Frequency: 45 ÷ 66 Hz;
- Efficiency: ≥ 88%;
- Max absorption (230/240 Vac): 5.4 A;
- Max absorption (120 Vac): 10.6 A;
- Current Sharing: Yes;
- Operating temperature: -15 ÷ +70 °C, with power reduction over +50°C;
- Cooling: Forced, by variable speed cooling fans;

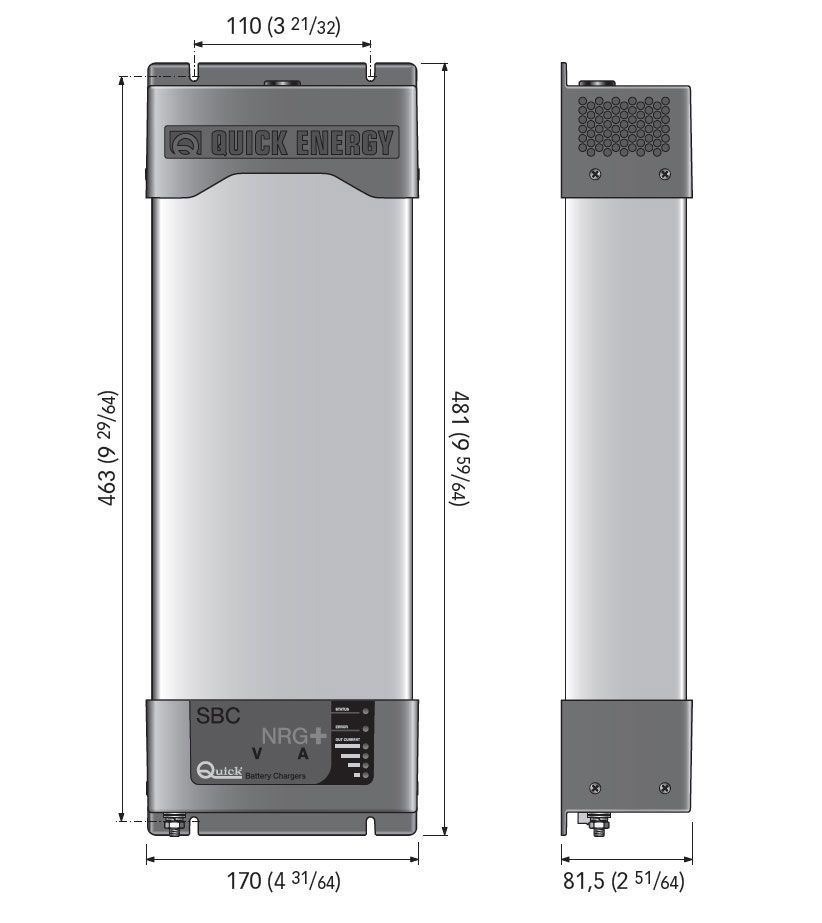

- Case Dimensions L x H x D: 170 x 481 x 81,5 mm;
- RDS1562 remote panel not included.

Note: Product available in 7 working days; the order transmitted directly to the manufacturer/importer.
