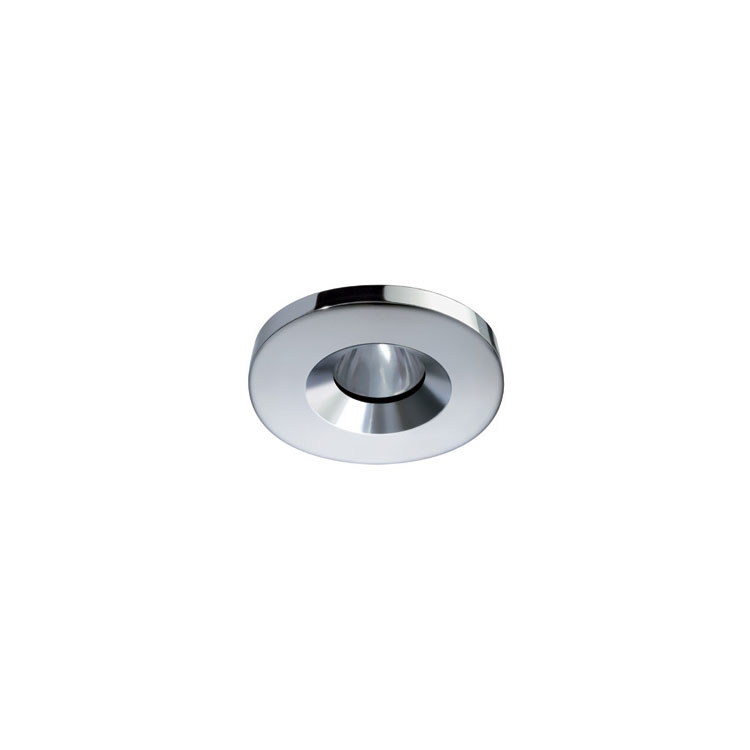

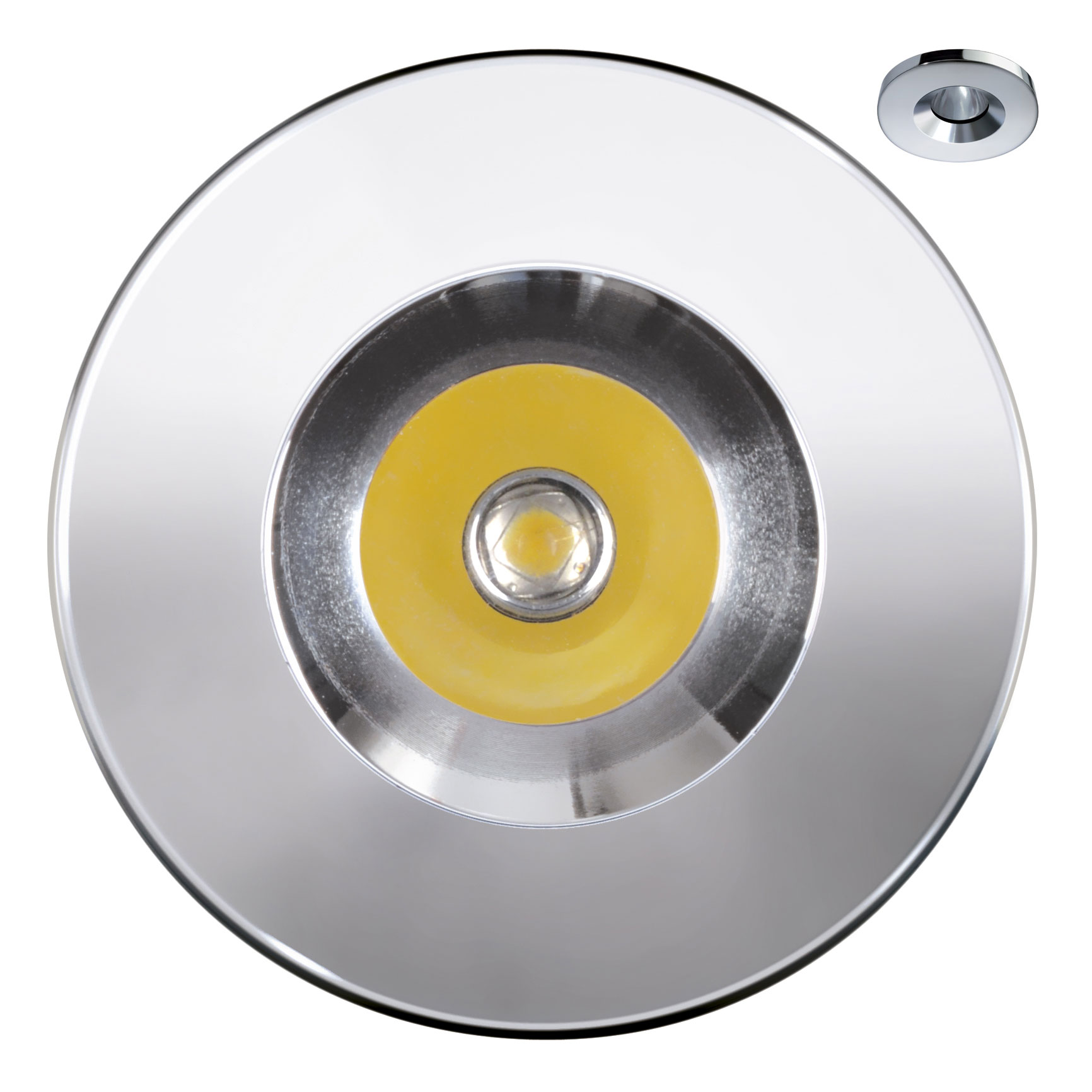

Modern LED downlight in 316 AISI stainless steel.
With IP65 rating, it is protected against humidity and water splashes, if installed properly.
Effective lighting and optimal chromatic yield.
AISI 316 round frame. Mirror polished finish. Satin finish lens, daylight or warm white light.
Features:
Power type: Constant Voltage;
Supply: 10 ÷ 30 V;
Power consumption: 1.5 W;
Current consumption: 0.06 A @ 24V;
Average lifespan: 50.000 h;
Dimmable: Yes;
IP protection degree: 65;
Light colours: warm white, natural white;
Finish: mirror polished;
Frame material: AISI 316 stainless steel;

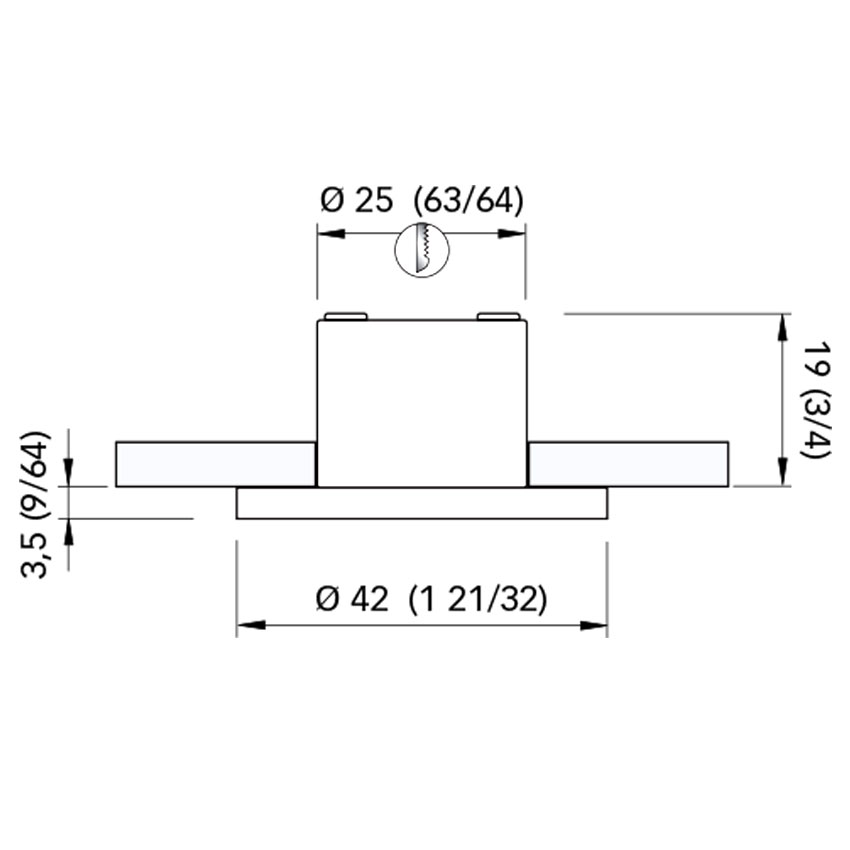

Square frame: Ø 42 mm 1 21/32";
Recess: 19 mm 3/4";
Hole: Ø 25 mm 63/64'';
Mounting: screws.
Photometric data:

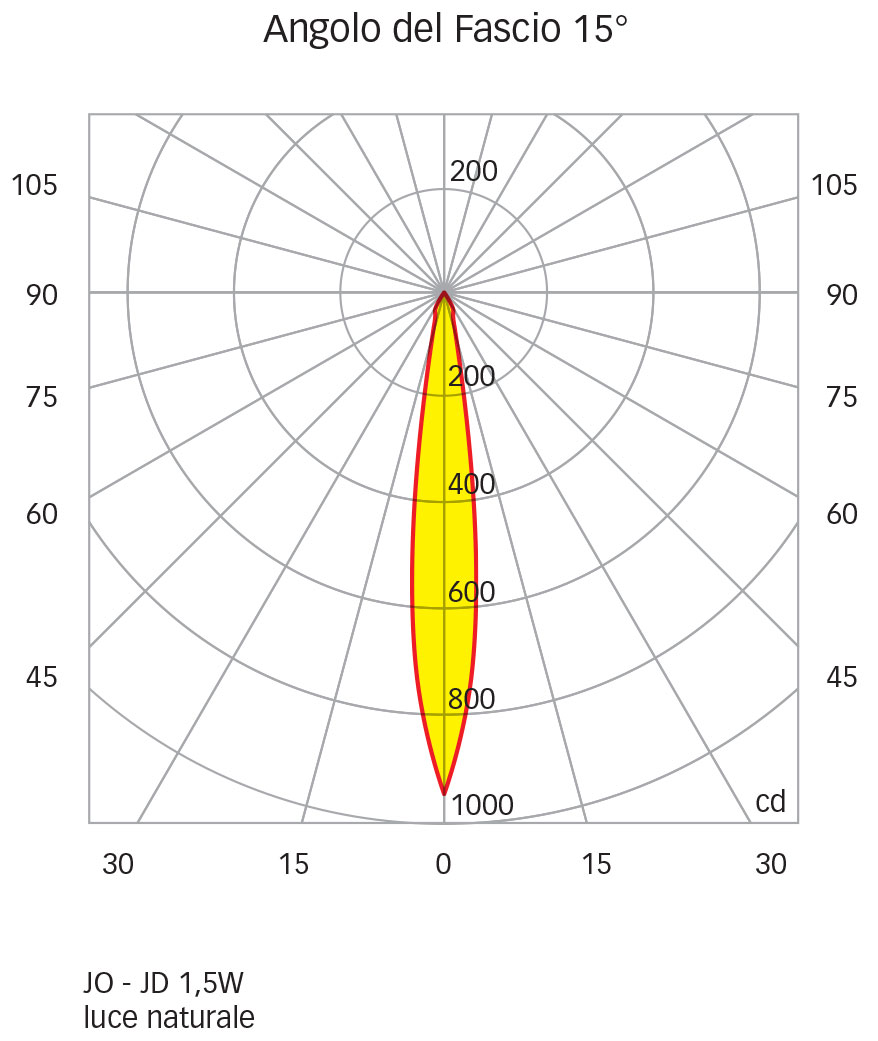

Natural White 3800-4100K
- CRI: ≥ 80;
- Angle: 15°;
- Luminous flux: 115 lm;
- Illuminance - distance 1 m: Ø 0.27 m - 988.0 lux;
- Illuminance - distance 2 m: Ø 0.53 m - 236.0 lux;
- Illuminance - distance 3 m: Ø 0.80 m - 104.4 lux.

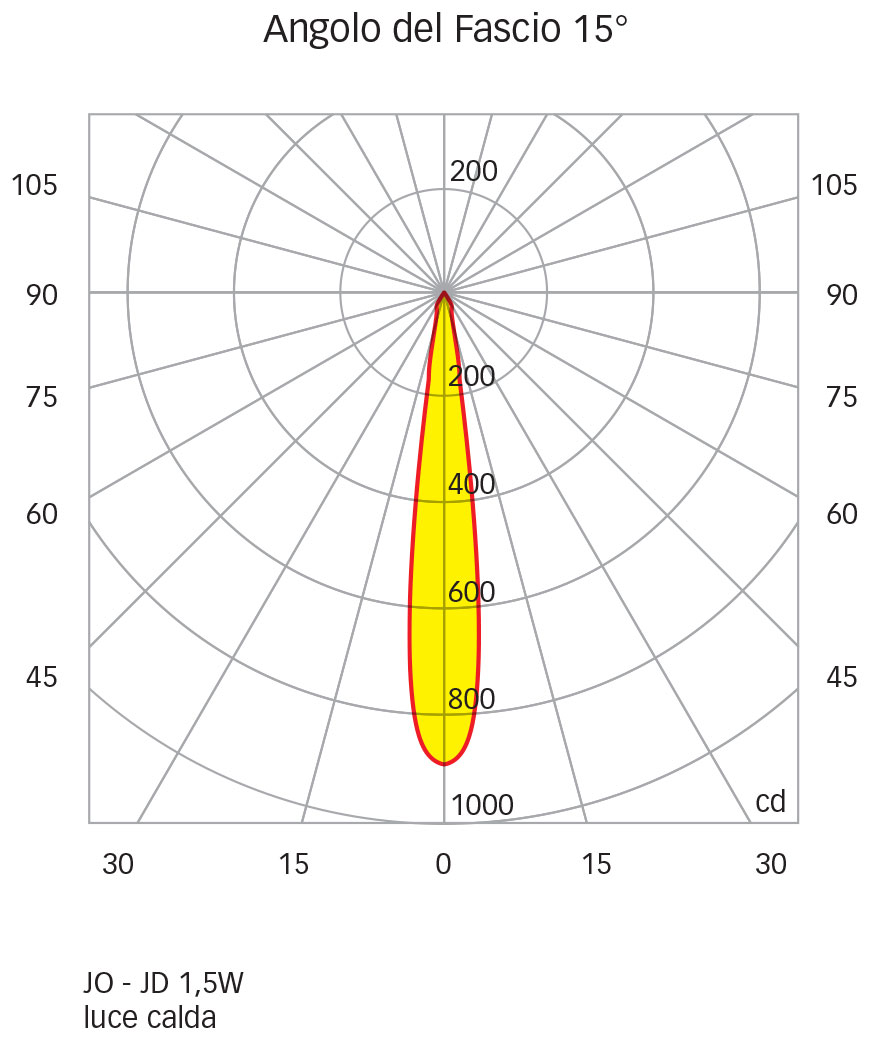

Warm White 2900-3100K
- CRI: ≥ 80;
- Angle: 15°;
- Luminous flux: 105 lm;
- Illuminance - distance 1 m: Ø 0.27 m - 890.0 lux;
- Illuminance - distance 2 m: Ø 0.53 m - 222.5 lux;
- Illuminance - distance 3 m: Ø 0.80 m - 98.9 lux.
LED Protection: Spike protected ± 500V.
Polarity sensitive: NO.
Certifications: Class F, class III, CE.
Note: Please choose the desired colour from the drop down menu.
25300000BIC Warm White
25300000BIN Daylight
