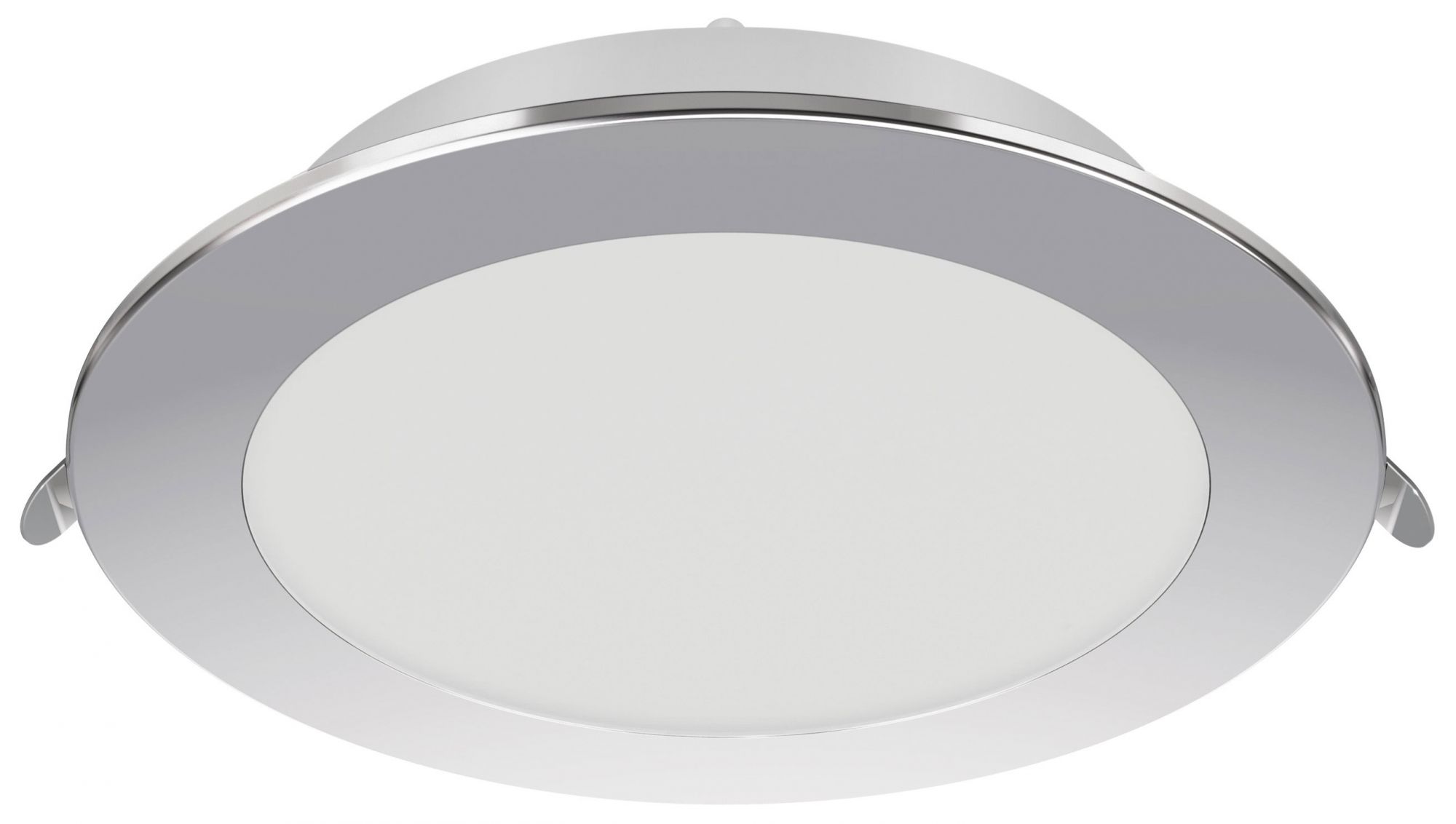

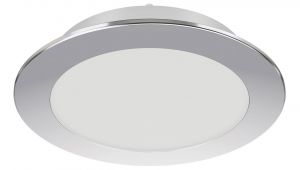

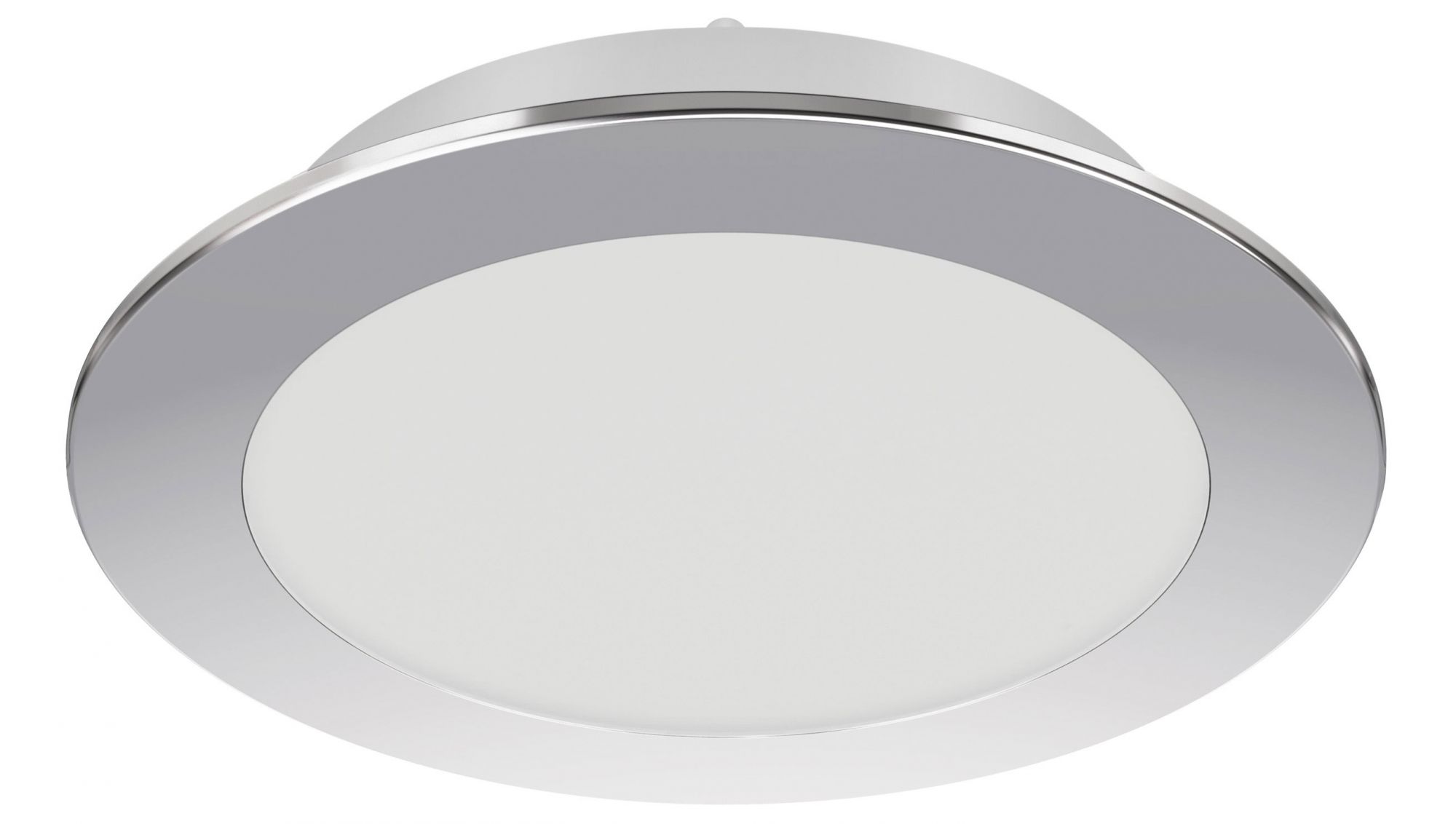

Elegant downlight in 316 AISI stainless steel.
The luminous flux yield and the development of the Light Distribution Curve ensure that the product meets even the most demanding requirements.
ON REQUEST available with red or blue 4W courtesy light.

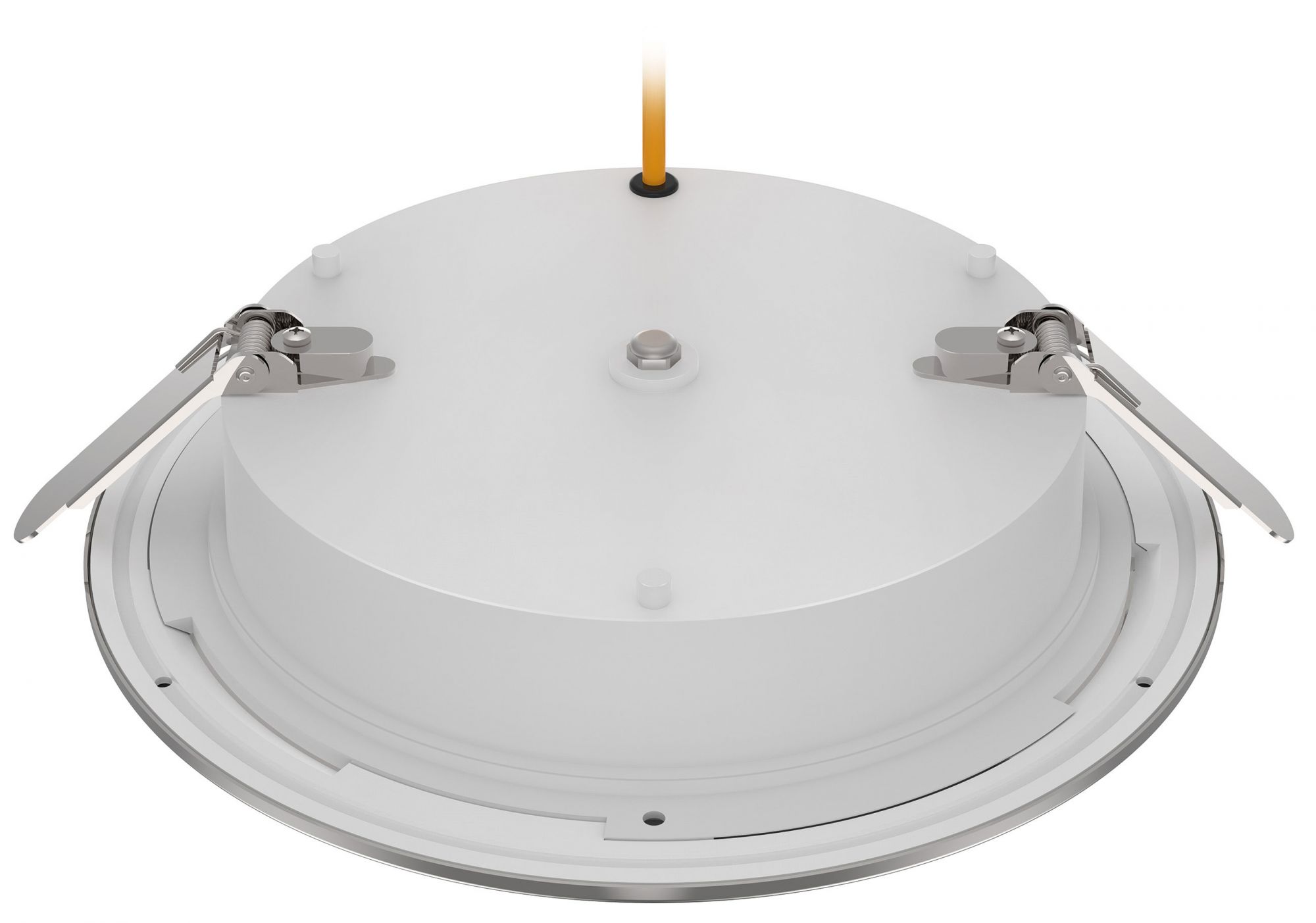

The spring-mount model is available only on request.
AISI 316 round frame. Satin finish. Satin finish lens, daylight or warm white light.
Features:
Power type: Constant Voltage;
Light source: LED;
Supply: 10 ÷ 30 V;
Power consumption: 15 W;
Current consumption: 0.63 A @ 24V;
Average lifespan: 50.000 h;
Dimmable: Yes;
IP protection degree: 66;
Light colours: warm white, daylight;
Finish: SATIN;
Frame material: AISI 316 stainless steel;

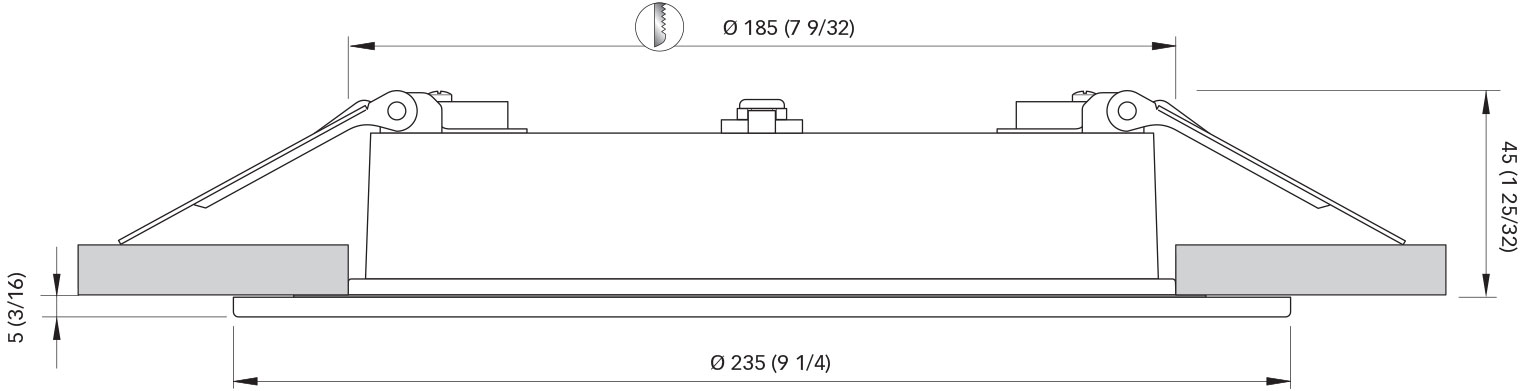

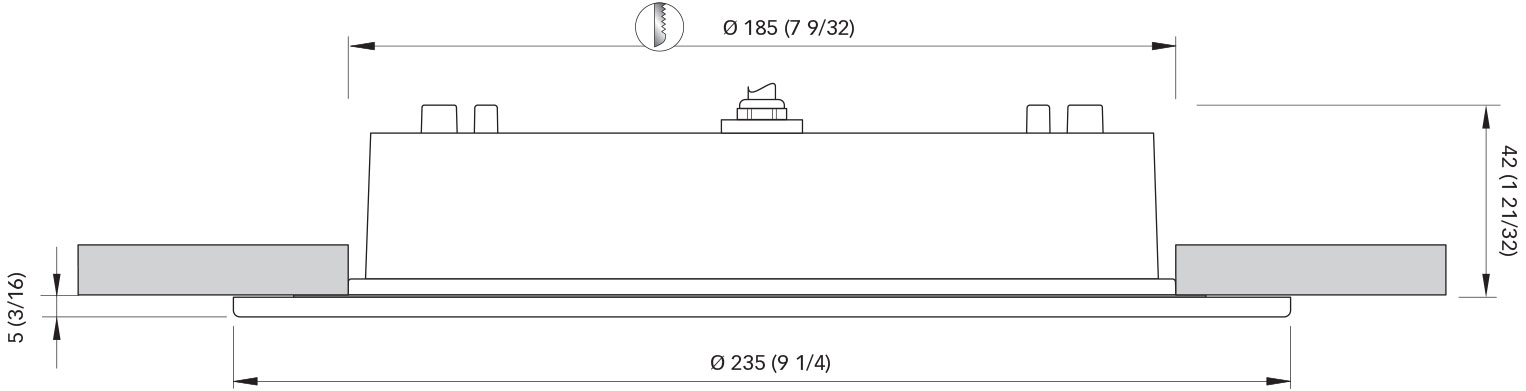

Square frame: Ø 235 mm 9 1/4";
Recess: 42 mm 1 21/32";
Hole: Ø 185 mm 7 9/32";

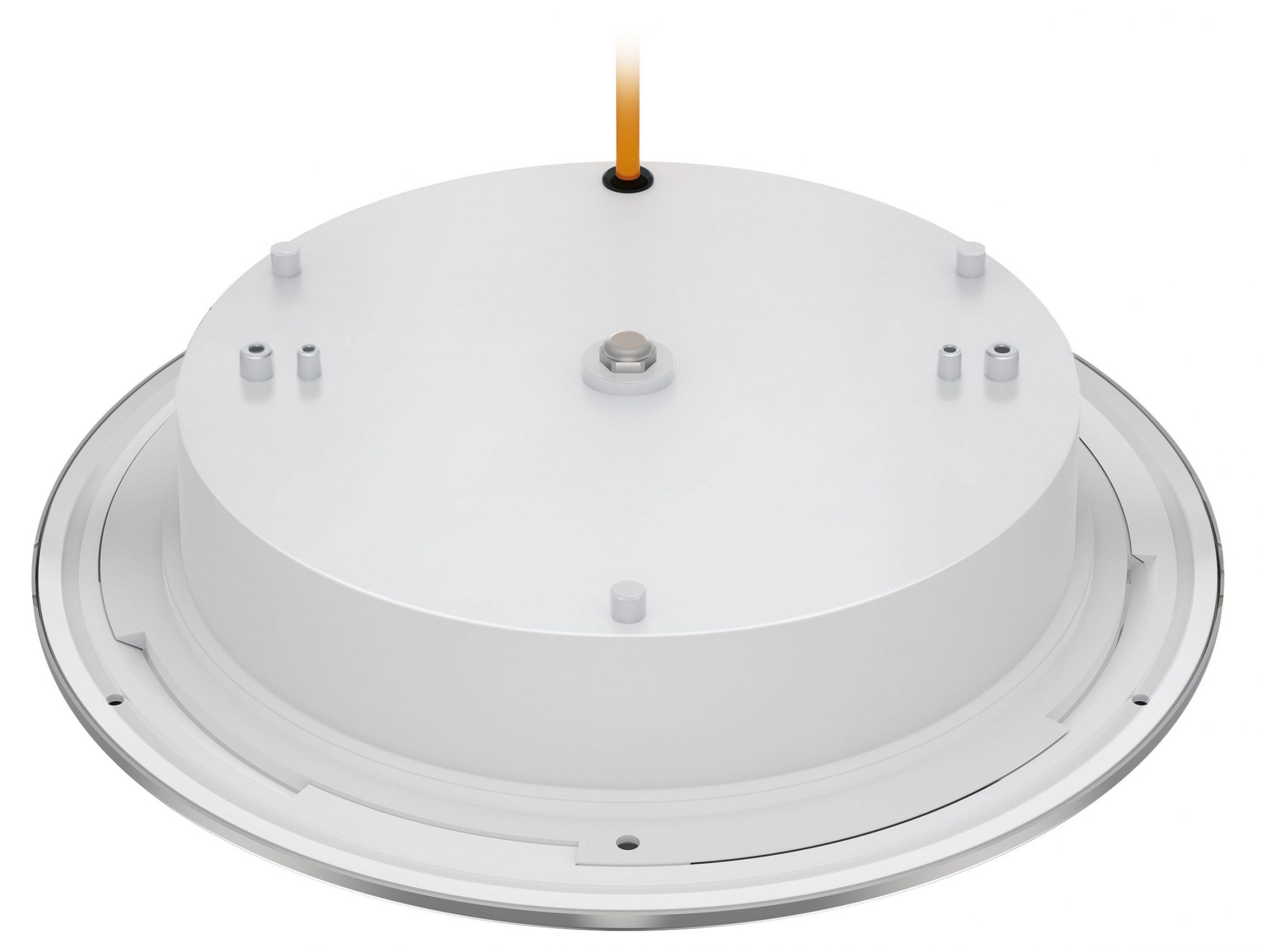

Mounting: screws.
Photometric data:

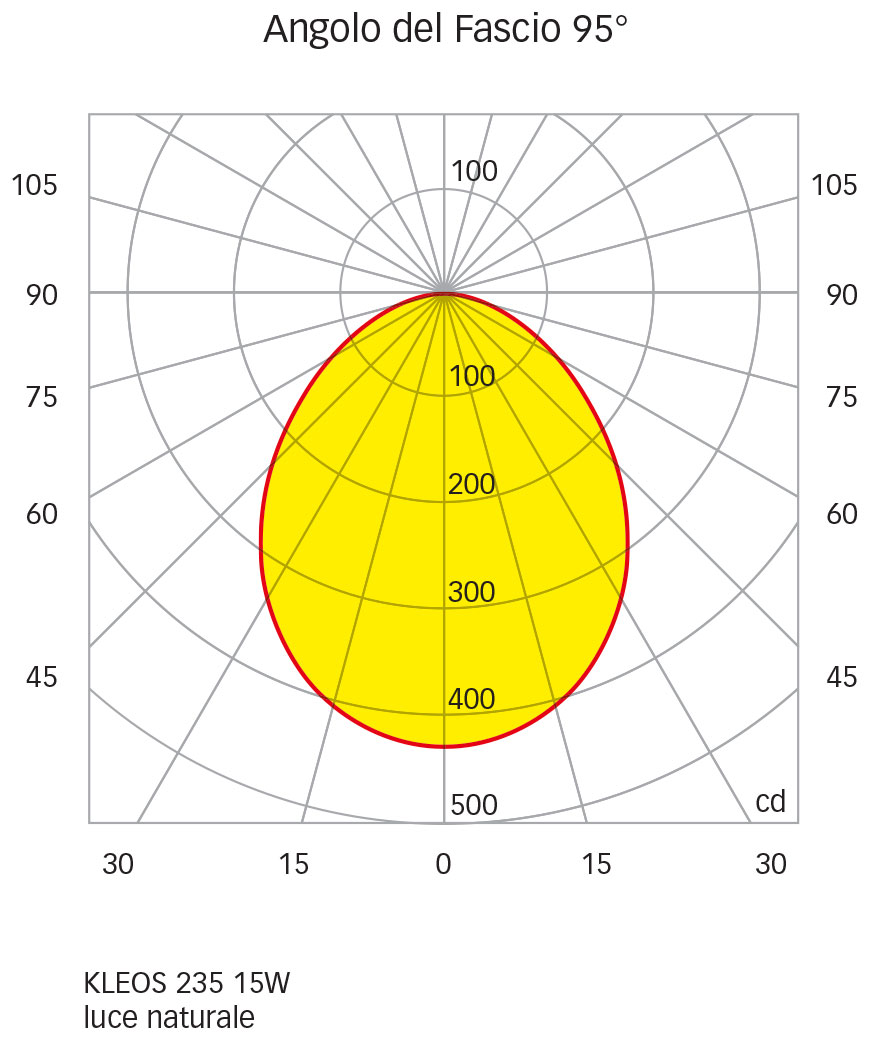

Natural White 3800-4100K
- CRI: ≥ 90;
- Angle: 95°;
- Luminous flux: 1010 lm;
- Illuminance - distance 1 m: Ø 2.15 m - 429.7 lux;
- Illuminance - distance 2 m: Ø 4.31 m - 107.4 lux;
- Illuminance - distance 3 m: Ø 6.46 m - 47.7 lux.

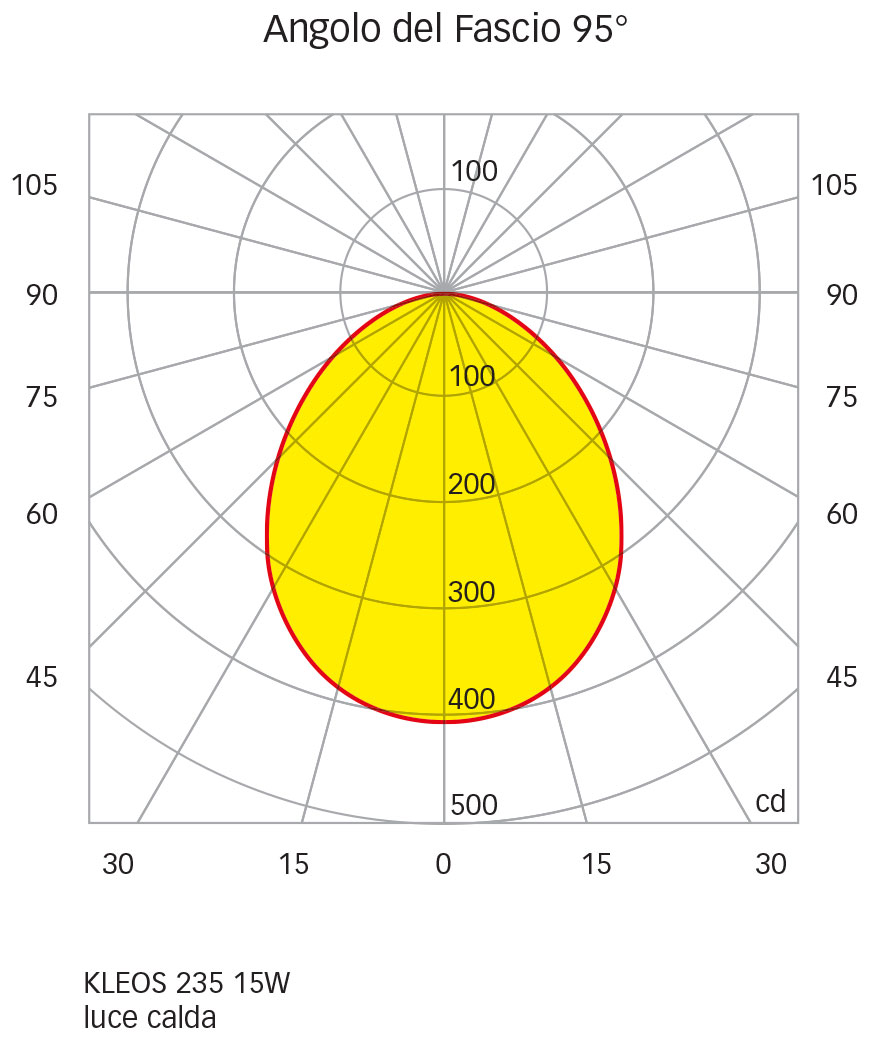

Warm White 2900-3100K
- CRI: ≥ 90;
- Angle: 95°;
- Luminous flux: 995 lm;
- Illuminance - distance 1 m: Ø 2.15 m - 416.6 lux;
- Illuminance - distance 2 m: Ø 4.31 m - 104.2 lux;
- Illuminance - distance 3 m: Ø 6.46 m - 46.3 lux.
LED Protection: Spike protected ± 500V.
Polarity sensitive: Yes.
Certifications: class III, CE.
Note: Please choose the desired colour from the drop down menu.
25300007BIC Warm White
25300007BIN Daylight
