Quick PALLADIO R105 13W 20~30Vdc 1080-1160lm IP66 DL105 with AISI 316 round frame Ø105mm, 77mm recess, 55° beam angle, mirror polished, satin or White 9010 finish, natural or warm light.
Price:
€237.90
Listing:
€317.20
You Save:
€79.30 (25%)
This item will be released on 21 January. Pre-order now.:

Description

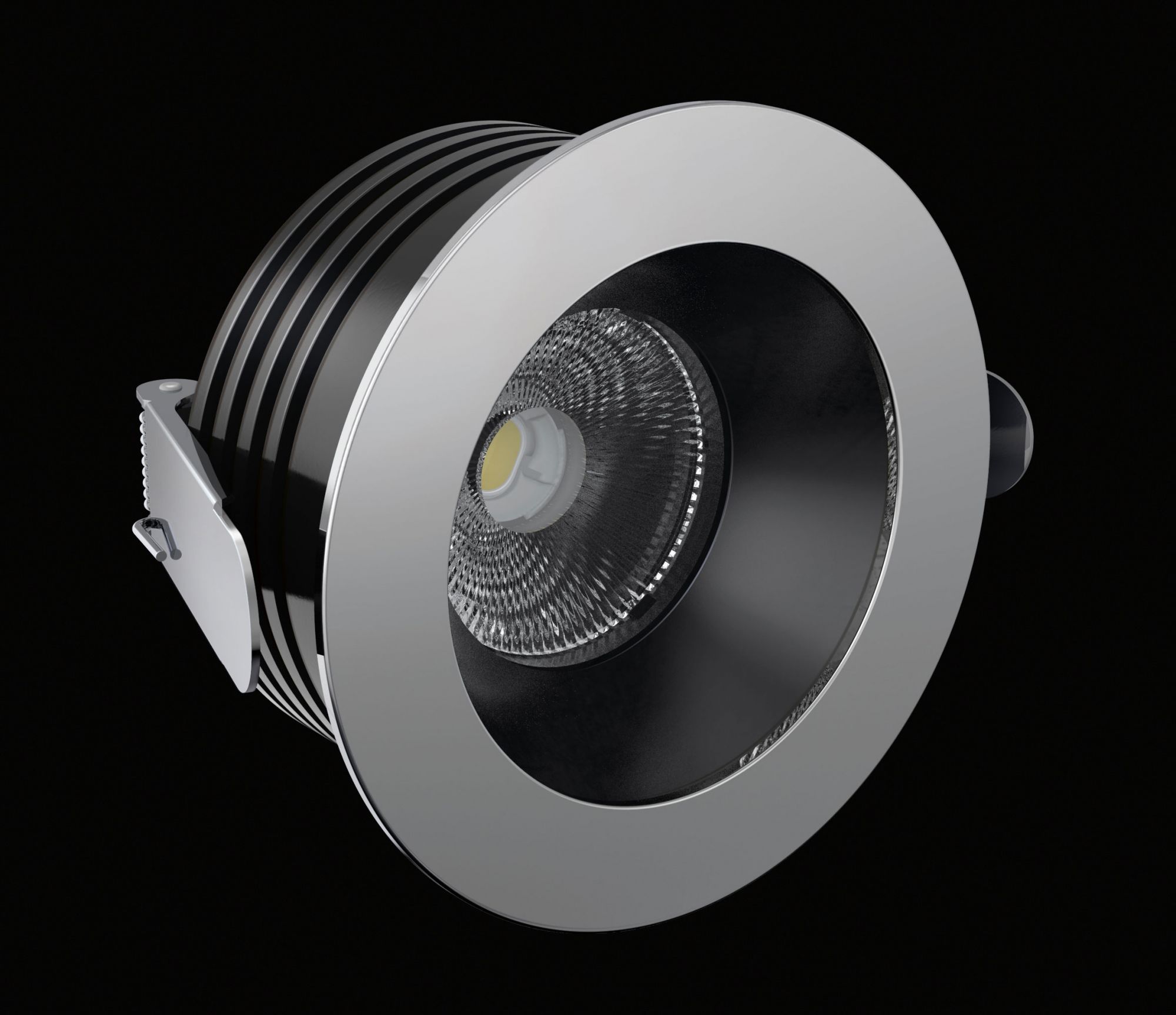

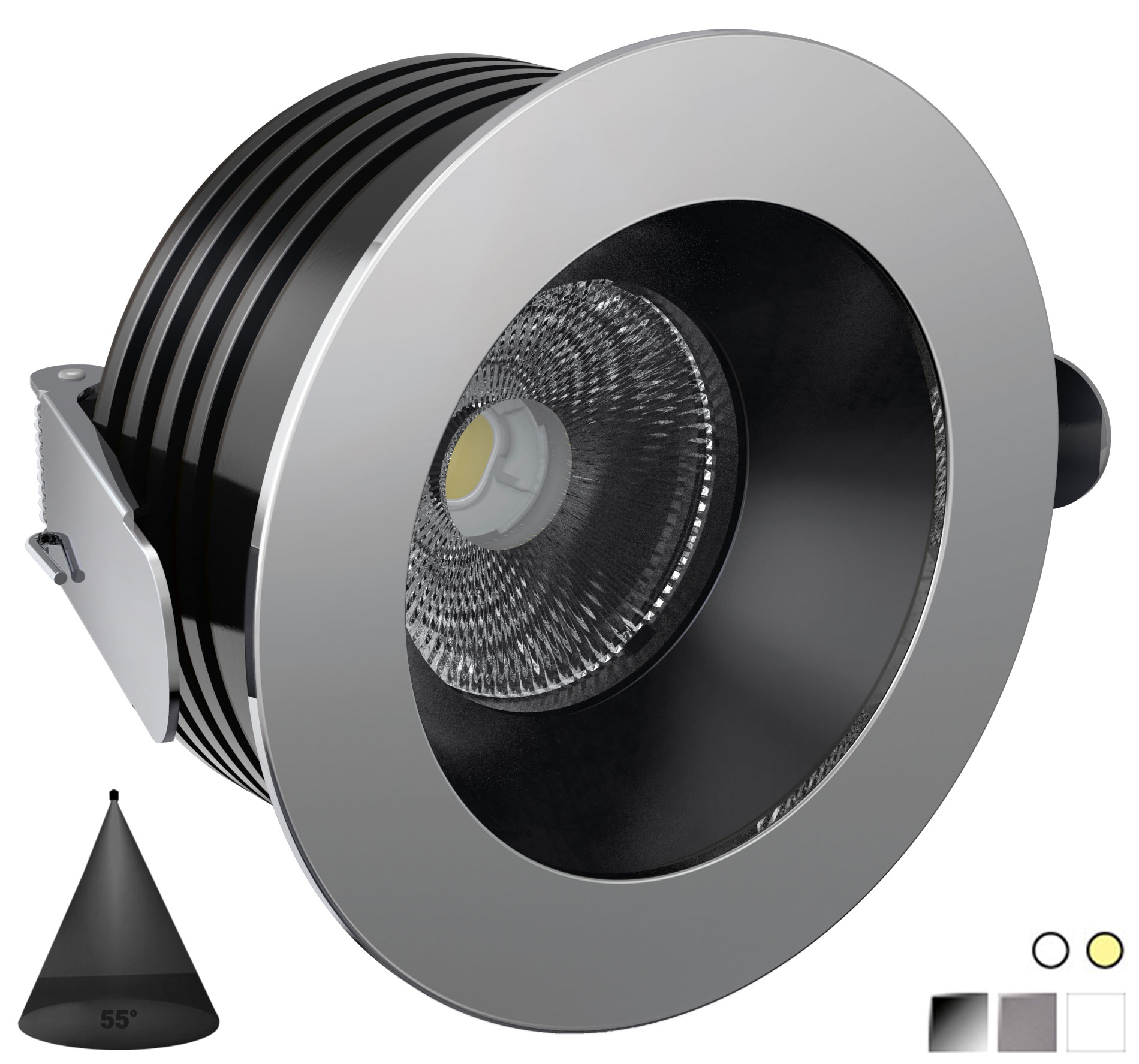

Quick PALLADIO R105 55° 13W 20~30Vdc 1080-1160lm IP66 DL105 with Ø105mm AISI 316 round frame

Antiglare LED downlights for recessed applications with backlit option, in AISI 316 stainless steel. Dissipator made of anodised aluminium. Available with beam angle of 55°. AISI 316 round frame. Mirror polished, satin or White 9010 finish. Natural or warm light.

Features:
Power type: Constant Voltage;
Light source: LED;
Supply: 20 ÷ 30 V;
Power consumption: 13 W;
Current consumption: 0.54 A @ 24V;
Average lifetime: 50.000 h;
Dimmable: Yes;
IP protection degree: 66;
Frame material: AISI 316 S/STEEL;
Finishing: BLACK PVD / GOLD PVD;
Light colours: DAYLIGHT / WARM WHITE;

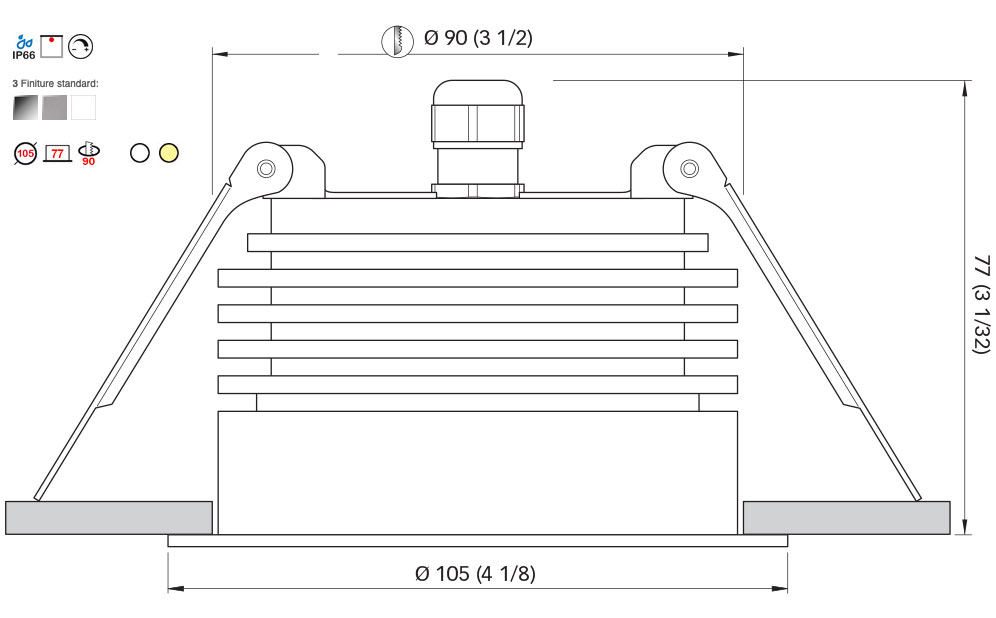

Square frame: Ø 105 mm (4 9/64'');
Recess: 77 mm (3 1/32");
Hole: Ø 90 mm (3 1/2'');
Mounting: springs.
Photometric data:

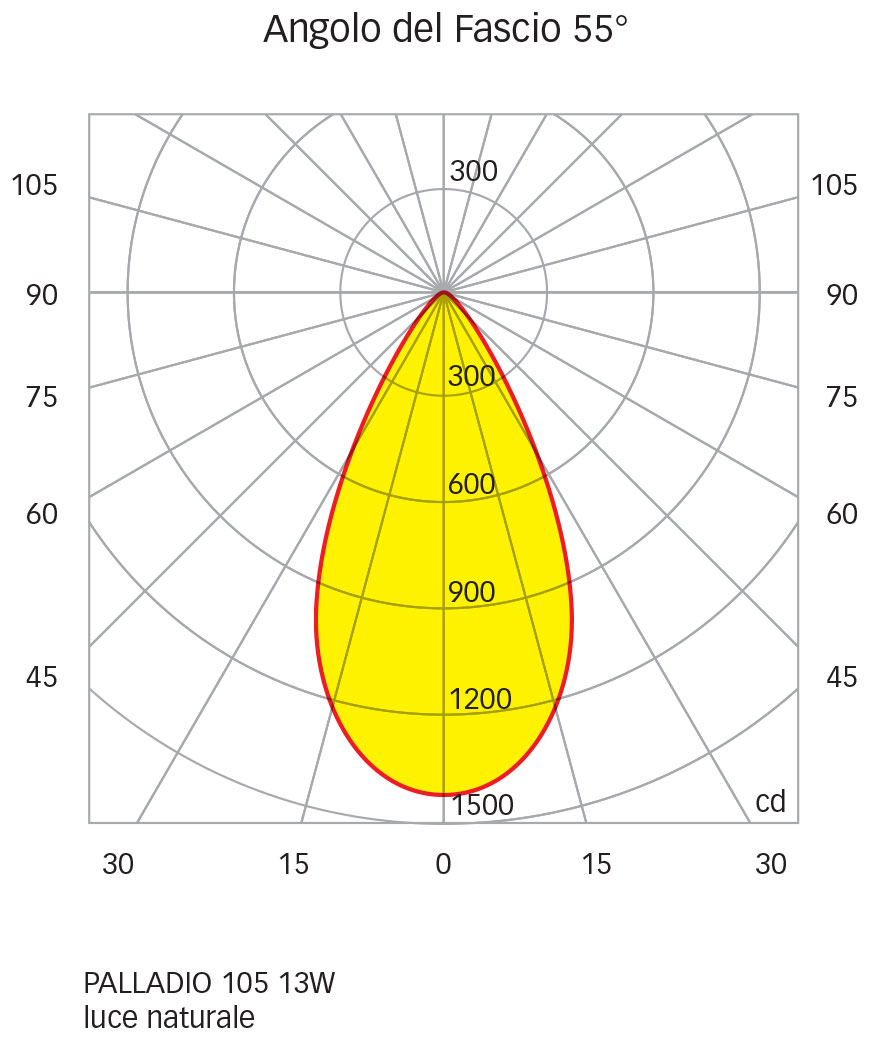

Natural White 3800-4100K
- CRI: ≥ 95;
- Angle: 55°;
- Luminous flux: 1160 lm;
- Illuminance - distance 1 m: Ø 1.03 m - 1419.9 lux;
- Illuminance - distance 2 m: Ø 2.05 m - 355 lux;
- Illuminance - distance 3 m: Ø 3.08 m - 157.8 lux.

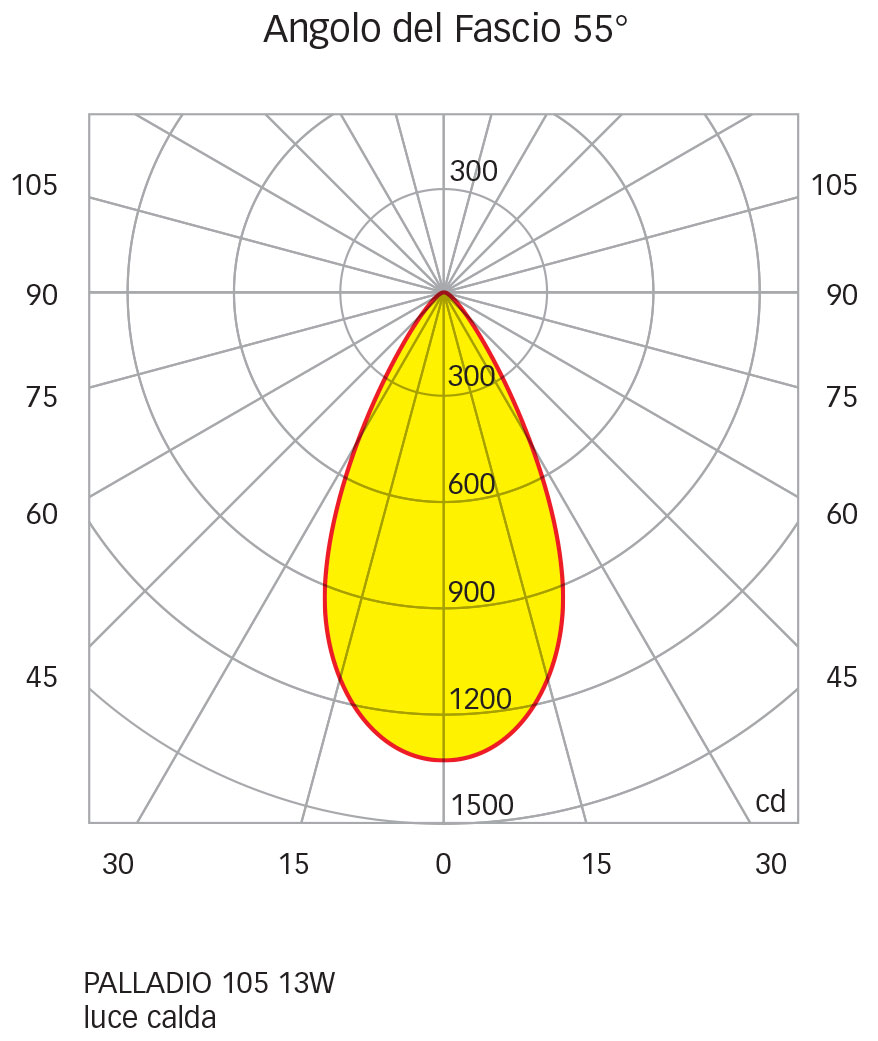

Warm White 2900-3100K
- CRI: ≥ 95;
- Angle: 55°;
- Luminous flux: 1080 lm;
- Illuminance - distance 1 m: Ø 1.03 m - 1320.9 lux;
- Illuminance - distance 2 m: Ø 2.05 m - 330.2 lux;
- Illuminance - distance 3 m: Ø 3.08 m - 146.8 lux.
LED protection: Spike protected ± 500V / Against inversion of polarity.
Certifications: class III, CE.

Note: Please choose the desired colour from the drop down menu.

25300036BINL MIRROR POLISHED NATURAL WHITE
25300036BICL MIRROR POLISHED WARM WHITE
25300036BINS SATIN NATURAL WHITE
25300036BICS SATIN WARM WHITE
25300036BINB WHITE 9010 NATURAL WHITE
25300036BICB WHITE 9010 WARM WHITE
