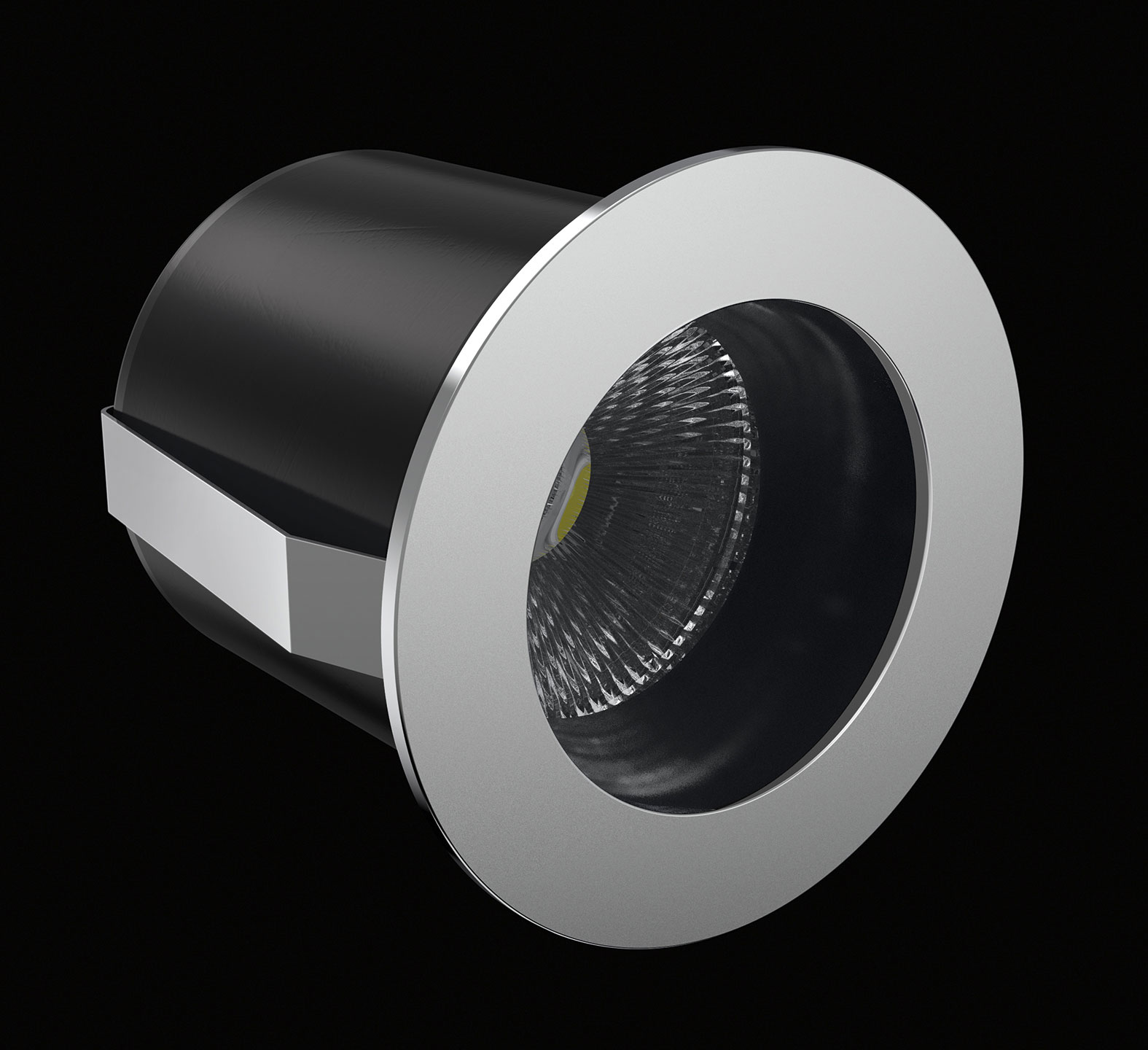

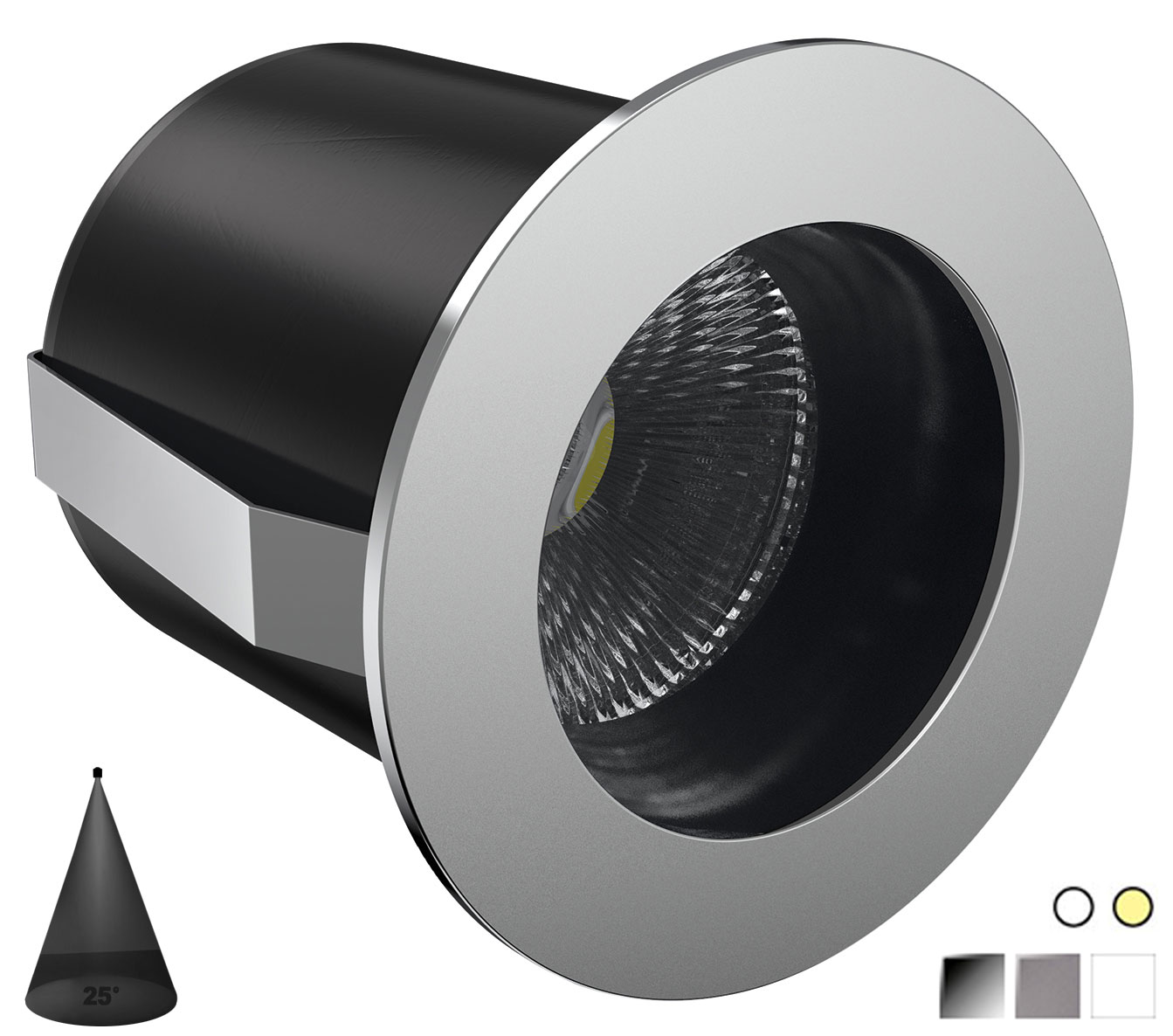

Antiglare LED downlights for recessed applications with backlit option, in AISI 316 stainless steel. Dissipator made of anodised aluminium. Available with beam angle of 25°. AISI 316 round frame. Mirror polished, satin or White 9010 finish. Natural or warm light.
Features:
Power type: Constant Voltage;
Light source: LED;
Supply: 20 ÷ 30 V;
Power consumption: 7 W;
Current consumption: 0.29 A @ 24V;
Average lifetime: 50.000 h;
Dimmable: Yes;
IP protection degree: 66;
Frame material: AISI 316 S/STEEL;
Finishing: BLACK PVD / GOLD PVD;
Light colours: DAYLIGHT / WARM WHITE;

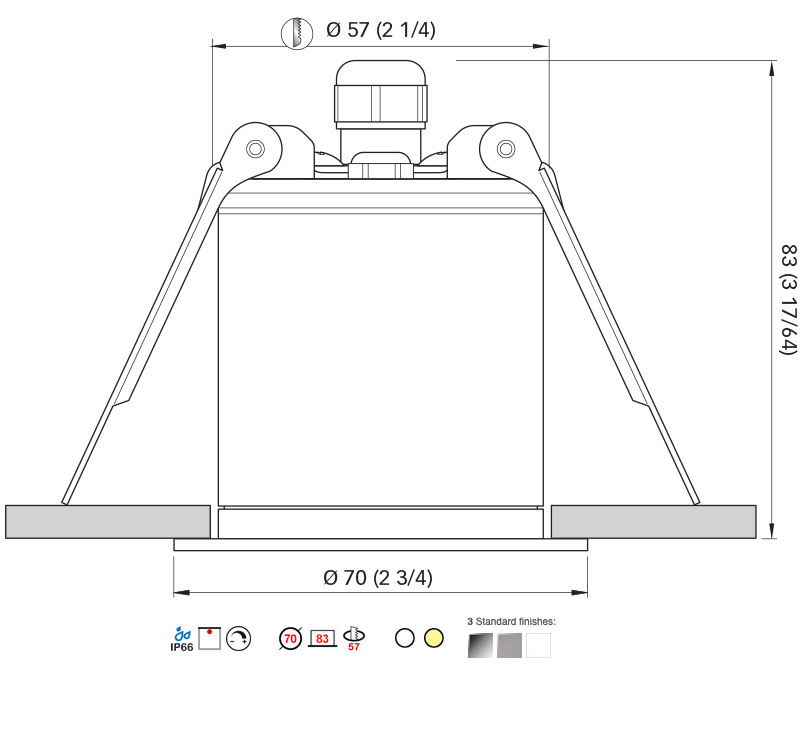

Square frame: Ø 70 mm (2 3/4");
Recess: 83 mm (3 17/64");
Hole: Ø 57 mm (2 1/4");
Mounting: springs.
Photometric data:

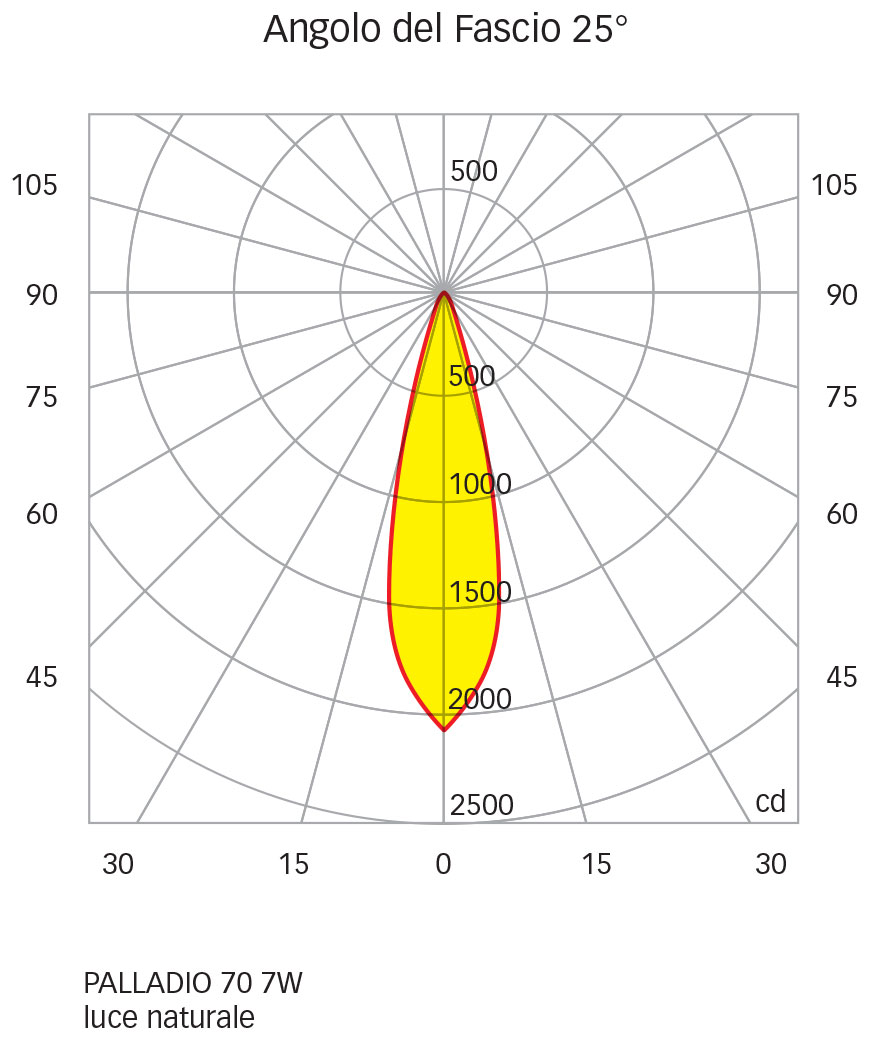

Natural White 3800-4100K
- CRI: ≥ 95;
- Angle: 25°;
- Luminous flux: 550 lm;
- Illuminance - distance 1 m: Ø 0.47 m - 2074.4 lux;
- Illuminance - distance 2 m: Ø 0.94 m - 518.6 lux;
- Illuminance - distance 3 m: Ø 1.41 m - 230.5 lux.

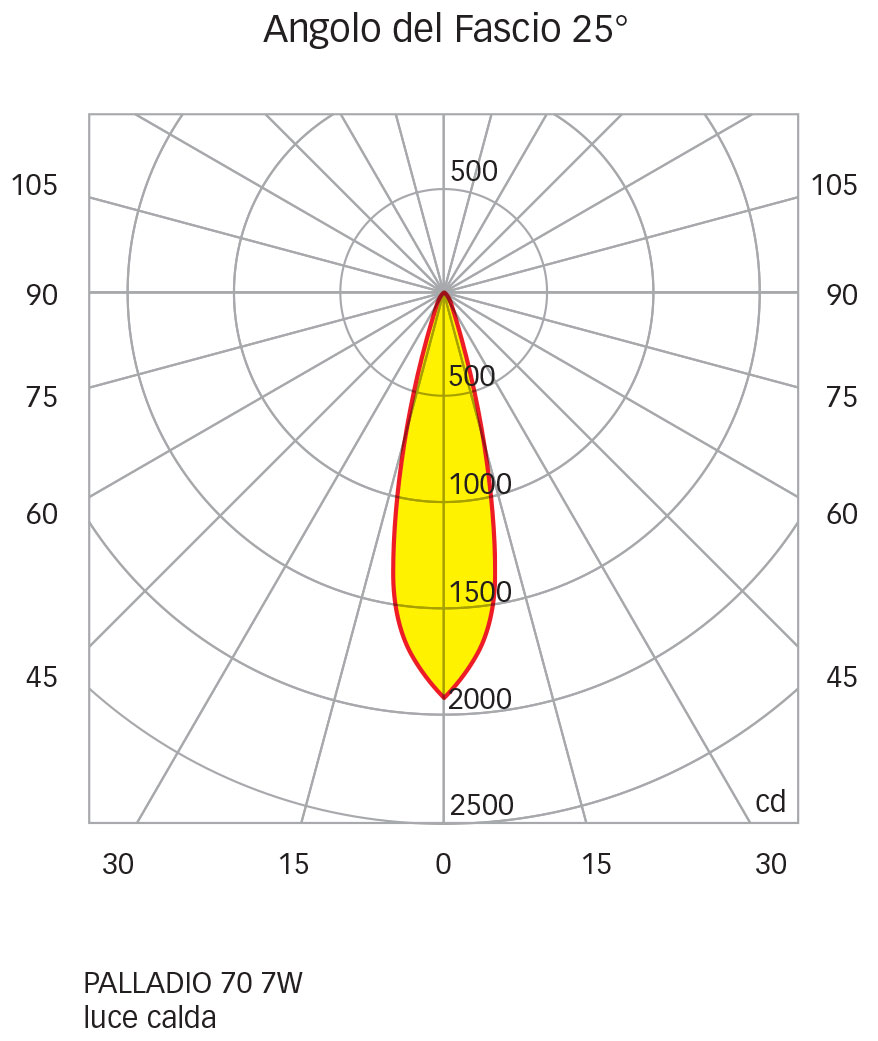

Warm White 2900-3100K
- CRI: ≥ 95;
- Angle: 25°;
- Luminous flux: 510 lm;
- Illuminance - distance 1 m: Ø 0.47 m - 1929.7 lux;
- Illuminance - distance 2 m: Ø 0.94 m - 482.4 lux;
- Illuminance - distance 3 m: Ø 1.41 m - 214.4 lux.
LED protection: Spike protected ± 500V / Against inversion of polarity.
Certifications: class III, CE.
Note: Please choose the desired colour from the drop down menu.
25300031BINL MIRROR POLISHED NATURAL WHITE
25300031BICL MIRROR POLISHED WARM WHITE
25300031BINS SATIN NATURAL WHITE
25300031BICS SATIN WARM WHITE
25300031BINB WHITE 9010 NATURAL WHITE
25300031BICB WHITE 9010 WARM WHITE
