Quick PALLADIO R90 10W 20~30Vdc 650-700lm IP66 DL90 with AISI 316 round frame Ø90mm, 77mm recess, 25° beam angle, mirror polished, satin or White 9010 finish, natural or warm light.
Price:
€219.60
Listing:
€292.80
You Save:
€73.20 (25%)

Description

Quick PALLADIO R90 25° 10W 20~30Vdc 650-700lm IP66 DL90 with Ø90mm AISI 316 round frame

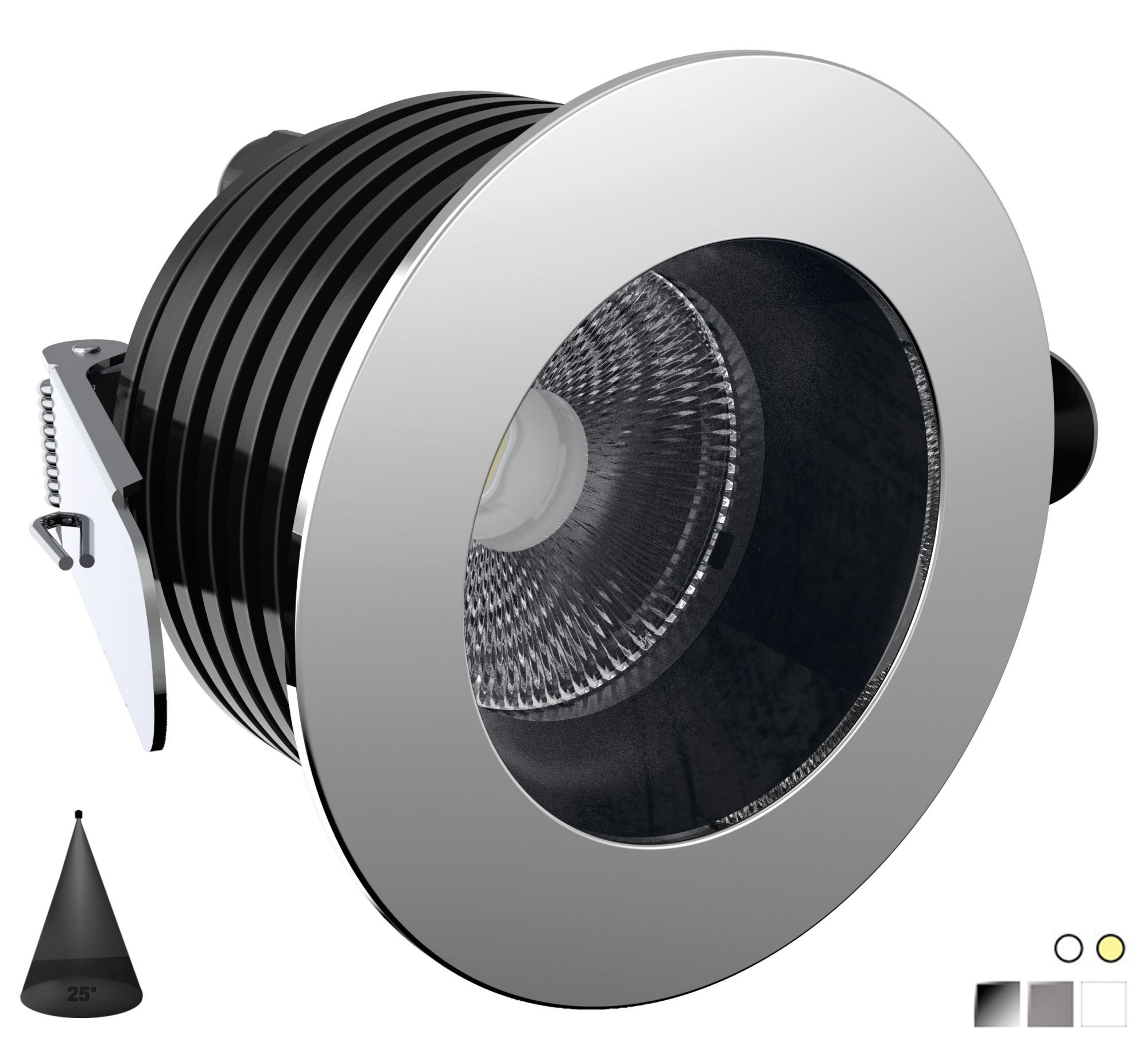

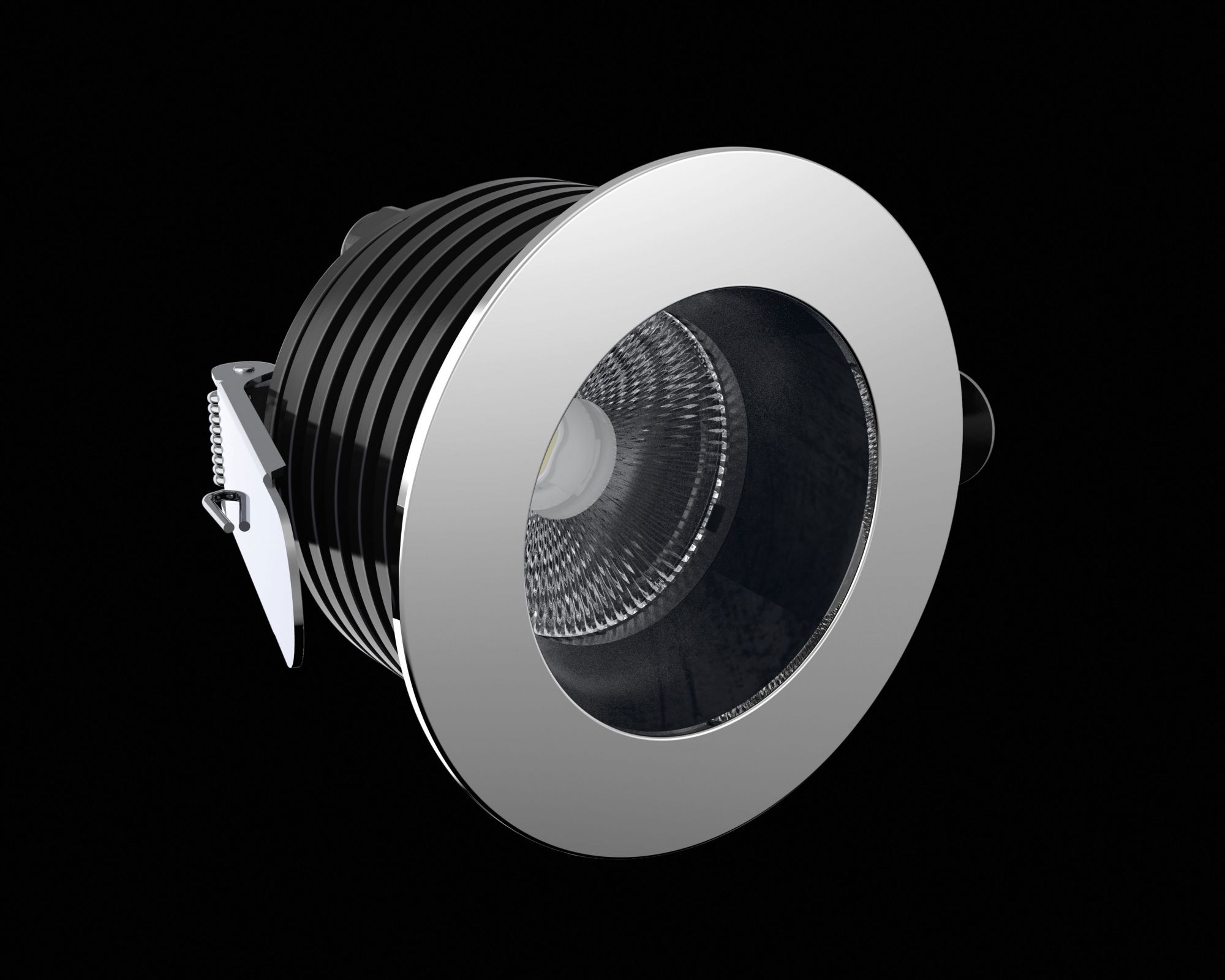

Antiglare LED downlights for recessed applications with backlit option, in AISI 316 stainless steel. Dissipator made of anodised aluminium. Available with beam angle of 25°. AISI 316 round frame. Mirror polished, satin or White 9010 finish. Natural or warm light.

Features:
Power type: Constant Voltage;
Light source: LED;
Supply: 20 ÷ 30 V;
Power consumption: 10 W;
Current consumption: 0.42 A @ 24V;
Average lifetime: 50.000 h;
Dimmable: Yes;
IP protection degree: 66;
Frame material: AISI 316 S/STEEL;
Finishing: BLACK PVD / GOLD PVD;
Light colours: DAYLIGHT / WARM WHITE;

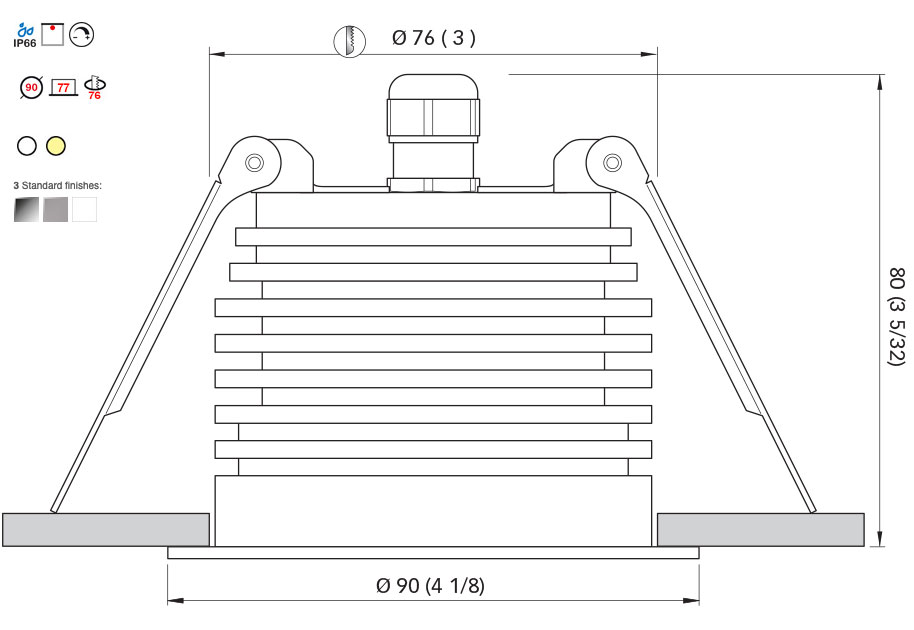

Square frame: Ø 90 mm (3 9/16");
Recess: 77 mm (3 1/32");
Hole: Ø 76 mm (3 inches);
Mounting: springs.
Photometric data:

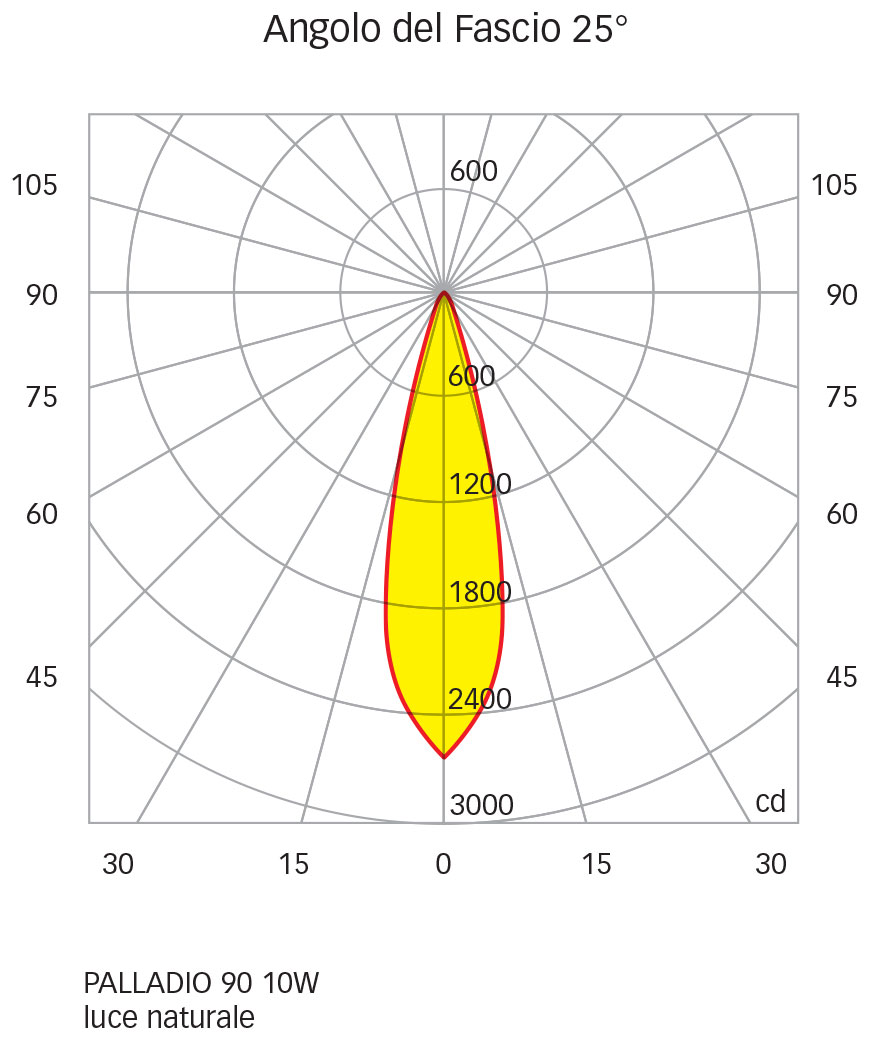

Natural White 3800-4100K
- CRI: ≥ 95;
- Angle: 25°;
- Luminous flux: 700 lm;
- Illuminance - distance 1 m: Ø 0.47 m - 2640.2 lux;
- Illuminance - distance 2 m: Ø 0.94 m - 660.1 lux;
- Illuminance - distance 3 m: Ø 1.41 m - 293.4 lux.

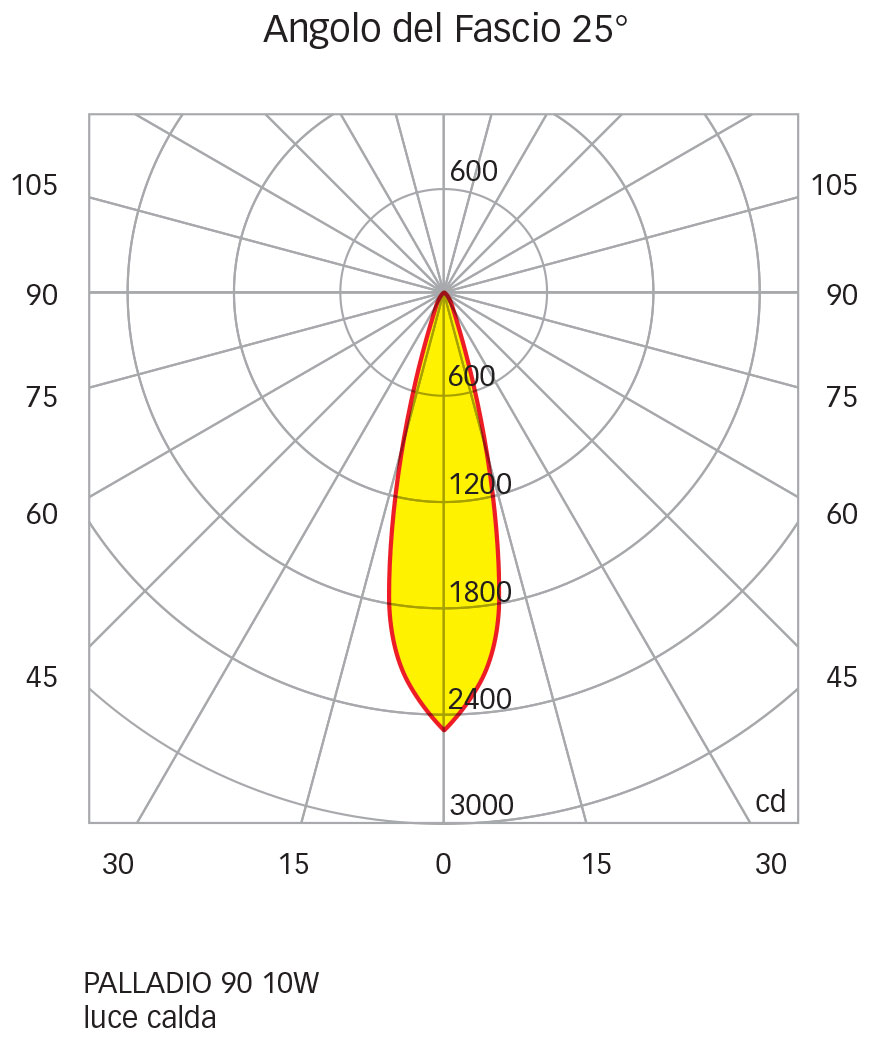

Warm White 2900-3100K
- CRI: ≥ 95;
- Angle: 25°;
- Luminous flux: 650 lm;
- Illuminance - distance 1 m: Ø 0.47 m - 2456 lux;
- Illuminance - distance 2 m: Ø 0.94 m - 614 lux;
- Illuminance - distance 3 m: Ø 1.41 m - 272.9 lux.
LED protection: Spike protected ± 500V / Against inversion of polarity.
Certifications: class III, CE.

Note: Please choose the desired colour from the drop down menu.

25300033BINL MIRROR POLISHED NATURAL WHITE
25300033BICL MIRROR POLISHED WARM WHITE
25300033BINS SATIN NATURAL WHITE
25300033BICS SATIN WARM WHITE
25300033BINB WHITE 9010 NATURAL WHITE
25300033BICB WHITE 9010 WARM WHITE
