Description
Quick PATRICIA 0.48W 10~30Vdc LED Courtesy Light IP65 CO40 with UV stabilised technopolymer
Round built-in courtesy light in UV stabilised techno-polymer, shock-resistant, available in 4 light colours. Essential design and effective illumination. Ideal on any type of surface.
Features:
Power type: Constant Voltage;
Light source: 1 x LED;
Supply: 10 ÷ 30V;
Power consumption: 0.48W @ 24V;
Current consumption: 0.02A;
Average lifespan: 50,000 h;
Protection degree: IP65;
Frame material: TECHNOPOLYMER;
Light colours: DAYLIGHT, WARM WHITE, RED, BLUE;
Mounting: screws;

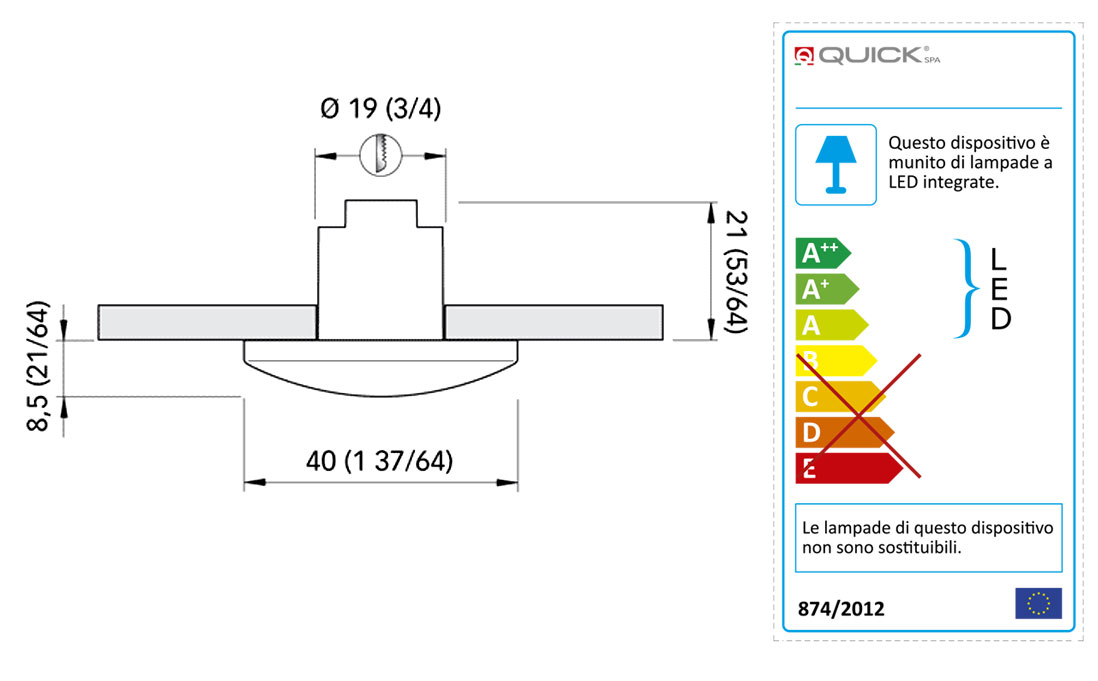

Dimensions:
- Frame: Ø40 mm (1 37/64"),
- Recess: 19 mm (53/64"),
- Hole: Ø21 mm (3/4").
LED Protection: Spike protected ± 500V.
Polarity sensitive: NO.
Certifications: Class F, class III, CE.
Note: Please choose desired colour from the drop down menu.
25200006BIN Daylight - FASP0262T01CA00
25200006BIC Warm White - FASP0262T02CA00
25200006RO Red - FASP0262T04CA00
25200006BL Blue - FASP0262T05CA00
