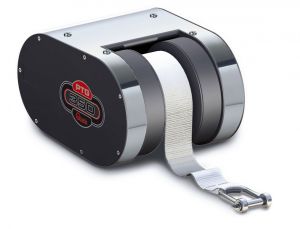

Capstans for tender in AISI 316 stainless steel and anodised aluminium. IP67 watertight motor. 7.5mt Flat strap included. Max length of flat strap 10.5mt.
- Motor power: 150W;
- Motor supply voltage: 12V;
- Maximum pull: 260Kg;
- Maximum working load: 100Kg;
- Working load: 40Kg;
- Current absorption working load: 13A;
- Maximum chain speed: 20,8 m/min;
- Maximum chain speed working load: 19,3 m/min;
- Weight: 10 kg.
