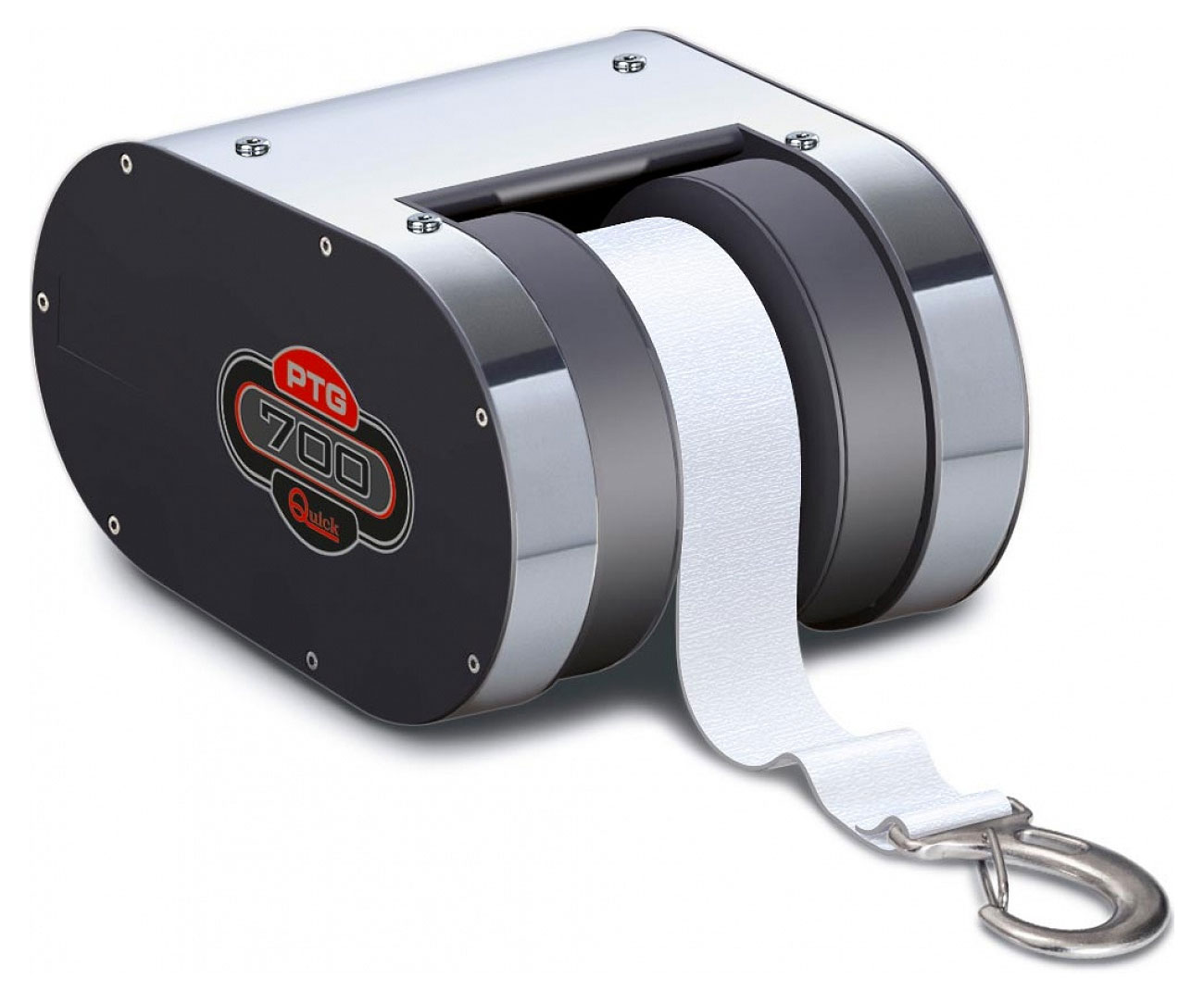

Capstans for tender in AISI 316 stainless steel and anodised aluminium. IP67 watertight motor. 7.5mt Flat strap included. Max length of flat strap 10.5mt.
- Motor power: 250W;
- Motor supply voltage: 12V;
- Maximum pull: 600Kg;
- Maximum working load: 220Kg;
- Working load: 80Kg;
- Current absorption working load: 22A;
- Maximum chain speed: 20,8 m/min;
- Maximum chain speed working load: 18.1 m/min;
- Weight: 10,2kg.
