Description

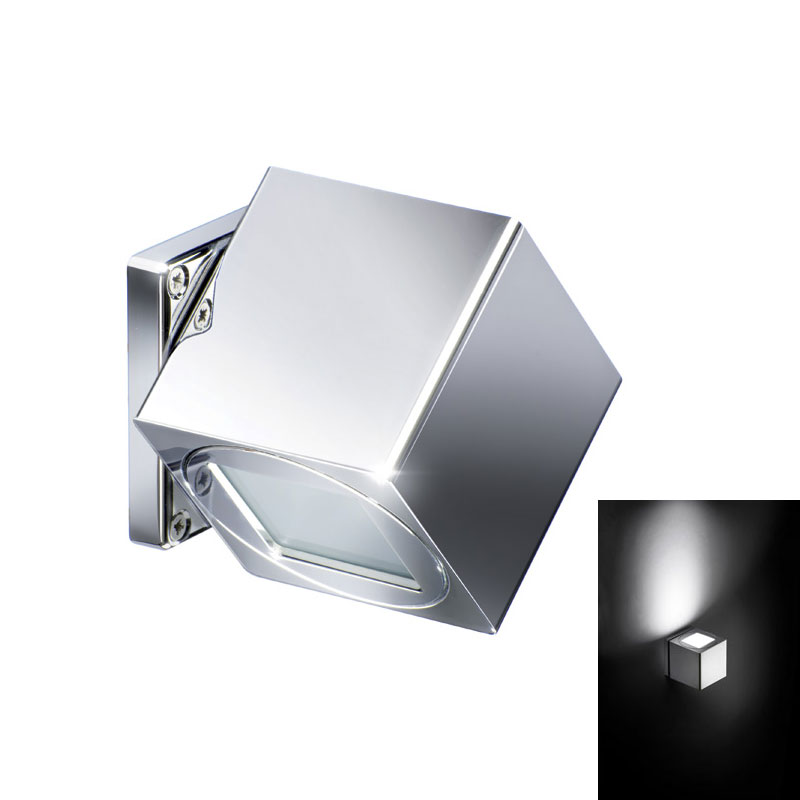

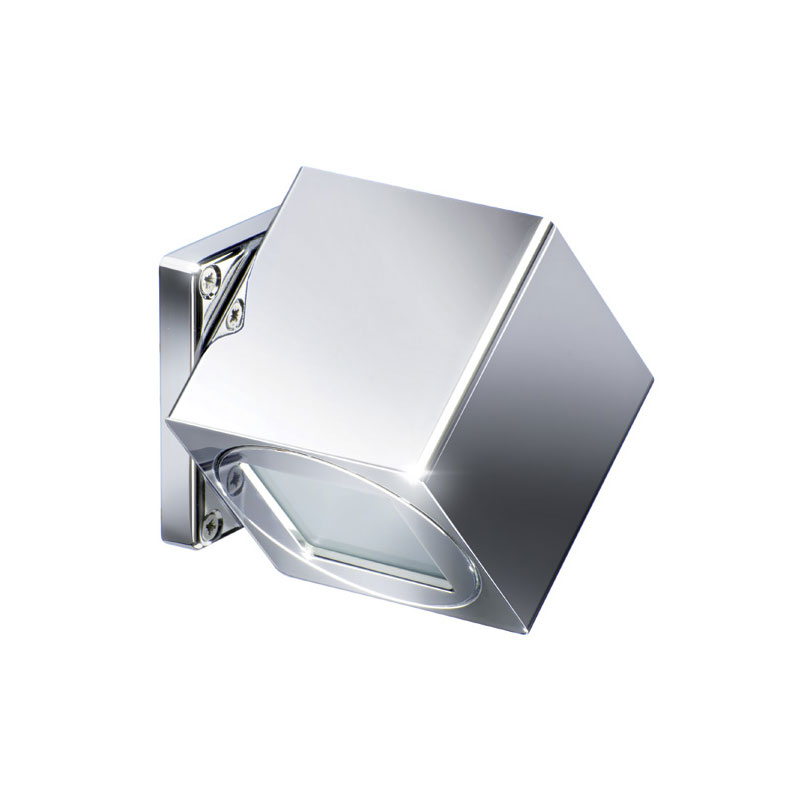

Quick QB COMPASS 4W IP40 Aluminum Fixed Wall Light with 1 POWER LED light adjustable 350° in 2 color temperatures 3800-4100K or 2900-3100K
Fixed reading light with 1 POWER LED light in 2 color temperatures.
Technical features:
Power type: Constant Voltage;
Supply: 10 ÷ 30 V;
Light source: POWER LED;
Power consumption: 4 W;
Current consumption: 0.17 A @ 24V;
Average lifespan: 50.000 h;
Dimmable: Yes;
IP protection degree: 40;
Frame material: ALLUMINIUM;
Finish: CHROMED;
Light colours: DAYLIGHT / WARM WHITE;
Mounting: SCREWS;
Adjustable: 350°;

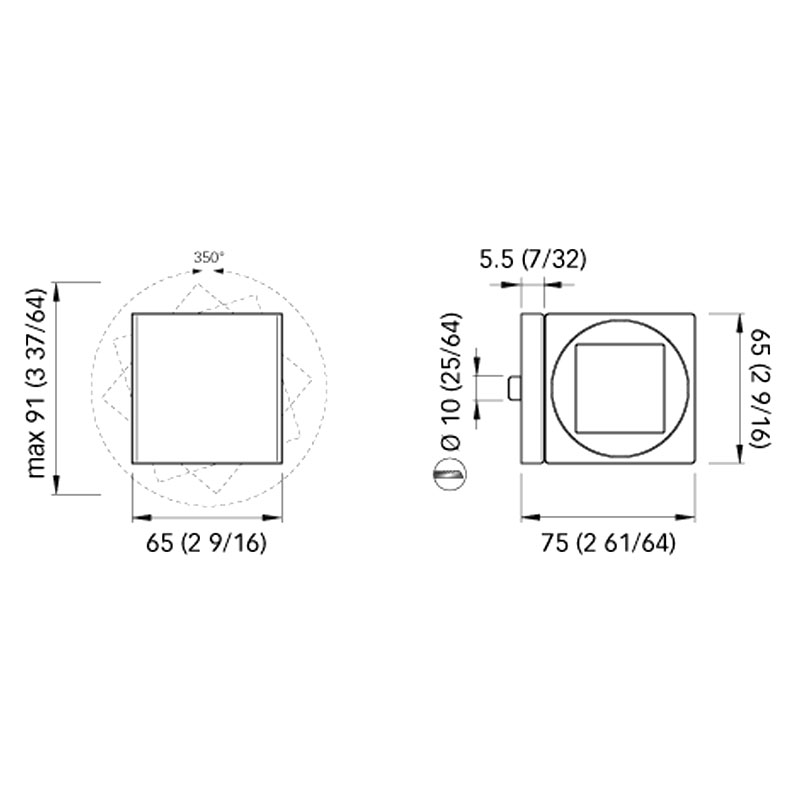

Dimensions: 65x75 mm (2 9/16'' x 2 61/64'') max 91 mm (3 37/64'').
Photometric data:
Natural White 3800-4100K:
- CRI: ≥ 80;
- Angle: 45°;
- Luminous flux: 335 lm;
- Illuminance - distance 1 m: Ø 0.83 m - 393.4 lux;
- Illuminance - distance 2 m: Ø 1.66 m - 98.3 lux;
- Illuminance - distance 3 m: Ø 2.49 m - 43.7 lux;
Warm White 2900-3100K:
- CRI: ≥ 90;
- Angle: 45°;
- Luminous flux: 235 lm;
- Illuminance - distance 1 m: Ø 0.83 m - 265.3 lux;
- Illuminance - distance 2 m: Ø 1.66 m - 66.3 lux;
- Illuminance - distance 3 m: Ø 2.49 m - 29.5 lux.
LED Protection: Spike protected ± 500V.
Polarity sensitive: Yes.
Certifications: Class III, CE.
Note: Please choose desired colour from the drop down menu.
26002406BIN Natural White
26002406BIC Warm White
