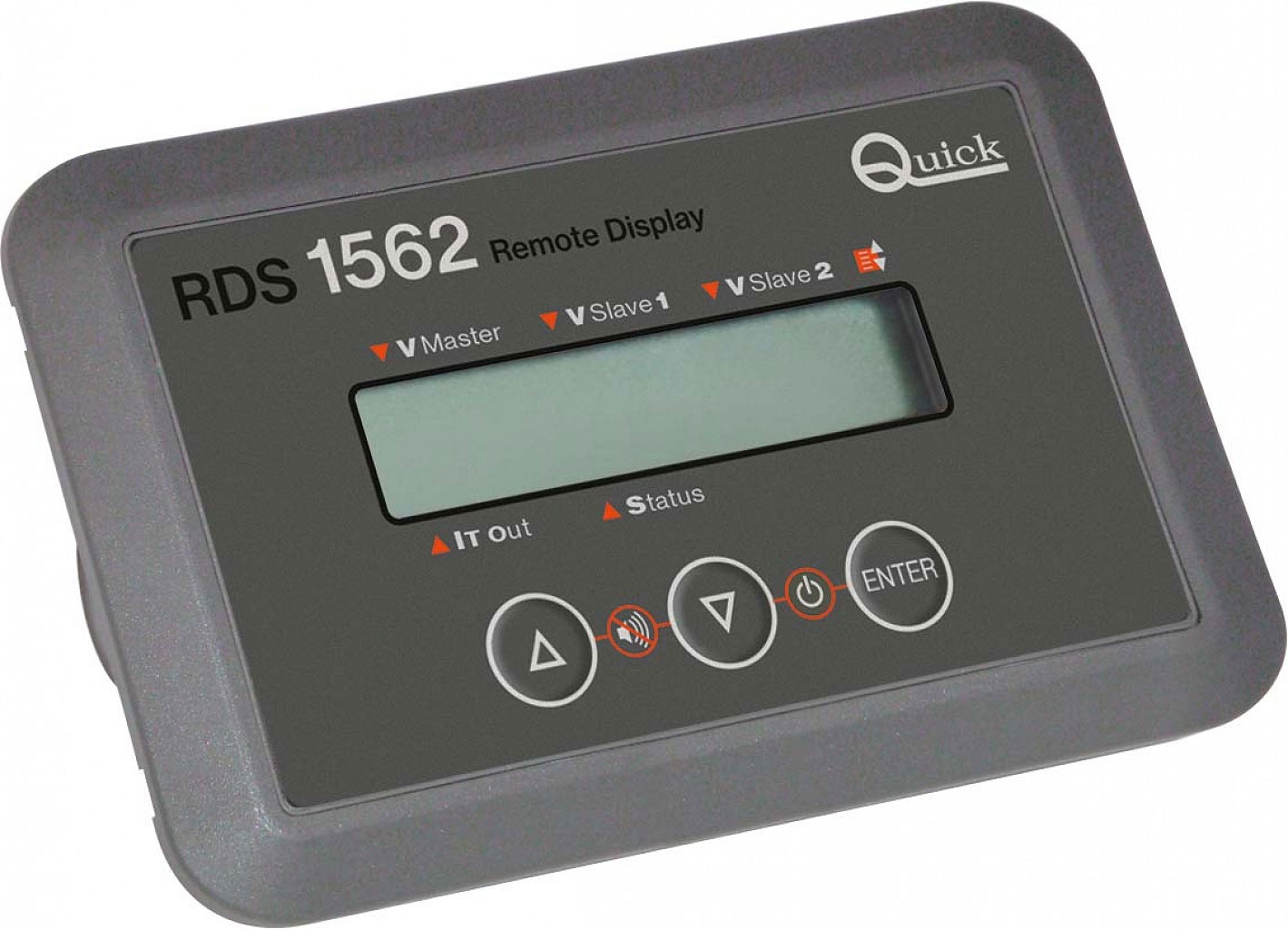

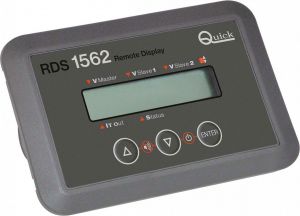

The RDS 1562 remote panel is an instrument which allows to monitor the status and to set some parameters of the SBC NRG+ series QUICK battery chargers by means of the CAN BUS communication interface.

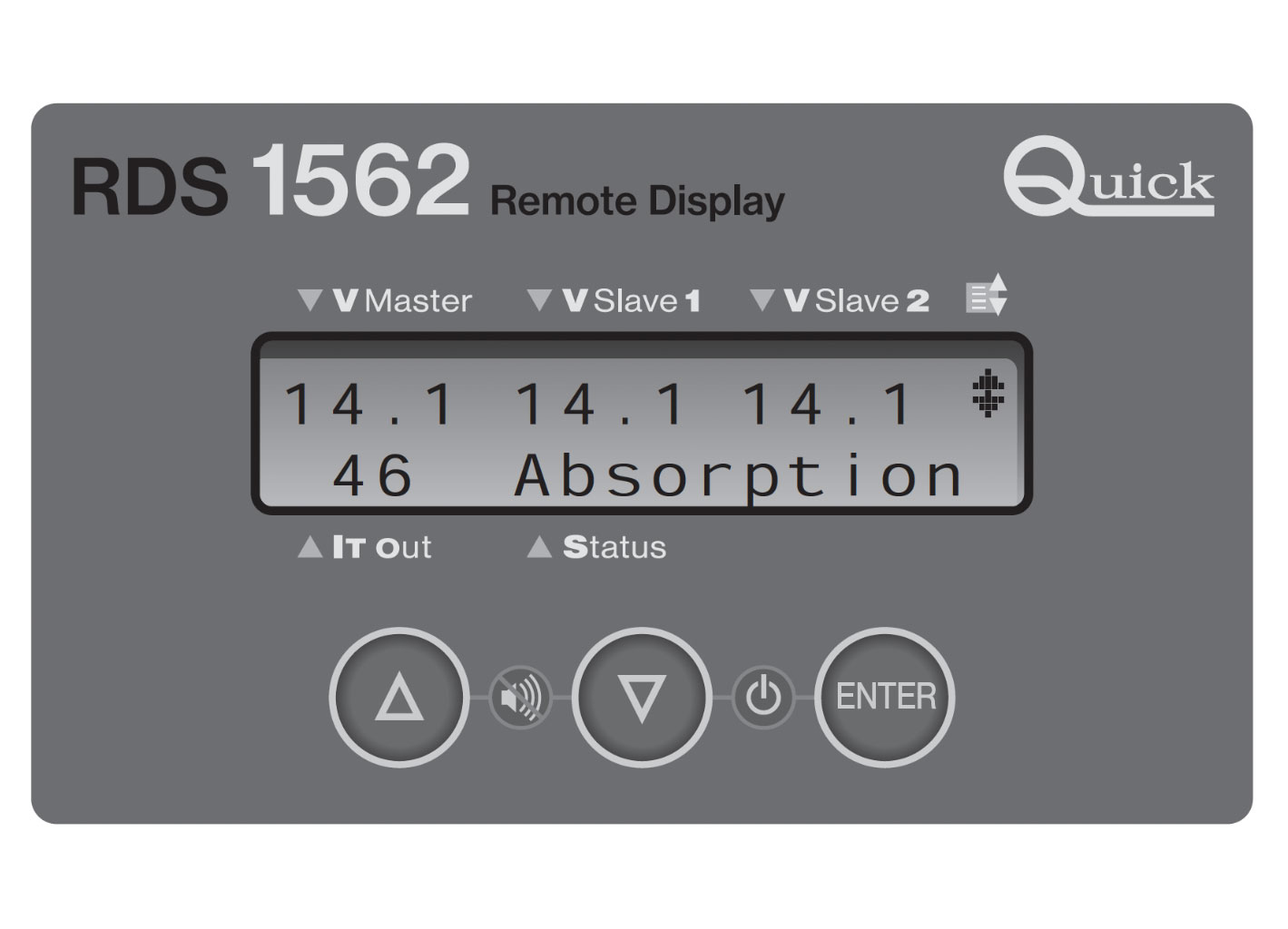

• Alphanumeric LCD display. Multi-language user interface.
• Displays at the same time the three output voltages of the battery charger.
• Display the total current supplied by the battery charger.
• Displays which can be set on 6 different intensity levels.
• Display contrast which can be set on 5 intensity levels.
• Buzzer used for acoustic signaling.
• Possibility of setting the parameters on the battery charger (CAN parameters excluded).
• Universal power supply (12/24 Vdc).

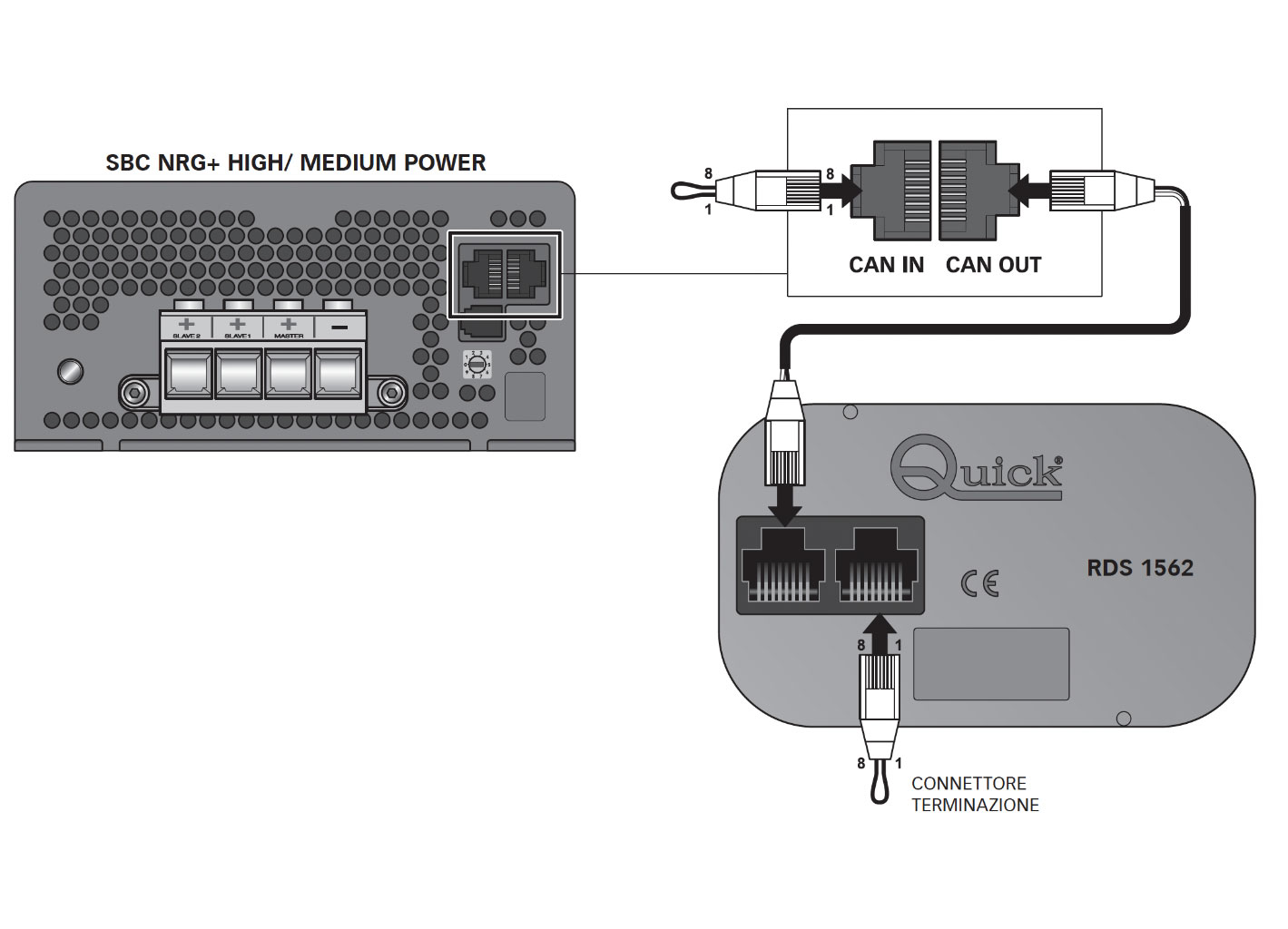

• CAN bus interface for data transfer.
• Easy installation.
• Can work in a wide range of ambient temperatures.
• Reverse polarity protection.
Features:
- Model: RDS 1562;
- Supply Voltage: from 9 to 32 VDc;
- MAx absorption: 50mA;
- Operating temperature: from -15 to + 70° C;
- Communication interface: CAN Bus with differential transceiver;

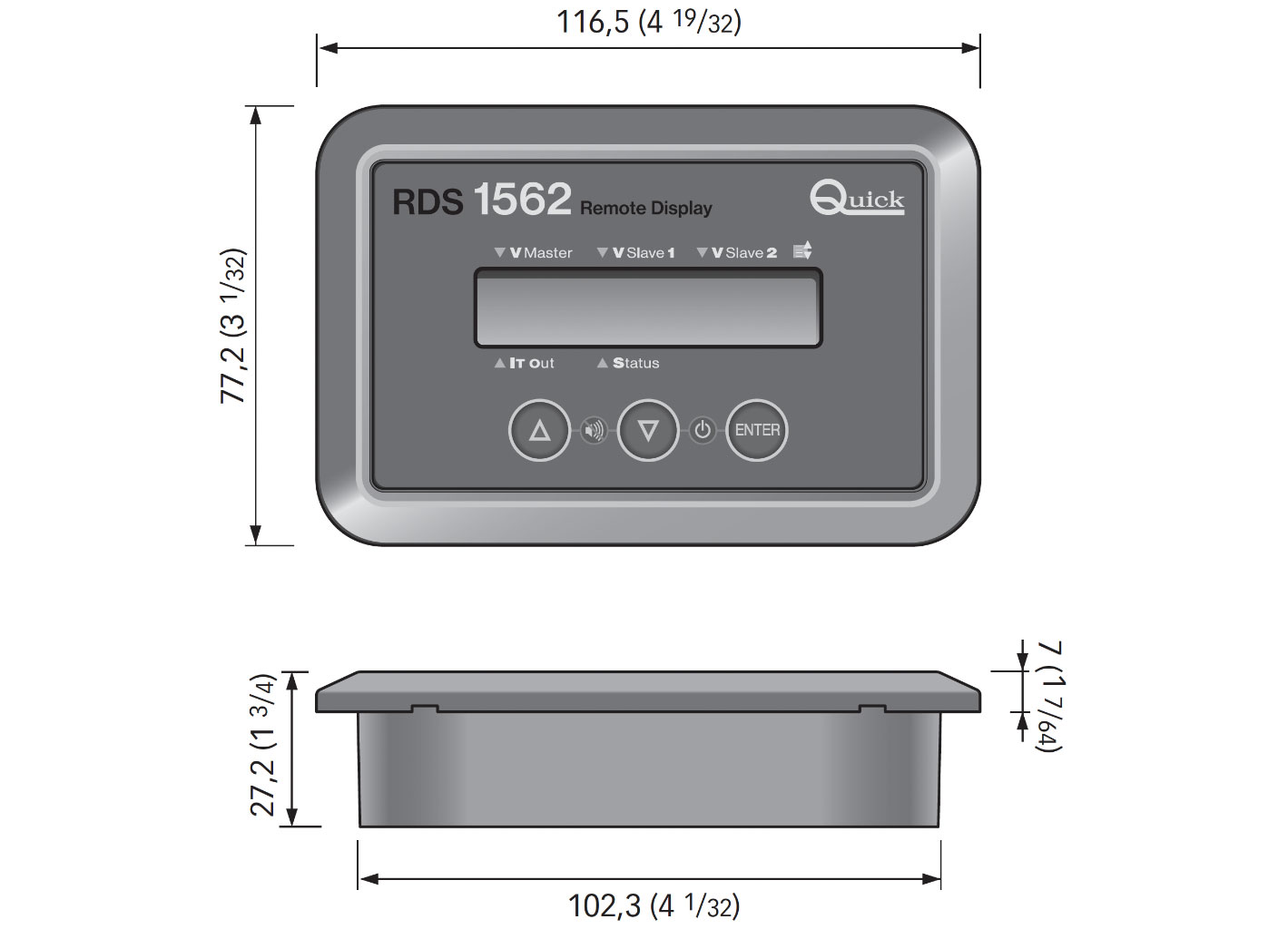

- Dimensions: 116.5 x 77.2 x 27.2 mm (4 19/32 x 3 1/32 x 1 3/4);
- Weight: 105 g;
- EMC Standard: EN60945 - FCC TITLE 47 PART 15 SUBPART B CLASS B.

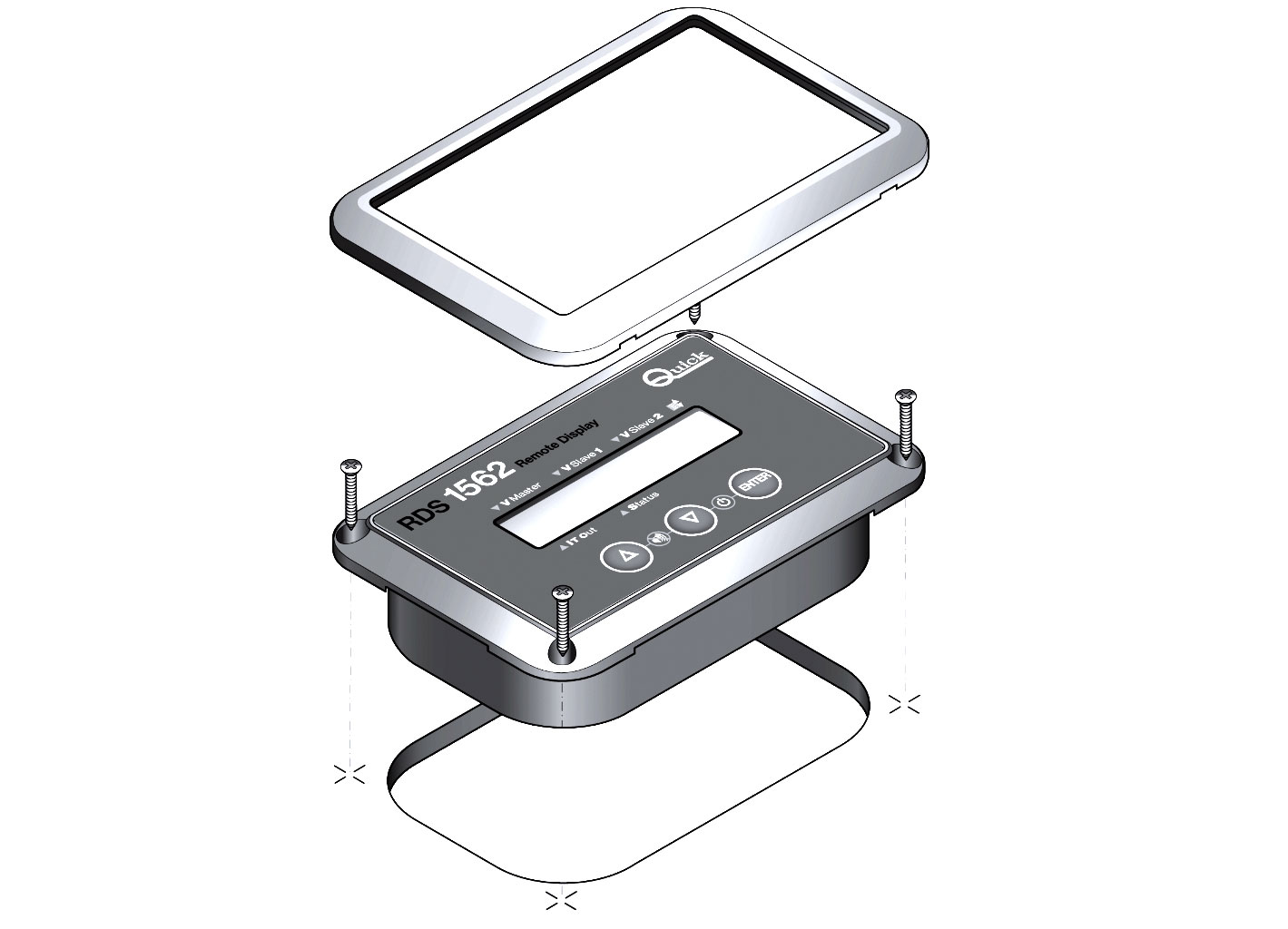

INSTALLING THE INSTRUMENT
This manual describes the typical installation procedure. Installation procedures may vary.
Adapt this procedure to satisfy your own personal requirements.
The following recommendations should be considered when determining the location of the display:
• The instrument should be installed in a place where it can be easily read by the operator.
• Select a clean, smooth and flat area.
• Access from the rear must be available for installation and maintenance purposes.
• Leave enough space behind the display to install and access the cable connectors..
• The back of the instrument must be protected against contact with water and moisture.
• Pay attention when drilling the panel or parts of the boat. This hole should not weaken or break/crack the boat's structure.
