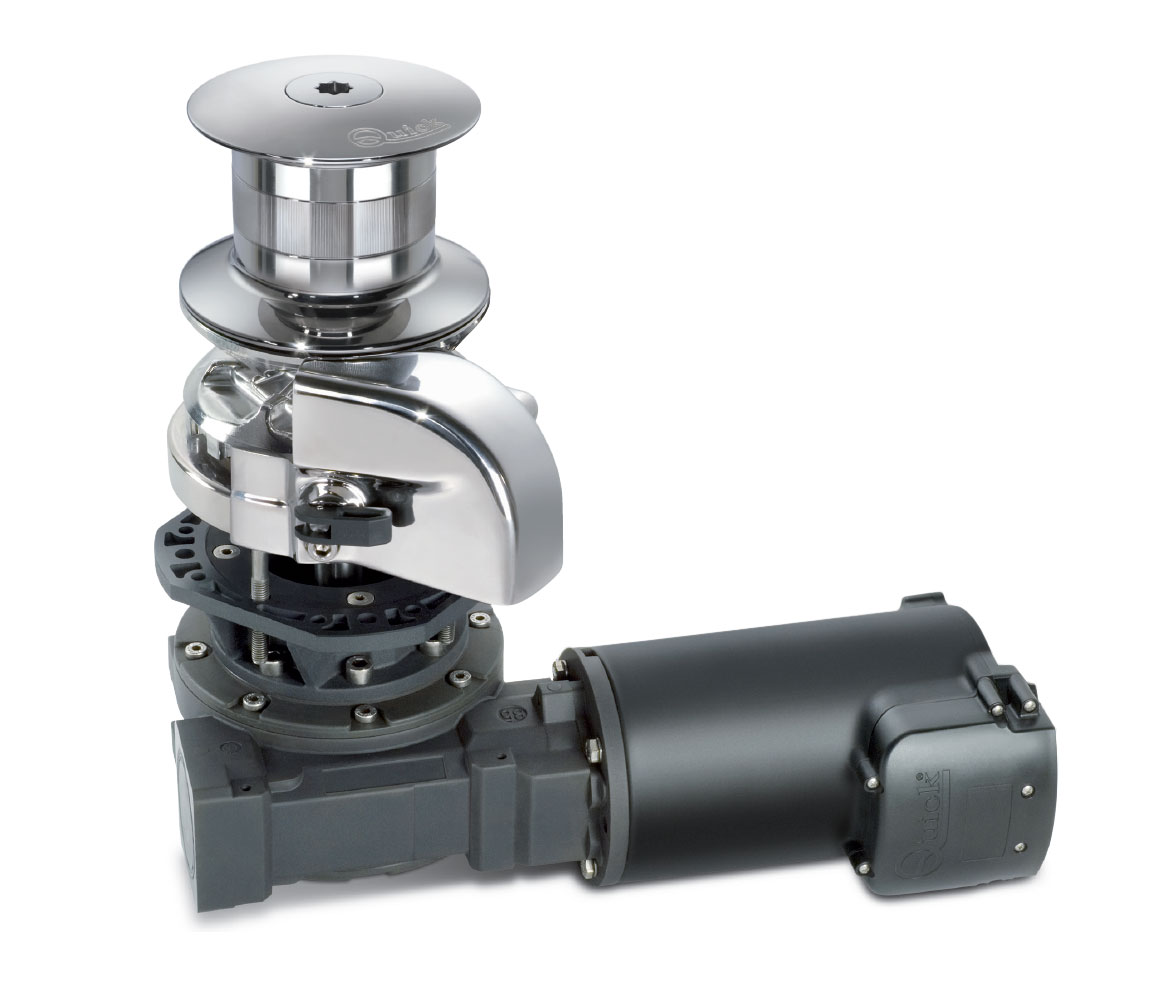

Quick REGAL DC RG5 1724DY 1700W 24V vertical windlass in AISI 316 stainless steel with a remote control box, left pipe chain and Ø170 mm drum for boats from 12 to 16 metres (39 - 52 ft).
Price:
€2,309.46
Listing:
€3,079.28
You Save:
€769.82 (25%)

Description

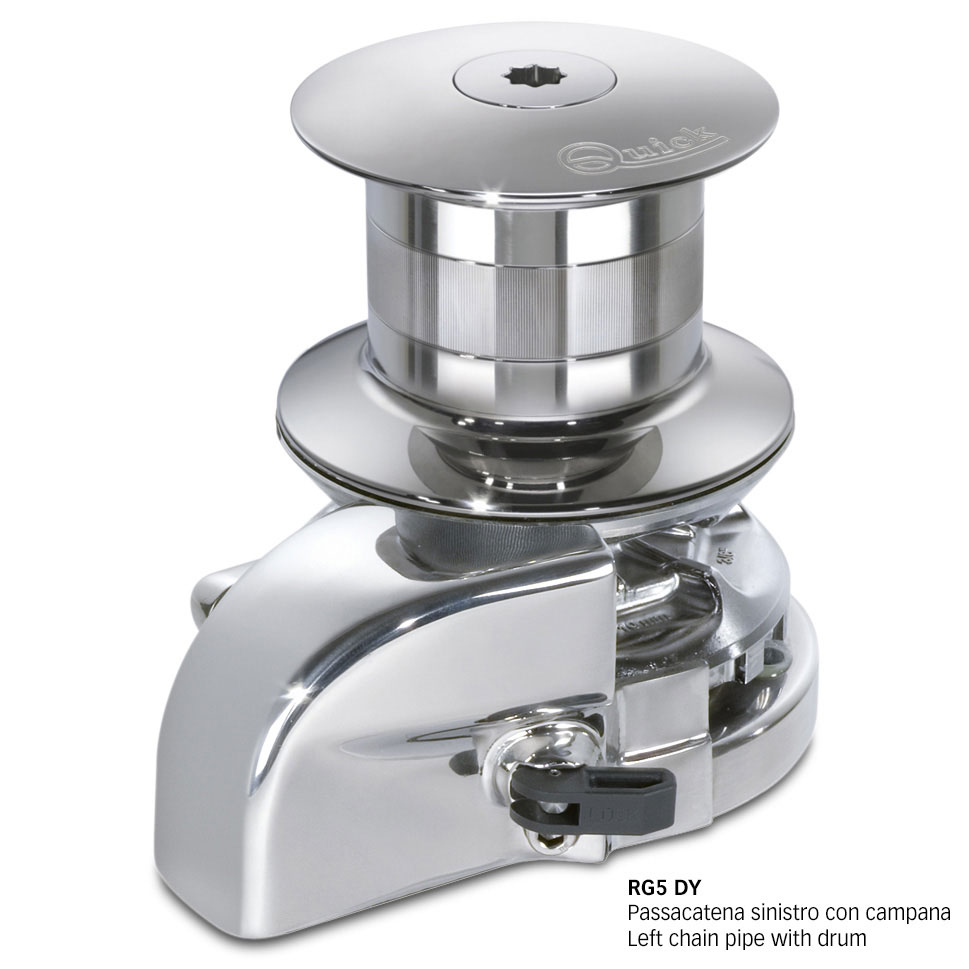

Quick REGAL DC RG5 1724DY 1700W 24V vertical windlass in AISI 316 stainless steel with left pipe chain and Ø170 mm Drum

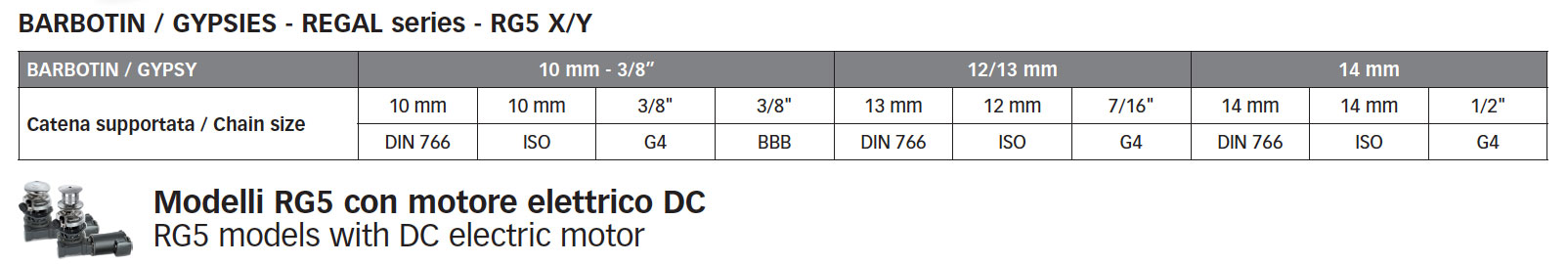

NB: When placing your order please specify  in the notes field whether you require a 10, 12-13 or 14mm gypsy.

Quick REGAL DC RG5 1724DY 1700W 24V vertical windlass in AISI 316 stainless steel with a remote control box, left pipe chain and Ø170 mm drum for boats from 12 to 16 metres (39 - 52 ft).

Key Features
• Vertical windlasses.
• Base in stainless steel AISI316.
• With Ø170 mm drum.
• Left pipe chain.
• Including remote control box.
• Integrated sensor and magnet for chain counter.
• Manual Free-Fall system.
• IP67 motor watertight.
• Anodised aluminium gearbox.

Technical data:
Model: REGAL DC RG5 1724DY;
Motor power: 1700W;
Motor supply voltage: 24V;
Maximum pull: 1200 Kg;
Maximum working load: 570 Kg;
Working load: 190 Kg;
Current absorption at working load (1): 100 A;
Maximum chain speed (2): 38.3 m / min;
Maximum chain speed at working load (2): 20.8 m / min;
Weight: 39 Kg;

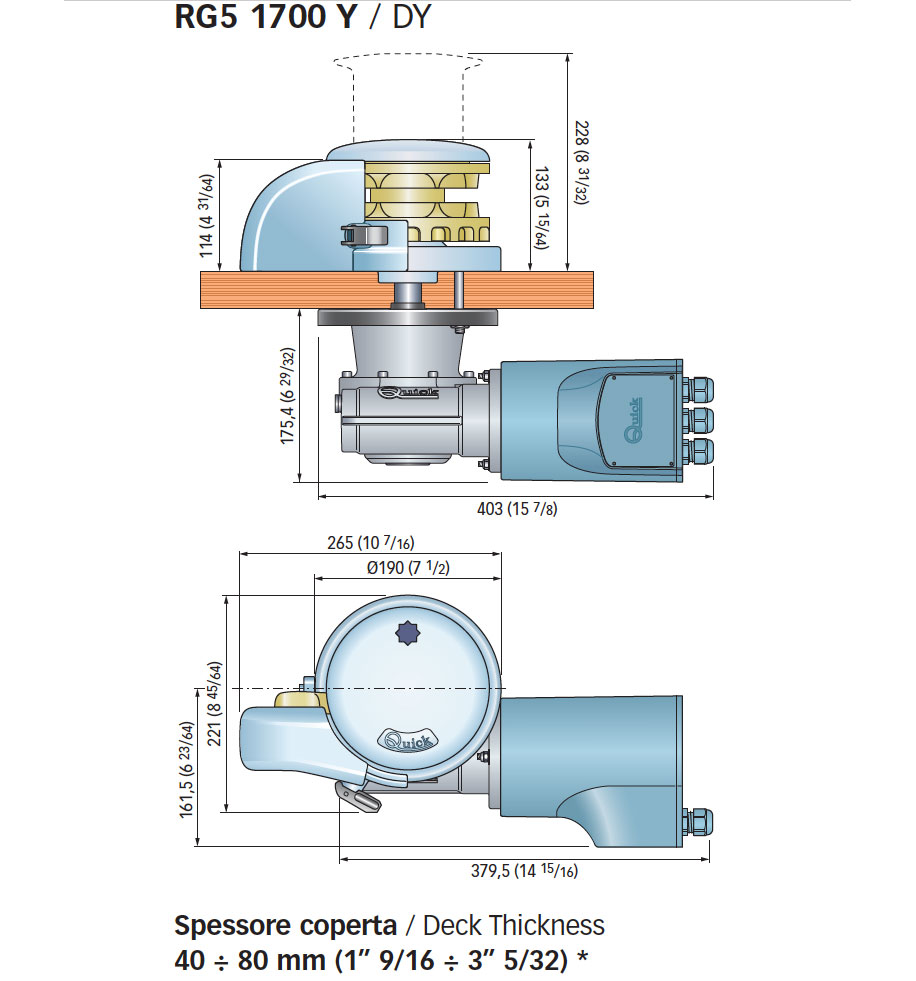

Deck thickness: 40 ÷ 80 mm (1 "" 5/16 ÷ 5 "" 5/32).

1) After an initial period of use.
2) Measurements taken with a gypsy for a 12/13 mm chain.
