Quick REGAL DC RG5 1724X 1700W 24V vertical windlass in AISI 316 stainless steel with a remote control box and right pipe chain for boats from 12 to 16 metres (39 - 52 ft). Without Drum.
Price:
€2,560.63
Listing:
€3,414.17
You Save:
€853.54 (25%)

Description

Quick REGAL DC RG5 1724X 1700W 24V vertical windlass in AISI 316 stainless steel with right pipe chain - without Drum

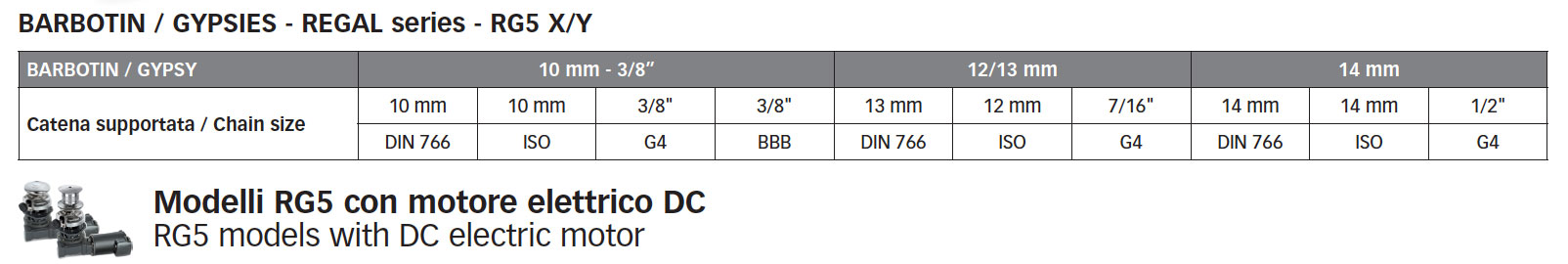

NB: When placing your order please specify in the notes field whether you require a 10, 12-13 or 14mm gypsy.

Quick REGAL DC RG5 1724X 1700W 24V vertical windlass in AISI 316 stainless steel with a remote control box and right pipe chain for boats from 12 to 16 metres (39 - 52 ft).

Key Features
• Vertical windlasses.
• Base in stainless steel AISI316.
• Without drum.

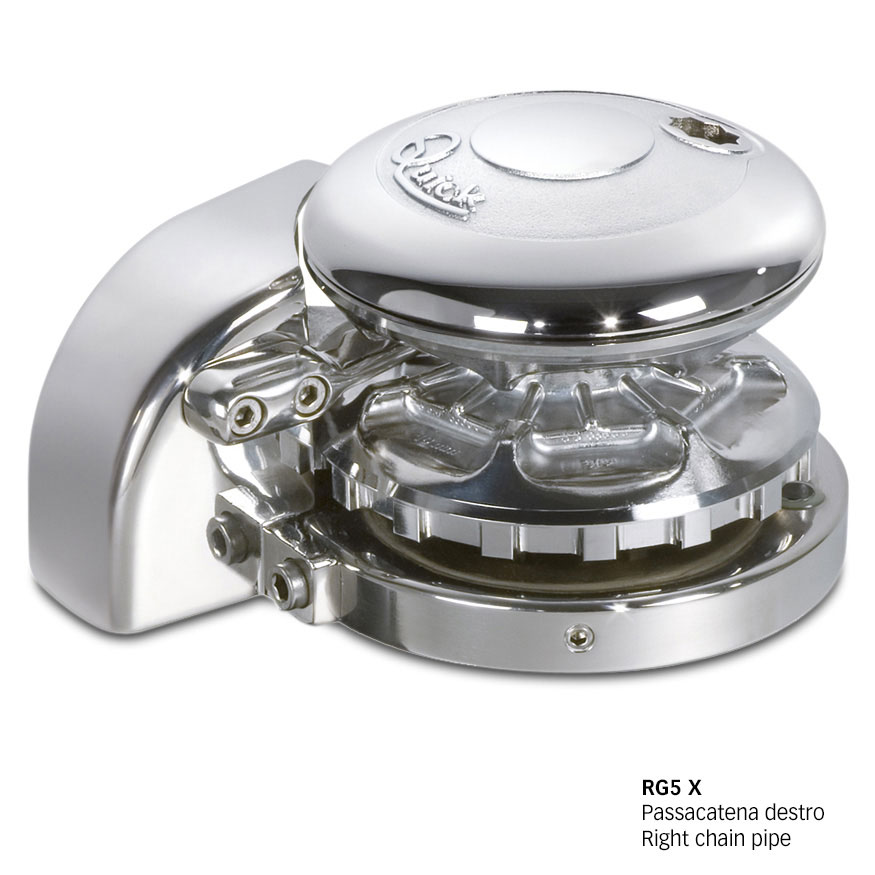

• Right pipe chain.
• Including remote control box.
• Integrated sensor and magnet for chain counter.
• Manual Free-Fall system.
• IP67 motor watertight.
• Anodised aluminium gearbox.

Technical data:
Model: REGAL DC RG5 1724X;
Motor power: 1700W;
Motor supply voltage: 24V;
Maximum pull: 1200 Kg;
Maximum working load: 570 Kg;
Working load: 190 Kg;
Current absorbtion at working load (1): 100 A;
Maximum chain speed (2): 38.3 m / min;
Maximum chain speed at working load (2): 20.8 m / min;
Weight: 34.6 Kg;

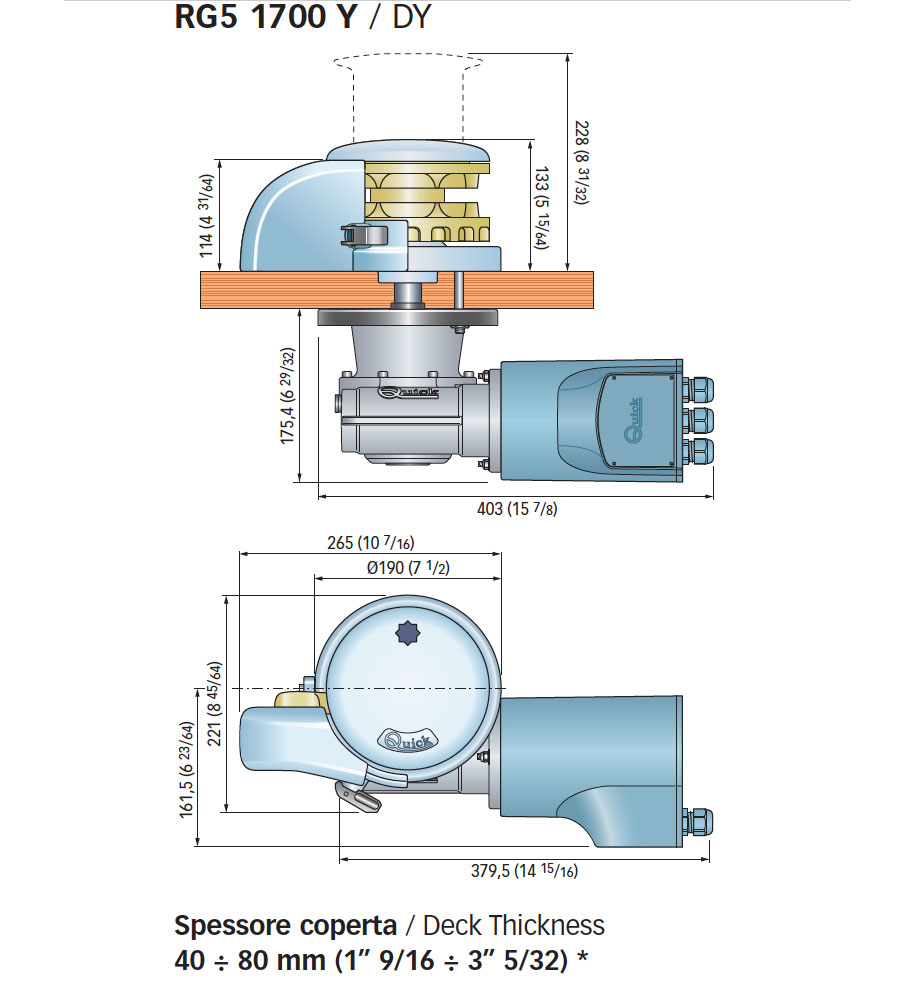

Deck thickness: 40 ÷ 80 mm (1 "" 5/16 ÷ 5 "" 5/32).

1) After an initial period of use.
2) Measurements taken with a gypsy for a 12/13 mm chain.
