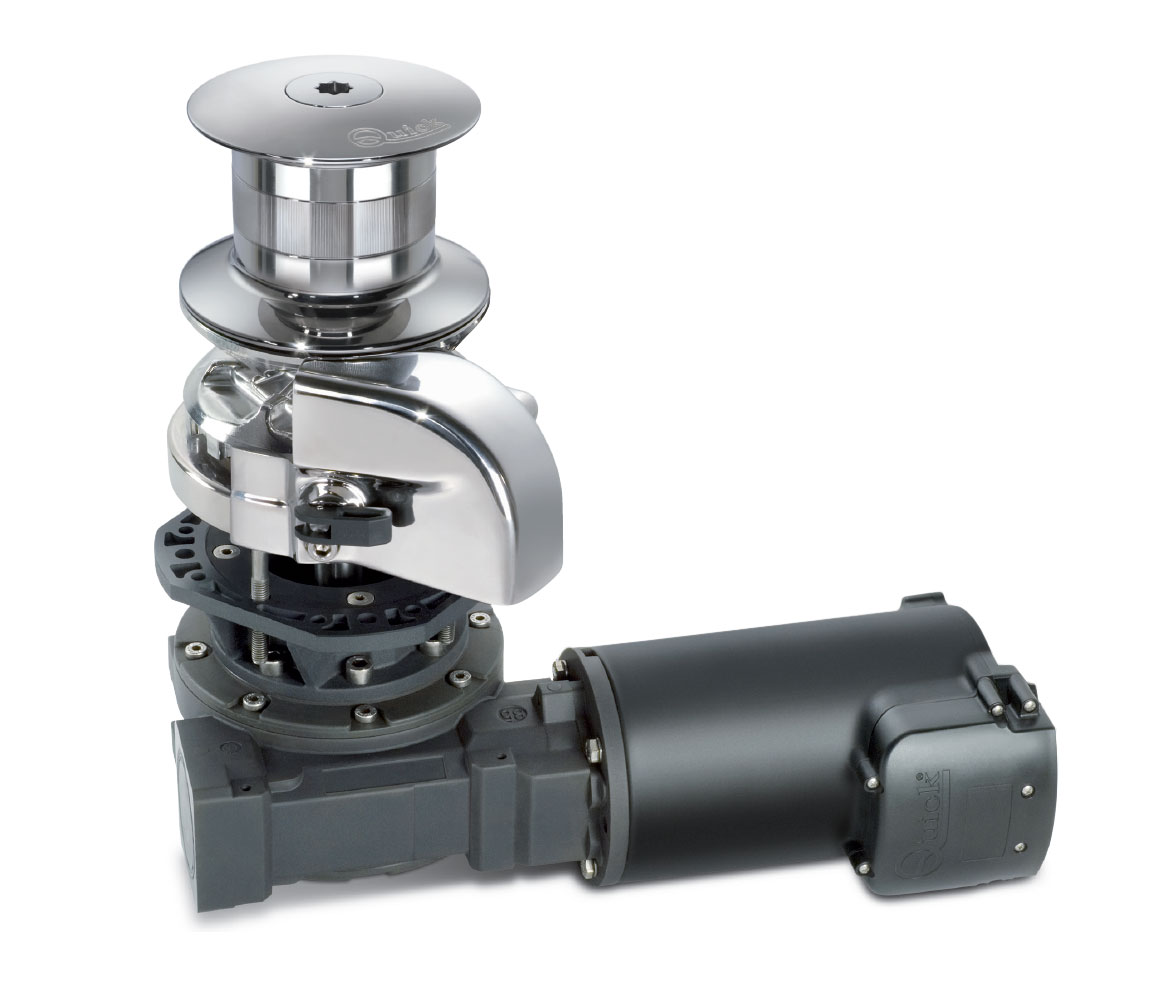

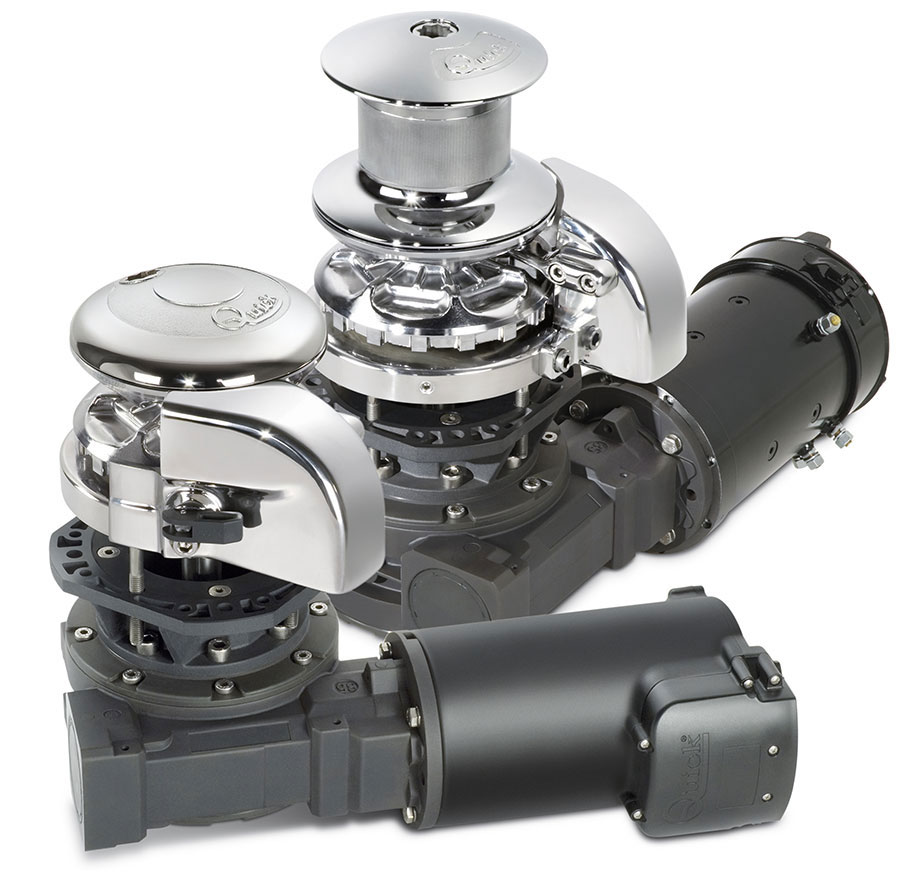

Quick REGAL DC RG5 2024DX 2000W 24V vertical windlass in AISI 316 stainless steel with right pipe chain and Ø170 mm Drum

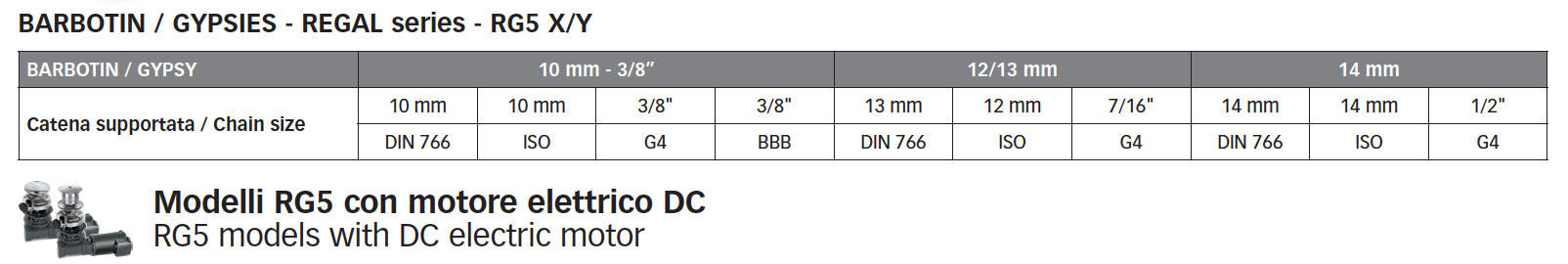

NB: When placing your order please specify in the notes field whether you require a 10, 12-13 or 14mm gypsy.
Quick REGAL DC RG5 2024DX 2000W 24V vertical windlass in AISI 316 stainless steel with a remote control box, right pipe chain and Ø170 mm drum for boats from 16 to 20 metres (52 - 66 ft).
• Vertical windlass.
• Base in stainless steel AISI316.
• With Ø170 mm drum.

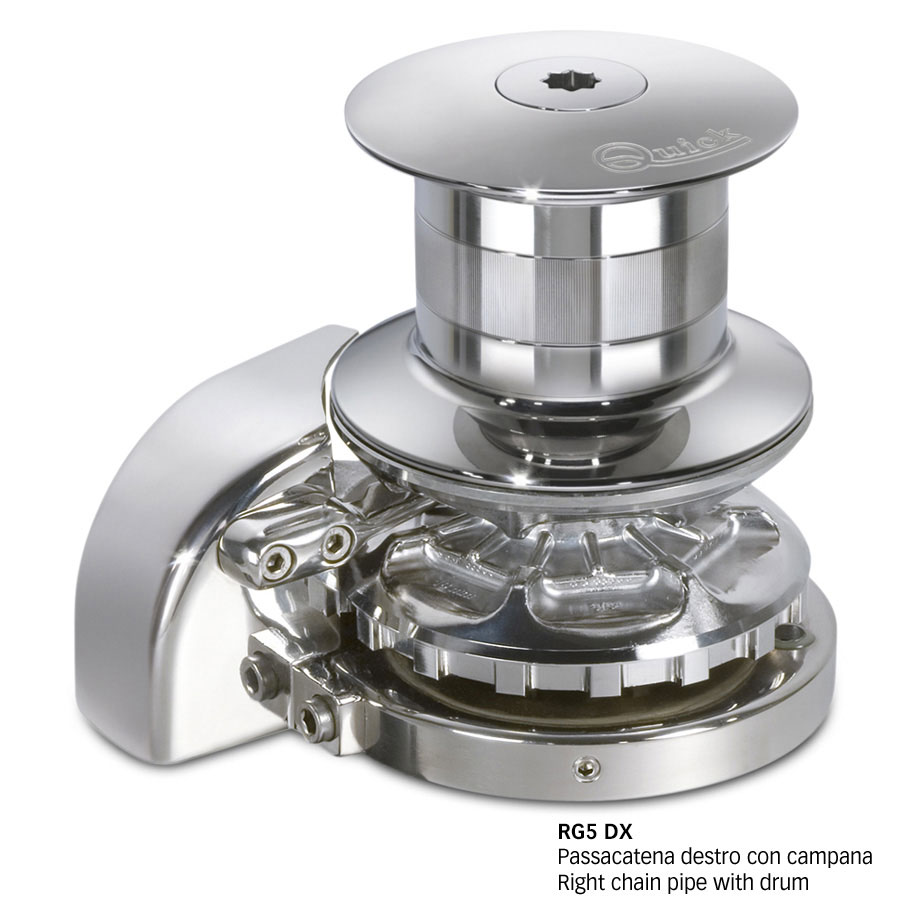

• Right pipe chain.
• Including remote control box.
• Integrated sensor and magnet for chain counter.
• Manual Free-Fall system.
• IP66 motor watertight.
• Anodized aluminium gearbox.
Model: REGAL DC RG5 2024DX;
Motor power: 2000W;
Motor supply voltage: 24V;
Maximum pull: 1260 Kg;
Maximum working load: 750 Kg;
Working load: 250 Kg;
Current absorption at working load (1): 115 A;
Maximum chain speed (2): 41,2 m / min;
Maximum chain speed at working load (2): 22,3 m / min;
Weight: 43.9 Kg;

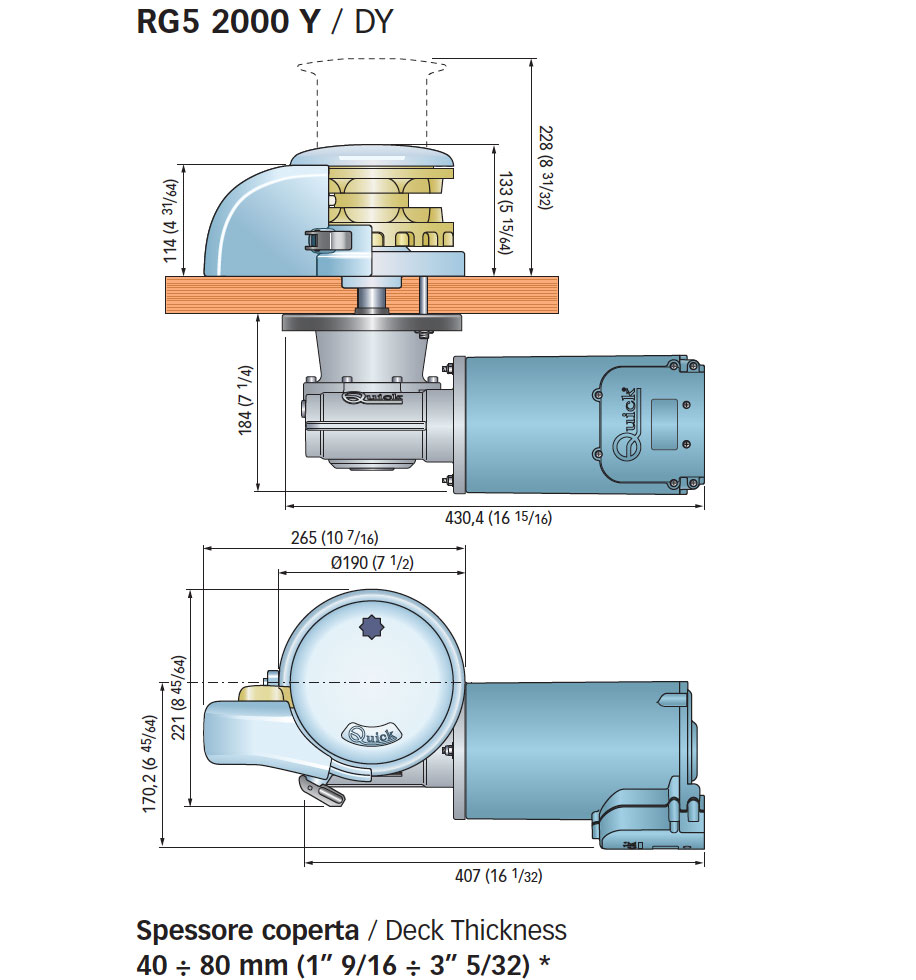

Deck thickness: 40 ÷ 80 mm (1 "" 5/16 ÷ 5 "" 5/32).
1) After an initial period of use.
2) Measurements taken with a gypsy for a 12/13 mm chain.
