Quick REGAL DC RG5 2324DX 2300W 24V Windlass Drum Right pipe Chain #QRG52324DX

Quick REGAL DC RG5 2324DX 2300W 24V Windlass Drum Right pipe Chain #QRG52324DX
  • Quick REGAL DC RG5 2324DX 2300W 24V Windlass Drum Right pipe Chain #QRG52324DX
  • Quick REGAL DC RG5 2324DX 2300W 24V Windlass Drum Right pipe Chain #QRG52324DX
  • Quick REGAL DC RG5 2324DX 2300W 24V Windlass Drum Right pipe Chain #QRG52324DX
  • Quick REGAL DC RG5 2324DX 2300W 24V Windlass Drum Right pipe Chain #QRG52324DX
  • Quick REGAL DC RG5 2324DX 2300W 24V Windlass Drum Right pipe Chain #QRG52324DX

Quick REGAL DC RG5 2324DX 2300W 24V Windlass Drum Right pipe Chain #QRG52324DX

Quick REGAL DC RG5 2324DX 2300W 24V vertical windlass in AISI 316 stainless steel with a remote control box, right pipe chain and Ø170 mm drum for boats from 20 to 24 meters (69 - 79 ft).
Price:
€3,061.59
Listing:
€4,082.12
You Save:
€1,020.53 (25%)

Description

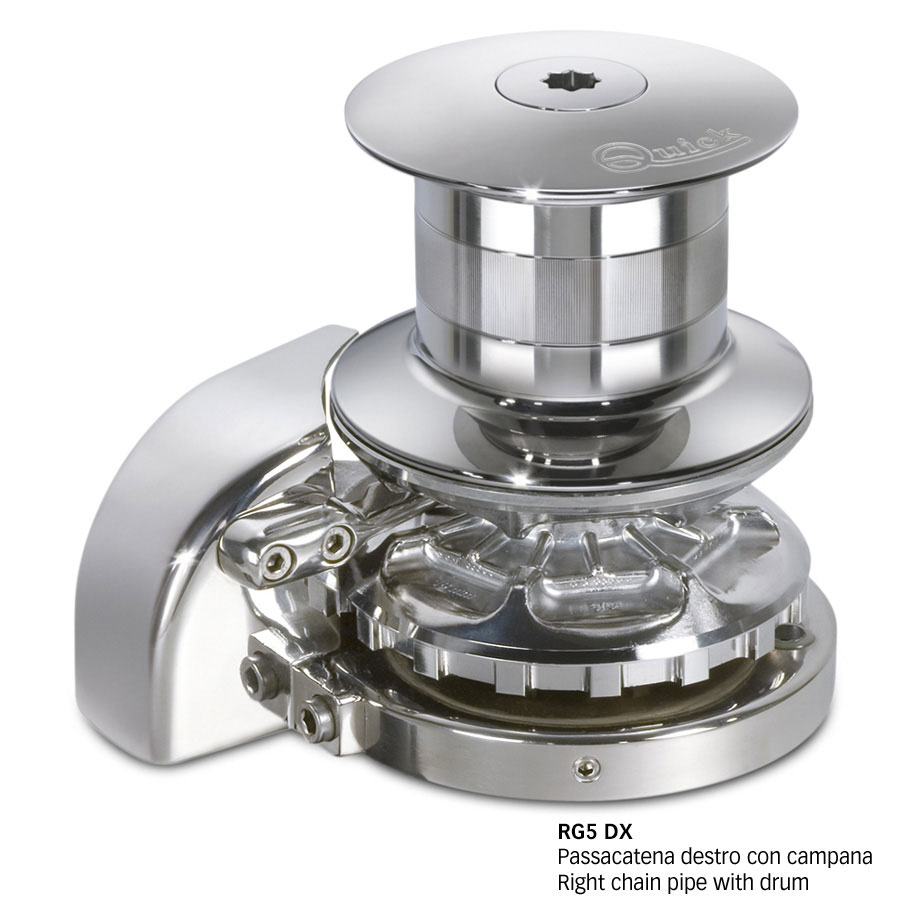

Quick REGAL DC RG5 2324DX 2300W 24V vertical windlass in AISI 316 stainless steel with right pipe chain and Ø170 mm Drum

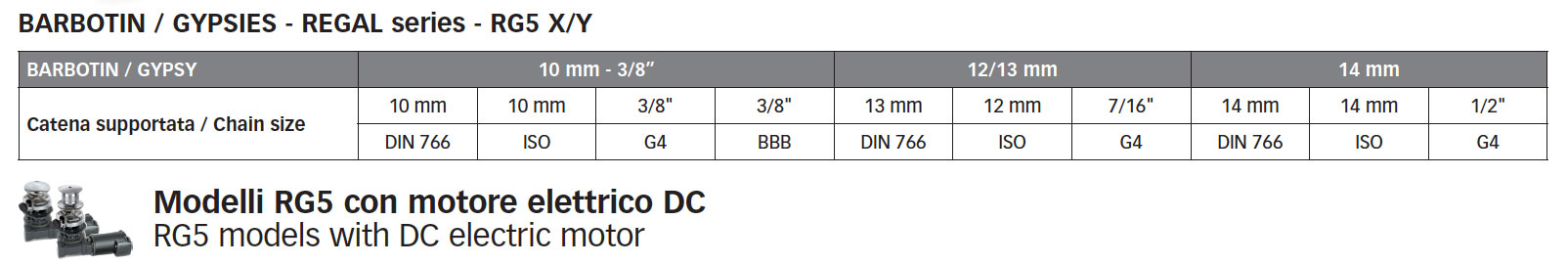

NB: When placing your order please specify in the notes field whether you require a 10, 12-13 or 14mm gypsy.

Quick REGAL DC RG5 2324DX 2300W 24V vertical windlass in AISI 316 stainless steel with a remote control box, right pipe chain and Ø170 mm drum for boats from 20 to 24 meters (69 - 79 ft).

Key Features
• Vertical windlass.
• Base in stainless steel AISI316.
• With Ø170 mm drum.
• Right pipe chain.
• Including remote control box.
• Integrated sensor and magnet for chain counter.
• Manual Free-Fall system.
• IP66 motor watertight.
• Anodized aluminium gearbox.

Technical data:
Model: REGAL DC RG5 2324DX;
Motor power: 2300W;
Motor supply voltage: 24V;
Maximum pull: 2400 Kg;
Maximum working load: 850 Kg;
Working load: 285 Kg;
Current absorption at working load (1): 120 A;
Maximum chain speed (2): 41,2 m/min;
Maximum chain speed at working load (2): 22,3 m/min;
Weight: 53,1 Kg;

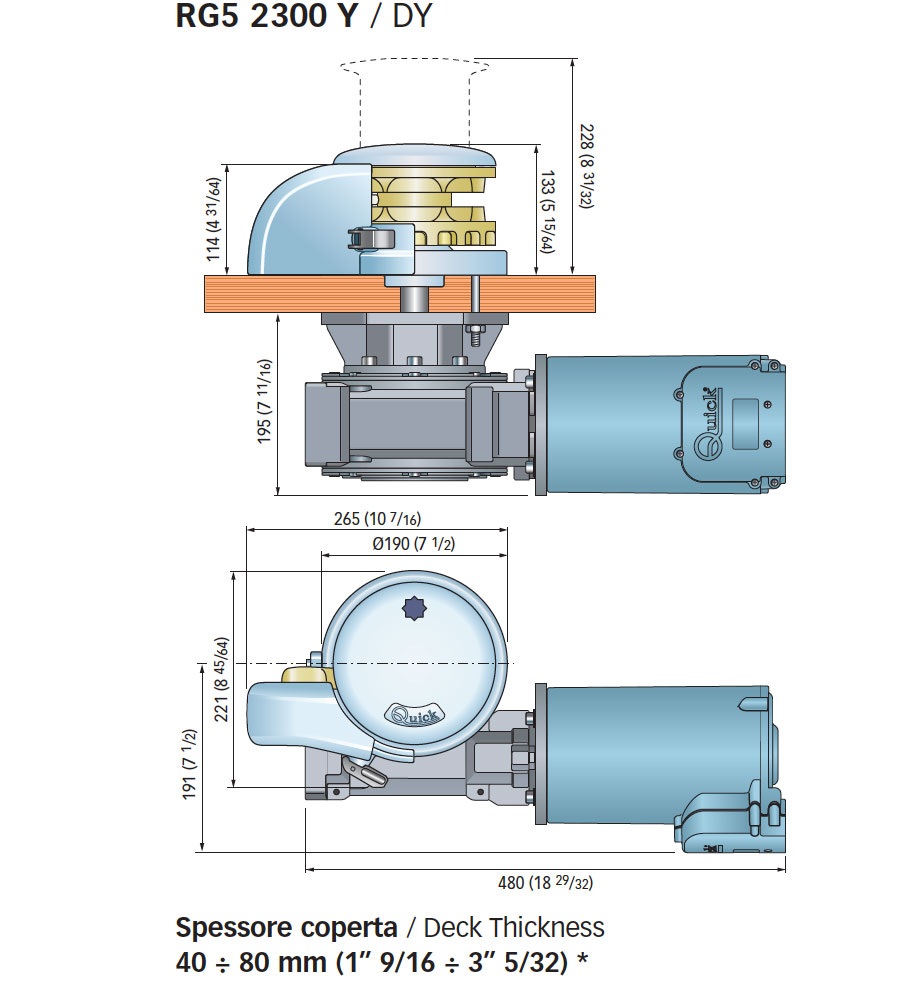

Deck thickness: 40 ÷ 80 mm (1"" 5/16 ÷ 5"" 5/32).

1) After an initial period of use.
2) Measurements taken with a gypsy for a 12/13 mm chain.

Download
