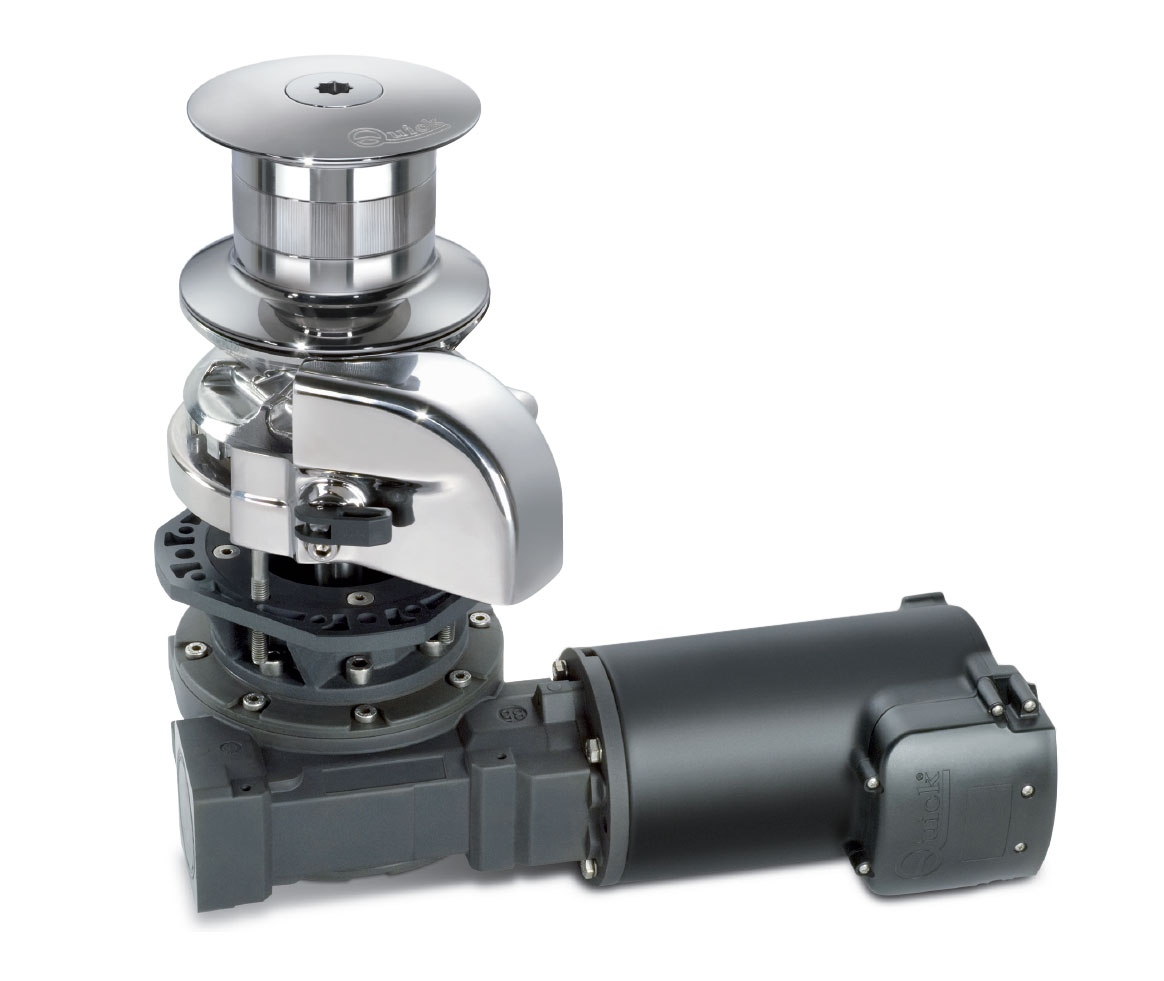

Quick REGAL DC RG5 3024DX 3000W 24V vertical windlass in AISI 316 stainless steel with a remote control box, right pipe chain and Ø170 mm drum for boats from 20 to 24 metres (69 - 79 ft).
Price:
€5,143.22
Listing:
€6,857.62
You Save:
€1,714.40 (25%)

Description

Quick REGAL DC RG5 3024DX 3000W 24V vertical windlass in AISI 316 stainless steel with right pipe chain and Ø170 mm Drum

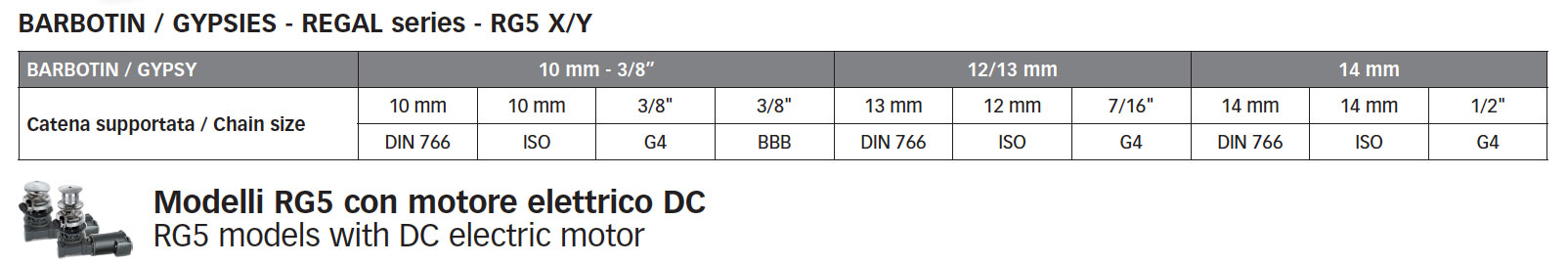

NB: When placing your order please specify in the notes field whether you require a 10, 12-13 or 14mm gypsy.

Quick REGAL DC RG5 3024DX 3000W 24V vertical windlass in AISI 316 stainless steel with a remote control box, right pipe chain and Ø170 mm drum for boats from 20 to 24 metres (69 - 79 ft).

Key Features
• Vertical windlass.
• Base in stainless steel AISI316.
• With Ø170 mm drum.

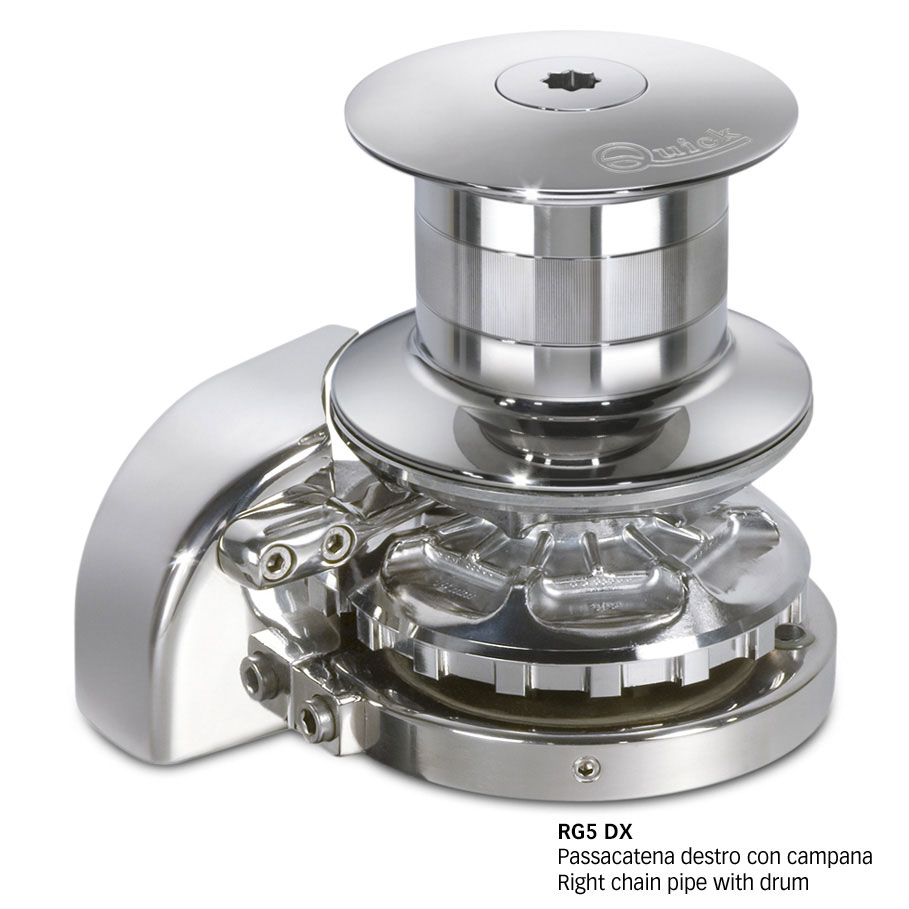

• Right pipe chain.
• Including remote control box.
• Integrated sensor and magnet for chain counter.
• Manual Free-Fall system.
• IP66 motor watertight.
• Anodised aluminium gearbox.

Technical data:
Model: REGAL DC RG5 3024DX;
Motor power: 3000W;
Motor supply voltage: 24V;
Maximum pull: 3100 Kg;
Maximum working load: 1200 Kg;
Working load: 400 Kg;
Current absorption at working load (1): 145 A;
Maximum chain speed (2): 39,2 m/min;
Maximum chain speed at working load (2): 19,3 m/min;
Weight: 63,8 Kg;

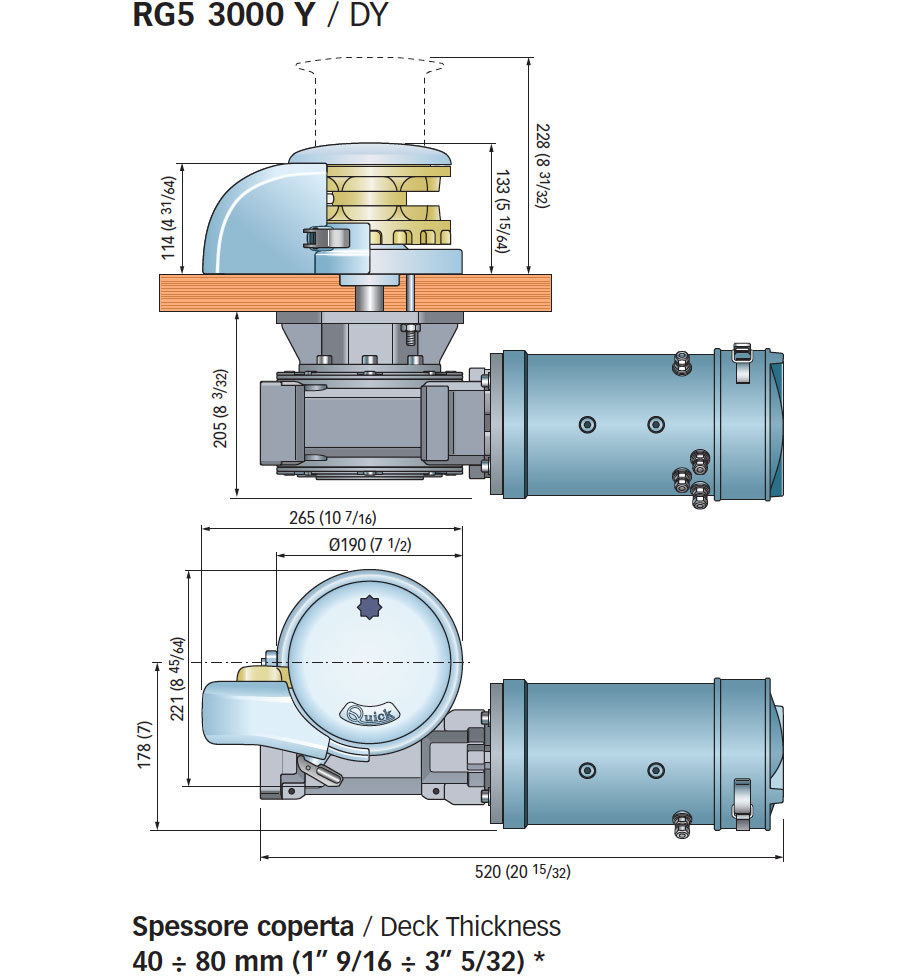

Deck thickness: 40 ÷ 80 mm (1 "" 5/16 ÷ 5 "" 5/32).

1) After an initial period of use.
2) Measurements taken with a gypsy for a 12/13 mm chain.
