NB: When placing your order please specify in the notes field whether you require an 8 or 10mm gypsy.

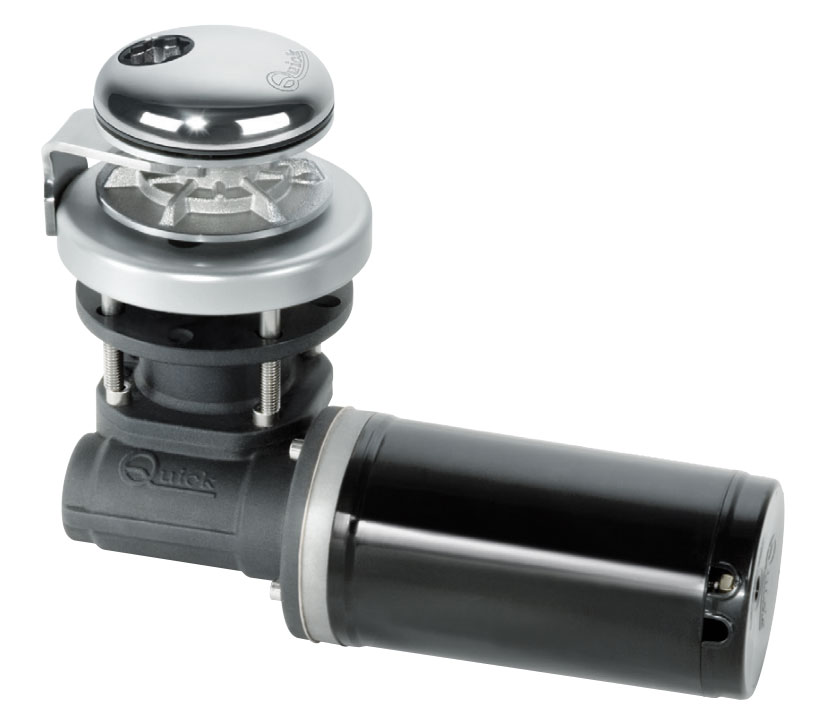

Quick RIDER R1P 512 500W 12V vertical windlass in anodised aluminium with the remote control box for boats from 5 to 7 metres (16 - 23 ft).
Product sheet
• Vertical windlasses.
• Anodised aluminium base.
• Without drum.
• Integrated sensor and magnet for chain counter.
• Manual Free-Fall system.
• Motor watertight to IP66.
• Technopolymer gearbox.
Technical data:
Model: RIDER R1P 512 without Drum;
Motor power: 500W;
Motor supply voltage: 12V;
Maximum pull: 660 Kg;
Maximum working load: 200 Kg;
Working load: 65 Kg;
Current absorption @ working load (1): 80 A;
Maximum chain speed (2): 25,2 m/min
Maximum chain speed @ working load (2): 18,5 m/min;
Weight: 7,4 Kg;
Deck thickness: 20÷30 mm (25/32"÷1" 3/16).
1) After an initial period of use.

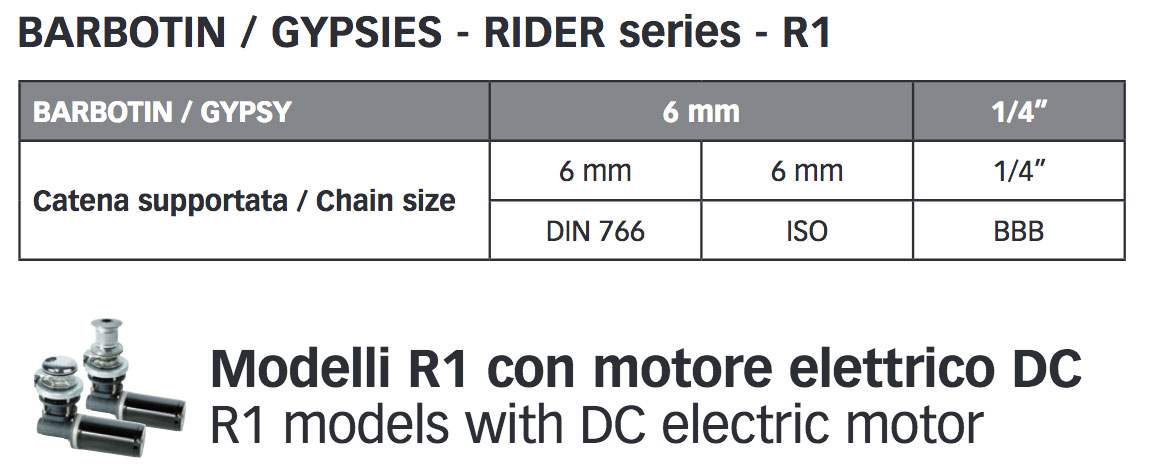

2) Measurements taken with a gypsy for a 6 mm chain DIN 766, 6 mm ISO, BBB 1/4".
