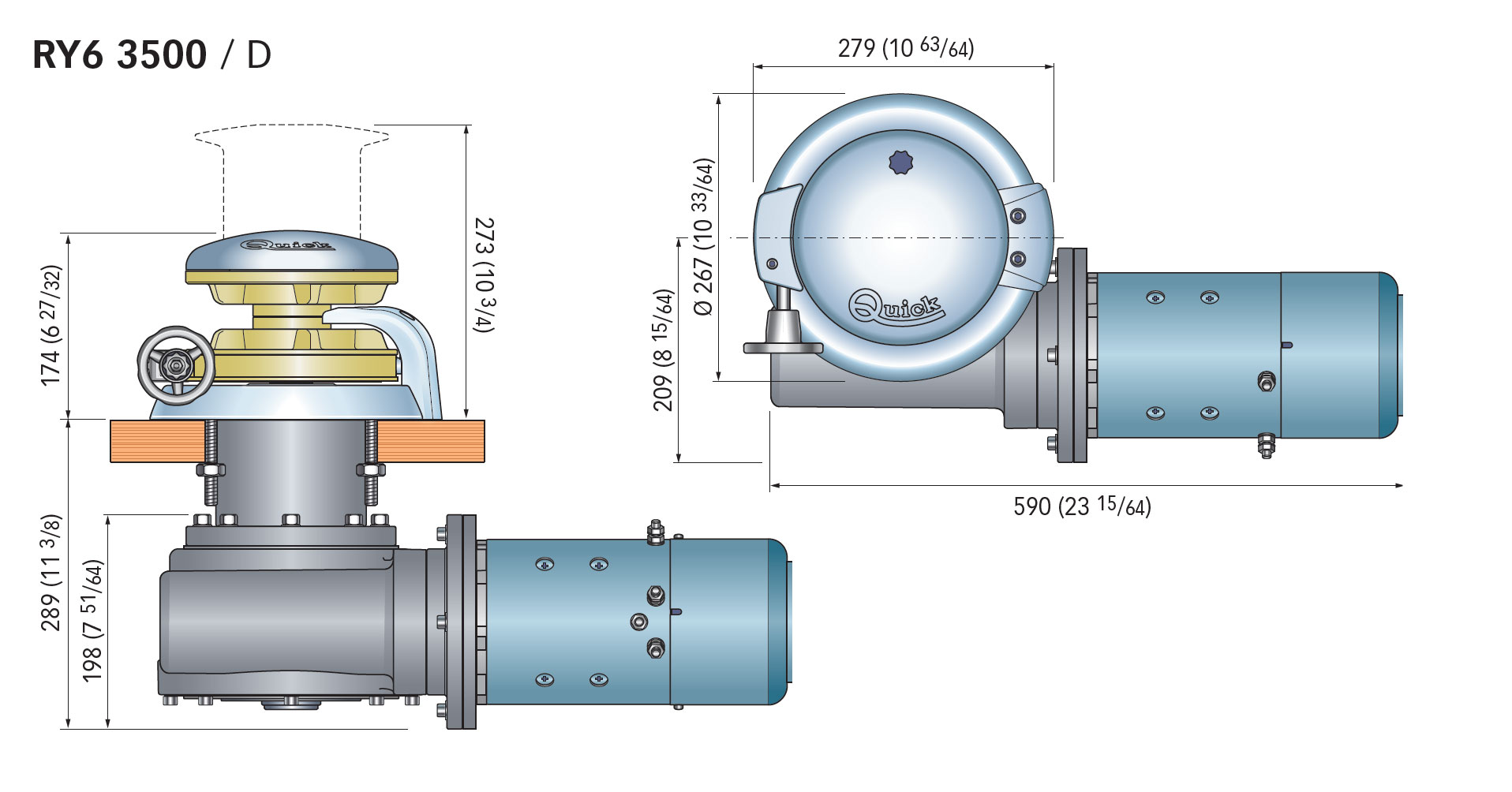

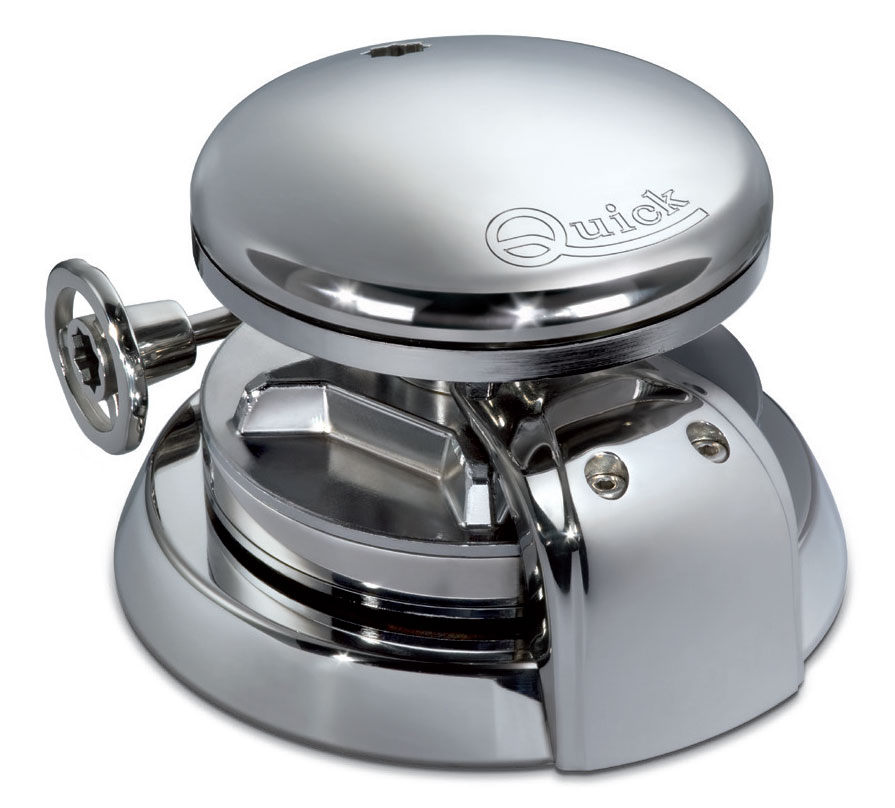

Quick ROY DC RY6 3524 3500W 24V vertical windlass in Aisi 316 stainless steel without drum
Quick ROY DC RY6 3524 3500W 24V vertical windlass in AISI 316 stainless steel with safety mechanical band brake for boats from 22 to 29 metres (75 - 95 ft).
• Stainless steel Aisi 316 base, drum and gypsy cover.
• Without drum.
• Integrated sensor and magnet for chain counter.
• Safety mechanical band brake.
• IP67 watertight motor.
• Anodized aluminium gearbox.
Model: RY6 3524;
Motor power: 3500W;
Motor supply voltage: 24V;
Maximum pull: 4000 Kg;
Maximum working load: 1500 Kg;
Working load: 700 Kg;
Current absorption at working load (1): 197 A;
Maximum chain speed (2): 27,6 m/min;
Maximum chain speed at working load (2): 14,7 m/min;
Weight: 94,5 Kg;
Gypsy: Ø 200 mm;
Deck thickness: 30÷60 mm (1" 3/16÷2" 5/16).
On request, shaft and studs can be supplied for greater deck thicknesses..
1) After an initial period of use.

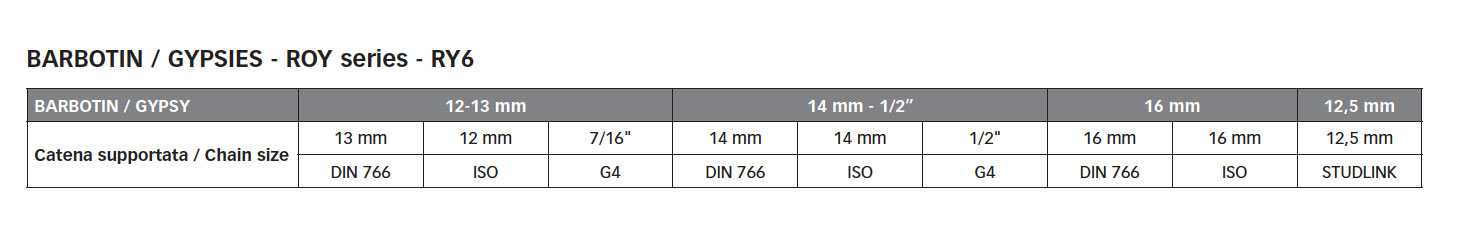

2) Measurements taken with a gypsy for a 12/14 mm chain.
3) The indication may vary according to the boat type and the anchor-rode type.
