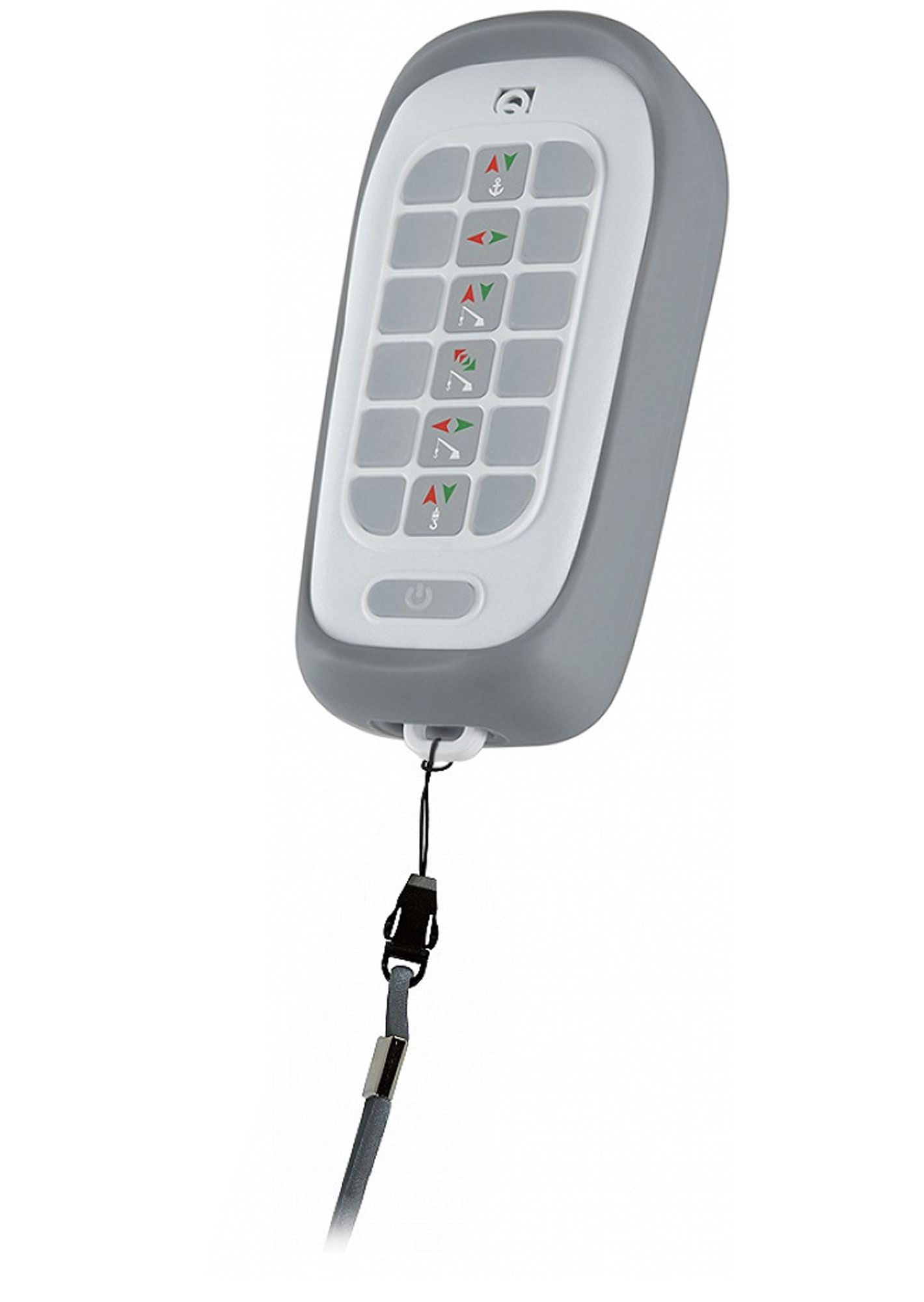

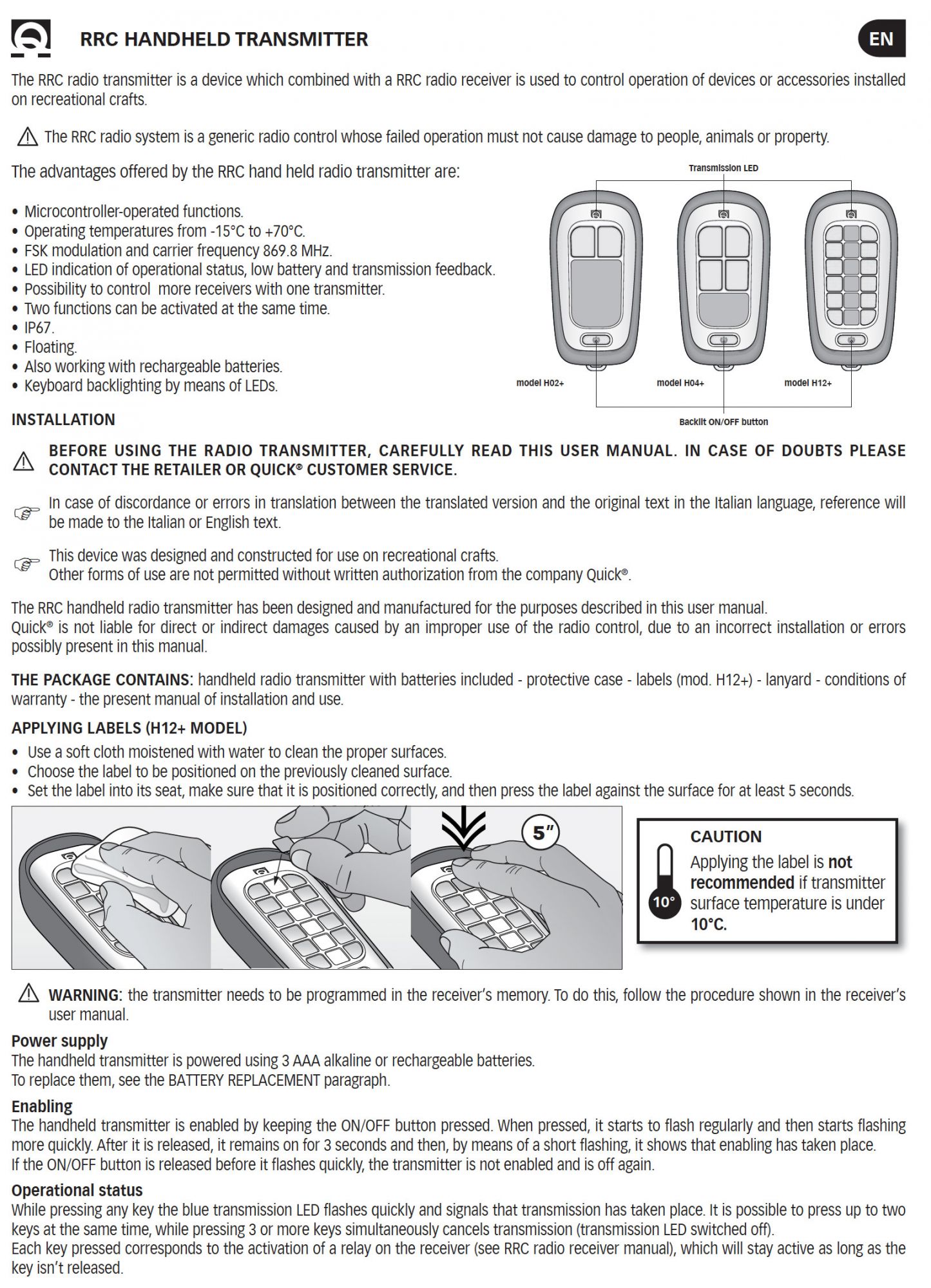

The RRC radio transmitter is a device which combined with a RRC radio receiver is used to control operation of devices or accessories installed on recreational crafts.
The RRC radio system is a generic radio control whose failed operation must not cause damage to people, animals or property.
The advantages offered by the RRC hand held radio transmitter are:
• Microcontroller-operated functions.
• Operating temperatures from -20°C to +50°C.
• FSK modulation and carrier frequency 869.8 MHz.
• LED indication of operational status, low battery and transmission feedback.
• Possibility to control more receivers with one transmitter.
• Two functions can be activated at the same time.
• P67 protection degree.
• Floating.
• Also working with rechargeable batteries.
• Keyboard backlighting by means of LEDs.

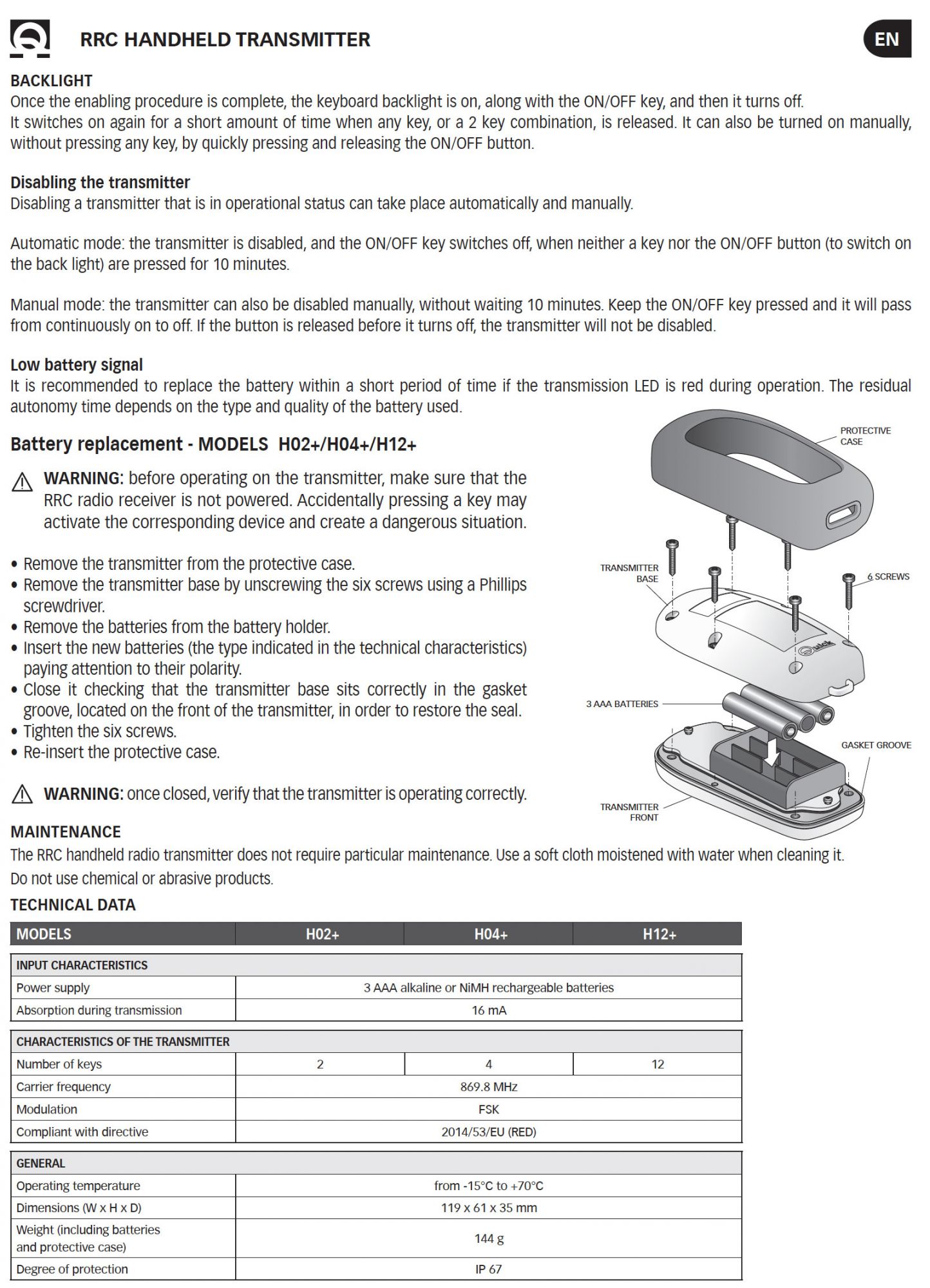

Technical data:
- Model: H12+;
- Number of channels: 12;
- Carrier frequency: 869.8 Mhz;
- Modulation: FSK;
- Power supply: 3 alkaline AAA batteries or rechargeble Nims;
- Absorption during transmission: 16 mA;
- Working temperature: -20 °C +50 °C;
- Dimensions in mm: 119x61x35 mm;
- Weight: 144 g;
- Protection degree: IP67;
- Complies with Directive: 2014/53/EU (RED).
