Description
Quick SUGAR HP 1.5W 10~30Vdc LED downlight 49-59lm IP65 CO40 in satin finish aluminium and 9x40mm tempered glass

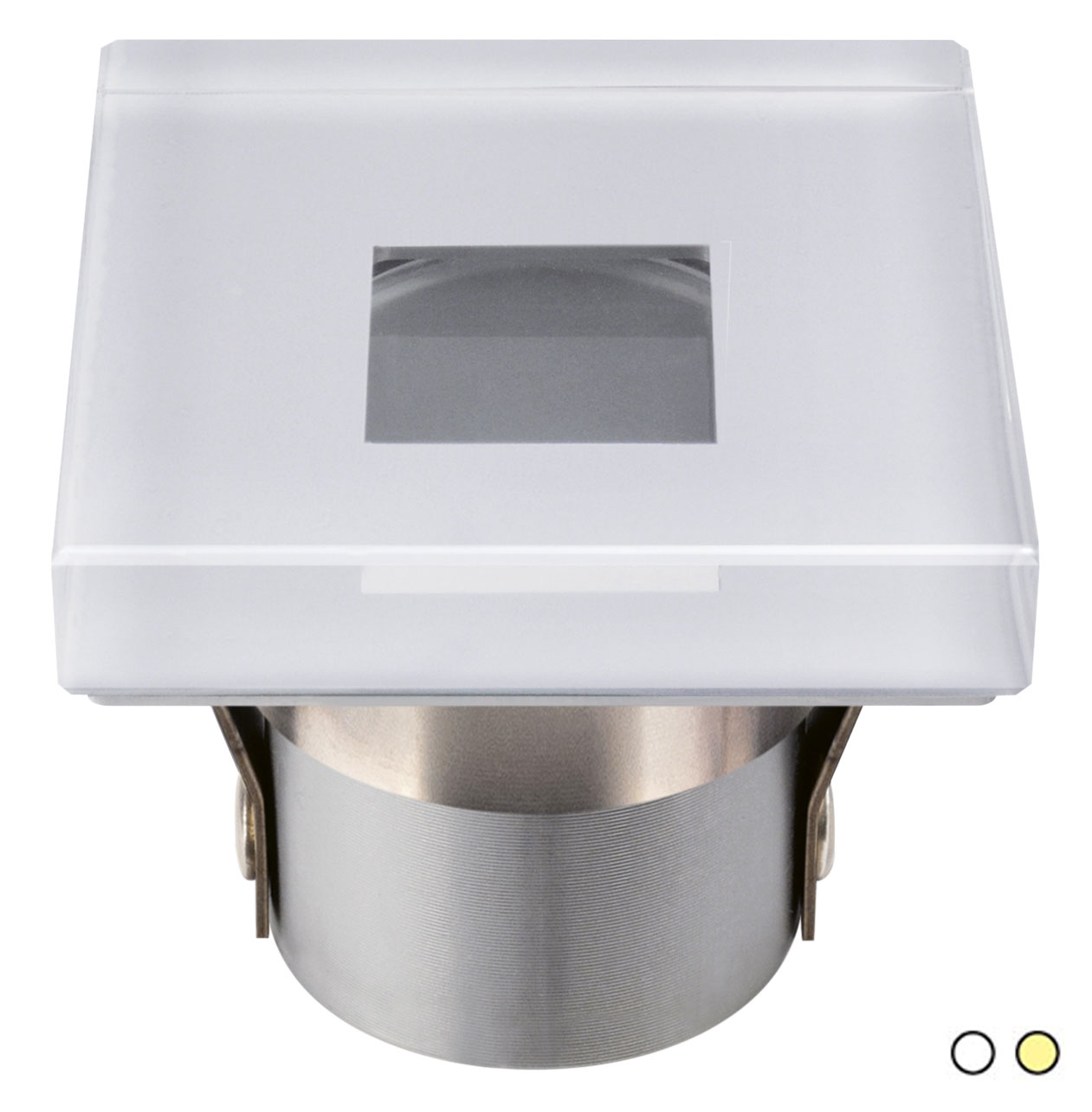

Square built-in courtesy light in satin finish aluminium and tempered glass.
The exclusive design, effective illumination and optimal chromatic yield make the product particularly elegant and refined.
Square tempered glass frame - satin finish lens. Natural, warm light.
Features:
Power type: Constant Voltage;
Light source: POWER LED;
Supply: 10 ÷ 30 V;
Power consumption: 1.5 W;
Current consumption: 0.25 A @ 24V;
Average lifespan: 50.000 h;
Dimmable: Yes;
IP protection degree: 65;
Light colours: DAYLIGHT / WARM WHITE;
Frame material: ALUM./SATIN FINISH;
Finishing: 9 mm TEMPERED GLASS;

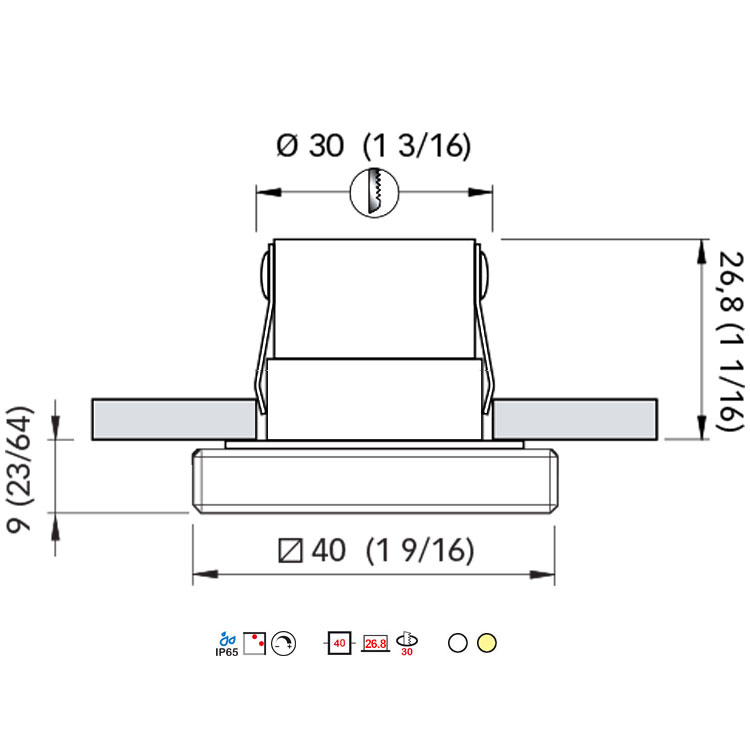

Square frame: Square 40 mm (1 9/16");
Recess: 26.8 mm (1 1/16");
Hole: Ø30 mm (1 3/16");
Mounting: springs.
Photometric data:

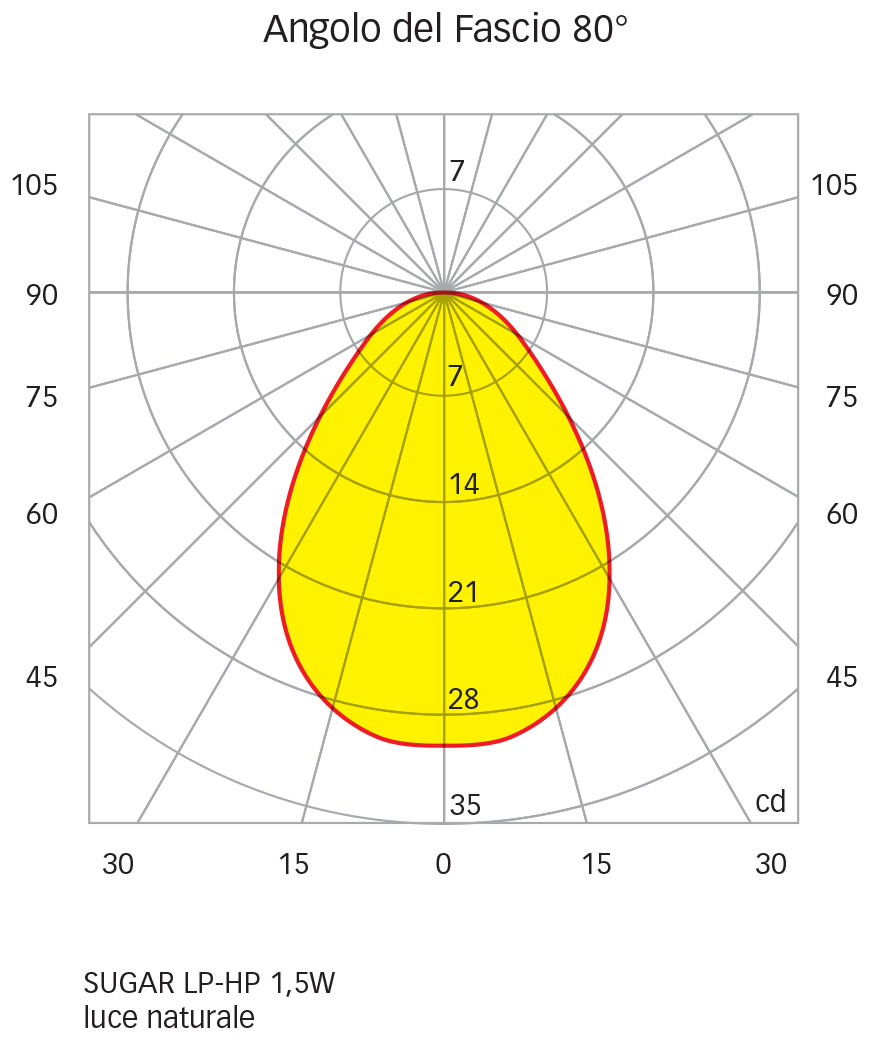

Natural White 3800-4100K
- CRI: ≥ 80;
- Angle: 80°;
- Luminous flux: 59 lm;
- Illuminance - distance 1 m: Ø 1.67 m - 30 lux;
- Illuminance - distance 2 m: Ø 3.35 m - 7.5 lux;
- Illuminance - distance 3 m: Ø 5.05 m - 3.3 lux.

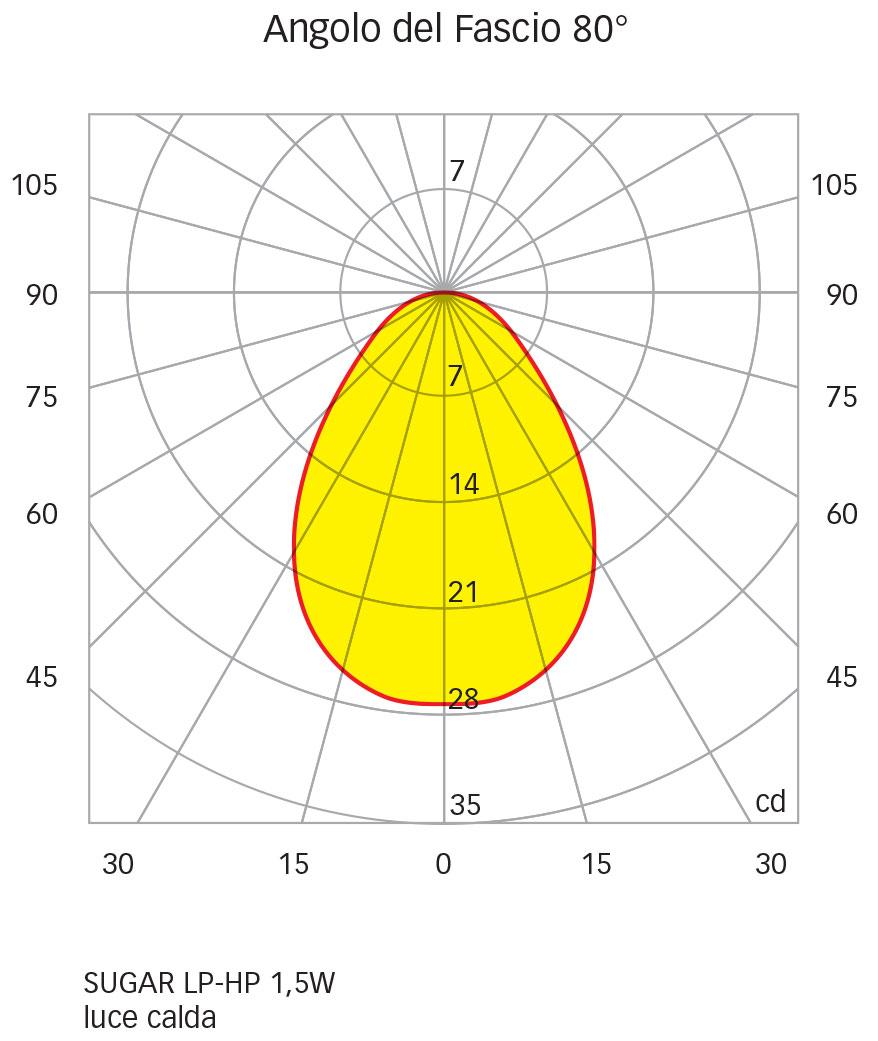

Warm White 2900-3100K
- CRI: ≥ 90;
- Angle: 80°;
- Luminous flux: 49 lm;
- Illuminance - distance 1 m: Ø 1.67 m - 27.3 lux;
- Illuminance - distance 2 m: Ø 3.35 m - 68 lux;
- Illuminance - distance 3 m: Ø 5.05 m - 3 lux.
LED Protection: Spike protected ± 500V.
Polarity sensitive: Yes.
Certifications: class III, CE.
Note: Please choose the desired colour from the drop down menu.
25300024BIN NATURAL WHITE
25300024BIC WARM WHITE
