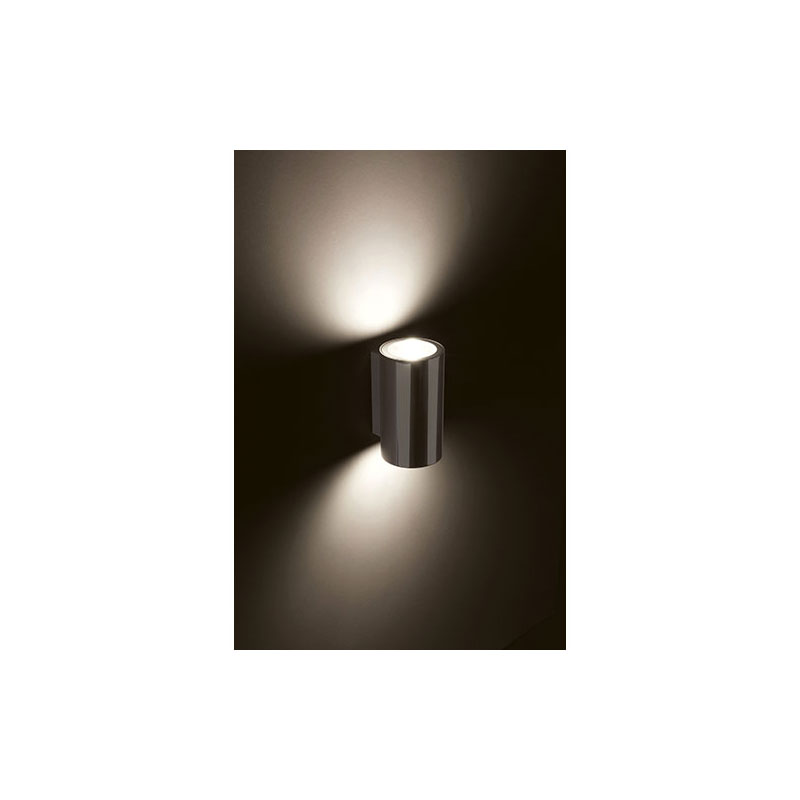

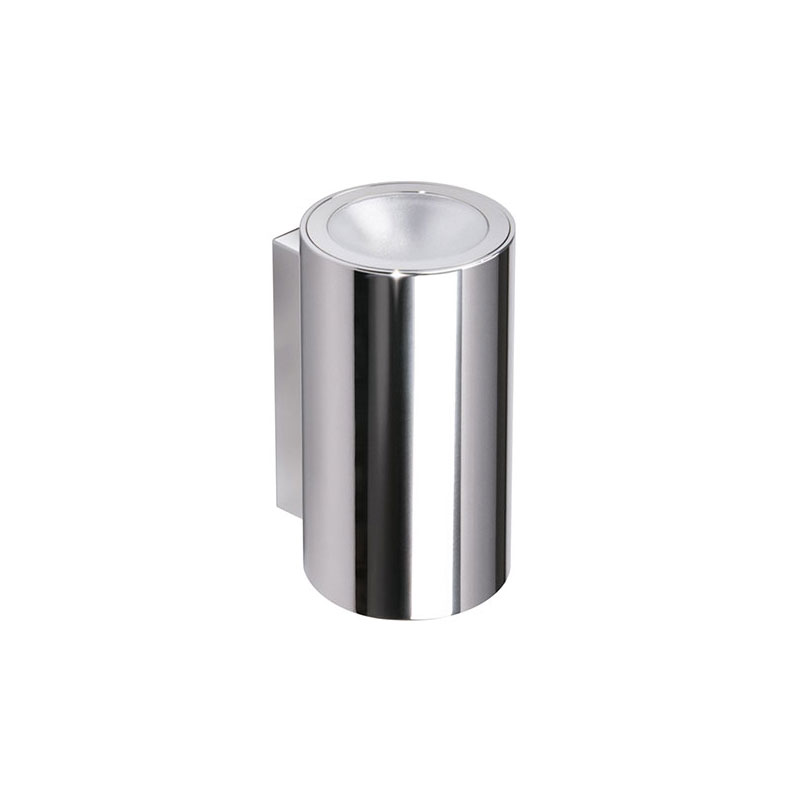

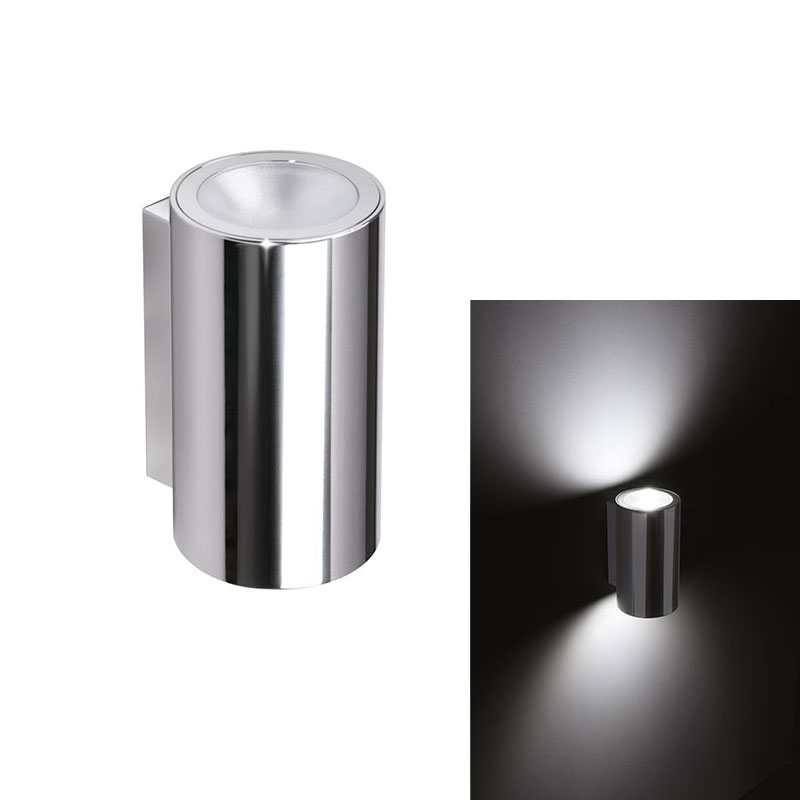

Fixed reading light with 2 POWER LED lights in 2 color temperatures. TB316 is a wall light supplied with single LED source, made in AISI 316 stainless steel and suitable for internal and external applications (IP65). TB316 Tower adds up to the Quicklighting wall lights range, which includes the QB and TB series ranges.
Technical features:
Power type: Constant Voltage;
Supply: 10 ÷ 30 V;
Light source: 2 POWER LED;
Power consumption: 6+6 W;
Current consumption: 0.5 A @ 24V;
Average lifespan: 50.000 h;
Dimmable: Yes;
IP protection degree: 65;
Frame material: AISI 316 S/STEEL;
Finish: CHROMED;
Light colours: DAYLIGHT / WARM WHITE;
Mounting: SCREWS;

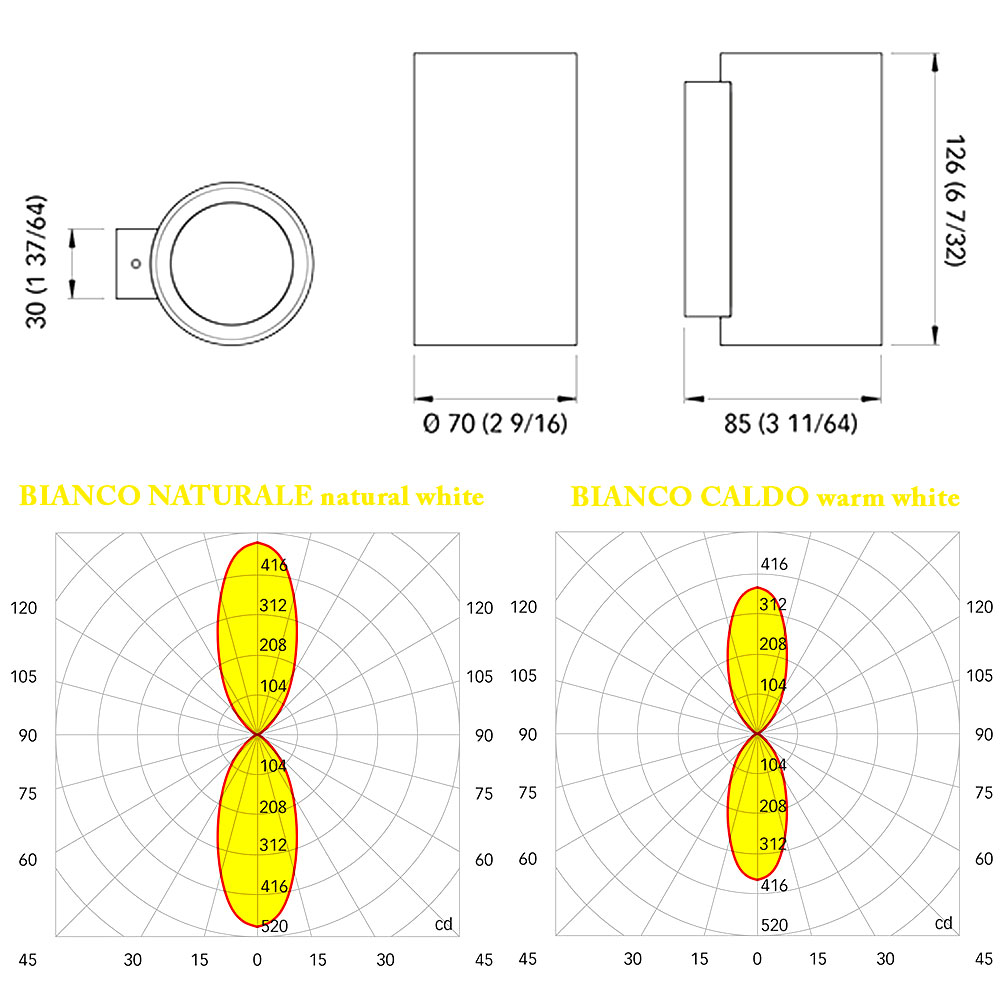

Dimensions: 85x126 mm (3 11/64'' x 6 7/32'') Ø70 mm (2 9/16'');
Photometric data:
Natural White 3800-4100K:
- CRI: ≥ 80;
- Angle: 45°;
- Luminous flux: 900 lm;
- Illuminance - distance 1 m: Ø 0.87 m - 497.8 lux;
- Illuminance - distance 2 m: Ø 1.74 m - 124.5 lux;
- Illuminance - distance 3 m: Ø 2.62 m - 55.3 lux;
Warm White 2900-3100K:
- CRI: ≥ 90;
- Angle: 45°;
Luminous flux: 650 lm;
- Illuminance - distance 1 m: Ø 0.87 m - 374.3 lux;
- Illuminance - distance 2 m: Ø 1.74 m - 93.6 lux;
- Illuminance - distance 3 m: Ø 2.62 m - 41.6 lux.
LED Protection: Spike protected ± 500V.
Polarity sensitive: Yes.
Certifications: Class III, CE.
Note: Please choose desired colour from the drop down menu.
26002418BIN Natural White
26002418BIC Warm White
