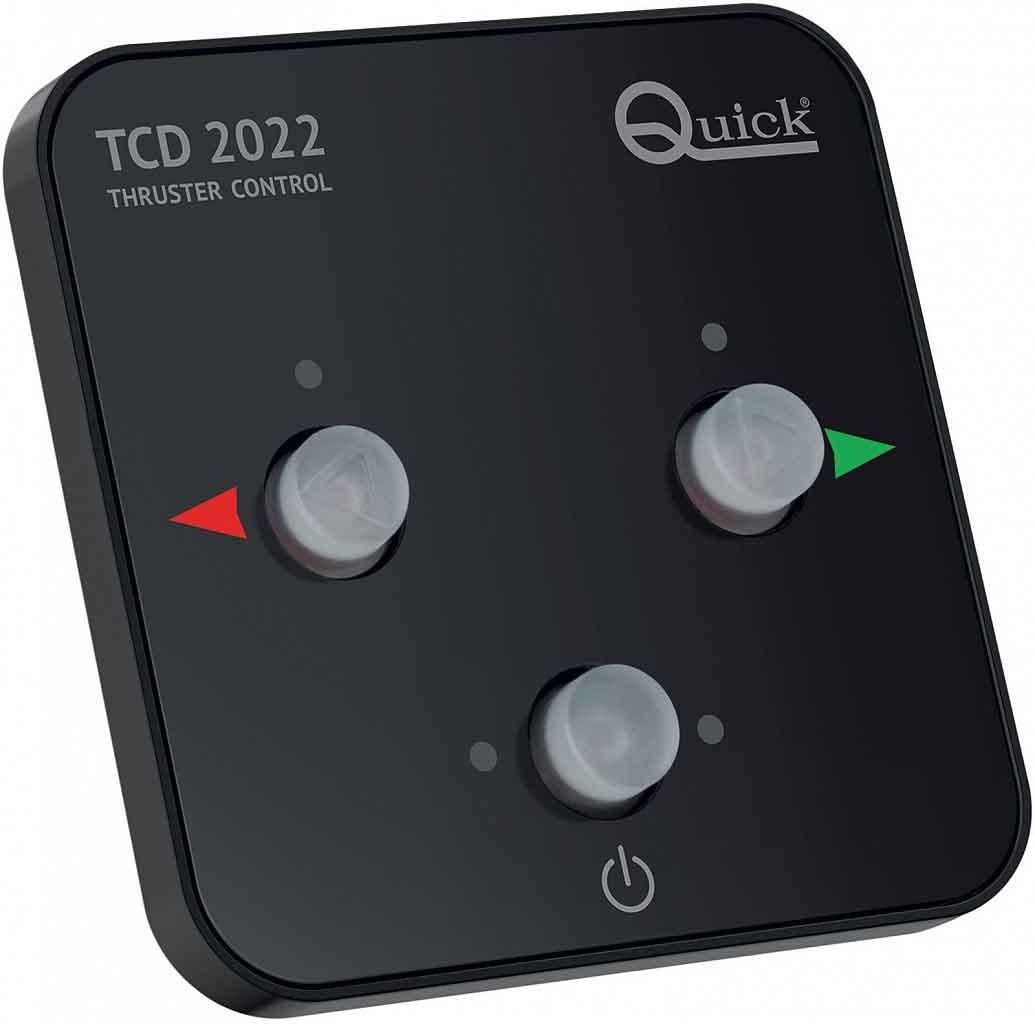

Quick TCD 2022 Bow thruster push button control panel
Bow thruster control panel in UV resistant silicon rubber to operate single bow thruster via push buttons.
Other important advantages offered by TCD series Control panels are:
• Simple and intuitive user interface.
• Universal power supply (12/24 Vdc).
• Can work in a wide range of ambient temperatures.
• Possibility of connecting several TCD controls in parallel.
• Easy to install by means of 2-wire connector (optional extensions).
• Automatic priority system.
• Automatic disablement.
• Protection against reverse polarity, short circuit output, prolonged activity of motor and interruption of thruster controls wiring.
• Acoustic signals (that can be deactivated)
Technical Data:
- Model: TCD 2022;
- Current flow of the engine controls: 4A max;
- Supply voltage (1): from 8 to 31 Vdc;
- Current consumption at rest (2): 10 mA;
- Operating temperature: from -20 to +70 ° C;
- Protection Degree (3): IP66;
- Dimensions: 78x78x22 mm;
- Weight: 0,80 kg.
(1) With the supply voltage lower than 8 Vdc the command can be reset.
(2) Typical value with command disabled.
(3) Excluding reverse of command (IP20).
Manufactured by Quick®.
