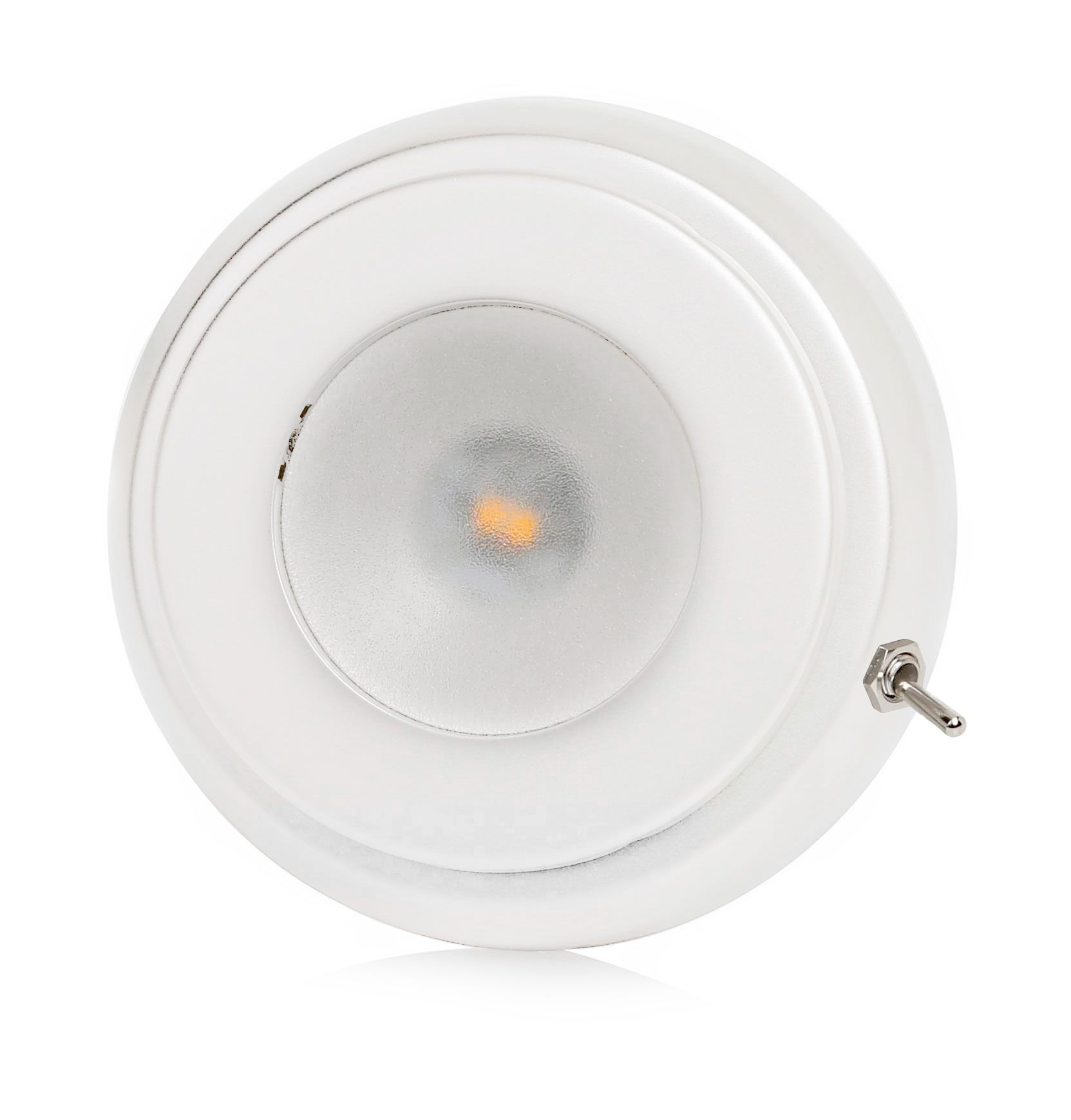

Surface mounting LED-light with circular frame and switch. In 316 AISI stainless steel with satinised anti-shock material diffuser. White 9010 finish. Ideal for ceiling and wall installation. Light colours: warm white, natural white, blue, red.
Features:
Power type: Constant Voltage;
Supply: 10 ÷ 30 V;
Power consumption: 2 W;
Current consumption: 0.09 A @ 24V;
Average lifespan: 50.000 h;
Dimmable: Yes;
IP protection degree: 40;
Switch: Yes;
Light colours: warm white, natural white, blue, red;
Finish: White 9010;
Frame material: AISI 316 stainless steel;
Square frame: Ø 90 mm 3 9/16";
Thickness: 22 mm 55/64";
Mounting: screws.

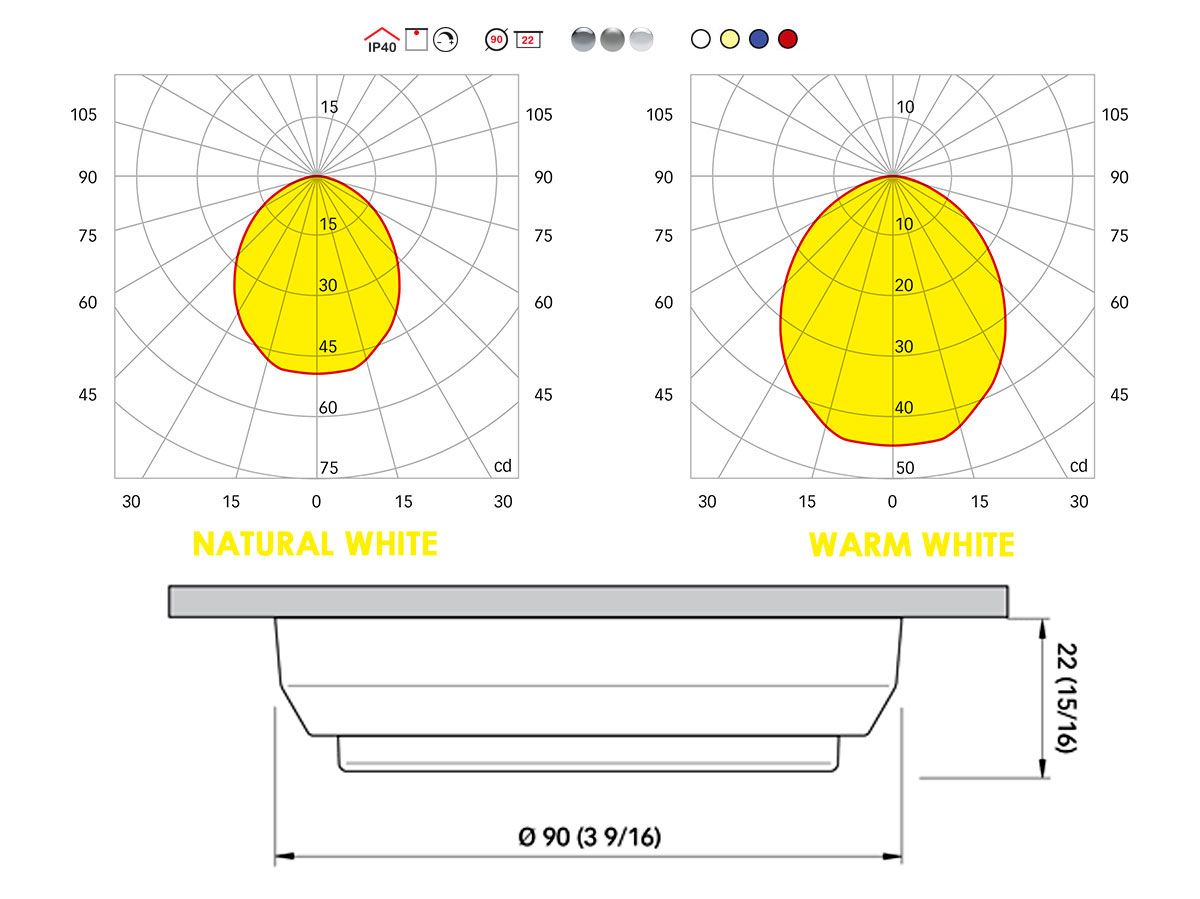

Photometric data:
Natural White 3800-4100K
- CRI: ≥ 80;
- Angle: 100°;
- Luminous flux: 115 lm;
- Illuminance - distance 1 m: Ø 2.43 m - 44.4 lux;
- Illuminance - distance 2 m: Ø 4.85 m - 11.1 lux;
- Illuminance - distance 3 m: Ø 7.28 m - 4.9 lux.
Warm White 2900-3100K
- CRI: ≥ 80;
- Angle: 100°;
- Luminous flux: 105 lm;
- Illuminance - distance 1 m: Ø 2.43 m - 40.8 lux;
- Illuminance - distance 2 m: Ø 4.85 m - 10.2 lux;
- Illuminance - distance 3 m: Ø 7.28 m - 4.5 lux.
Blue
- Angle: 100°.
Red
- Angle: 100°.
LED Protection: Spike protected ± 500V.
Polarity sensitive: Yes.
Certifications: Class F, class III, CE.
Note: Please choose desired colour from the drop down menu.
27002425BIN Natural White
27002425BIC Warm White
27002425BL Blue
27002425RO Red
