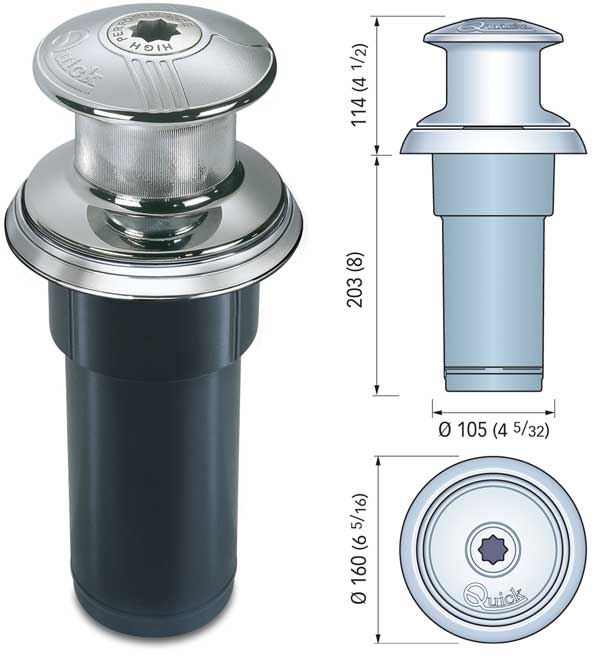

Quick Totem Capstan 1100W 24V. The capstan is generally used for mooring and manoeuvring activities (dock line handling). This capstan is in chromed-plated bronze, vertical motor to facilitate installation. High efficiency of the epicyclical gearbox, allowing higher motor performance.
For boats from 11 to 18 metres.
- Motor power: 1100W;
- Motor supply voltage: 24V;
- Maximum pull: 820 kg;
- Maximum working load: 290 kg;
- Working load: 95 kg;
- Current absorbtion @ working load (1): 40A;
- Maximum chain speed (2): 25,8 m/min;
- Maximum chain speed @ working load (2): 16,8 m/min;
- Drum diameter: 80 mm;
- Weight: 8,1 kg.
