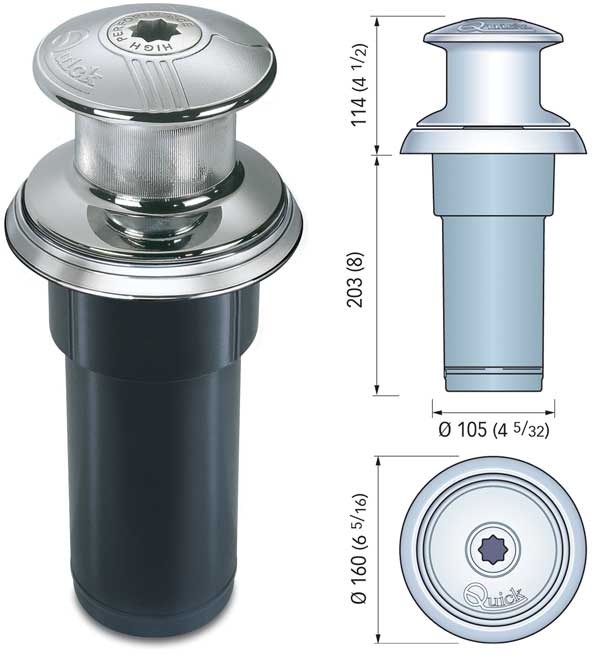

Quick Totem Capstan 500W 12V. The capstan is generally used for mooring and manoeuvring activities (dock line handling). This capstan is in chromed-plated bronze, vertical motor to facilitate installation. High efficiency of the epicyclical gearbox, allowing higher motor performance.
For boats from 8 to 12 metres.
- Motor power: 500W;
- Motor supply voltage: 12V;
- Maximum pull: 620 kg;
- Maximum working load: 200 kg;
- Working load: 65 kg;
- Current absorbtion @ working load (1): 60A;
- Maximum chain speed (2): 22,5 m/min;
- Maximum chain speed @ working load (2): 10,3 m/min;
- Drum diameter: 80 mm;
- Weight: 8,1 kg.
